TWIN DUAL DUPLEXED FILTER E900

The DDF0015 is deployed when co-locating 900 and 850MHz systems. Attenuating the 850MHz downlink band this filter prevents the 900MHz BTS receive being overloaded from 850MHz systems.

FEATURES

  • Filters unwanted carrier frequencies introduced when antennas from both 850 and 900MHz services are co-located
  • Twin dual duplex structure.
  • Excellent rejection in 850MHz band, low loss, high selectivity
  • Factory tuned anywhere in extended 900MHz band if required
  • DC Pass available

technical specifications
Band Name Downlink (TX) Path Uplink (RX) Path
rf performance
Passband 927 - 935MHz 882 - 890MHz
Insertion loss 0.55dB maximum 2.3dB maximum
Return loss 18dB minimum
Rejection 30dB minimum @ 874 - 880MHz
electrical
Impedance 50ohms
Intermodulation products -160dBc max (5th Order, 2x 20 W carriers)
Maximum input power 120W (average) single carrier
4 carriers, 30W (average per carrier) 800W (PIP)
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -5ºC to +65ºC | 23ºF to +149ºF
Ingress protection IP67 (outdoors)
Lightning protection IEC61312-1
8/20us, +/-5kA max
DC grounded, all ports
MTBF >1,000,000 hours
mechanical
Dimensions H x D x W 239 x 217 x 89mm | 9.4 x 8.54 x 3.5in
Weight 8kg | 17.63lbs
Finish Painted light grey
Connectors DIN 7-16 (F) x 4
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Description
Other tunings available contact Kaelus for details
DDF0015F3V2-1 TWIN DUAL DUPLEXED FILTER 882-890/927-935 REJ 30 @880, NO DC
electrical block diagram

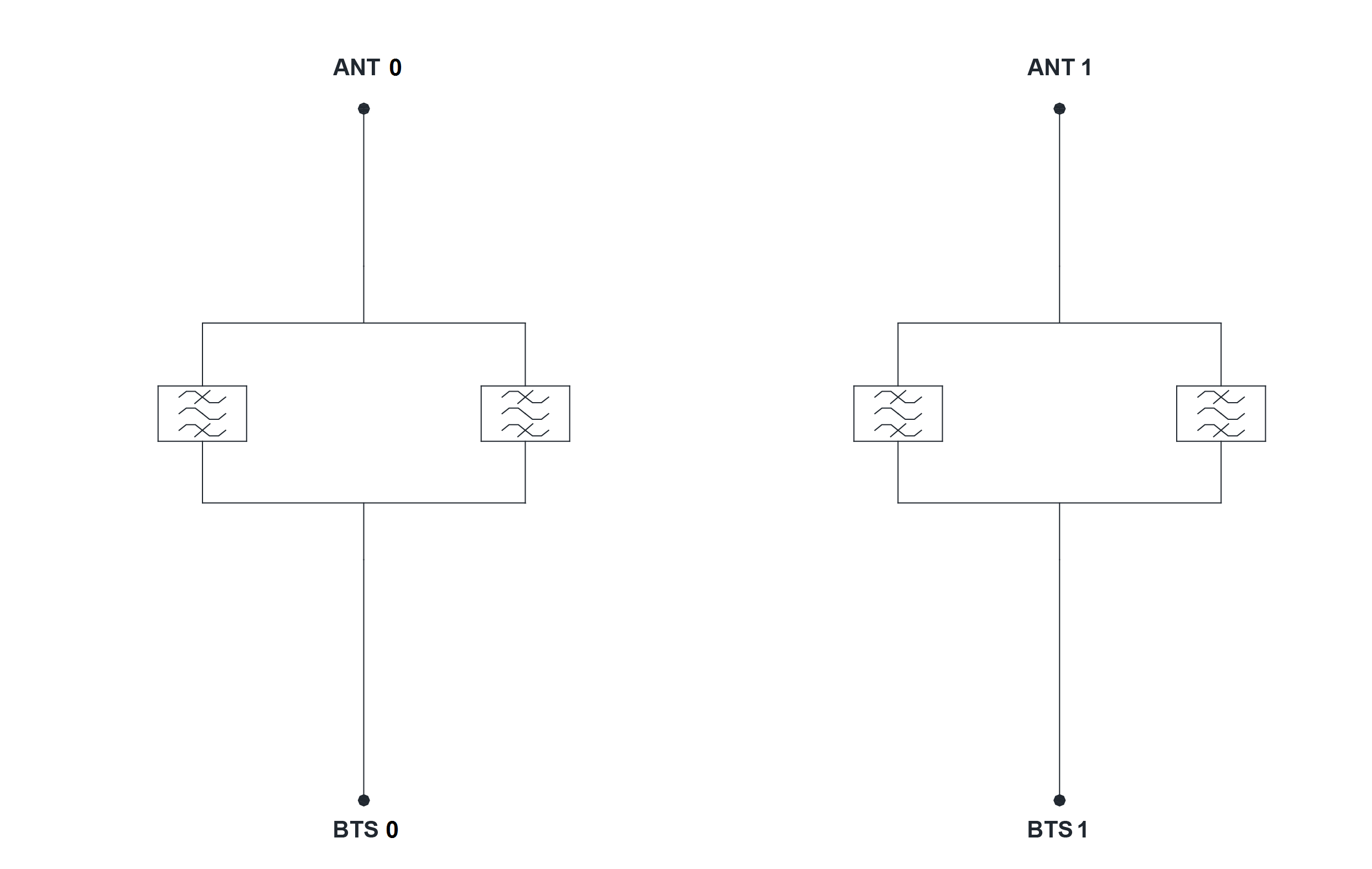

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

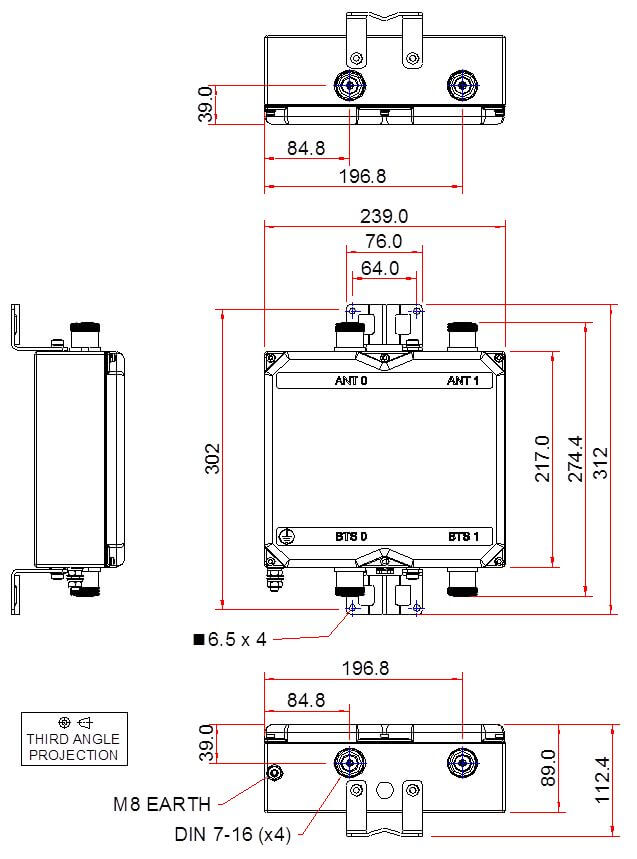

MECHANICAL BLOCK DIAGRAM
