TWIN DUAL DUPLEXED FILTER 850

Designed as an 850MHz Transmit filter the DDF0019 is used to attenuate spurious emitting from a 850MHz Base Station over and adjacent 900MHz RX carriers.

FEATURES

  • For use in 850MHz applications with 900MHz co-location
  • Low downlink insertion loss while attenuating spurious outside the 850MHz transmit spectrum
  • DC pass configured for use with Tower Mounted amplifiers
  • Economical twin filter solution
  • Suitable for retuning to bandwidths of 10-18MHz with guard bands >4MHz

technical specifications
Band Name Downlink (TX) Path Uplink (RX) Path
rf performance
Passband 870 - 885MHz 825 - 840MHz
Insertion loss 1.05dB maximum 0.5dB maximum
Return loss 18dB minimum
Rejection 45dB minimum @ 890 - 915MHz
electrical
Impedance 50ohms
Intermodulation products -160 dBc max ( 2x 20 W carriers, in receive band)
Maximum input power 100W (average) / 800W (PEP)
dc / aisg
Passband 0 - 3MHz
Insertion loss 1dB maximum
Return loss 12dB minimum
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -20ºC to +60ºC | 4ºF to +140ºF
Ingress protection IP67 (outdoors)
Altitude 2,600m | 8,530ft maximum
Lightning protection IEC61312-1
8/20us, 5kA max
DC grounded, all ports
MTBF >1,000,000 hours
mechanical
Dimensions H x D x W 239 x 217 x 88mm | 9.40 x 8.54 x 3.46in
Weight 7kg | 15.4lbs
Finish Painted light grey
Connectors DIN 7-16 (F) x 4
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Description
X denotes different frequency tuning and DC pass options, contact Kaelus for details
DDF0019F2V2-1 TWIN DUAL DUPLEXED FILTER 825-840/870-885 REJ 45 @ 890, DC
DDF0019FxVx-1 TWIN DUAL DUPLEXED FILTER 850
electrical block diagram
ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

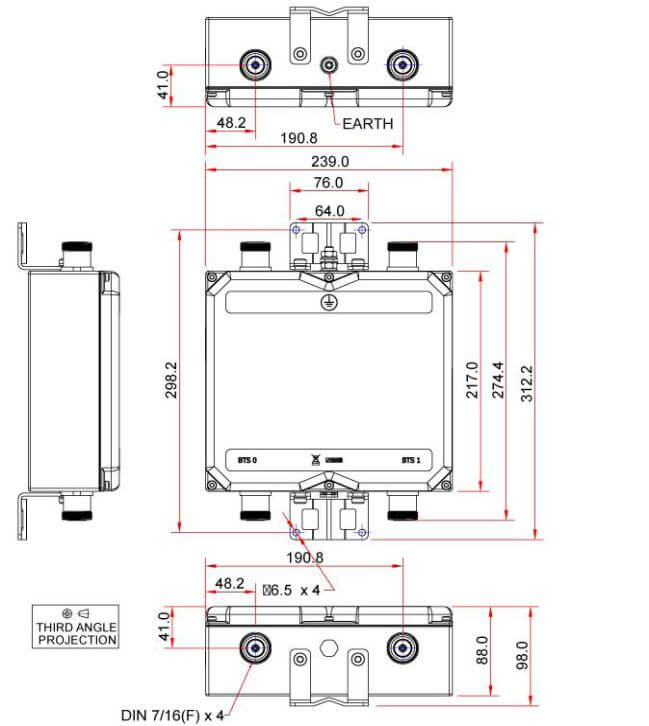

MECHANICAL BLOCK DIAGRAM
