Mounting kit (P6RQLU0X)

KA-9012-0002

Kaelus offers a robust bracket to withstand harsh conditions. The design of this tilt bracket has been done in close co-operation with installation staff to ensure that they are easy to mount in field and to provide mechanical tilt of antenna.

FEATURES

Designed for mechanical tilt of the antenna
Compatible with Kaelus antennas P6RQLU0x
Easy to install in field
Supports 50-155mm pole diameters

Download PDF

GET A QUOTE

technical specifications

mechanical

Dimensions H x D x W

68 x 313 x 279 mm | 2.7 x 12.3 x 11.0 in

Weight

10.1 kg | 22.2 lbs

Pole dimensions

50-155 mm | 2.0- 6.1 in

Bracket material

Galvanized steel

Screw/nut material

Galvanized steel

ordering information

Part Number

Description

Configuration

KA-9012-0002

Support 0- 6° of mechanical downtilt

Contains a pair of brackets

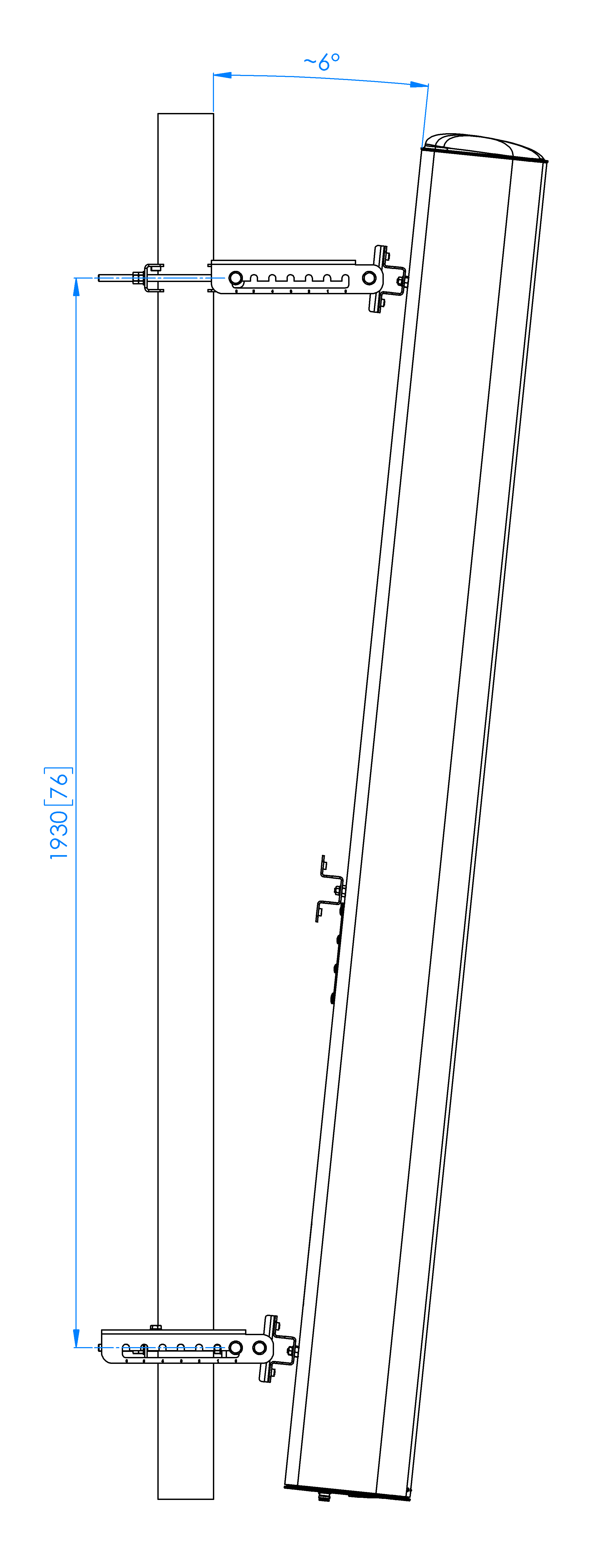

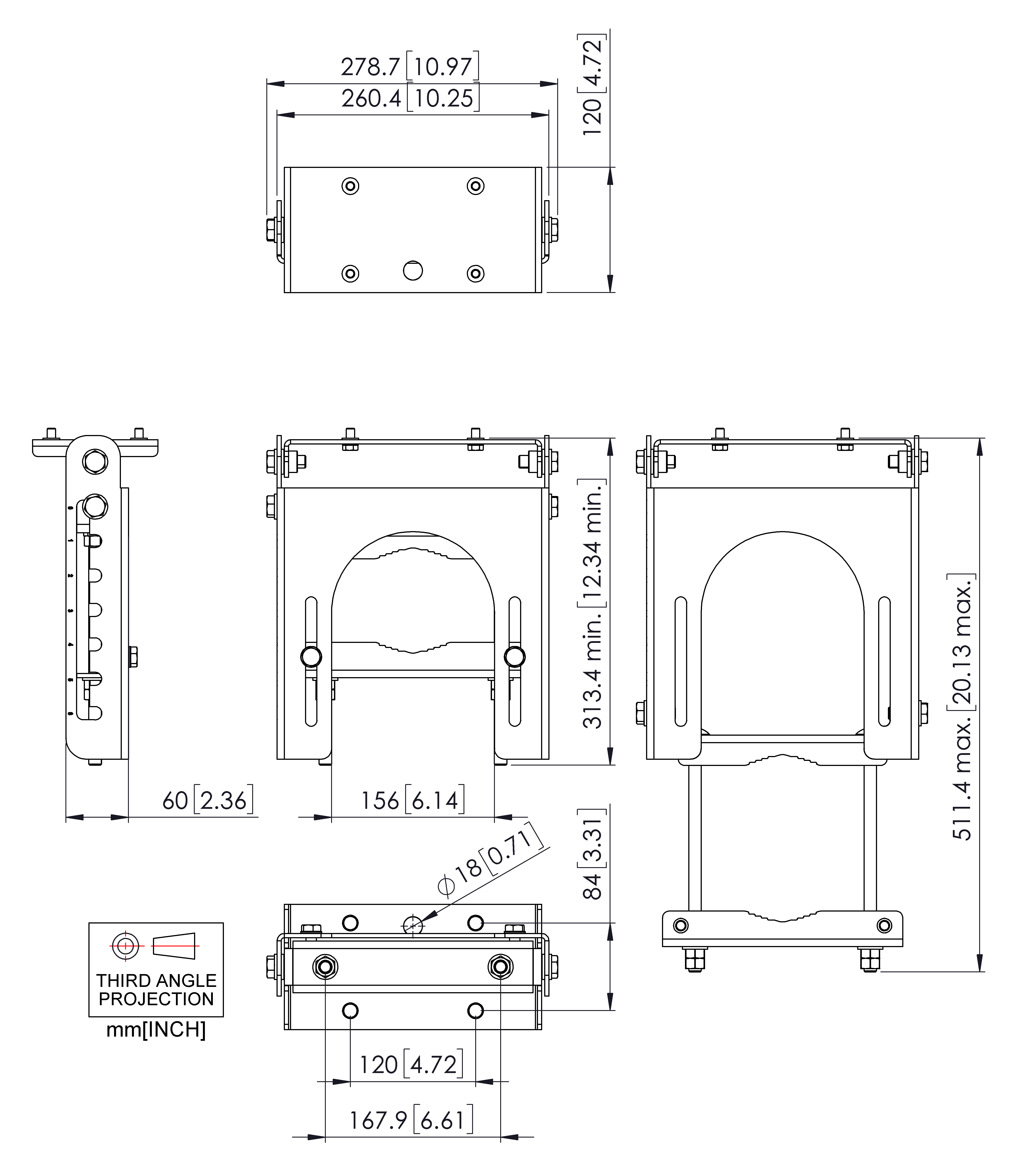

mechanical block diagram

KA-9012-0002 contains of a pair of bracket. For practical purposes only one bracket is shown in the mechanical block diagram. Both brackets are identical.
