8 port - 4x Low Band 4x Mid Band w 3.5GHz Transparency

F6IHEU01

Ports:                             Frequency:
4x                                   694  -   960 MHz
4x                                 1695  -  2200 MHz, 2496 - 2690 MHz

  • Transparent for 3300-4000MHz radios
  • Fully integrated Remote Electrical Tilt, AISG compatible
  • Integrated diplexer for independent tilt of mid-band arrays
  • Supports MIMO: 4x4 on Low Band and Mid Band
  • Electrical specifications as per NGMN P-BASTA version 12.0

Product number:

F6IHEU01                                        Length, Width, Depth [inch|mm] : 106.5x19.6x8.6 | 2705x498x217



Technical specifications:

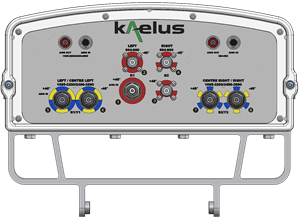

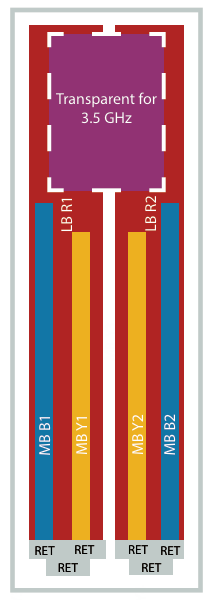

Arrays-IceWallaby.png                   Icewallaby_Bottom.png
