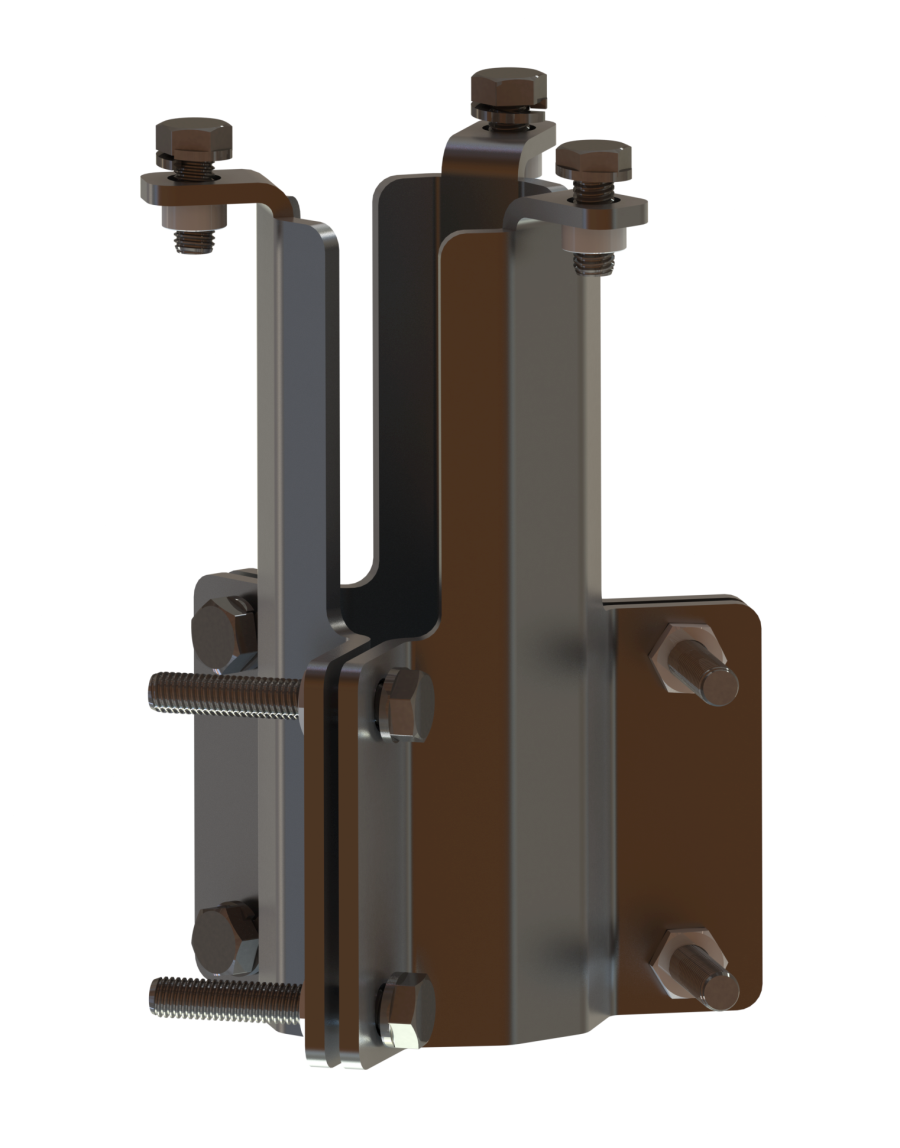

Mounting kit (60-160mm pole)

Mounting kit (60-160mm pole)

KA-9008-0002

Kaelus offers a variety of mounting options for small cell canister antennas. The design of these mounting kits has been done in close co-operation with installation staff to ensure that they are easy to mount in field as well as available for different installation challenges such as wall mounting, corner mounting and top mounting.

FEATURES

  • Designed for being mounted on top of poles
  • Compatible with Kaelus small cell 14" platforms
  • Easy to install in field
  • Flexible bracket option
  • Supports 60 -160mm pole diameters
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
mechanical
Dimensions H x D x W 167 x 160 x 160mm | 6.6 x 6.3 x 6.3in
Weight 0.6kg | 1.3lbs
Pole dimensions 60 - 160mm | 2.4 - 6.3in
Bracket material Steel
Screw/nut material Stainless steel
ordering information
Part Number Description
KA-9008-0002 Compatible with M0FEBF02-Vx-P1

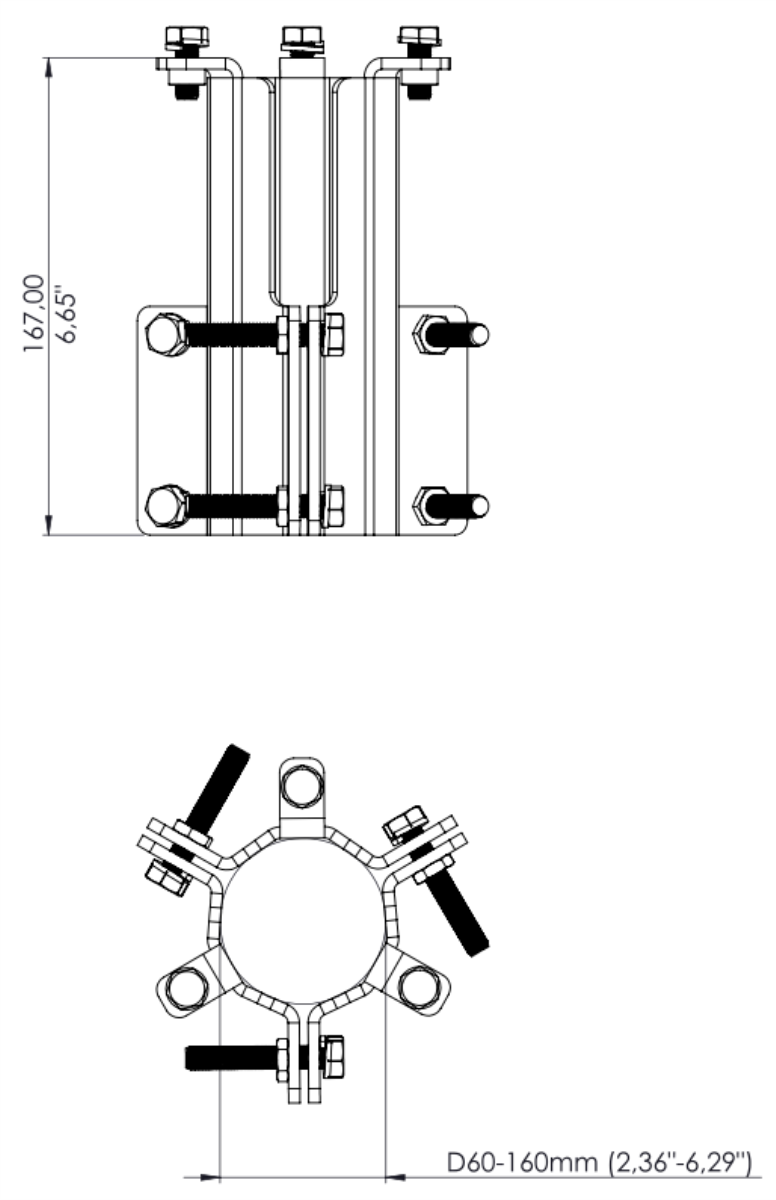

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
