ACU0002

ACU0002

AISG CONTROLLER

The Kaelus Antenna Control Unit (ACU) is used to provide remote monitoring and RET control for TMA devices installed at a cell site. The ACU0002 is able to communicate with AISGv1.1 or AISGv2.0 devices via a local Ethernet connection or remotely through a Ethernet connection.

FEATURES

  • Controls and monitors RET and TMA devices via AISG protocol
  • Open collector contacts provides alarm report output to BTS
  • Provides remote software download capability
  • Remote or local control via Ethernet interface
  • Able to store local site data such as GPS coordinates, site contact information, etc.
  • Supports -48V DC power input
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE

Product Resources

technical specifications
electrical
Input voltage/current-48VDC / maximum 1.5A
Input protectionFuse (slow blow)
Output voltage/current+28VDC @ 1.7A
Maximum output to AISG devices50W
monitoring / control
Max number of AISG devicesUp to 24 RET and 6 TMA devices (dependent on device power consumption and cable length)
Comunication ports1 x RS485
Network interface2xEthernet 10/100/1000Mbps
Network protocolTCP/IP, HTTP/HTML
Alarm interface outputs3 external outputs wired open collector
environmental
Temperature range0ºC to +55ºC | 32°F to 131°F, indoor
Lightning protectionYes
MTBF>400,000 hours at 22ºC / 71.6ºF
mechanical
Dimensions H x D x W220 x 185 x 44mm | 8.66 x 7.28 x 1.73in (excluding mounting hardware)
Weight1.5kg | 3.3lbs
Mounting1U 19 inch rack and wall mounting brackets supplied
DC input connectorHDR PLUG(F) SCR P3.81 GRN 3P R/A LF supplied
Alarm connectorHDR PLUG(F) P3.81 GRN 5P R/A LF supplied
AISG connectors 1 x 8-pin circular AISG female
ComplianceFCC
ordering information
Part NumberDescription
ACU0002F1V1-1AISG controller-1 way
optional accessories
Part NumberDescription
KA-9003-1000Smart BIAS T, 7/16M BTS 7/16F ANTENNA AISGM STD bottom of the tower
KA-9003-1001Smart BIAS T, 7/16F BTS 7/16M ANTENNA AISGF STD top of the tower
KA-9003-1002Smart BIAS T, 7/16F BTS 7/16M ANTENNA AISGM STD bottom of the tower
KA-9003-1003Smart BIAS T, 7/16M BTS 7/16F ANTENNA AISGF STD top of the tower
KA-9006-1000Smart BIAS T, 4.3-10M BTS 4.3-10F ANTENNA AISGM STD bottom of the tower
KA-9006-1001Smart BIAS T, 4.3-10F BTS 4.3-10M ANTENNA AISGF STD top of the tower
KA-9006-1002Smart BIAS T, 4.3-10F BTS 4.3-10M ANTENNA AISGM STD bottom of the tower
KA-9006-1003Smart BIAS T, 4.3-10M BTS 4.3-10F ANTENNA AISGF STD top of the tower
R18-0749-1 Cable assembly, AISG outdoor cable - male to female - 1 meter
R18-0749-3 Cable assembly, AISG outdoor cable - male to female - 3 meter
R18-0749-5Cable assembly, AISG outdoor cable - male to female - 5 meter
R18-0749-10Cable assembly, AISG outdoor cable - male to female - 10 meter
R18-0749-15Cable assembly, AISG outdoor cable - male to female - 15 meter

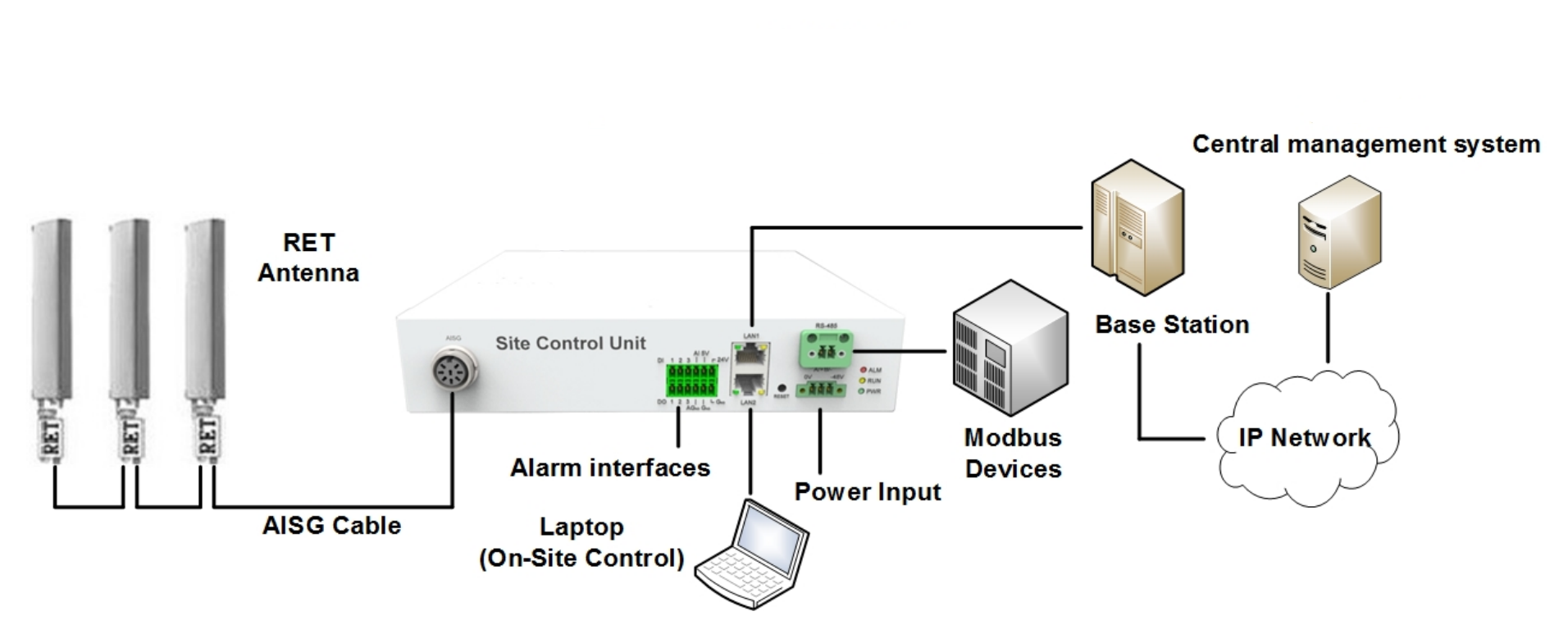

system block diagram
SYSTEM BLOCK DIAGRAM
