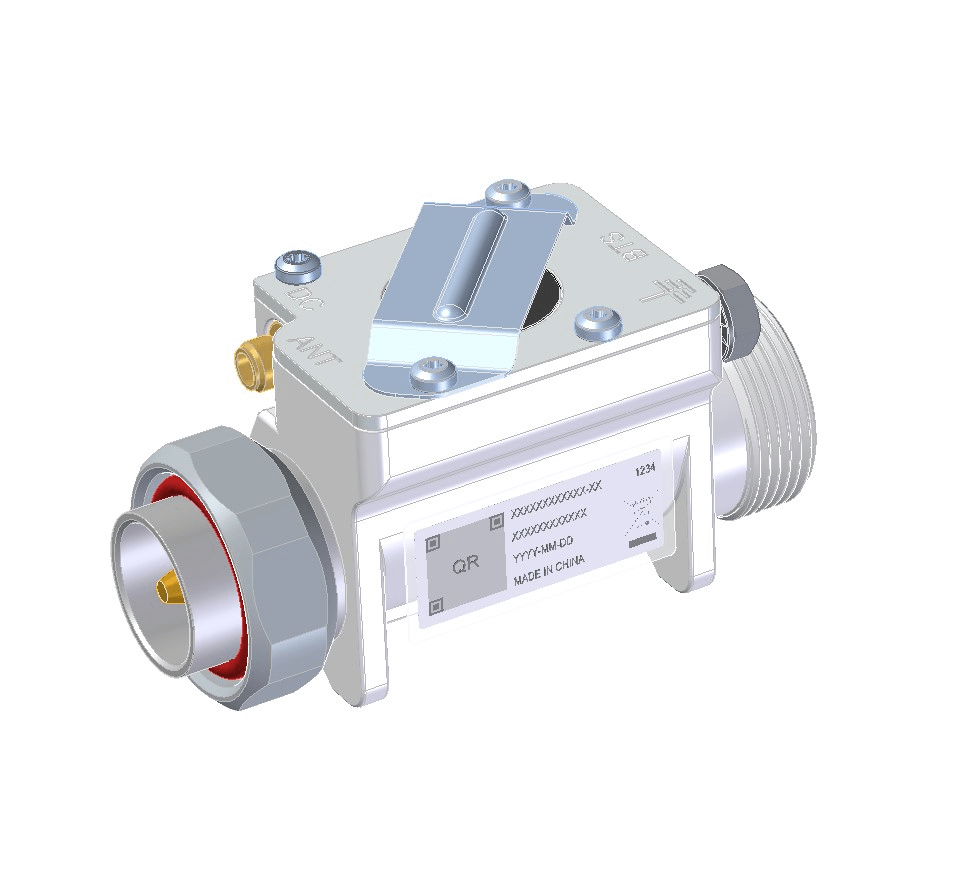

KA-9002-1001

KA-9002-1001

DC INSERTER

Designed to be deployed as an indoor DC inserter, or bias-T, in cellular base station systems, the KA-9002 provides high quality performance.

FEATURES

  • Primary surge protection fitted to the DC input
  • Designed to handle the high RF power levels of TX carriers associated with duplex tower mounted amplifiers
  • Can be mounted in a cable tray or directly onto the BTS RF connector
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
rf
Passband698 - 2690MHz
Return loss20dB minimum input and output
Insertion loss0.1dB maximum
Maximum input power with no damage200W (average) maximum
RF impedance50ohms
Intermodulation, passive<-159dBc with 2 x 20W carriers
dc
DC Current1.6 A
Voltage Drop1 V
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40°F to 149°F
Ingress protectionIP68, Outdoor unit
Lightning protectionIEC-61000-4-5, 8/20µs, ±5kA maximum,
mechanical
Dimensions H x D x W (single twin unit)88 x 39 x 50mm maximum
Weight0.3 kg
FinishPainted, light grey (NCS 1502-R)
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
KA-9002-1000SINGLE, 1 in / 1 out Current injector, outdoor, SMA connector1000 BTS 7/16(M) ANT 7/16(F)Compliant with AISG type signalling
1 - 11 MHz
KA-9002-1001SINGLE, 1 in / 1 out Current injector, outdoor, SMA connector1001 BTS 7/16(F) ANT 7/16(M)Compliant with AISG type signalling
1 - 11 MHz
electrical block diagram
ELECTRICAL BLOCK DIAGRAM
mechanical block diagram
MECHANICAL BLOCK DIAGRAM
