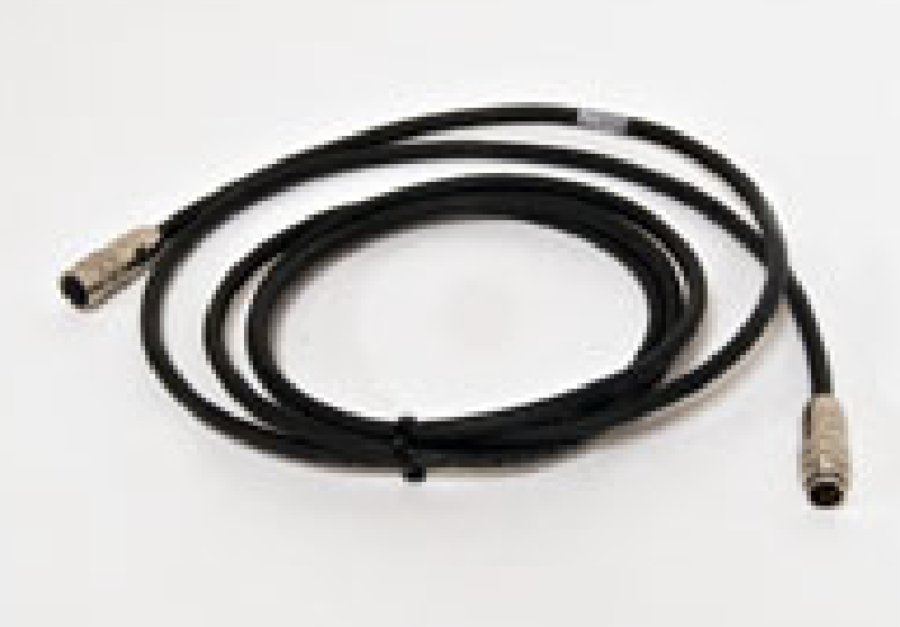

R18-0749

R18-0749

Extreme Weather RET Cable Assembly

The Extreme Weather RET assembly is an integrated design where the connector and the cable are fused into one assembly, making this solution highly resistant to moisture, contamination, and corrosion.

FEATURES

  • The ONLY IP 68 rated RET connector available today!
  • A fused gasket sealed body will eliminate the chance of moisture running down the cable and seeping into the connector.
  • Gasket encapsulated contacts and gasket sealed mating face will eliminate the chance of moisture seeping into the connector.
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE

The Extreme Weather RET assembly is an integrated design where the connector and the cable are fused into one assembly, making this solution highly resistant to moisture, contamination, and corrosion.

Technical specifications
electrical
Rated current 4A (power supply) (at 50°C)
AISG compatible V1.1 or V2.0
environmental
Temperature range -40ºC to 80ºC | -40°F to 176°F
Ingress protection IP68
Flammability VL 1581 VW-1 CSA FT-1
mechanical
Cable length See order information

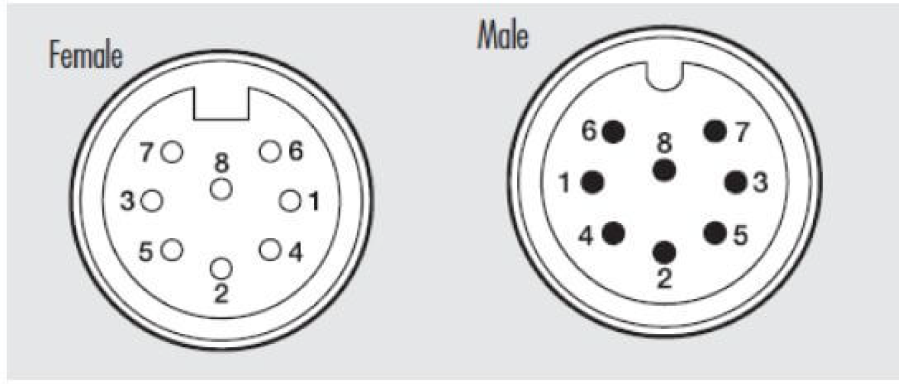

Connector 1 8 Pin - IEC 60130-9 (f)
Connector 2 8 Pin - IEC 60130-9 (m)
Tightening torque 0.5–1Nm (0.36lb | 0.73ft)
ordering information
Part Number Description
R18‐0749‐05 Extreme weather RET cable assembly - 0.5m | 1.6ft
R18‐0749‐1 Extreme weather RET cable assembly - 1m | 3.3ft
R18‐0749‐2 Extreme weather RET cable assembly - 2m | 6.5ft
R18‐0749‐3 Extreme weather RET cable assembly - 3m | 9.8ft
R18‐0749‐4 Extreme weather RET cable assembly - 4m | 13.1ft
R18‐0749‐5 Extreme weather RET cable assembly - 5m | 16.4ft
R18-0749-6 Extreme weather RET cable assembly - 6m | 19.7ft
R18‐0749‐10 Extreme weather RET cable assembly - 10m | 32.8ft
R18‐0749‐15 Extreme weather RET cable assembly - 15m | 49.2ft
R18‐0749‐20 Extreme weather RET cable assembly - 20m | 65.6ft
R18‐0749‐25 Extreme weather RET cable assembly - 25m | 82ft
R18‐0749‐30 Extreme weather RET cable assembly - 30m | 98.4ft
R18‐0749‐40 Extreme weather RET cable assembly - 40m | 131ft
R18‐0749‐50 Extreme weather RET cable assembly - 50m | 164ft
R18‐0749‐60 Extreme weather RET cable assembly - 60m | 196ft
R18‐0749‐70 Extreme weather RET cable assembly - 70m | 229ft
R18‐0749‐80 Extreme weather RET cable assembly - 80m | 262ft
R18‐0749‐90 Extreme weather RET cable assembly - 90m | 295ft
R18‐0749‐100 Extreme weather RET cable assembly - 100m | 328ft
mechanical block diagram
MECHANICAL BLOCK DIAGRAM
