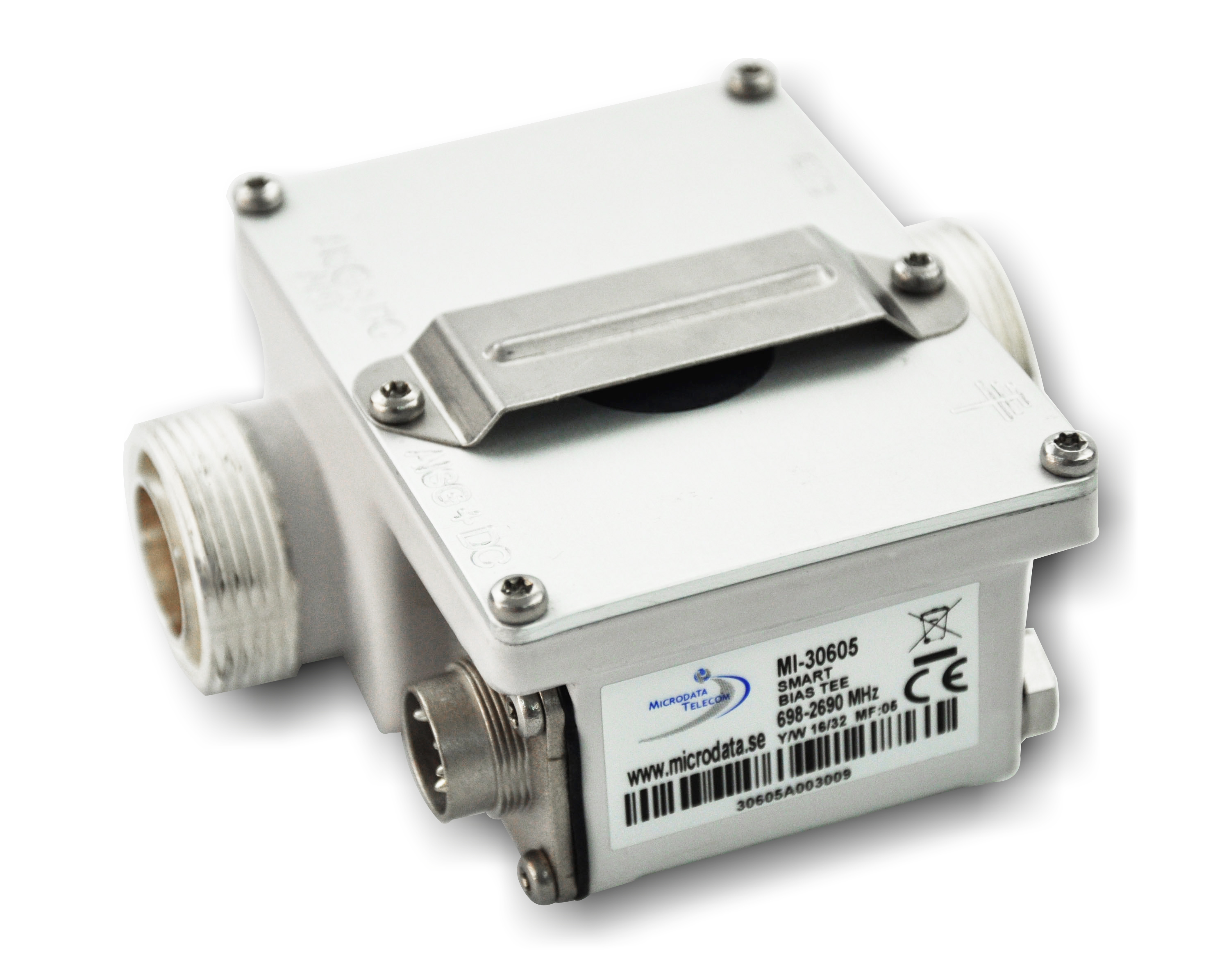

MI-30605

Smart Bias Tee

The Kaelus MI-306 provides a flexible Smart Bias Tee solution allowing for AISG and DC to be placed onto a feeder at the bottom of the tower or extracted from the feeder at the top. Operating across 698-2690MHz the MI-306 provides the following additional benefits:


  • Primary surge protection limits the voltage let-through from the feeder to the DC port
  • Available in top of the tower or bottom of the tower applications
  • Variable connector configurations to allow for different installation techniques and scenarios
  • IP67 for continuous outdoor operation
  • Connectors: BTS-Side - 7/16 Female (DC GND) ANT-Side - 7/16 Female (DC&AISG signalling)
