Smart Bias Tee/ANT

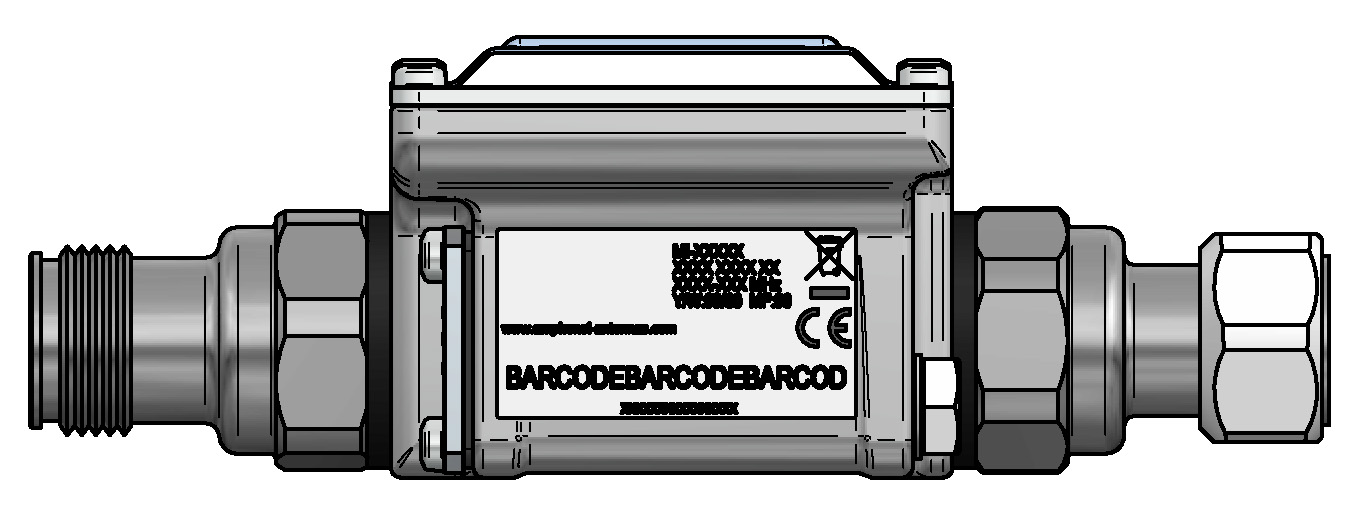

The Kaelus MI-318 provides a flexible Smart Bias Tee solution allowing for AISG and DC to be placed onto a feeder at the bottom of the tower or extracted from the feeder at the top. Operating across 555-3800MHz the MI-318 provides the following additional benefits:

  • Primary surge protection limits the voltage let-through from the feeder to the DC port
  • Available in top of the tower or bottom of the tower applications
  • Variable connector configurations to allow for different installation techniques and scenarios
  • IP67 for continuous outdoor operation
  • Connectors: BTS-Side - 4.3-10 F (DC+AISG) ANT-Side - 4.3-10 M AISG 8-pin circular F (IEC 60130-9)
