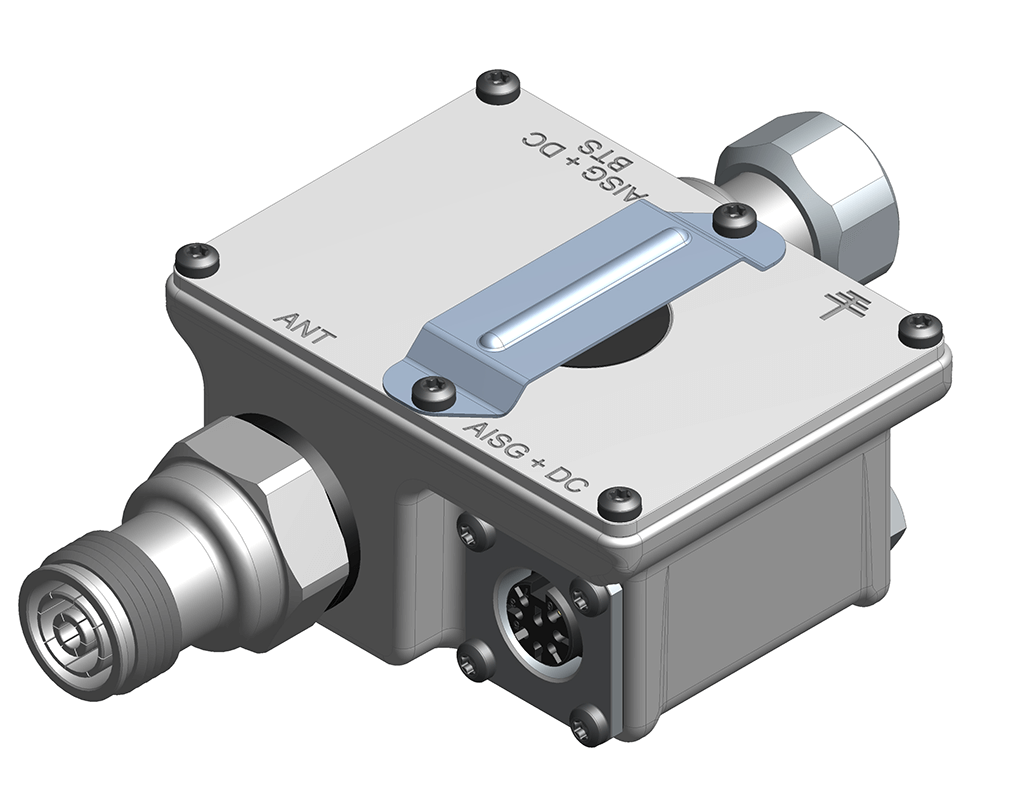

SBT0003F1V4

Smart Bias Tee - ANT Side/Top of the Tower

The Kaelus SBT0003 provides a flexible Smart Bias Tee solution allowing for AISG and DC to be placed onto a feeder at the bottom of the tower or extracted from the feeder at the top. Operating across all the cellular frequency bands, the SBT0003 provides the following additional benefits.

FEATURES

  • 555-3800MHz operation provides coverage in 600MHz through 3.5GHz frequency bands
  • Available in top of the tower or bottom of the tower applications
  • Primary surge protection limits the voltage let-through from the feeder to the DC port
  • Multiple connector configurations to allow for different installation scenarios
  • IP67 for continuous outdoor operation

technical specifications
rf to rf+aisg
Passband555 - 3800MHz
Insertion loss0.1dB maximum
Return loss20dB minimum
Maximum input power750W CW/5kW PEP
Intermodulation products-160dBc (IM3) maximum @ 2 x 20W CW carriers
RF impedance50Ohms
aisg to rf+ aisg
AISG version2.0 compliant
DC voltage rating+10 to +30V
DC current rating2.7A continuous, 4A (10 sec at startup) peak
DC resistance, AISG port to RF + AISG0.5Ohm typical
Isolation, 555 - 3800MHz65dB minimum
Return loss 2.076 – 2.276MHz10dB minimum
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40°F to +149°F, indoor
Ingress protectionIP67 / outdoor
Altitude3km /10k ft maximum
Lightning protectionRF: ±5kA (8/20µs), AISG: 2kA (8/20µs)
MTBF>1,000,000 hours
Compliance3GPP, TS25.461, RoHS compliant
Surge protectionMulti-stage network
mechanical
Dimensions H x D x W61x83x48mm | 2.40x3.27x1.89in
Weight0.4kg | 0.88lbs
FinishAluminium
Connector 1RF: 2 x 4.3/10, gender varies see ordering information for details
Connector 2AISG/DC: V1 and V3: AISG male (bottom of feeder) connect to controller
V2 and V4: AISG female (end of feeder) connect to RETs
Protective earthM6 stud
ordering information
Part NumberDescription
SBT0003F1V1SMART BIAS T, 4.3-10M BTS 4.3-10F ANT AISGM STD bottom of the tower
SBT0003F1V2SMART BIAS T, 4.3-10F BTS 4.3-10M ANT AISGF STD top of the tower
SBT0003F1V3SMART BIAS T, 4.3-10F BTS 4.3-10M ANT AISGM STD bottom of the tower
SBT0003F1V4SMART BIAS T, 4.3-10M BTS 4.3-10F ANT AISGF STD top of the tower
optional accessories
Part NumberDescription
ACU0001F1V1AISG controller-3 way-rack mounted
R18-0749-1 Cable assembly - AISG outdoor cable-male to female - 1m
R18-0749-3 Cable assembly - AISG outdoor cable-male to female - 3m
R18-0749-5Cable assembly - AISG outdoor cable-male to female - 5m
R18-0749-10Cable assembly - AISG outdoor cable-male to female - 10m
R18-0749-15Cable assembly - AISG outdoor cable-male to female - 15m

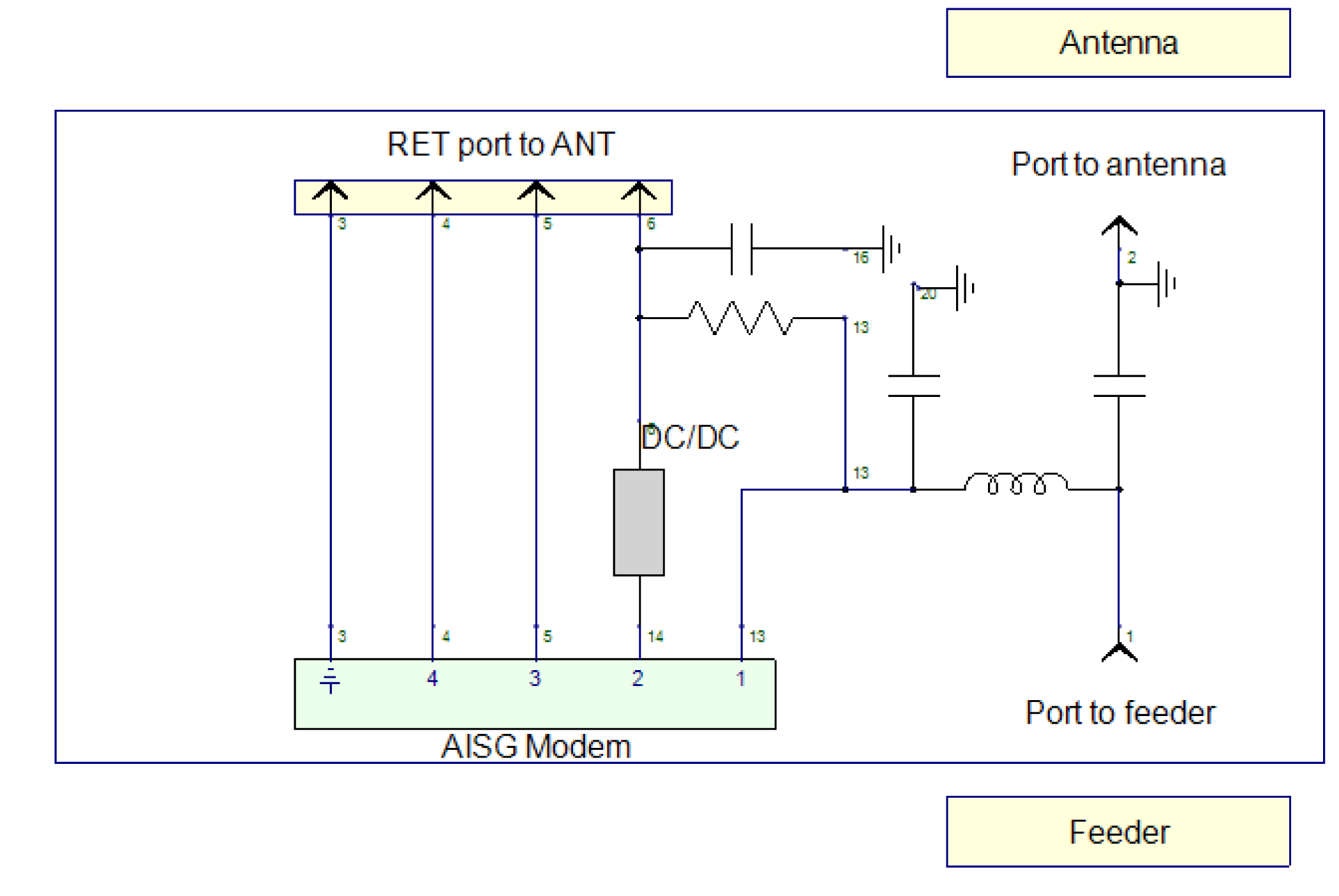

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

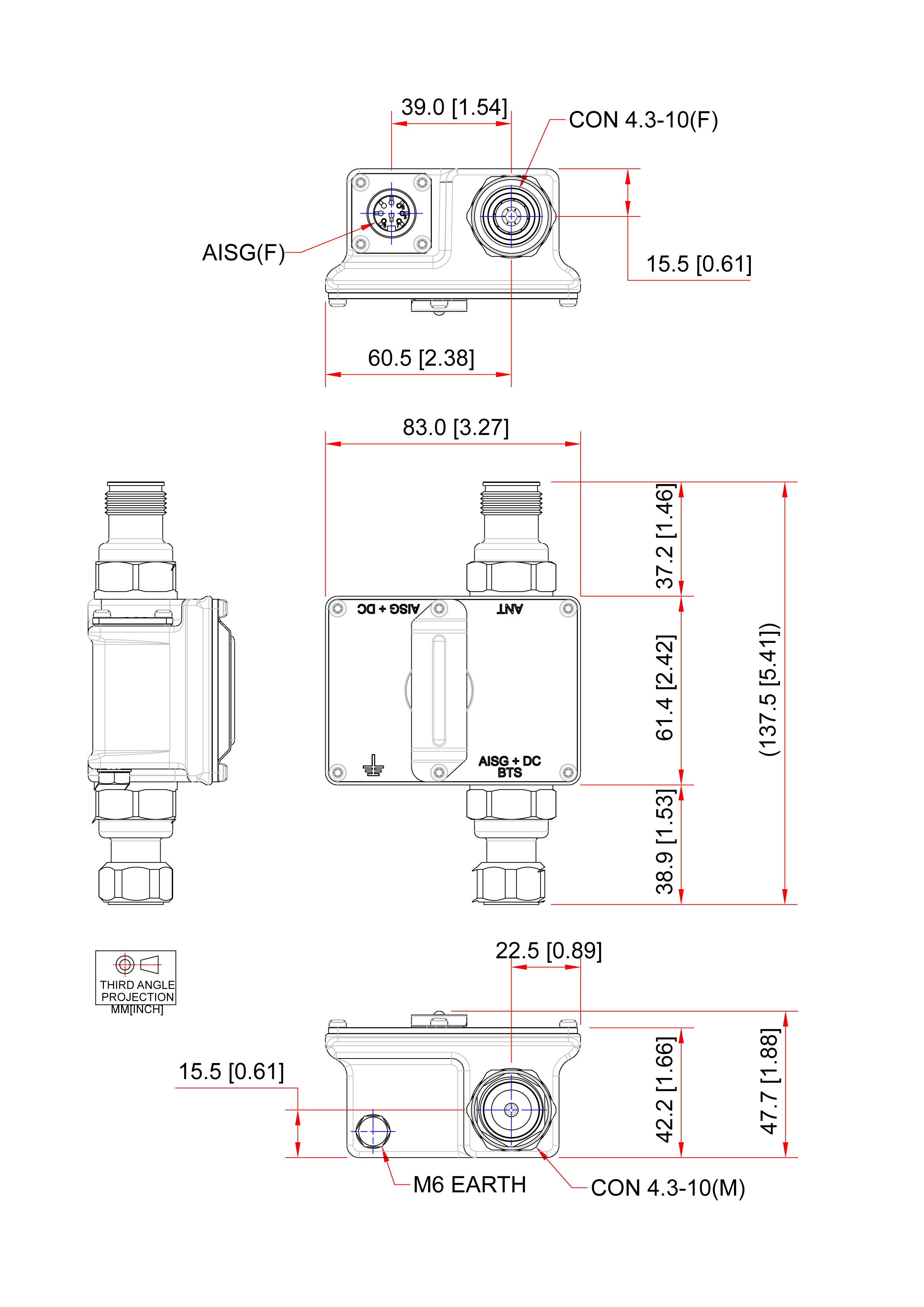

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
Version ShownSBT0003F1V1
