KA-6020

KA-6020

TWIN 700/800/900 OUT OF BAND EMISSION FILTER (PROTECT GSM-R DL BAND)

The KA-6020 is ideal for co-located 700/800/900 and GSM-R networks. This filter is to be used on the commercial 700/800/900 BTS side to protect the GSM-R network from wideband interference. Utilising a 5MHz guardband the KA-6020 provides rejection of out of band emission into GSM-R band while passing 700, 800 & 900 UL and DL bands. Capable of being used in an outdoor environment the KA-6020 contains two identical bandstop filters, suitable for 2x2 MIMO configuration, offering excellent insertion loss, group delay, EVM and rejection.

FEATURES

  • Rejection of out of band emissions into GSM-R downlink
  • Passes full 700 & 800 band and the upper 30 MHz of the 900 band
  • Notch filter structure
  • DC/AISG pass
  • Low insertion loss
  • Outdoor and indoor configurations
  • Twin unit
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
BAND NAME700 & 800 BAND900 BAND
Passband703 - 862MHz885-915, 930-960MHz
Insertion loss0.9 dB max, 0.4 dB typical0.9 dB max, 0.4 dB typical
Return loss20 dB typical, 18 dB minimum
Rejection50dB minimum @ 921-925MHz
electrical
Impedance50Ohms
Intermodulation products-160dBc maximum with 2x20W (IM3)
Maximum input power (Per Port)200W continuous, 2000W peak - at sea level
dc / aisg
Passband0 – 3MHz
Insertion loss0.3dB maximum
Return loss15dB minimum
Input voltage range± 35V
DC current rating2A continuous, 4A peak
Compliance3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +55ºC
Ingress protectionIP67, Outdoor unit
Lightning protectionRF port: ±5kA maximum (8/20us), IEC 61000-4-5 – Unit must be terminated with some lightning protection circuits.
MTBF>1,000,000 hours
ComplianceETSI EN 300 019 class 4.1E, RoHS
mechanical
Dimensions H x D x W334x130x80mm | 13.1 x 5.11 x 3.14in (Excluding brackets and connectors)
Weight4.4kg | 9.7lbs estimated
FinishPowder coated, light grey (NCS 1502-R)
ConnectorsRF: 4.3-10 (F) x 4
MountingPole/wall bracket supplied with two metal clamps 45-178mm diameter poles
shipping information
Carton size470 x 210 x 155mm
Gross weight (including packaging)4.7kg
ordering information
Part NumberConfigurationOptional FeaturesConnectors
KA-6020-2032TWIN, 2 in / 2 out DC/AISG PASS4.3-10 (F)
electrical block diagram
ELECTRICAL BLOCK DIAGRAM

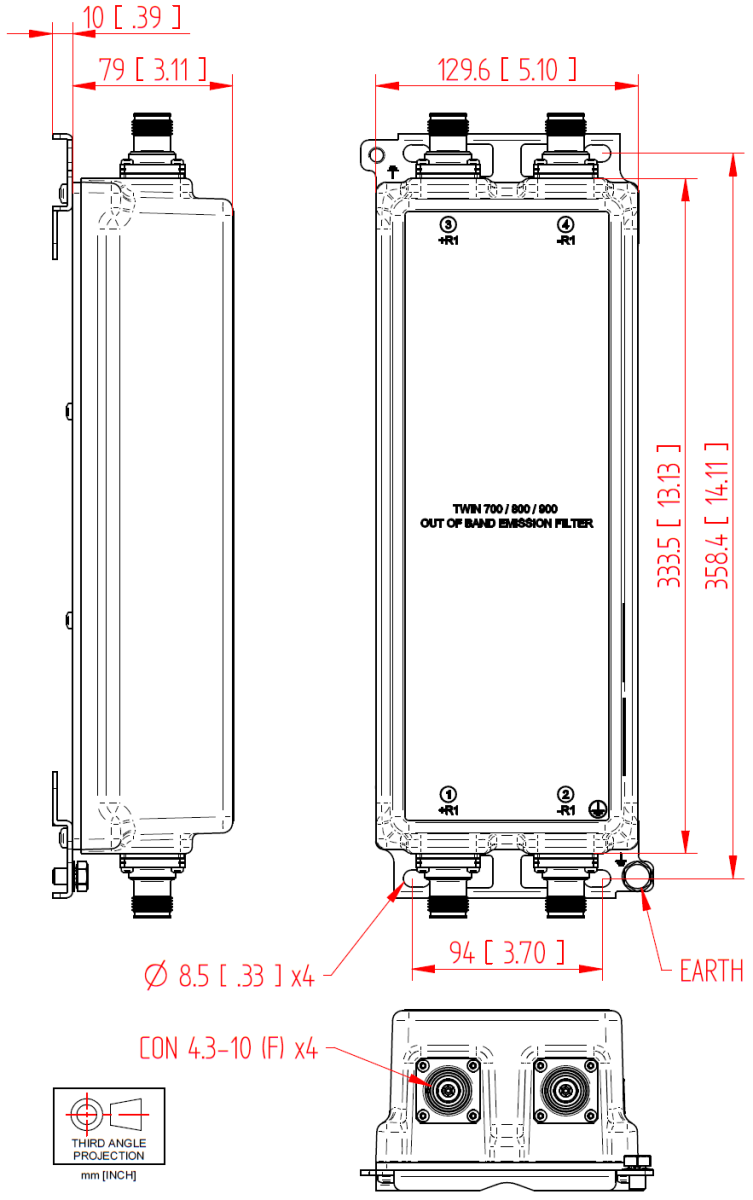

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
