BPF0016F2V2-1

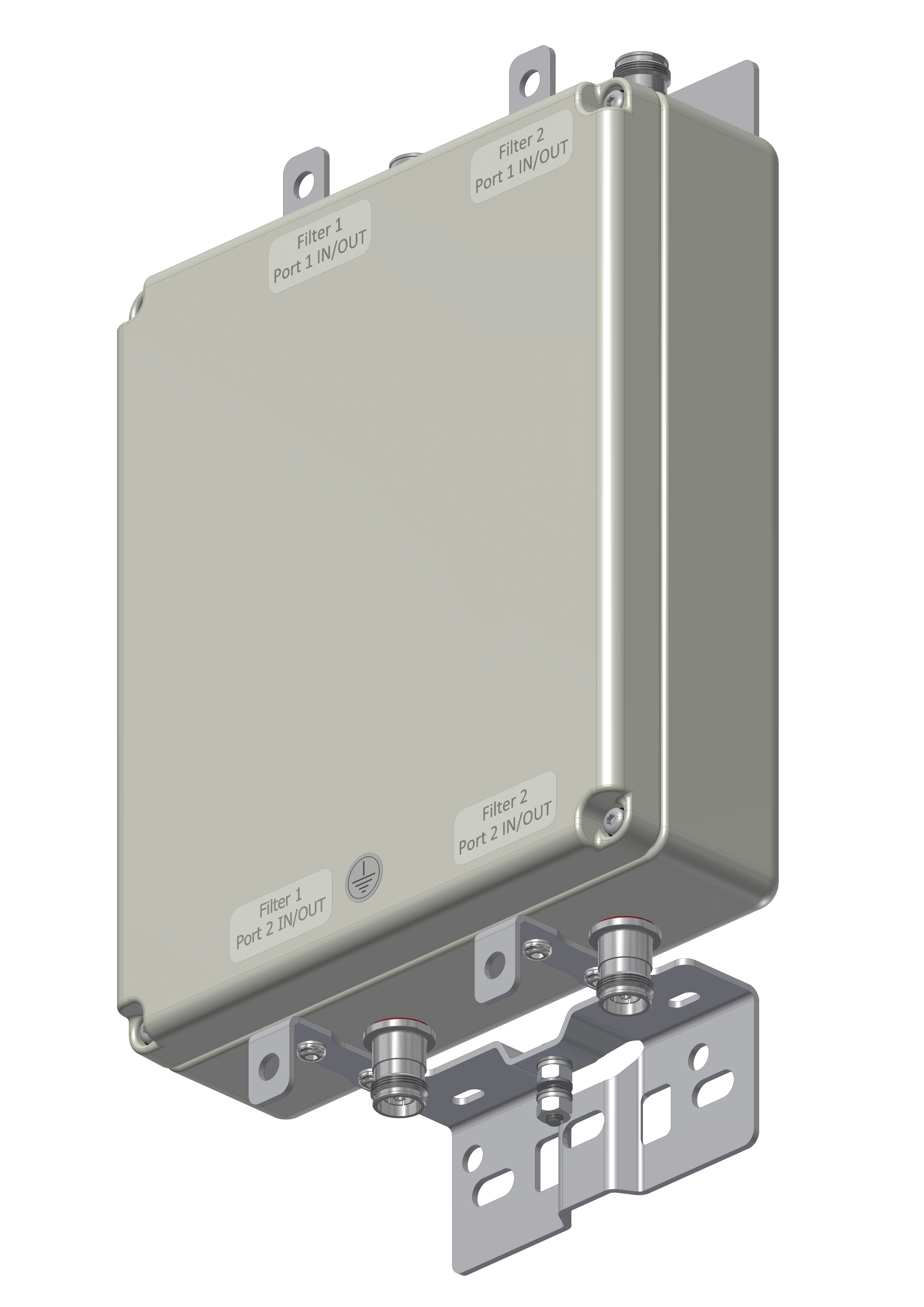

TWIN BANDPASS FILTER, E900

Ideal for co-located 850 and 900MHz systems the BPF0016 filter is a full band E900 bandpass filter. Capable of being used in an outdoor environment, the BPF0016 will provide rejection of the 850MHz downlink when small (2.5MHz) guard bands are required.

FEATURES

  • Rejection of 850MHz downlink
  • TwinFilter Structure (for main and diversity)
  • Low insertion loss
  • Full EGSM 900 Band
  • DC/AISG bypass path configurable
  • Outdoor and indoor configurations

technical specifications
Bands DOWNLINK (TX) PATH UPLINK (RX) PATH
Passband 927.5 - 960MHz 882.5 - 915MHz
Bandwidth 32.5MHz
Insertion loss 0.2dB typical at mid-band 0.3dB typical at mid-band, 1.2dB maximum at band edge
Return loss 19dB minimum 18dB minimum (-20°C to +60°C)
17dB minimum (-40°C to -20°C)
EVM 2% maximum 8.5% typical, 10% maximum @ 885MHz, 2% typical. >888.5MHz
electrical
Impedance 50 Ohms
Intermodulation products -150dBc maximum all ports (3rd Order, 2 x 40W carriers)
Maximum input power 300W (average) / 2.5kW (PEP)
Attenuation 870 - 880MHz 46dB typical, 44dB minimum
dc / aisg
Passband 0 - 3MHz
Insertion loss 0.3dB typical
Return loss 15dB minimum
Input voltage range +/- 33V maximum
DC current rating 2A continuous, 4A peak maximum
environmental
Temperature range -40ºC to +60ºC | -40°F to 140°F
Ingress protection IP67
Altitude 3,000m | 10,000ft
Lightning protection RF: ±5kA maximum (8/20us), IEC 61000-4-5
MTBF >1,000,000 hours
Compliance ETSI EN 300 019 class 4.2H, RoHS
mechanical
Dimensions H x D x W (single unit) 246 x 297 x 87mm | 9.7 x 11.7 x 3.4in Excluding brackets and connectors
Weight 7.0kg | 15.4lbs
Finish Powder coated, light grey (RAL7035)
Connectors DIN 7-16 (F) x 4 long neck (BPF0016FxV1-1)
4.3-10 (F) x 4 long neck (BPF0016FxV2-1)
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
BPF0016F1V1-1 TWIN 2 in /2 out Reject 870-877.5MHz DIN 7-16 (F) FIXED DC
BPF0016F1V2-1 TWIN 2 in /2 out Reject 870-877.5MHz 4.3-10 (F) FIXED DC
BPF0016F2V1-1 TWIN 2 in /2 out Reject 870-880MHz DIN 7-16 (F) FIXED DC
BPF0016F2V2-1 TWIN 2 in /2 out Reject 870-880MHz 4.3-10 (F) FIXED DC
electrical block diagram
ELECTRICAL BLOCK DIAGRAM
mechanical block diagram
MECHANICAL BLOCK DIAGRAM
