TWIN BANDSTOP 900MHz FILTER

The BSF0021F1V1 is ideal for co-located 850 and 900 networks. Utilising a 2.5MHz guardband the BSF0021F1V1 provides rejection of the 850 band while passing 900 UL and DL bands. Capable of being used in an outdoor environment the BSF0021F1V1 contains two identical bandstop filters, suitable for 2x2 MIMO configuration, offereing excellent insertion loss, group delay, EVM and rejection.

FEATURES

  • Rejection of 850MHz downlink
  • Passes full 900 band
  • Notch filter structure
  • DC/AISG pass
  • Low insertion loss
  • Outdoor and indoor configurations
  • Twin unit
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
BAND NAME 900 UPLINK PATH 900 DOWNLINK PATH
Passband 890 - 915MHz 935 - 960MHz
Insertion loss 0.3dB typical, 1.0dB maximum 0.15dB typical, 0.2dB maximum
Return loss 20dB typical, 18dB minimum
EVM 1% typical, 3% maximum
Group delay variation 200ns maximum across 10MHz
Absolute group delay 250ns maximum
Rejection 60dB minimum @ 869 - 885MHz
electrical
Impedance 50Ohms
Intermodulation products -153dBc maximum with 2x20W (IM3)
Maximum input power (Per Port) 200W
dc / aisg
Passband 0 – 3MHz
Insertion loss 0.3dB maximum
Return loss 15dB minimum
Input voltage range ± 33V
DC current rating 2A continuous, 4A peak
Compliance 3GPP TS 25.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -20ºC to +60ºC | -4°F to +140°F
Ingress protection IP67, Outdoor unit
Lightning protection RF port: ±5kA maximum (8/20us), IEC 61000-4-5 – Unit must terminated with some lightning protection circuits.
MTBF >1,000,000 hours
Compliance ETSI EN 300 019 class 4.1E, RoHS
mechanical
Dimensions H x D x W 334x130x80mm | 13.1 x 5.11 x 3.14in (Excluding brackets and connectors)
Weight 4.4kg | 9.7lbs estimated
Finish Powder coated, light grey (NCS 1502-R)
Connectors RF: 4.3-10 (F) x 4
Mounting Pole/wall bracket supplied with two metal clamps 45-178mm diameter poles
ordering information
Part Number Description
BSF0021F1V1-1 TWIN BANDSTOP FILTER, 890-960MHz, 60dB REJECTION @869-885MHz, DC PASS, 4.3-10(F)
electrical block diagram
ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

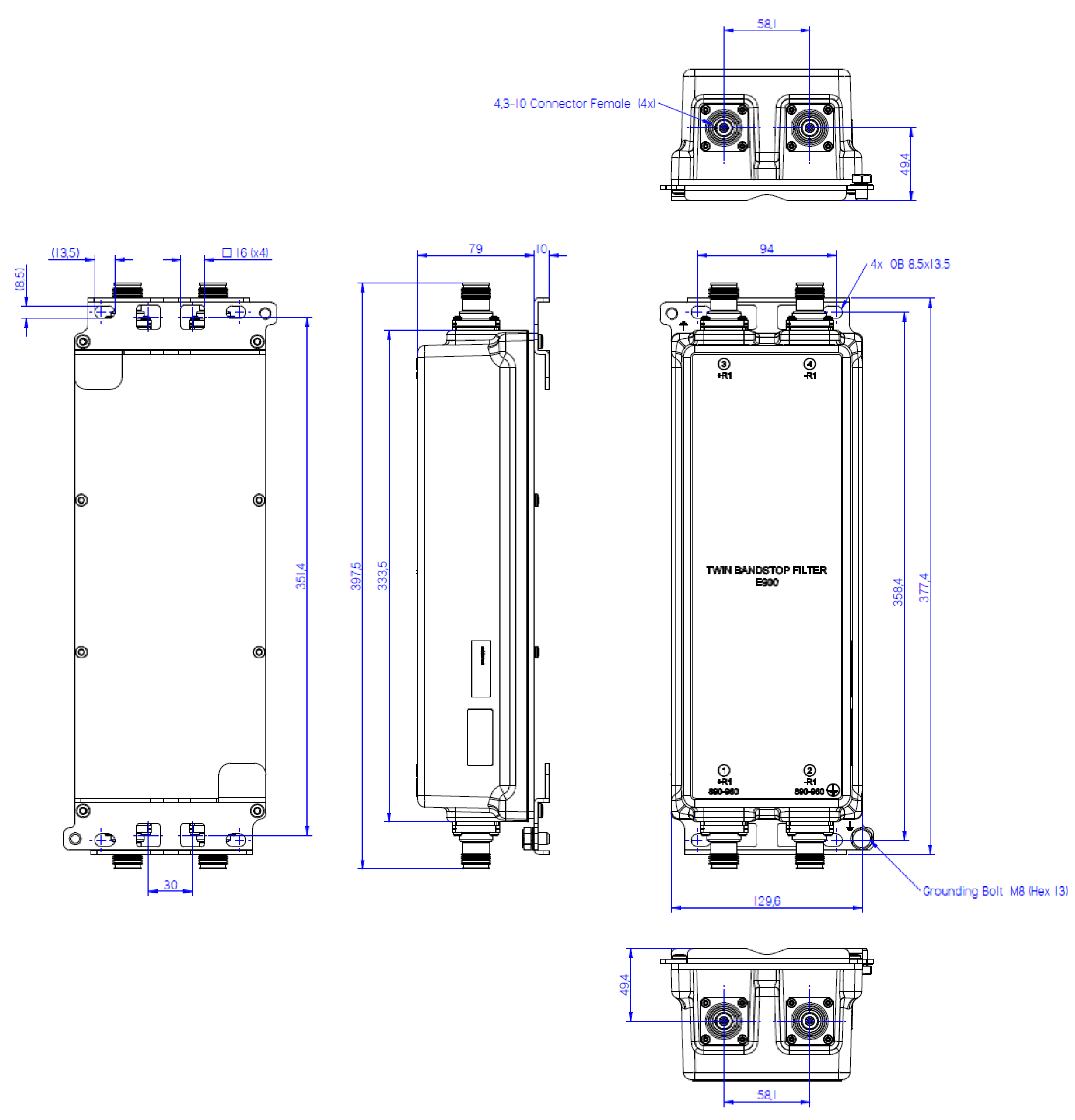

MECHANICAL BLOCK DIAGRAM
