DDF0015F6V6-1

TWIN DUAL DUPLEXED FILTER E900

The DDF0015 is deployed when co-locating 900 and 850MHz systems. Attenuating the 850MHz downlink band this filter prevents the 900MHz BTS receive being overloaded from 850MHz systems.

FEATURES

  • Filters unwanted carrier frequencies introduced when antennas from both 850 and 900MHz services are co-located
  • Twin dual duplex structure.
  • Excellent rejection in 850MHz band, low loss, high selectivity
  • Factory tuned anywhere in extended 900MHz band if required
  • DC Pass available

technical specifications
Band Name Downlink (TX) Path Uplink (RX) Path
rf performance
Passband 935 - 960MHz 890 - 915MHz
Insertion loss 0.4dB typical, 0.5dB maximum 0.4dB typical, 2.7dB maximum
Return loss 18dB minimum
Rejection 55dB minimum @ 800 - 886.4MHz
35dB minimum @ 886.4 - 888.1MHz
electrical
Impedance 50ohms
Intermodulation products -150dBc max (3rd Order, 2x 20 W carriers)
Maximum input power 100W (average)
800W (PIP)
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -5ºC to +65ºC | 23ºF to +149ºF
Ingress protection IP67 (outdoors)
Altitude 2,600m | 8530ft maximum
Lightning protection IEC61312-1
8/20us, +/-5kA max
DC grounded, all ports
MTBF >1,000,000 hours
mechanical
Dimensions H x D x W 239 x 217 x 89mm | 9.4 x 8.54 x 3.5in
Weight 8kg | 17.63lbs
Finish Painted light grey
Connectors DIN 7-16 (F) x 4
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Description
Other tunings available contact Kaelus for details
DDF0015F6V6-1 TWIN DUAL DUPLEXED FILTER 890-915/935-960 REJ 35 @888.1, NO DC
electrical block diagram

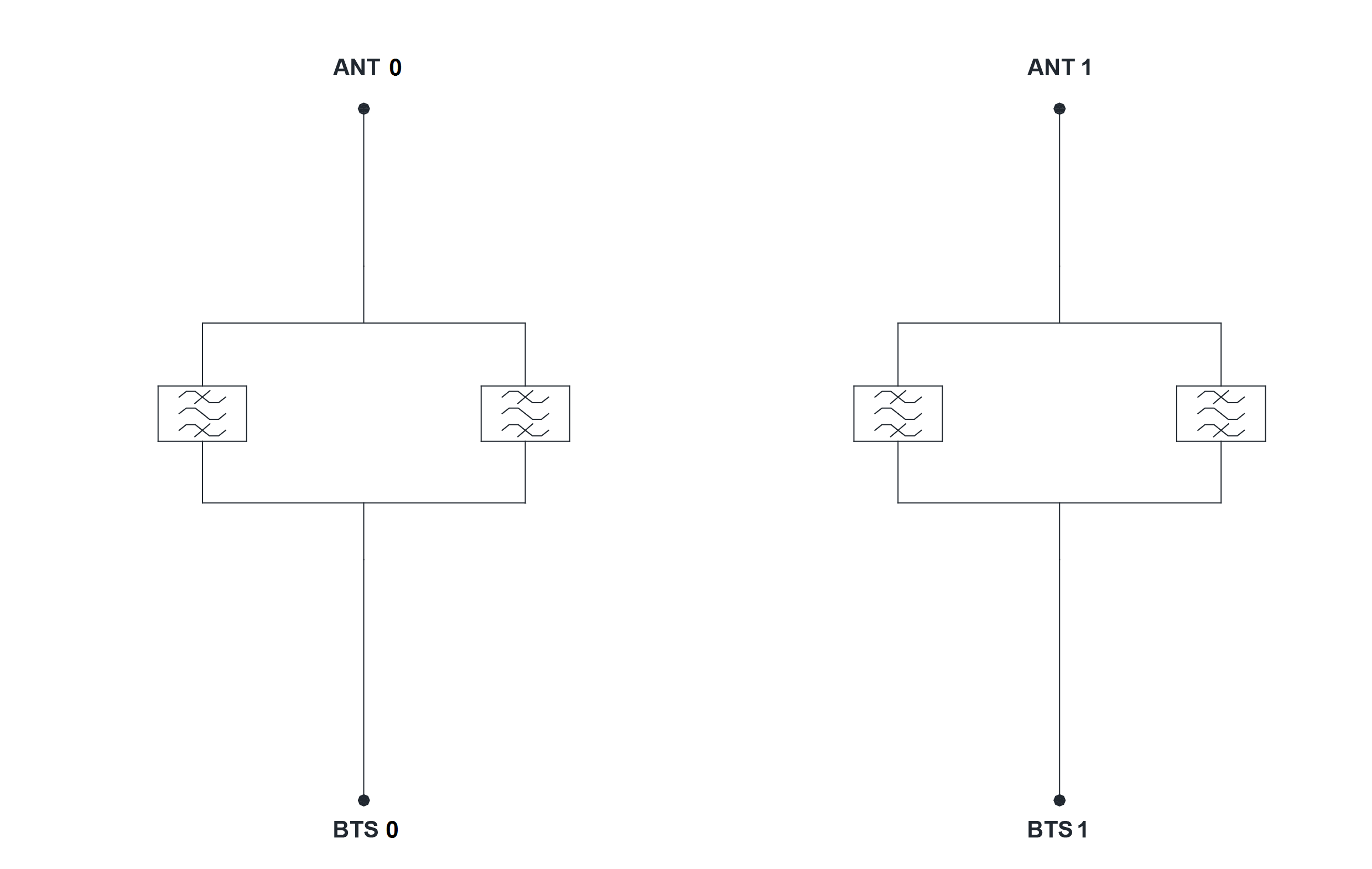

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram
MECHANICAL BLOCK DIAGRAM
