DDF0019F1V1-1

DDF0019F1V1-1

TWIN DUAL DUPLEXED FILTER 850

Designed as an 850MHz transmit cleanup filter, the Kaelus DDF0019 is used to attenuate spurious from a Wideband CDMA base station and reduce its effects on a nearby 900MHz frequency allocation

FEATURES

  • For use in WCDMA850MHz applications with GSM900 co-location
  • Low downlink insertion loss while attenuating spurious outside the 850MHz transmit spectrum
  • Suitable for retuning to bandwidths of 10-18MHz with guard bands >4MHz
  • Economical, twin outdoor filter solution

technical specifications
Band NameDownlink (TX) PathUplink (RX) Path
rf performance
Passband870 - 885MHz825 - 840MHz
Insertion loss1.05dB maximum0.5dB maximum
Return loss18dB minimum
Rejection45dB minimum @ 890 - 915MHz
electrical
Impedance50ohms
Intermodulation products-160 dBc max ( 2x 20 W carriers, in receive band)
Maximum input power100W (average) / 800W (PEP)
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-20ºC to +60ºC | 4ºF to +140ºF
Ingress protectionIP67 (outdoors)
Altitude2,600m | 8,530ft maximum
Lightning protectionIEC61312-1
8/20us, 5kA max
DC grounded, all ports
mechanical
Dimensions H x D x W239 x 217 x 88mm | 9.40 x 8.54 x 3.46in
Weight7kg | 15.4lbs
FinishPainted light grey
ConnectorsDIN 7-16 (F) x 4
MountingPole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part NumberDescription
DDF0019F1V1-1TWIN DUAL DUPLEXED FILTER 825-840/870-885 REJ 45 @ 890, NO DC

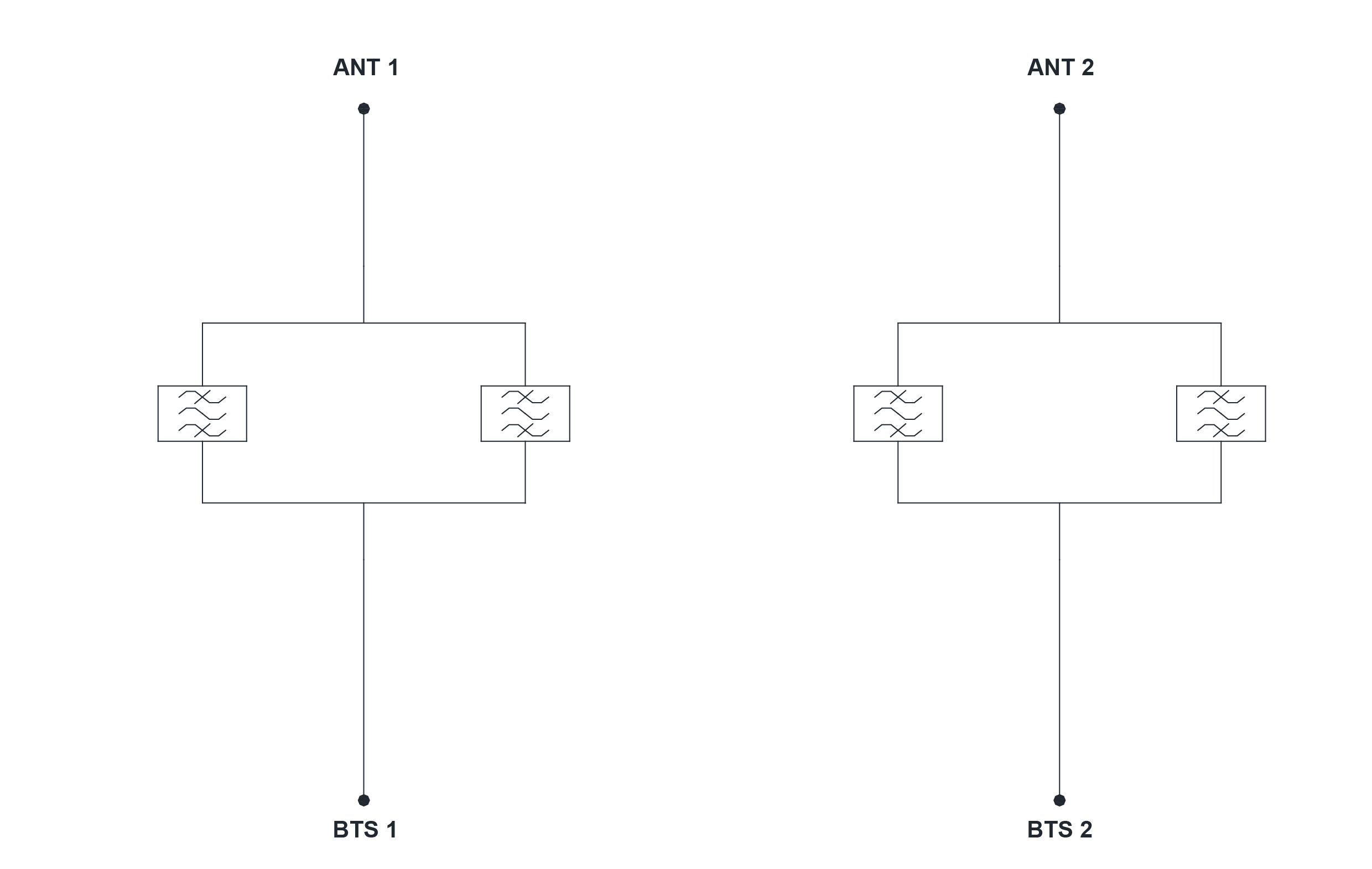

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

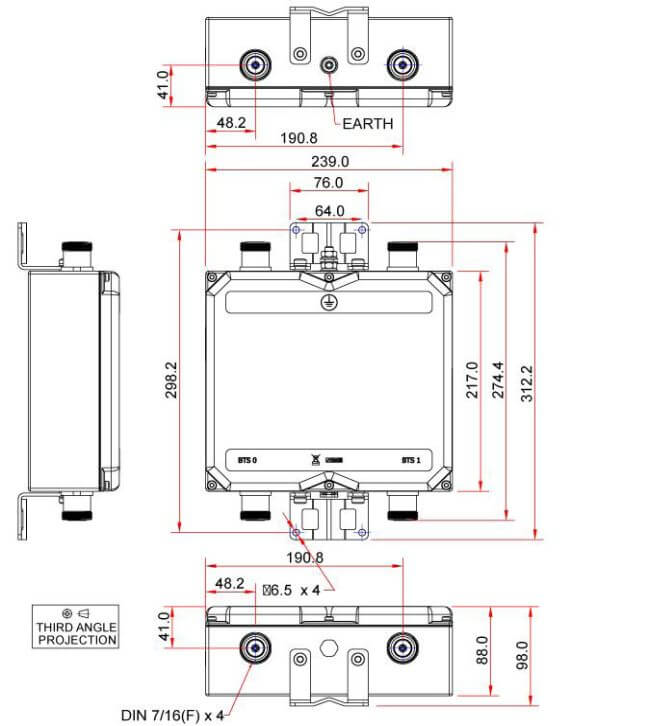

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
