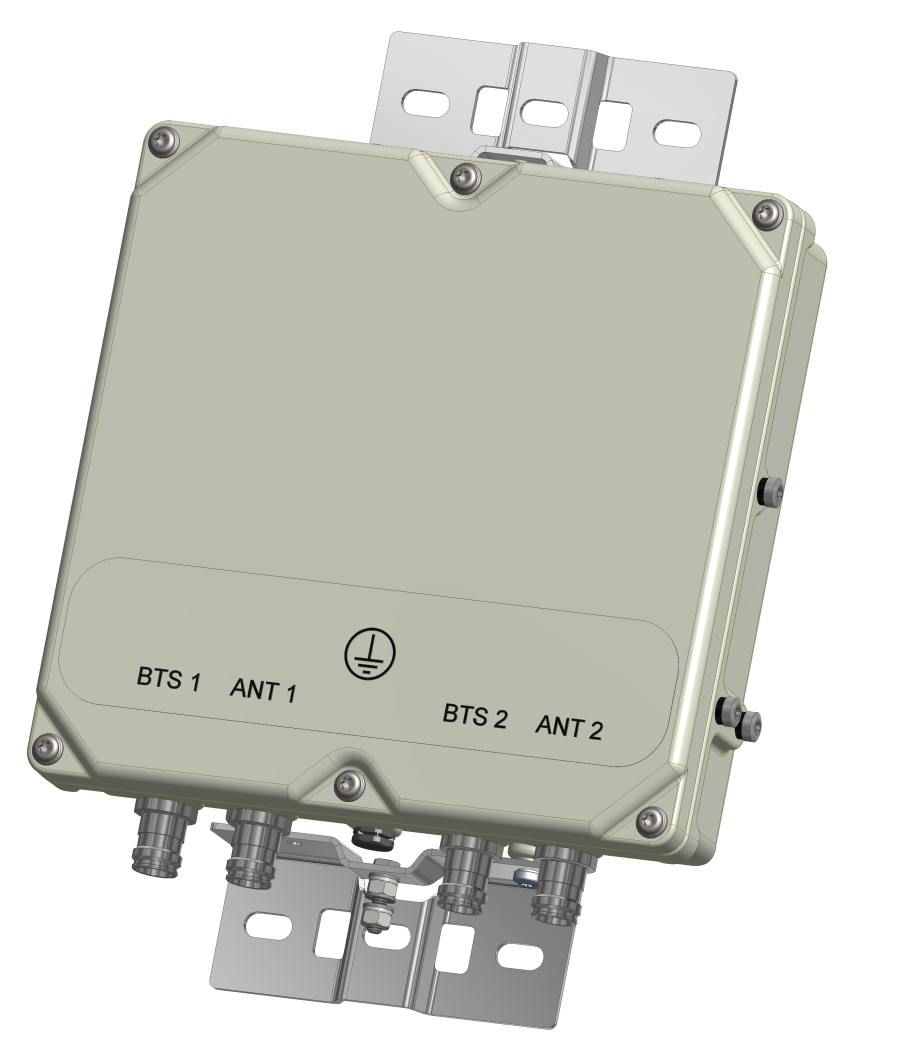

TWIN BANDSTOP 900MHz INTERFERENCE MITIGATION FILTER

The KA-6010 is ideal for co-located 700, 850 and 900 networks. Utilising a 5MHz guardband the KA-6010 provides rejection of the 900 UL band while passing 700/850 UL and DL bands. Capable of being used in an outdoor environment the KA-6010 contains two identical bandstop filters, suitable for 2x2 MIMO configuration, offering excellent insertion loss, group delay and rejection.

FEATURES

  • Passes full 700 and 850 bands
  • Low insertion loss
  • Rejection of 900MHz uplink
  • DC/AISG pass
  • Twin unit
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
BAND NAME700 PATH850 UPLINK PATH850 DOWNLINK PATH
Passband698 - 806MHz814 - 845MHz859 - 880MHz
Insertion loss0.2dB typical, 0.3dB maximum0.2dB typical, 0.3dB maximum0.5dB typical, 1.5dB maximum
Return loss24dB typical, 18dB minimum
Group delay variation2ns typical3ns typical100ns typical across 10MHz
Absolute group delay8ns maximum10ns maximum120ns maximum
Maximum input power100W (LTE/NR)N/A200W (3G/LTE/NR)
Group Delay Tracking±5ns±5ns12ns± 5ns@859MHz
90ns± 10ns@880MHz
Rejection60dB minimum @ 885 - 905MHz
electrical
Impedance50Ohms
Intermodulation products-160dBc maximum in UL Band (assuming 20MHz Signal), with 2 x 43dBm carriers
-155dBc maximum with 2 x 43dBm
dc / aisg
Passband0 - 13MHz
Insertion loss0.3dB maximum
Return loss15dB minimum
Input voltage range± 33V
DC current rating2A continuous, 4A peak
Compliance3GPP TS 25.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-30ºC to +70ºC | -22°F to +158°F
Ingress protectionIP67
Altitude2600m | 8530ft
Lightning protectionRF port: ±5kA maximum (8/20us), IEC 61000-4-5 – Unit must be terminated with some lightning protection circuits.
MTBF>1,000,000 hours
ComplianceETSI EN 300 019 class 4.1H, RoHS, NEBS GR-487-CORE
mechanical
Dimensions H x D x W269 x 277 x 80mm | 10.60 x 10.90 x 3.15in (Excluding brackets and connectors)
Weight6.35 kg | 14.0 lbs estimated
FinishPowder coated, light grey (RAL7035)
ConnectorsRF: 4.3-10 (F) x 4
MountingOptional pole/wall bracket supplied with two metal clamps 45-178mm diameter poles (See ordering information). The bracket also designed to fit specific customer frame
shipping information
Carton size530 x 360 x 200mm
Gross weight (including packaging)7.5kg
ordering information
Part NumberConfigurationOptional FeaturesConnectors
KA-6010-2032TWIN, 2 in / 2 out DC/AISG PASS4.3-10 (F)
R92-K0146BRACKET KIT
electrical block diagram
ELECTRICAL BLOCK DIAGRAM

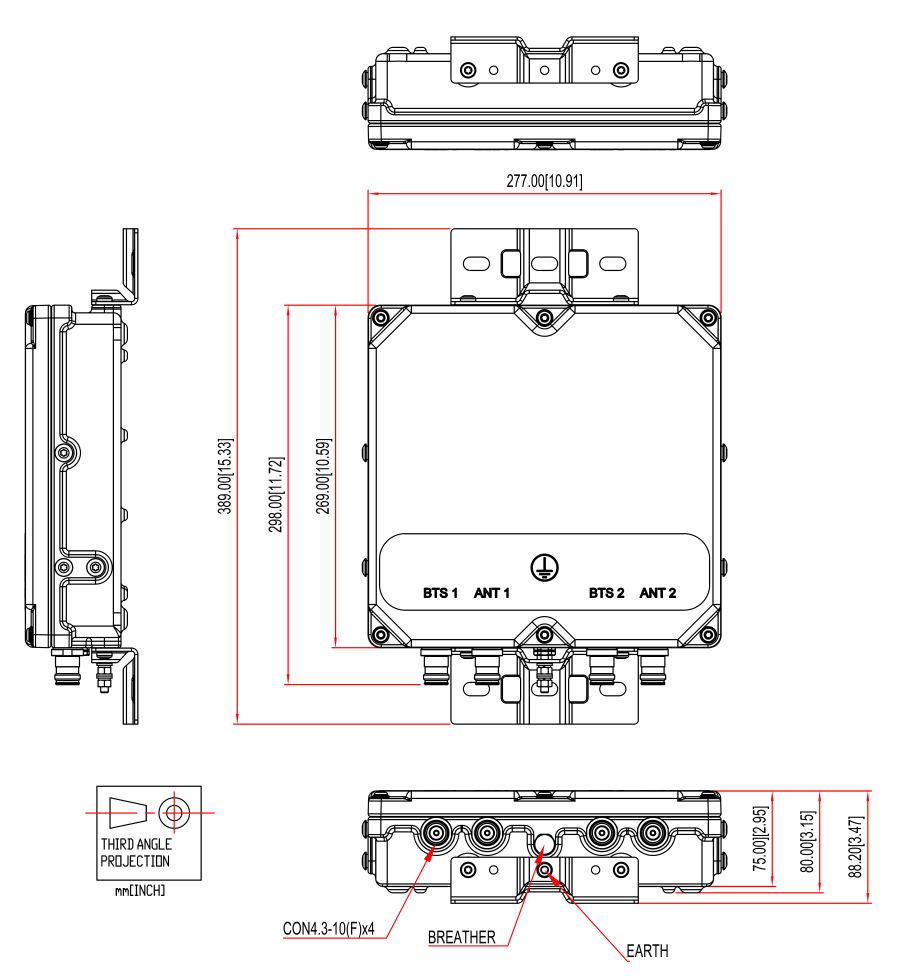

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
