KA-6029-2032

TWIN BANDSTOP 700/900 INTERFERENCE MITIGATION FILTER

The KA-6029 is ideal for co-located 700, 850 and 900 networks. Utilising a 1.5MHz guardband the KA-6029 provides rejection of the 850 band while passing 700 & 900 UL and DL bands. Capable of being used in an outdoor environment the KA-6029 contains two identical bandstop filters, suitable for 2x2 MIMO configuration, offering excellent insertion loss, group delay, EVM and rejection.

FEATURES

  • Rejection of 850MHz downlink
  • Passes full 700 & 900 band
  • Notch filter structure
  • DC/AISG pass
  • Low insertion loss
  • Outdoor and indoor configurations
  • Twin unit

technical specifications
BAND NAME700 PATH900 UPLINK PATH900 DOWNLINK PATH
Passband703 - 803MHz890 - 915MHz935 - 960MHz
Insertion loss0.2dB typical, 0.25dB maximum0.2dB typical, 3.3dB maximum0.2dB typical, 0.25dB maximum
Return loss20dB typical, 18dB minimum
Rejection50dB typical, 47dB minimum @ 880-888.5MHz
30dB typical, 20dB minimum @ 888.5-889MHz
electrical
Impedance50Ohms
Intermodulation products-160dBc typical
-153dBc maximum with 2x20W
Maximum input power (Per Port)200W
dc / aisg
Passband0 – 3MHz
Insertion loss0.3dB maximum
Return loss15dB minimum
Input voltage range± 33V
DC current rating2A continuous, 4A peak
Compliance3GPP TS 25.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40°F to +149°F
Ingress protectionIP67, Outdoor unit
Lightning protectionRF port: ±5kA maximum (8/20us), IEC 61000-4-5 – Unit must terminated with some lightning protection circuits.
MTBF>1,000,000 hours
ComplianceETSI EN 300 019 class 4.1E, RoHS
mechanical
Dimensions H x D x W334x130x80mm | 13.1 x 5.11 x 3.14in (Excluding brackets and connectors)
Weight4.4kg | 9.7lbs estimated
FinishPowder coated, light grey (NCS 1502-R)
ConnectorsRF: 4.3-10 (F) x 4
MountingPole/wall bracket supplied with two metal clamps 45-178mm diameter poles
shipping information
Carton size470 x 210 x 155mm
Gross weight (including packaging)4.7kg
ordering information
Part NumberConfigurationOptional FeaturesConnectors
KA-6029-2032TWIN, 2 in / 2 out DC/AISG PASS4.3-10 (F)
electrical block diagram
ELECTRICAL BLOCK DIAGRAM

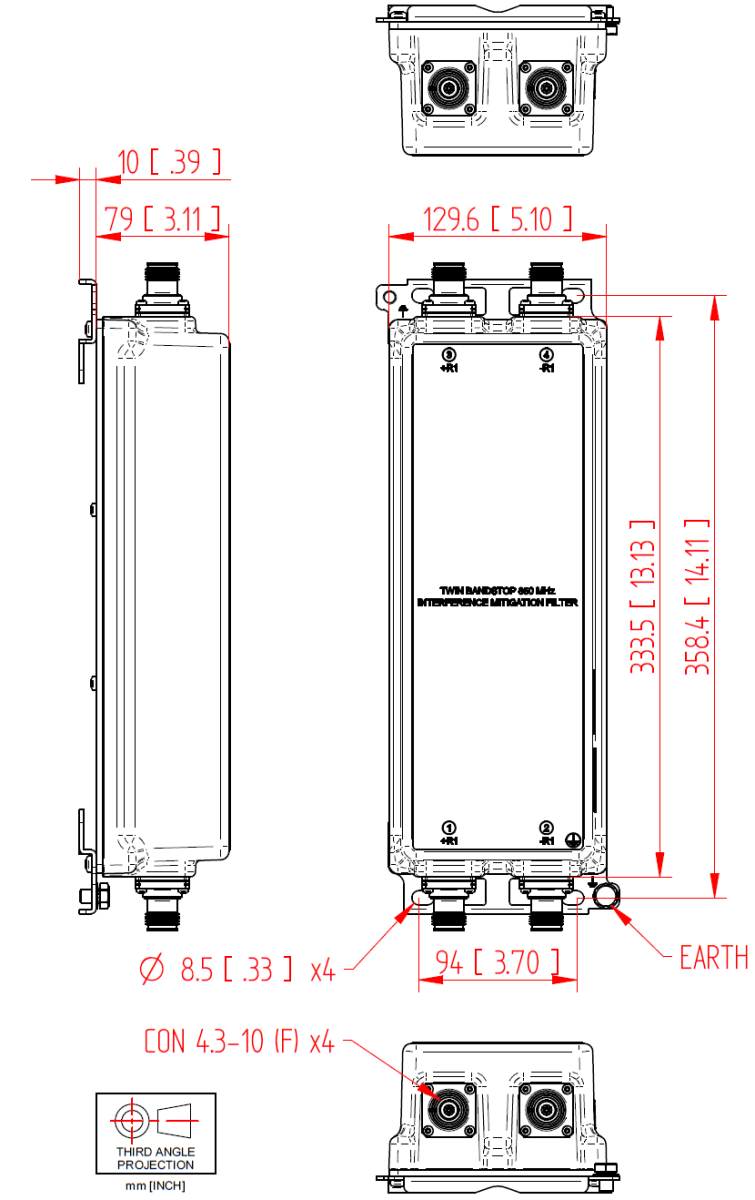

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
