DIPLEXER 700/850

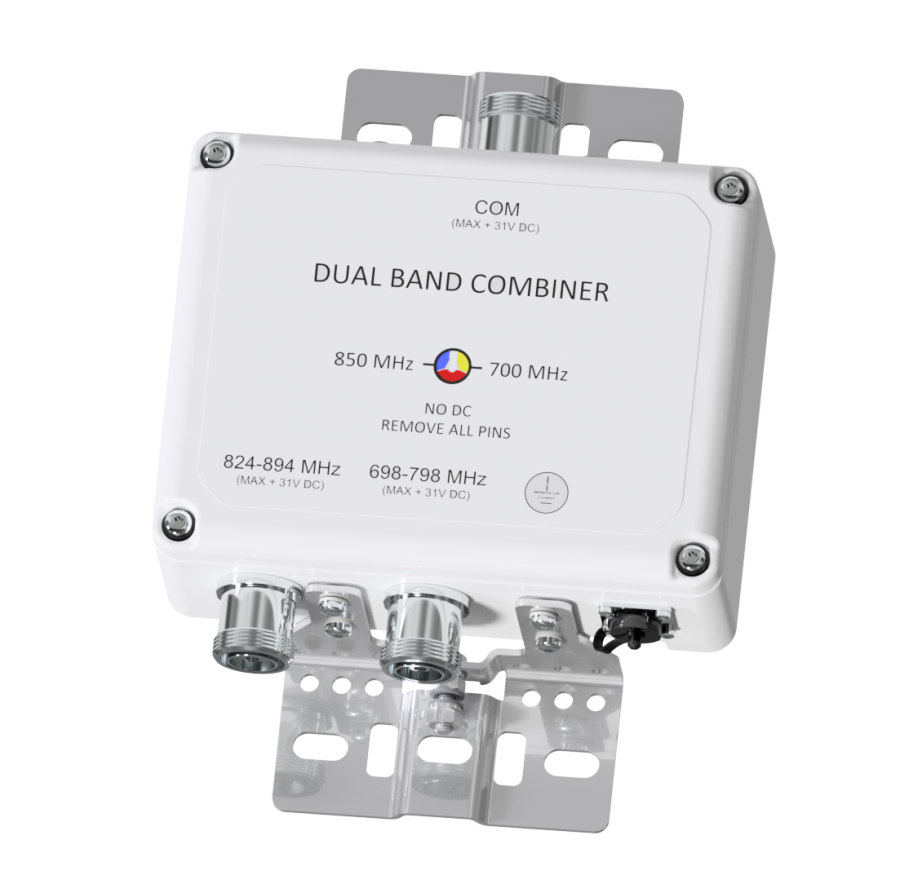

Designed to combine 700 and 850 technologies, the Kaelus DBC0061 provides excellent insertion loss and passive intermodulation performance. Suitable for outdoor or indoor environments.

FEATURES

  • Combines 700 and 850 BTS into one feeder
  • Covers 700MHz US Public Safety Bands
  • Very low insertion losses
  • Designed for low passive intermodulation
  • Wall ,pole or rack mounting
  • DC/AISG bypass field settable
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
BAND Name700850
Passband698 - 798MHz824 - 894MHz
Insertion loss0.25dB typical 698-793MHz
0.35dB typical 793-798MHz		0.25dB typical
Return loss20dB minimum 698-798MHz
24dB typical 746-787MHz		24dB typical
Maximum input power300W (average) / 3kW (PEP)300W (average) / 3kW (PEP)
Phase linearity over any 10MHz< 10º
Group delay variation over any 10MHz15ns typical8ns typical
Isolation port to port50dB minimum 698-793MHz and 824-894MHz
35dB minimum 793-798MHz
electrical
Impedance50Ohms
Intermodulation products-155dBc maximum all ports with 2 x 20W carriers
dc / aisg
A field selectable DC/AISG path is achieved via mechanical links on a IEC60130-9, 8-pin female connector (see electrical block diagram).
Passband0 – 3MHz
Insertion loss, single DC/AISG pass1dB maximum
Return loss, single DC/AISG pass12dB minimum
Insertion loss, two DC/AISG pass4.5dB typical
Return loss, two DC/AISG pass9dB typical
Input voltage range± 31V
DC current rating2A continuous, 4A peak
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40ºF to +149ºF
Ingress protectionIP67
Altitude3000m | 10,000ft maximum
Lightning protectionRF port: ±5kA maximum (8/20us), IEC61312-1
MTBF>1,000,000 hours
ComplianceETSI EN 300 019 class 4.1, RoHS
mechanical
Dimensions H x D x W481 x 266 x 164mm | 18.94 x 10.46 x 6.46in (rack of units: -6R version)
Dimensions H x D x W (single unit)203 x 158 x 81mm | 8 x 6.2 x 3.2in
Dimensions H x D x W (twin unit)203 x 158 x 164mm | 8 x 6.2 x 6.45in
Weight4.3kg | 9.5lbs (single unit)
8.3kg | 18.3lbs (dual unit)
26 kg | 57.3lbs (rack of units: -6R version)
FinishPainted, light grey (RAL7035)
ConnectorsDIN 7-16 (F) x 3 long neck (single unit)
x 6 long neck (dual unit)
MountingPole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
DBC0061F1V51-1SINGLE 1 in / 2 outDC SWITCH7/16 (F)FIELD CONFIGURABLE
DBC0061F1V51-2TWIN 2 in / 4 outDC SWITCH7/16 (F)FIELD CONFIGURABLE
DBC0061F1V51-6RRACK 6 in / 12 outDC SWITCH7/16 (F)FIELD CONFIGURABLE
E92-K0057SINGLE MOUNT BRACKET KITNANANA
E92-K0055DUAL MOUNT BRACKET KITNANANA
electrical block diagram
ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

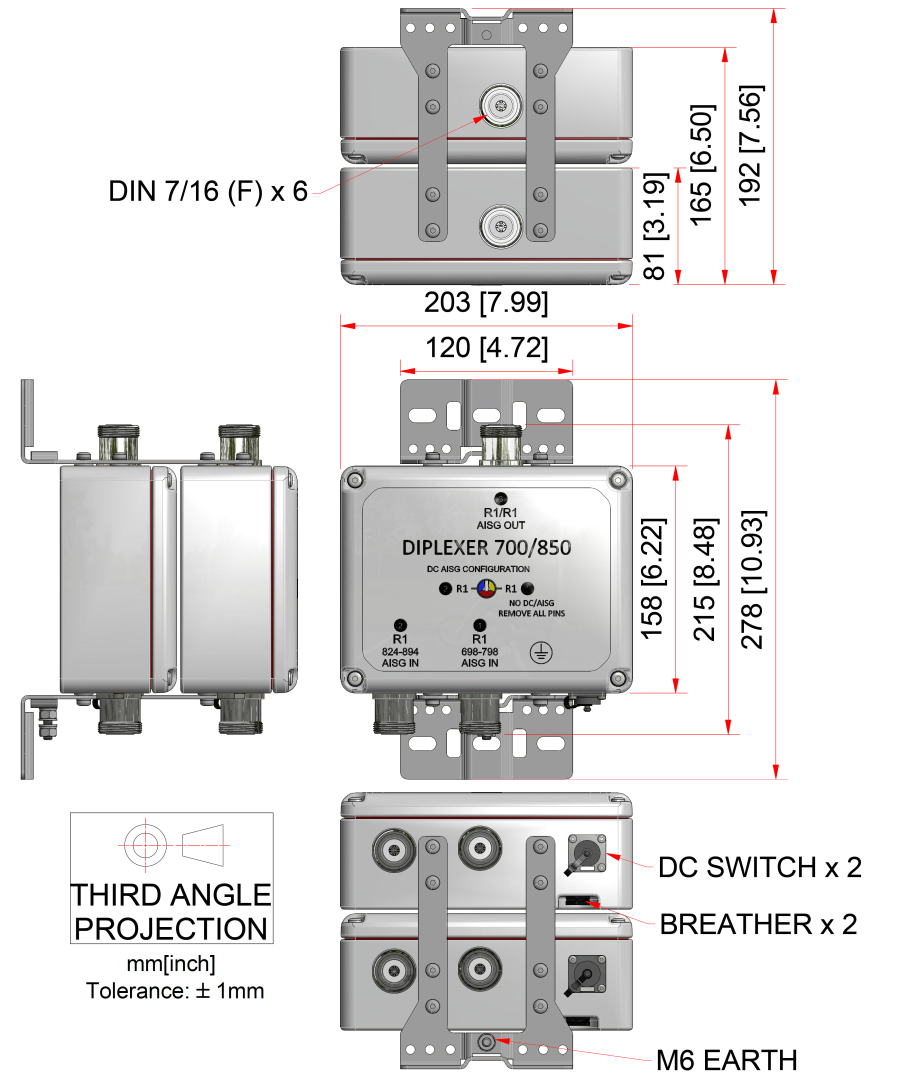

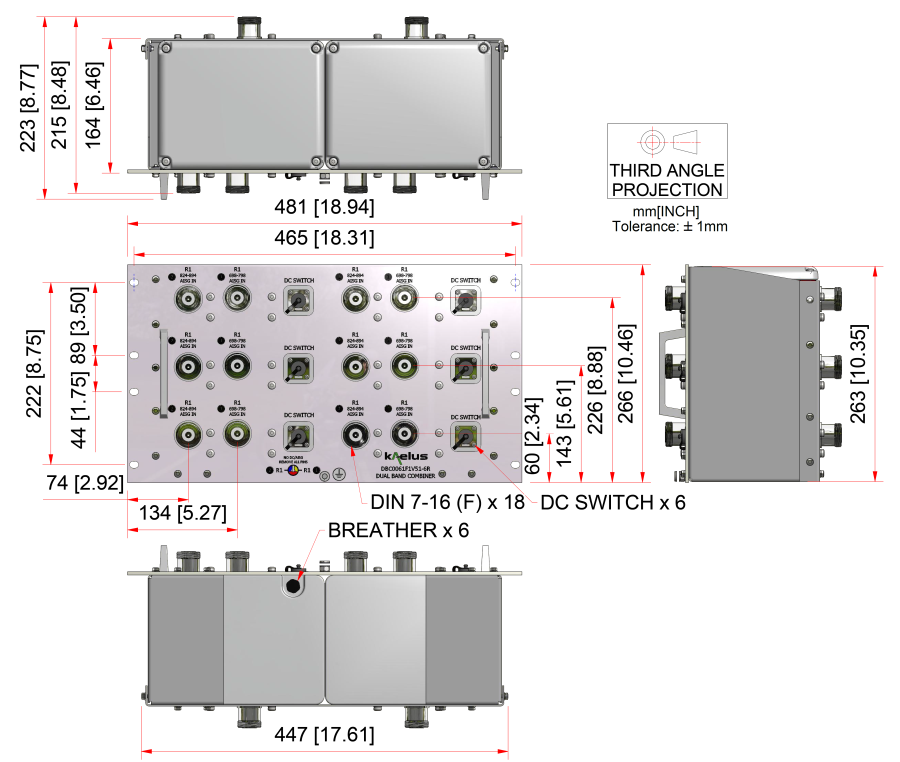

MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
