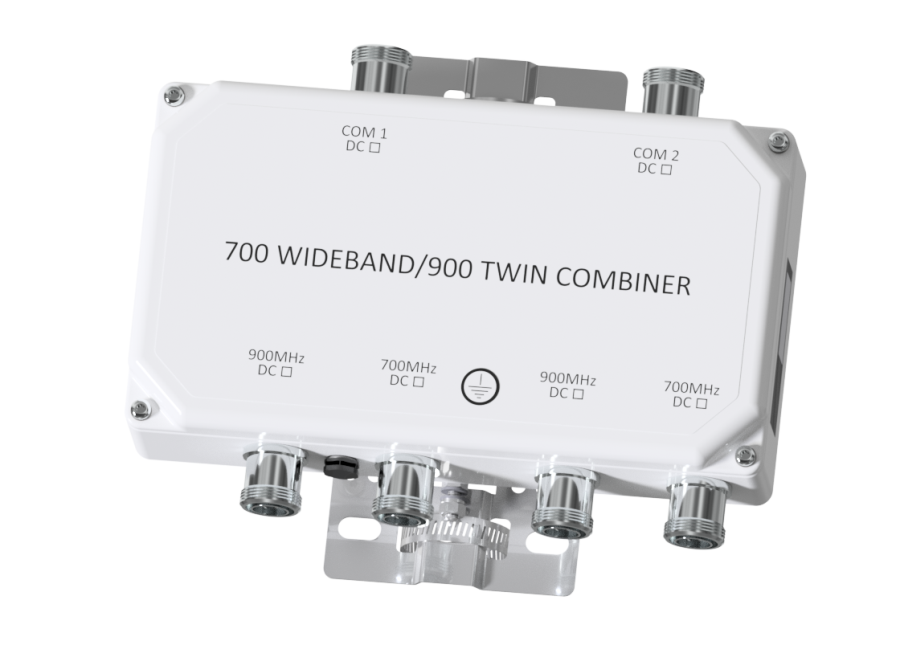

DBC0068F3V3-1

TWIN DIPLEXER APAC700/900

Kaelus world-proven outdoor solutions provide strong RF performance coupled with rugged operation. The DBC0068 provides the following features and benefits:

FEATURES

  • Enable feeder sharing using APAC700 and 900 cellular bands
  • Low passive IM performance
  • Offers low insertion loss and high isolation
  • Multiple DC by-pass/AISG configurations available
  • Twin unit wall or pole mounting
  • Outdoor/indoor

technical specifications
Band NameAPAC700900
Passband698 - 803MHz890 - 945MHz
Insertion loss0.15dB typical0.5dB typical
Return loss20dB typical
Maximum input power160W (average) / 1.6kW (PEP)160W (average) / 1.6kW (PEP)
Attenuation885-945MHz = 55dB typical
865 - 885MHz = 50dB typical, 30dB minimum
698 - 803MHz = 70dB typical
865 - 885MHz = 50dB typical, 30dB minimum
electrical
Impedance50Ohms
Intermodulation products-155dBc maximum all ports with 2 x 20W carriers
dc / aisg
Passband0 - 3MHz
Insertion loss, single DC/AISG pass1dB maximum
Return loss, single DC/AISG pass12dB minimum
Insertion loss, two DC/AISG pass4.5dB maximum
Return loss, two DC/AISG pass12dB typical
Input voltage range±30V
DC current rating2A continuous, 4A peak
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-20ºC to +60ºC | 4ºF to +140ºF
Ingress protectionIP67 (outdoors)
Lightning protectionIEC61312-1
8/20us, 5kA max
MTBF>1,000,000 hours
ComplianceRoHS
Operational humidity5% to 95%, non condensing
mechanical
Dimensions H x D x W300 x 254 x 99.6mm | 11.81 x 10 x 3.92in
Weight6.7kg | 14.8lbs
FinishPainted, light grey (RAL7035)
ConnectorsDIN 7-16 (F) x 6 long neck
MountingPole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
DBC0068F3V1-1TWIN, 2 in / 4 out FIXED DCDIN 7-16 (F) DC ON APAC700
DBC0068F3V3-1TWIN, 2 in / 4 out FIXED DCDIN 7-16 (F) DC ON APAC700 & 900
electrical block diagram
ELECTRICAL BLOCK DIAGRAM
mechanical block diagram
MECHANICAL BLOCK DIAGRAM
