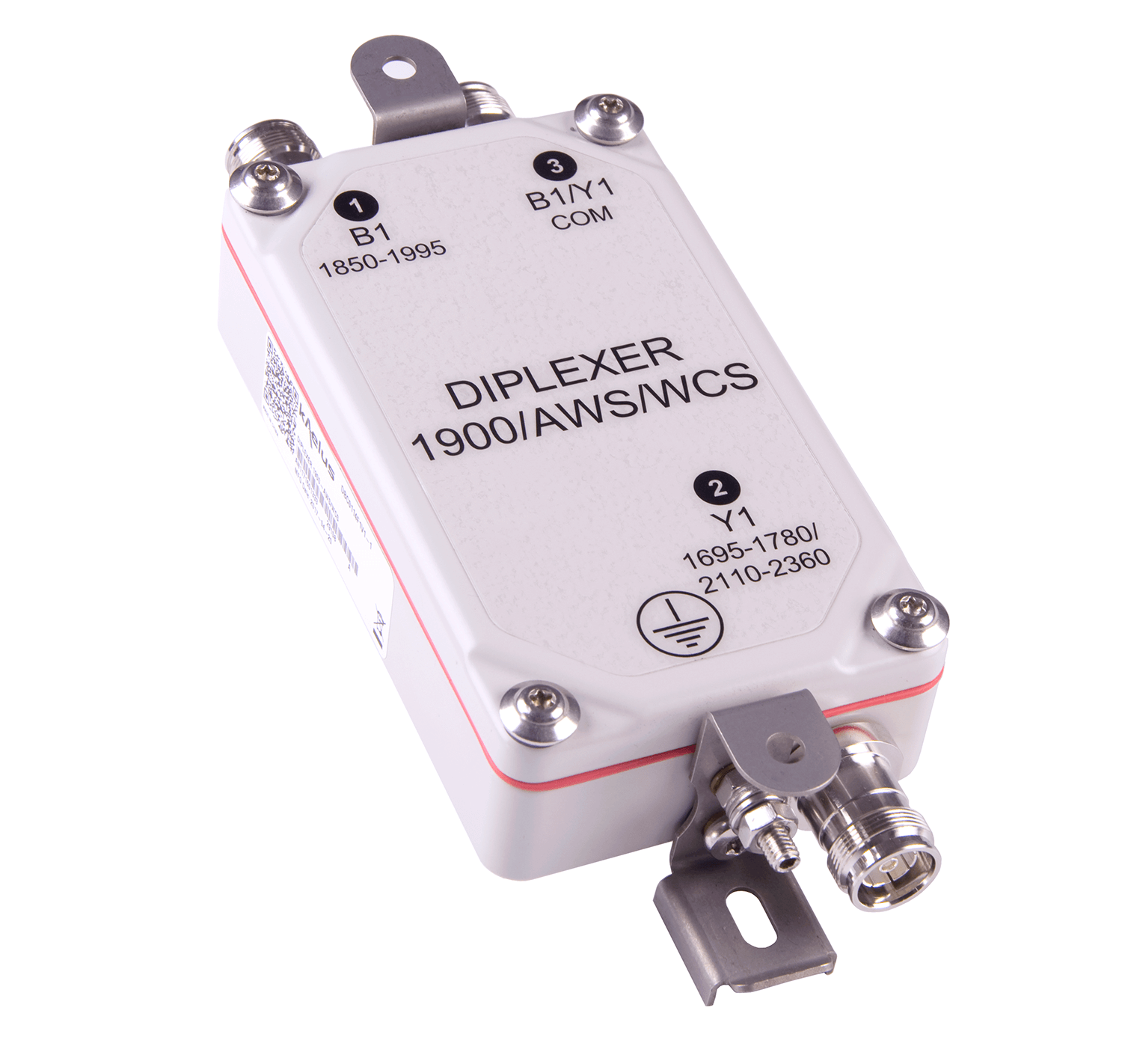

DBC0114F1V1-1

DIPLEXER 1900_AWS/WCS
DC/AISG on AWS/WCS Path

The Kaelus DBC0114 is a bi-directional Diplexer, designed to combine or split 1900 and AWS/WCS bands. The DBC0114 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna sharing for 1900 and AWS/WCS networks
  • AWS-3 ready
  • Offers low insertion loss
  • Low passive IM performance
  • Wall or mast mounting
  • Single and twin models available
  • 4.3-10 connectors standard

technical specifications
Band Name 1900 AWS/WCS
Passband 1850-1995MHz 1695-1780MHz / 2110–2360MHz
Insertion loss 0.35dB typical
Return loss 20dB minimum, 24dB typical
Absolute group delay 5ns typical
Maximum input power 100W (average) / 1000W (PEP) 100W (average) / 1000W (PEP)
Isolation 40dB typical 40dB typical
electrical
Impedance 50Ohms
Intermodulation products -155dBc maximum all ports with 2 x 20W carriers
dc / aisg
DC/AISG path AWS/WCS to COM port
Passband 0 – 3MHz
Insertion loss, single DC/AISG pass 1dB maximum
Return loss, single DC/AISG pass 12dB minimum
Input voltage range ± 31V
DC current rating 2A continuous, 4A peak
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40°C to +65°C | -40°F to +149°F
Ingress protection IP67, Outdoor unit
Altitude 3000m
MTBF >1,000,000 hours
Voltage withstanding 2kV per port
mechanical
Dimensions H x D x W (single unit) 160 x 90 x 44mm | 6.3 x 3.56 x 1.73in
Dimensions H x D x W (twin unit) 160 x 90 x 91mm | 6.3 x 3.56 x 3.58in
Weight 1.5kg | 3.3lbs (single unit)
3.1kg | 6.83lbs (twin unit)
Finish Painted, light grey (RAL7035)
Connectors RF: 4.3-10 (F) x 3 long neck
Wind Load Front 103N, Side 24N (Single)
Front 103N, Side 67N (Twin)
At 74m/s (AS/NZS 1170-2-2011 Structural design - Wind actions - Cyclone areas)
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
DBC0114F1V1-1 SINGLE 1 in /2 out FIXED DC 4.3-10 (F) DC to AWS/WCS
DBC0114F1V1-2 TWIN 2 in / 4 out FIXED DC 4.3-10 (F) DC to AWS/WCS
electrical block diagram
ELECTRICAL BLOCK DIAGRAM
mechanical block diagram
MECHANICAL BLOCK DIAGRAM
