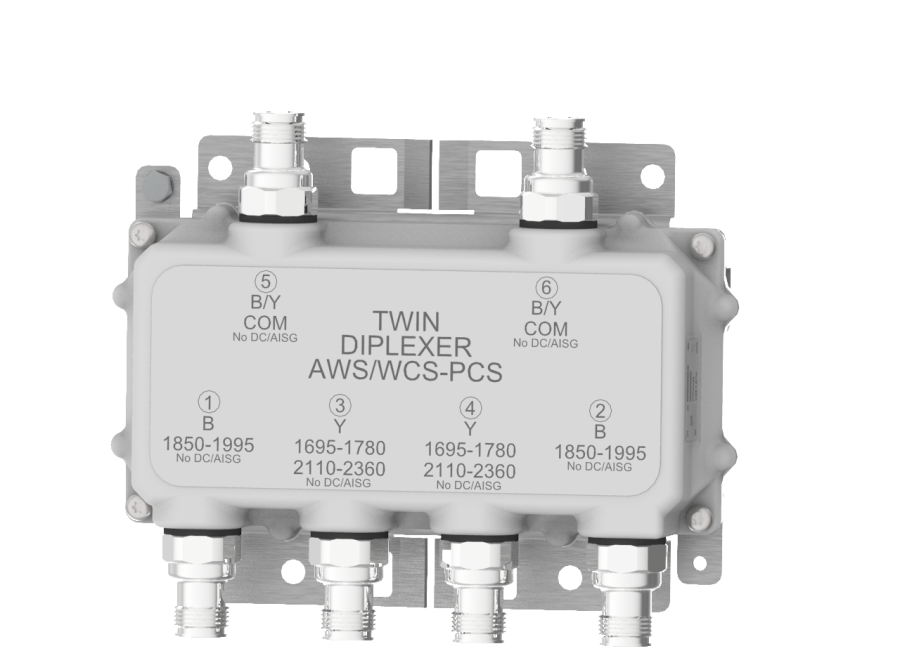

DBC0128F1V1-1

DBC0128F1V1-1

TWIN DIPLEXER AWS/WCS-PCS NO DC

Kaelus world proven outdoor solutions provide strong RF performance coupled with rugged features. The DBC0128 dual band combiner combines the AWS/WCS band with PCS. The DBC0128 can be used at either the BTS or antenna end of the feeder.

FEATURES

  • Designed for multi-band, co-located sites
  • Suitable for outdoor and indoor applications
  • UMTS & LTE ready
  • Wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name AWS/WCS PCS
Passband 1695-1780MHz, 2110-2360MHz 1850-1995MHz
Insertion loss 0.2dB typical, < 0.3dB maximum 0.25dB typical, < 0.38dB maximum
Return loss > 20dB > 20dB
Maximum input power 100W (average) / 1kW (PEP) 100W (average) / 1kW (PEP)
Intermodulation products -160dBc minimum at 2 x 43dBm TX Carrier -160dBc minimum at 2 x 43dBm TX Carrier
Isolation PCS > 40dB N/A
Isolation AWS/WCS N/A > 40dB
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40ºF to +149ºF
Ingress protection IP67
Lightning protection 5kA maximum (8/20us)
Compliance ETS 300 019 1-4 Class 4.1E (OPERATIONAL)
ETS 300 019 1-1 Class 1.2 (STORAGE)
mechanical
Dimensions H x D x W 221 x 107 x 42mm | 8.7 x 4.2 x 1.6in
Weight 2.15kg | 4.73lbs
Finish Painted, NCS 1502-R
Connectors 4.3-10 (F) x 6
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
DBC0128F1V1-1 TWIN 2 in / 4 out FIXED DC 4.3-10 (F) NO DC

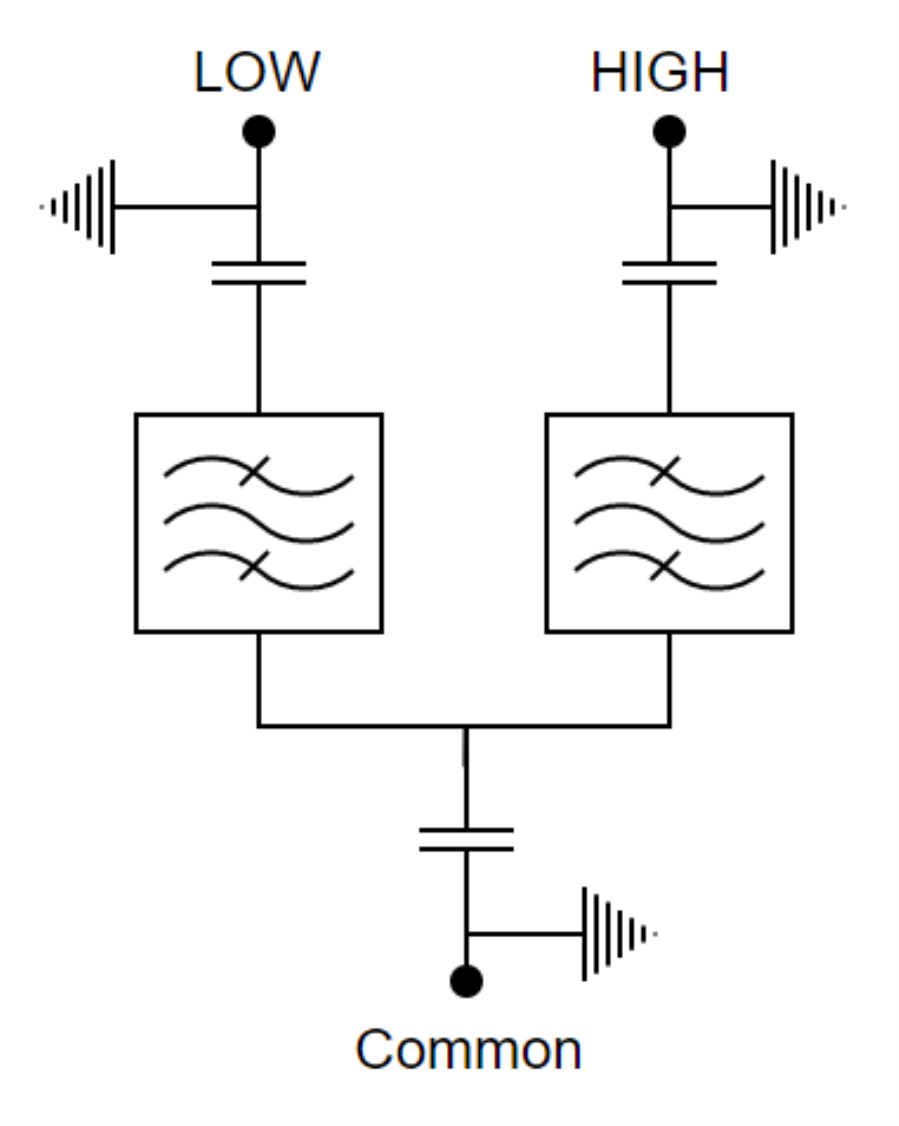

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

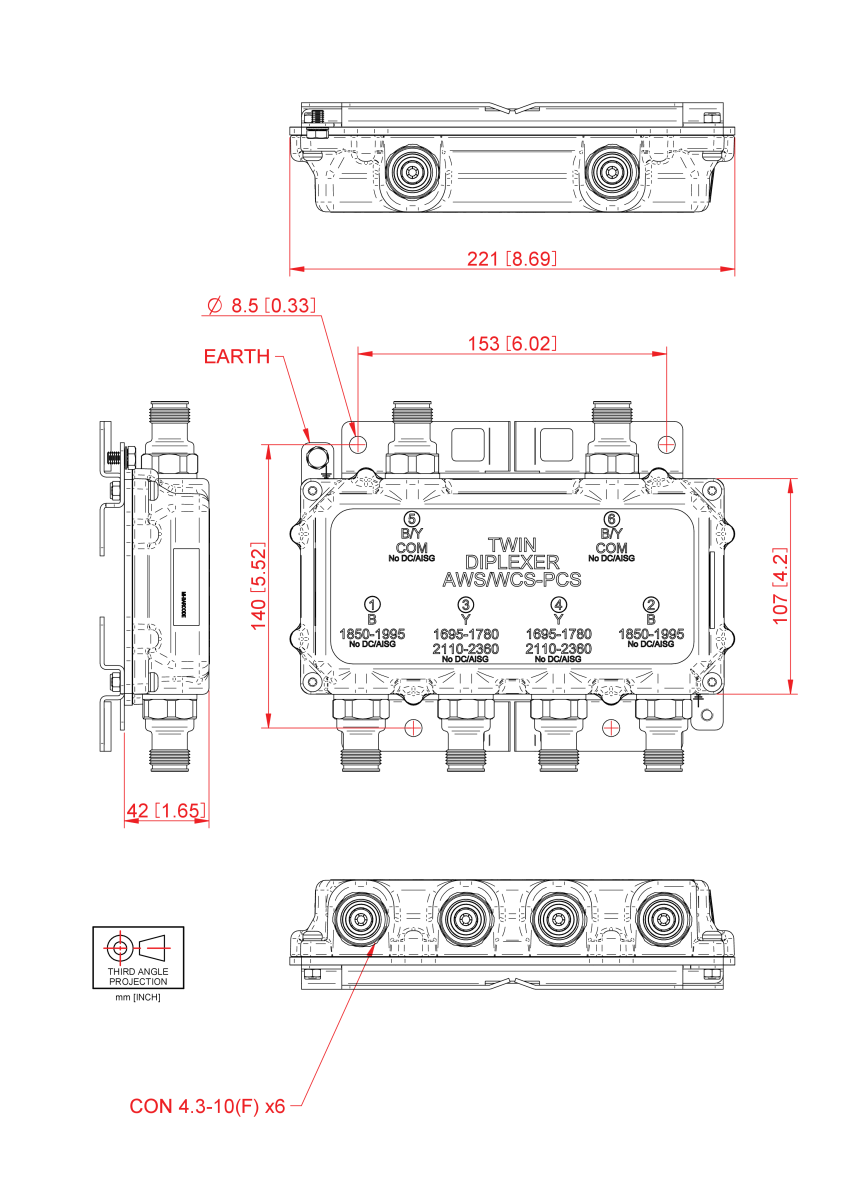

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
