DBCT108F1V92-1

DIPLEXER 600-700/850

The Kaelus DBCT108 is a bi-directional Diplexer designed to combine 600-700 with 850 technologies, the DBCT108 provides excellent insertion loss and passive intermodulation performance. Bidirectional passage of DC/AISG is provided in this outdoor product.

FEATURES

  • Enables antenna/feeder sharing for 600-700 and 850 networks
  • Designed and 100% tested for low passive intermodulation
  • Autosense of DC allows operation at the bottom or the top of the tower
  • Low insertion losses
  • Good return loss

technical specifications
Port Name 600-700 850
Passband 555 - 798MHz 824 - 894MHz
Insertion loss 0.15dB typical 0.2dB typical
Return loss 23dB typical
EVM ≤0.5% across any 10MHz ≤0.5% across any 20MHz
Group delay variation 7.5ns typical over any 10MHz 10ns typical over any 20MHz
Absolute group delay 7.5ns typical 17.5ns typical
Maximum input power 120W (average) / 1200W (PEP) 120W (average) / 1200W (PEP)
Phase linearity over any 10MHz 2° typical, 10 °maximum
electrical
Impedance 50Ohms
Intermodulation products -156dBc maximum with 2 x 20W carriers
Isolation 50dB typical
dc / aisg
The DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
Passband 2.076 -2.276MHz
Input voltage range 7.5 - 30V DC
DC current rating 2.5A continuous
Port priority (combiner mode) 1st) 600-700, 2nd) 850
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40ºF to +149ºF
Ingress protection IP67
Altitude 3000m/10,000ft maximum
Lightning protection RF: ±5kA maximum (8/20us), IEC61312-1
MTBF >1,000,000 hours
Compliance FCC Part 15 subpart B
mechanical
Dimensions H x D x W (single twin unit) 172 x 267 x 89 mm | 6.77 x 10.51 x 3.50 in maximum
Dimensions H x D x W (dual twin unit) 172 x 267 x183 mm | 6.77 x 10.51 x 7.20 in maximum
Weight 5.5kg / 12lbs (single twin)
10.9kg / 24lbs (dual twin)
Finish Painted, light grey (RAL7035)
Connectors 4.3-10 (F) x 6 long neck (single twin)
4.3-10 (F) x 12 long neck (dual twin)
Wind Load Front 55N, Side 304N (single twin)
Front 140N, Side 339N (dual twin)
At 74m/s (AS/NZS 1170-2-2011 Structural design - Wind actions - Cyclone areas)
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
DBC0108F1V92-1 SINGLE 1 in / 2 out DC AUTOSENSING WITHOUT LED 4.3-10 (F) PRIORITY 600-700/850
DBCT108F1V92-1 TWIN 2 in / 4 out DC AUTOSENSING WITHOUT LED 4.3-10 (F) PRIORITY 600-700/850
DBCT108F1V92-2 QUAD 4 in / 8 out DC AUTOSENSING WITHOUT LED 4.3-10 (F) PRIORITY 600-700/850
electrical block diagram
ELECTRICAL BLOCK DIAGRAM

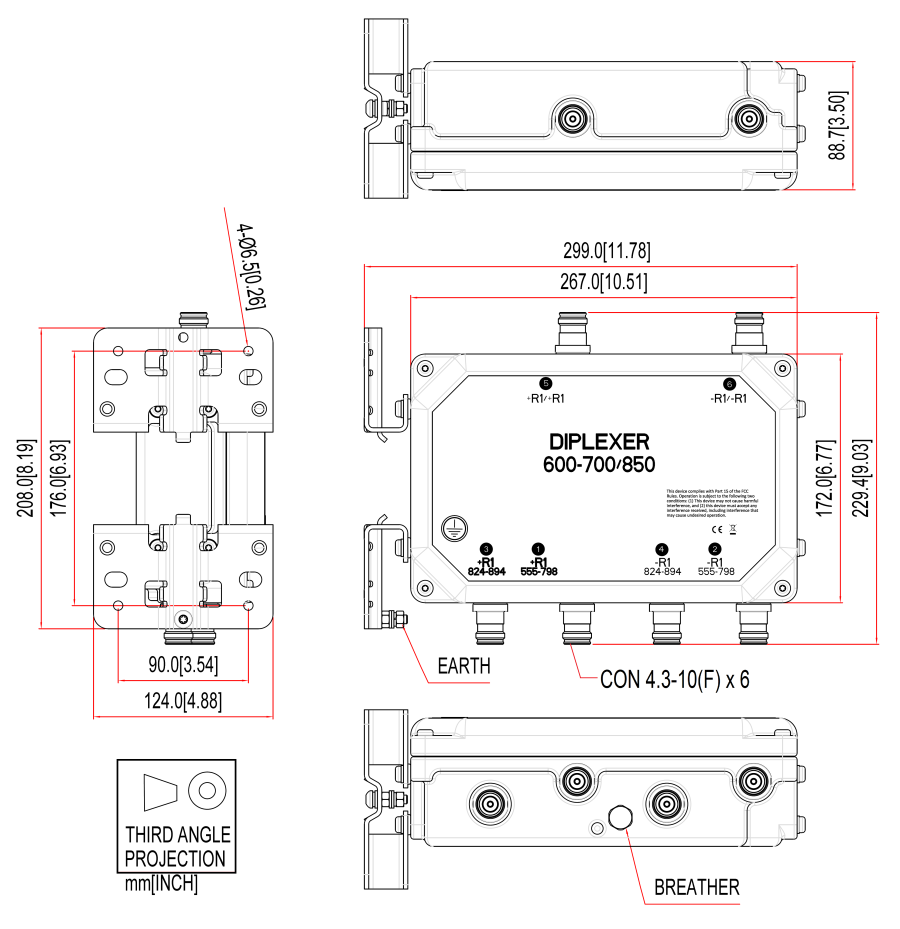

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
