KA-2016

DIPLEXER 617-2690/3300-5925

The Kaelus KA-2016 is a bi-directional Diplexer designed to combine low bands with C-band or LAA, the KA-2016 provides excellent insertion loss and passive intermodulation performance.

FEATURES

  • Enables antenna/feeder to inject C-band or LAA into existing installations
  • Designed and 100% tested for low passive intermodulation
  • Very low insertion loss
  • Small size, lightweight

technical specifications
Port NameLow BandHigh Band
Passband617 - 2690MHz3300 - 5925MHz
Insertion loss617- 2500MHz: 0.2dB typical, 0.4dB max
2500 - 2690MHz: 0.45dB typical, 0.55dB max
3300 - 3700MHz: 0.45dB typical, 0.6dB max
3700 - 5925MHz: 0.4dB typical, 0.5dB max
Return loss20dB typical
18dB min
Maximum input power100W (average) / 1000W (PEP)100W (average) / 1000W (PEP)
Intermodulation products< -160dBc at 2 x 43dBm TX Carrier
IM3: 617 - 2300MHz, IM7: 2300-2690MHz
< -145dBc at 2 x 43dBm TX Carrier
electrical
Isolation50dB in 3300-5925MHz50db in 617-2690MHz
Impedance50Ohms
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40ºF to +149ºF
Ingress protectionIP67
Altitude3000m/10,000ft maximum
Lightning protectionRF: ±5kA maximum (8/20us), IEC61312-1
MTBF>1,000,000 hours
ComplianceFCC part 15 subpart B
mechanical
Dimensions H x D x W (twin unit)94 x 77 X 104 mm | 3.7 x 3.0 x 4.1 in
Dimensions H x D x W (quad unit)94 x 166 x 112 mm | 3.7 x 6.5 x 4.1 in
Weight1.3kg | 2.8lbs (Twin)
FinishPainted, light grey (RAL7035)
Connectors4.3-10 (F)
MountingPole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
KA-2016-2033TWIN UNIT
4 IN / 2 OUT
BASE PRODUCT4.3-10 (F)DC LOW TO COMMON
KA-2016-4033QUAD UNIT
8 IN / 4 OUT
BASE PRODUCT4.3-10 (F)DC LOW TO COMMON
electrical block diagram
KA-2016-WXYZ where
  • W denotes the configuration: "1" single, "2" Twin
  • Z denotes the DC path configuration as per electrical diagram
  • Note
  • LOW port is 617-2690MHz band
  • HIGH port is 3300-5925MHz band

  • The Electrical Block Diagram for a single unit is shown:
    ELECTRICAL BLOCK DIAGRAM
    mechanical block diagram

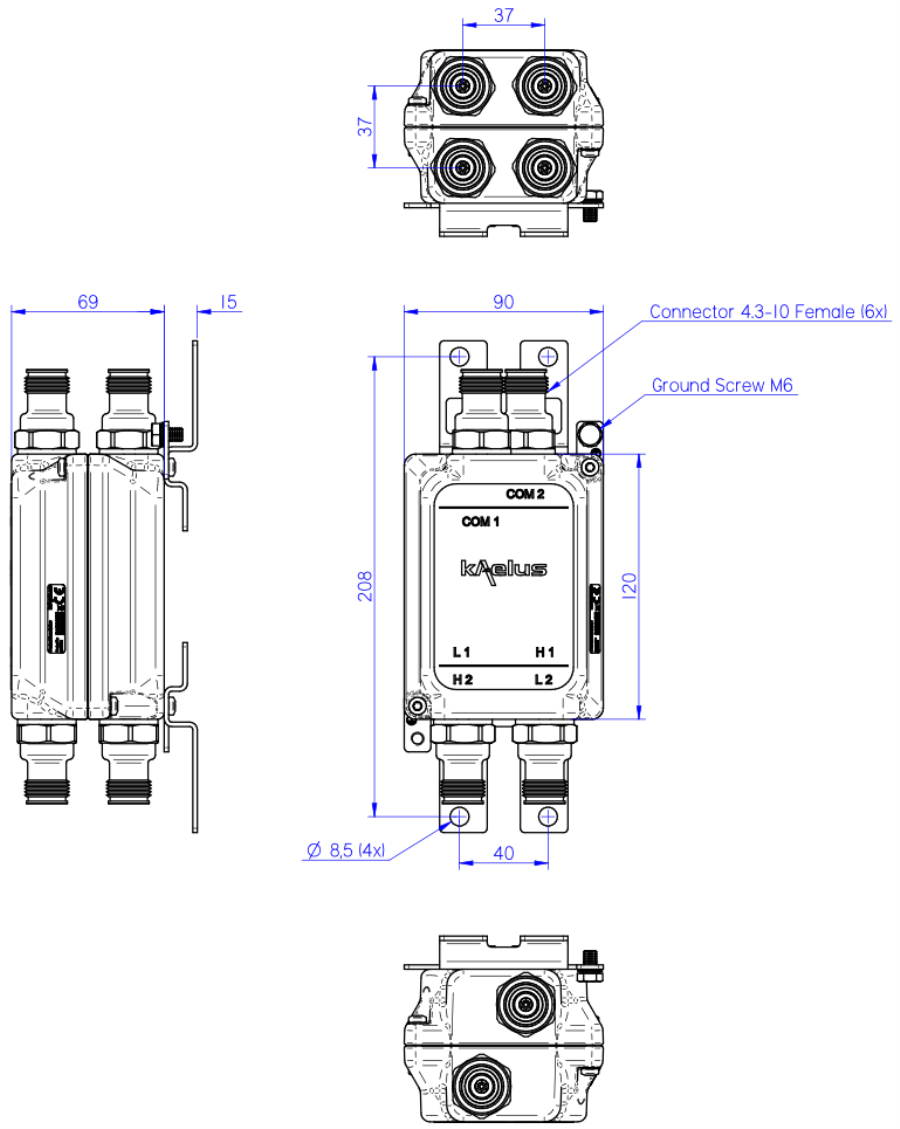

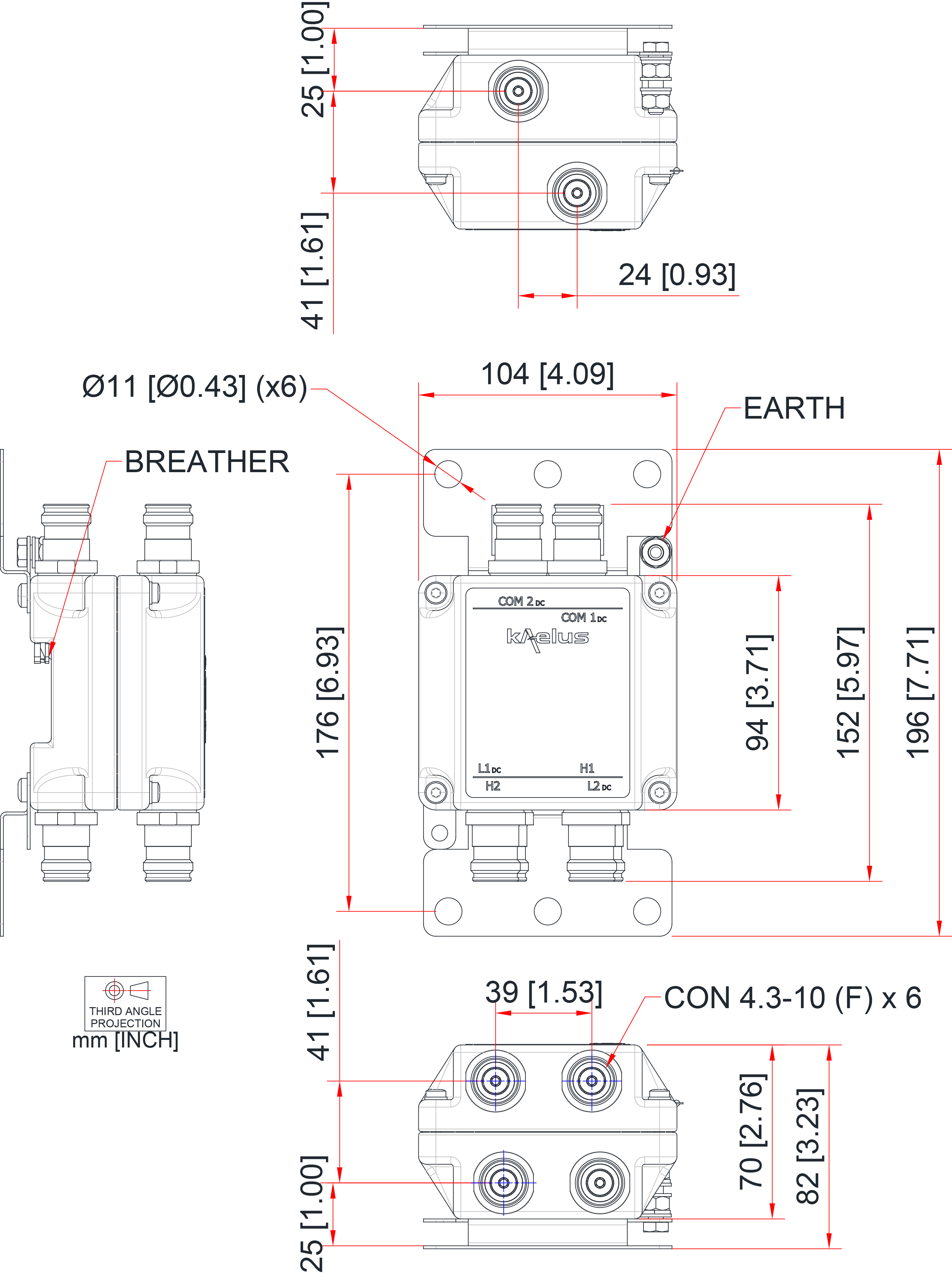

    MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
