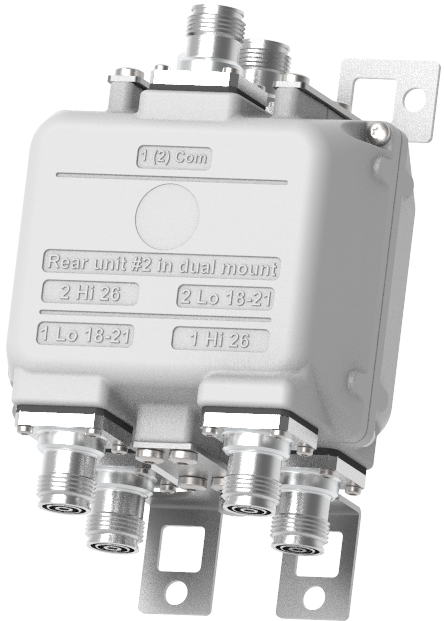

MI-241

MI-241

DIPLEXER 1800-2100/2300-2400 MHz

The Kaelus MI-241 is a bi-directional Diplexer, designed to combine or split 1800 - 2100 and 2300-2400 MHz. The MI-241 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for 1800 - 2100 and 2300-2400 MHz bands system
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • Low passive IM performance
  • Single twin and dual twin models available
  • 7/16 (F) or 4.3-10 (F) connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Port Name1800 - 2100 MHz 2300-2400 MHz
Passband1710-2170 MHz2300-2400 MHz
Insertion loss0.15 dB typical, 0.2 db maximum0.15 dB typical, 0.2 db maximum
Return loss20 dB typical, 18 dB minimum
Maximum input power250 W
Intermodulation products-159 dBc with 2 x 43 dBm TX Carrier
Rejection50 dB minimum in 2300-2400 MHz50 dB minimum in 1710-2170 MHz
electrical
Impedance50 Ω
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
Insertion loss1 dB max
Return loss12 18 dB min
Input voltage range8 - 30 V DC max 0.3 W
DC current rating2 A continuous, Drop max 2.4 V
Compliance3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40 ºC to +65 ºC | -40 ºF to +149 ºF
Ingress protectionIP67
Lightning protection3 kA 10/350 us, 10 kA 8/20 us
MTBF>1.000.000
ComplianceETSI EN 300 019-1-4 class 4.1E, RoHS
mechanical
FeatureSingle MountDual Mount
Dimensions H x D x W126 x110 x 48 mm I 4.96 x 4.33 x 2.05 in126 x 110 x 90 mm I 4.96 x 4.33 x 3.78 in
Volume0.7 l1.4 l
Weight1.8 kg/1.4kg I 3.97 lb/3.09 lb3.6 kg/3.0 kg I 7.94 lb/6.61 lb
FinishPainted, NCS 1502-R
MountingHose clamps or wall mount. Supporterpole diameter: 40-140mm
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
MI-2410nSingle MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-2411nDual MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-2413nSingle MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
MI-2414nDual MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
DC / ASIG CONFIGURATION
MI-241nAAuto-sense
MI.241n1DC Block
MI-241n2DC to all
MI-241n3DC to 2300
MI-241n4DC to 1800 - 2100
Auto-sense Priority
MI-241A.1FPO to 1800 - 2100 and 2300 - 2400
MI-241nA.2XOR to 1800 - 2100 and 2300 - 2400
MI-241nA.32300 - 2400 Priority 1 and 1800 - 2100 prority 2
MI-241nA.41800 - 2100 Priority 1 and 2300 - 2400 Priority 2

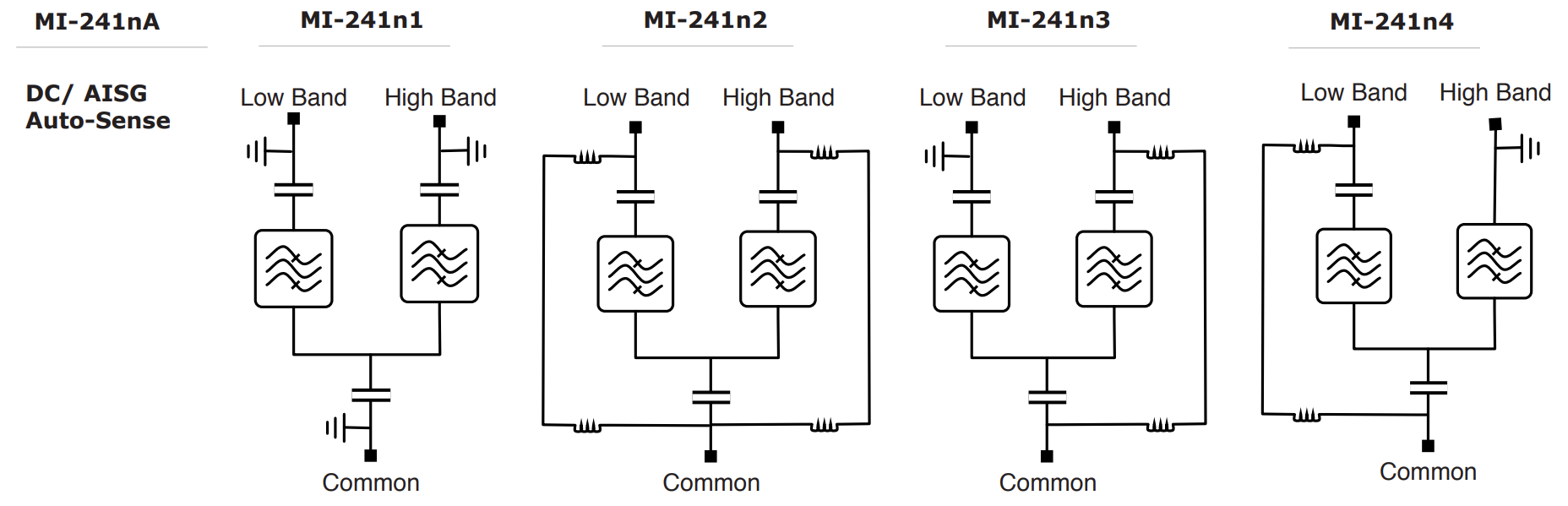

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

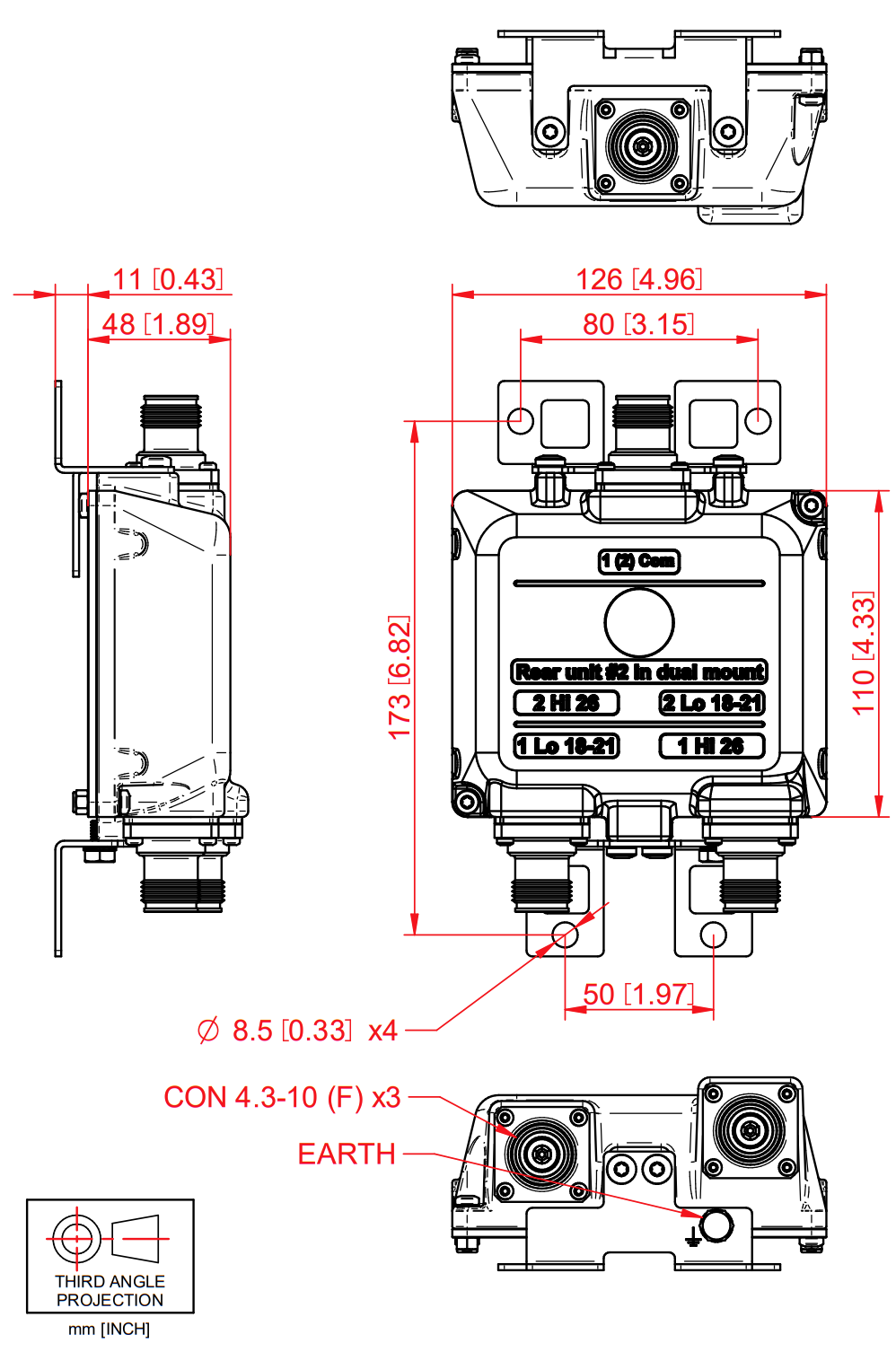

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
