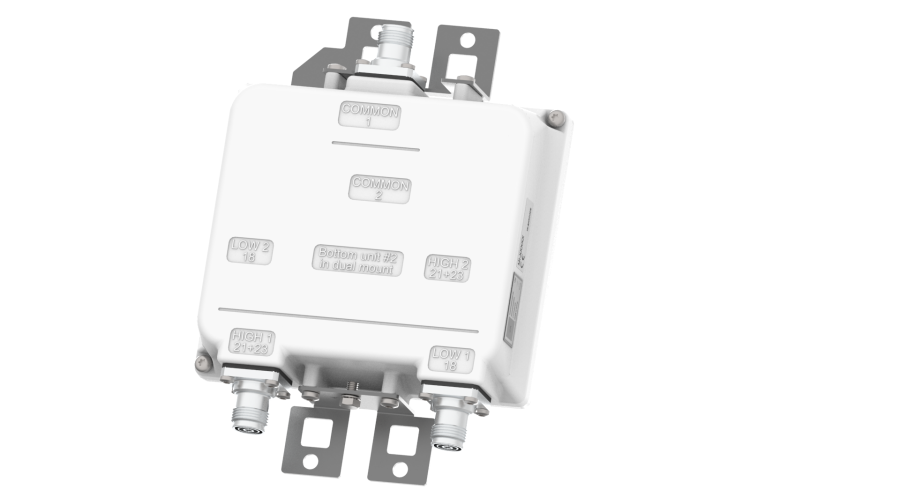

MI-299

DIPLEXER 1800/2100-2300

The Kaelus MI-299 is a bi-directional Diplexer, designed to combine or split 1800 and 2100-2300 MHz bands. The MI-299 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for 1800 and 2100-2300 MHz bands systems
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • Low passive IM performance
  • Single twin and dual twin models available
  • 7/16 (F) or 4.3-10 (F) connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting

technical specifications
Port Name1800(Low band)2100-2300(High Band)
Passband1710 - 1880 MHz1920 - 2170 MHz & 2300-2400 MHz
Insertion loss0.15dB typical, 0.2dB maximum1920-1980MHz 0.25dB typical
2110-2170 MHz & 2300-2400 MHz 0.15dB typical
Return loss20dB typical, 18dB minimum
Maximum input power250W (average), 2kW Peak250W (average), 2kW Peak
Intermodulation products-153dBc with 2 x 20W carriers
Rejection50dB minimum in High Band50dB minimum in Low Band
electrical
Impedance50Ohms
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
DC current rating3A
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40ºF to +149ºF
Ingress protectionIP67
Lightning protection3kA maximum (10/350us),10kA maximum (8/20us)
ComplianceETSI 300 019-1-4 Class 4.1E (OPERATIONAL)
ETSI 300 019-1-1 Class 1.2 (STORAGE)
mechanical
FeatureSingle MountDual Mount
Dimensions H x D x W163 x 50 x 185mm | 6.42 x 1.97 x 7.28in163 x 92 x 185mm | 6.42 x 3.62 x 7.28in
Weight2.6kg | 5.7lb
FinishPainted, NCS 1502-R
MountingPole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
MI-2990nSingle MountBASE MODEL7/16 (F)Refer to DC /AISG tabel
MI-2991nDaul MountBASE MODEL7/16 (F)Refer to DC /AISG tabel
MI-2993nSingle MountBASE MODEL4.3-10 (F)Refer to DC /AISG tabel
MI-2994nDual MountBASE MODEL4.3-10 (F)Refer to DC /AISG tabel
DC / AISG CONFIGURATION
MI-299nAAuto-Sense
MI-299n1NO DC Path
MI-299n2DC to Low and High Band
MI-299n3DC to High Band
MI-299n4DC to Low Band
Auto-Sense Priority
MI-299nA.1FPO to Low and High Band
MI-299nA.2XOR to Low and High Band
MI-299nA.3High Band Priority 1 and Low Band Priority 2
MI-299nA.4Low Band Priority 1 and High Band Priority 2

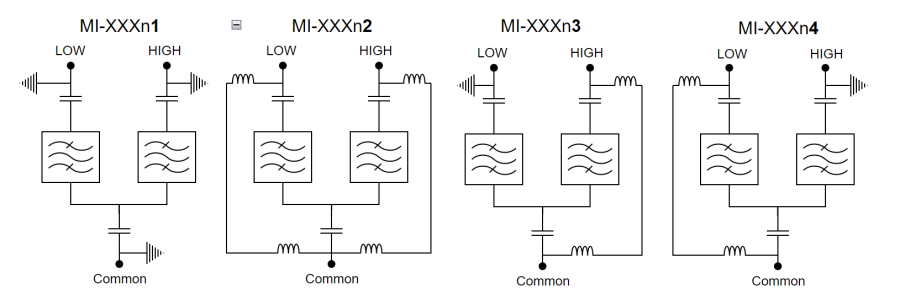

electrical block diagram
ELECTRICAL BLOCK DIAGRAM
Note: single mount shown

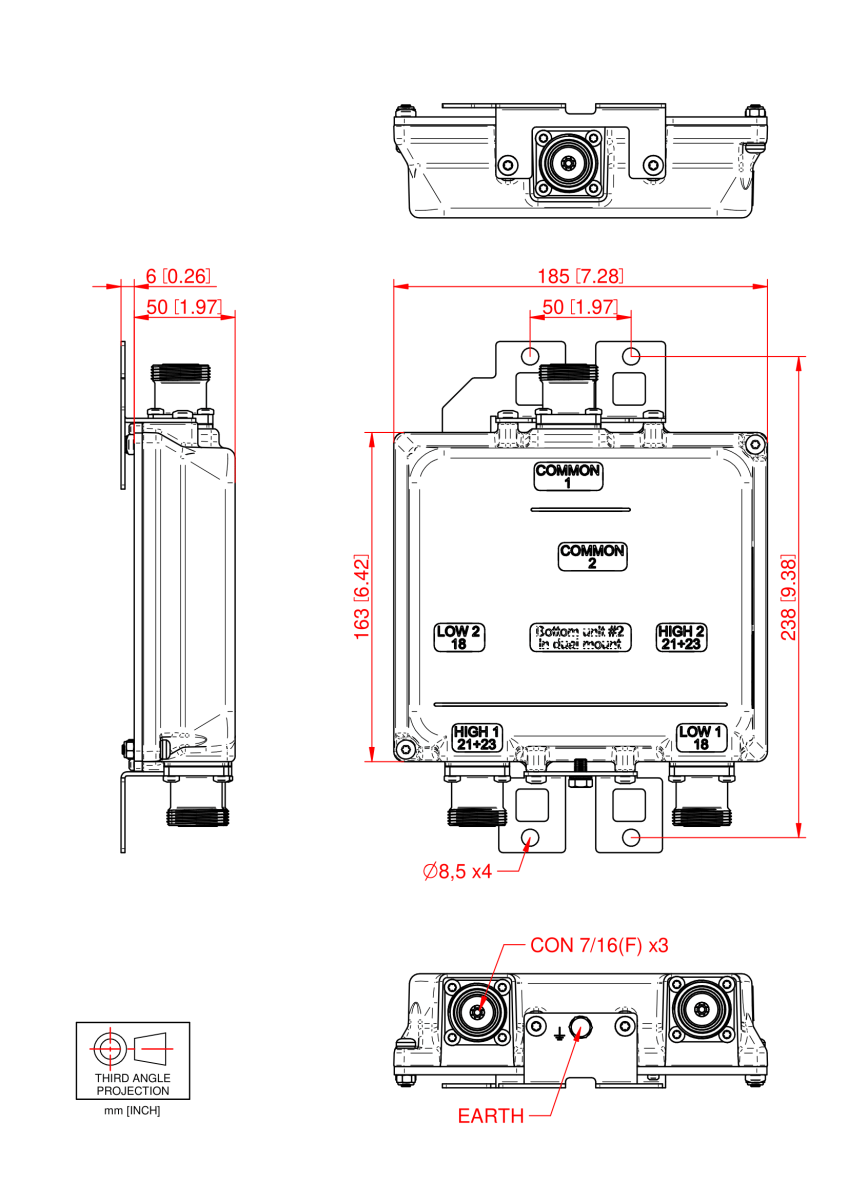

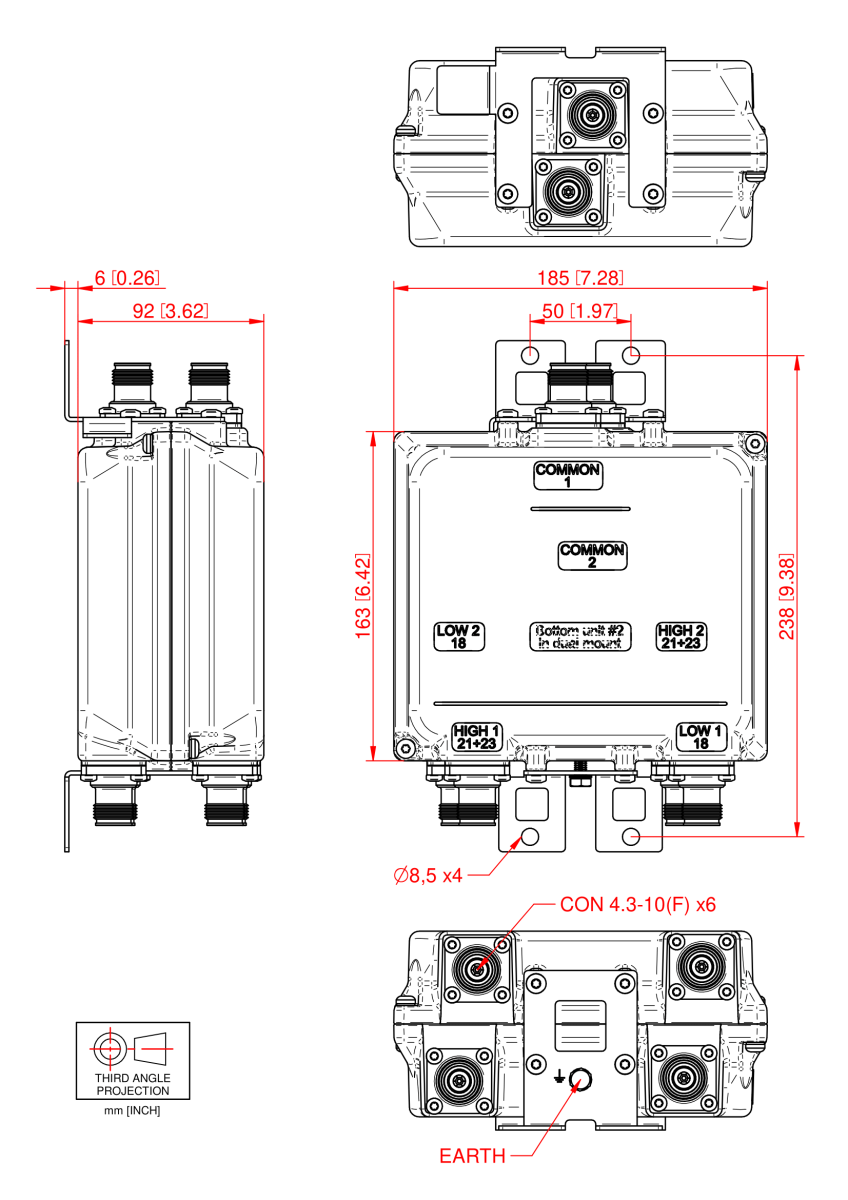

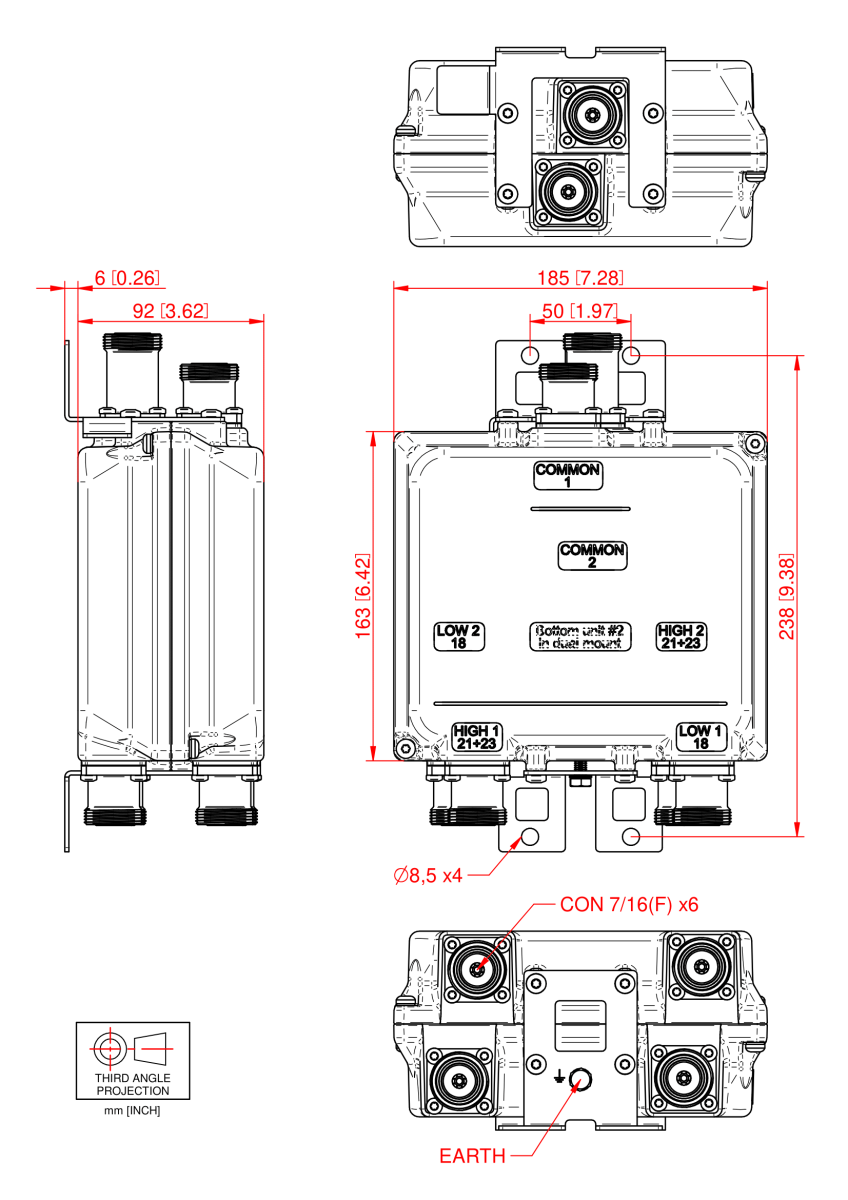

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
