MI-513

DIPLEXER 2300/2600

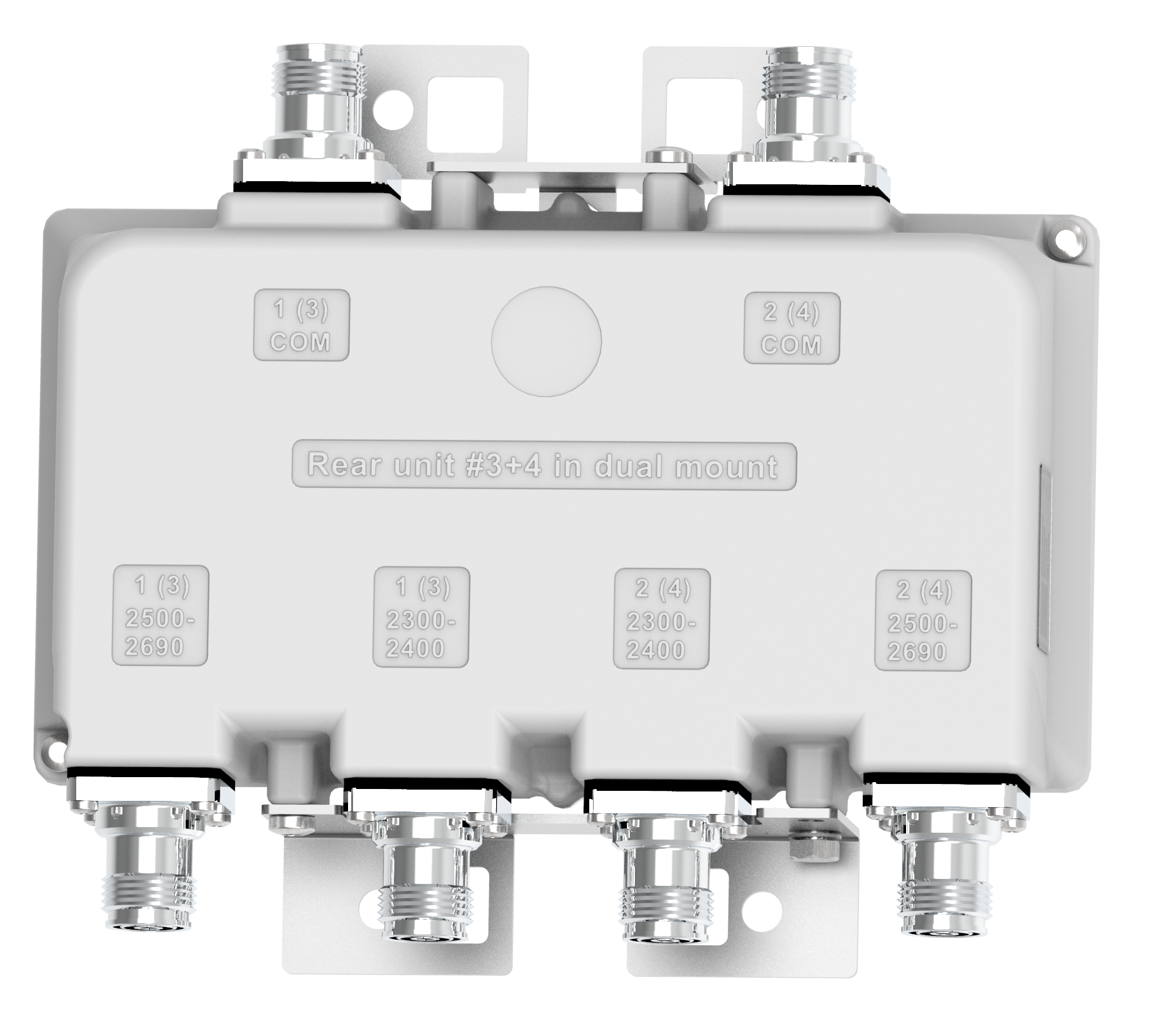

The Kaelus MI-513 is a bi-directional Diplexer, designed to combine or split 2300 and 2600 MHz bands. The MI-513 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for 2300 and 2600 MHz bands systems
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • Low passive IM performance
  • Single twin and dual twin models available
  • 7/16 (F) or 4.3-10 (F) connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting

technical specifications
Port NameLow bandHigh Band
Passband2300 - 2400MHz2496 - 2690MHz
Insertion loss0.15dB typical, 0.3dB maximum0.15dB typical, 0.25dB maximum
Return loss18dB minimum
Maximum input power250W (average)250W (average)
Intermodulation productsN.A-160dBc with 2 x 20W carriers
Rejection50dB minimum in 2496 - 2690MHz band50dB minimum in 2300 - 2400MHz band
electrical
Impedance50Ohms
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
FeatureDC-FIXEDAUTOSENSE
Insertion loss, single DC/AISG pass1dB maximum
Return loss, single DC/AISG pass12dB minimum
Input voltage range8 – 30V DC, 0.3W
DC current rating3A2A, drop max 2.4V
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40ºF to +149ºF
Ingress protectionIP67
Lightning protection10kA maximum (8/20us)
ComplianceETSI 300 019-1-4 Class 4.1E (OPERATIONAL)
ETSI 300 019-1-1 Class 1.2 (STORAGE)
mechanical
FeatureSingle MountDual Mount
Dimensions H x D x W220 x 48.5 x 120 mm | 8.66 x 1.91 x 4.72 in220 x 91 x 120 mm | 8.66 x 3.58 x 4.72 in
WeightTBDTBD
FinishPainted, NCS 1502-R
MountingPole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
MI-5130nSingle MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-5131nDual MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-5133nSingle MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
MI-5134nDual MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
DC / AISG CONFIGURATION
MI-513nAAuto-Sense
MI-513n1NO DC Path
MI-513n2DC to Low band and High band
MI-513n3DC to High band
MI-513n4DC to Low band

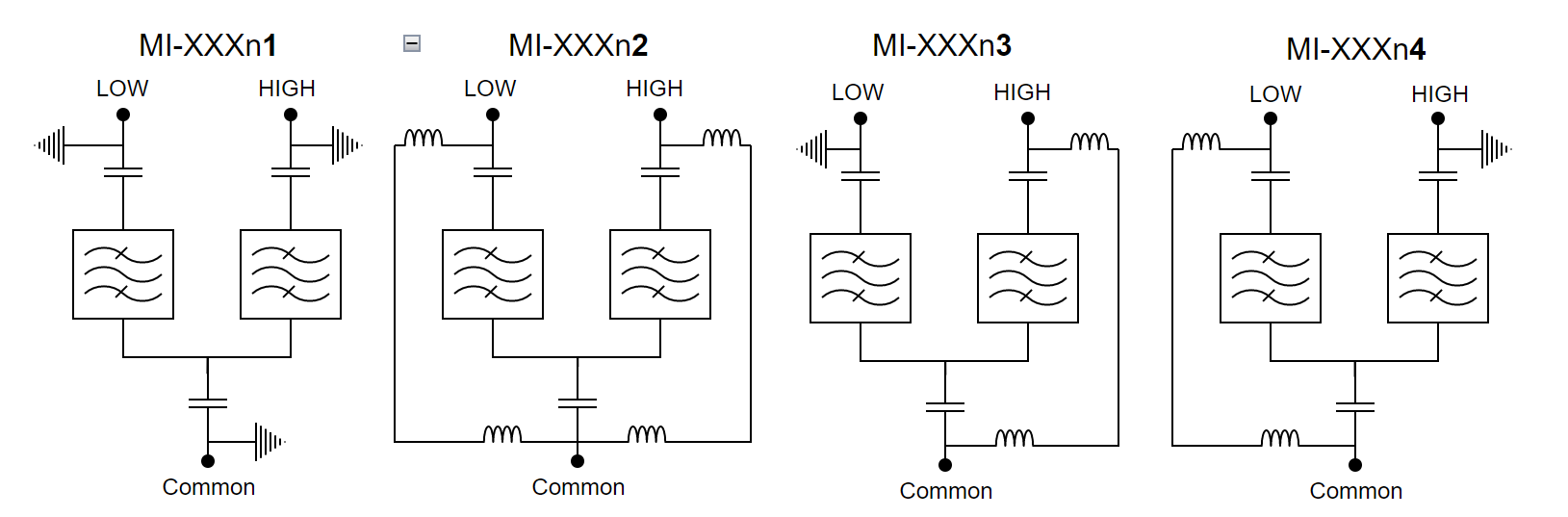

electrical block diagram
ELECTRICAL BLOCK DIAGRAM
Note: single mount shown
mechanical block diagram

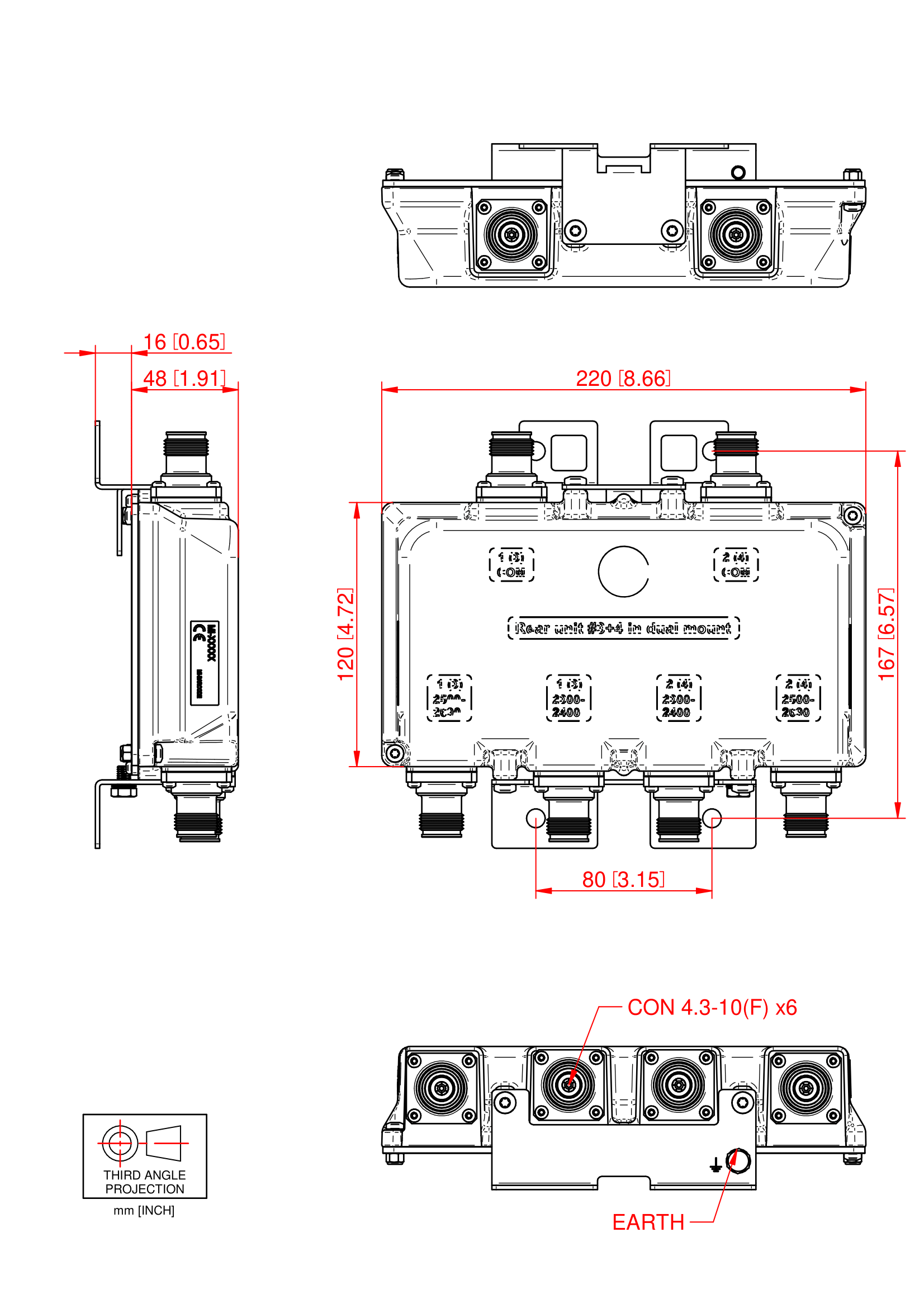

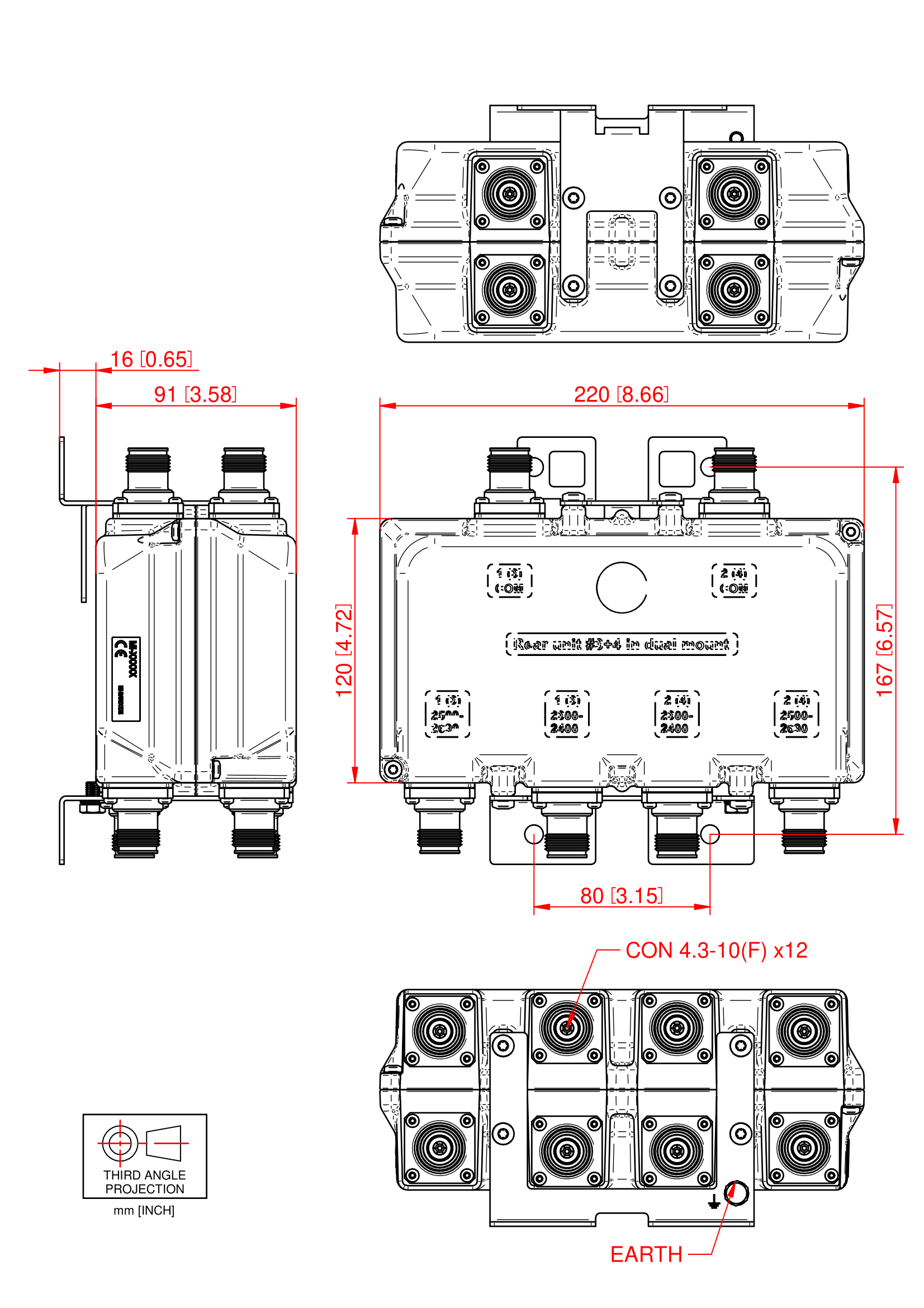

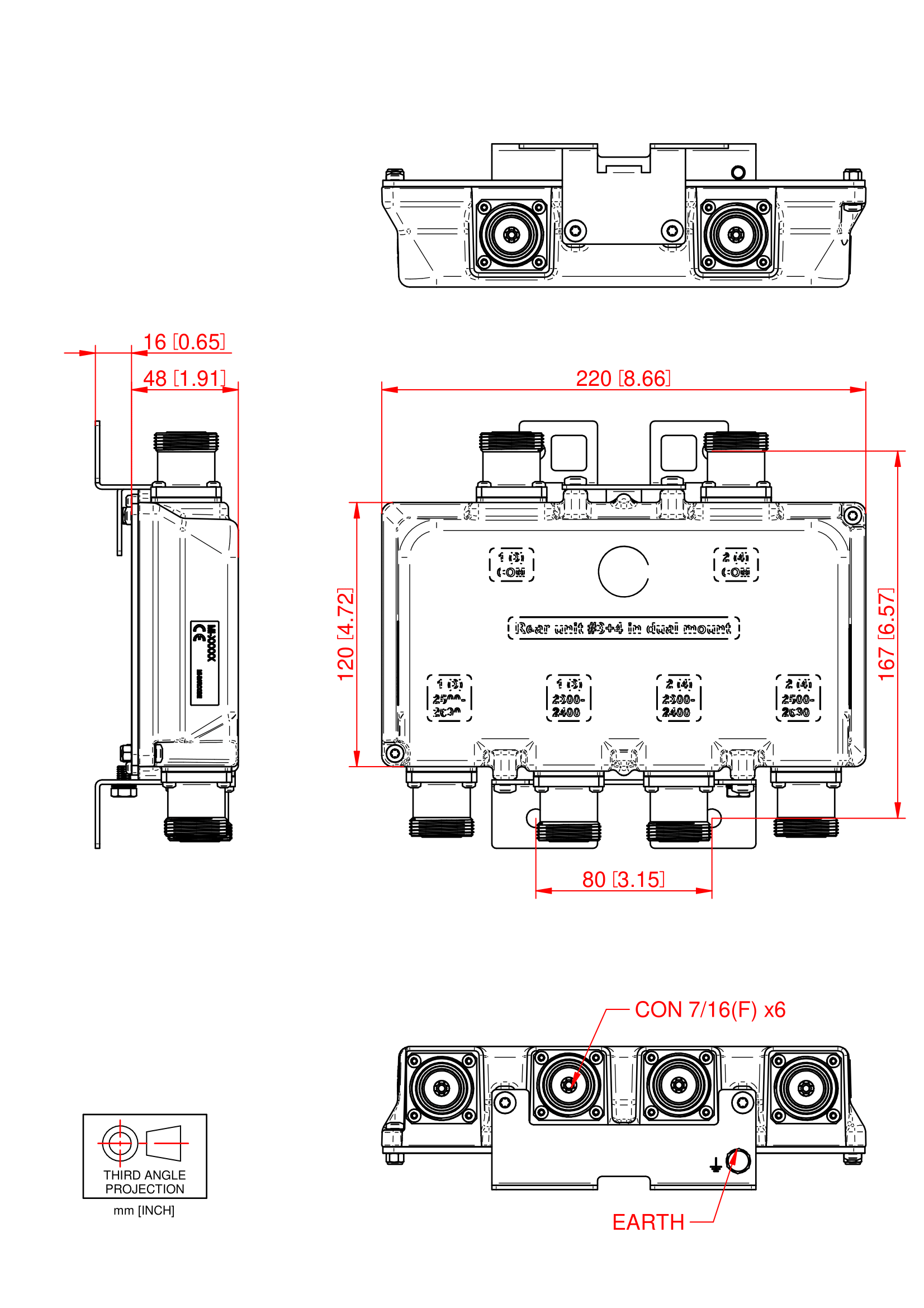

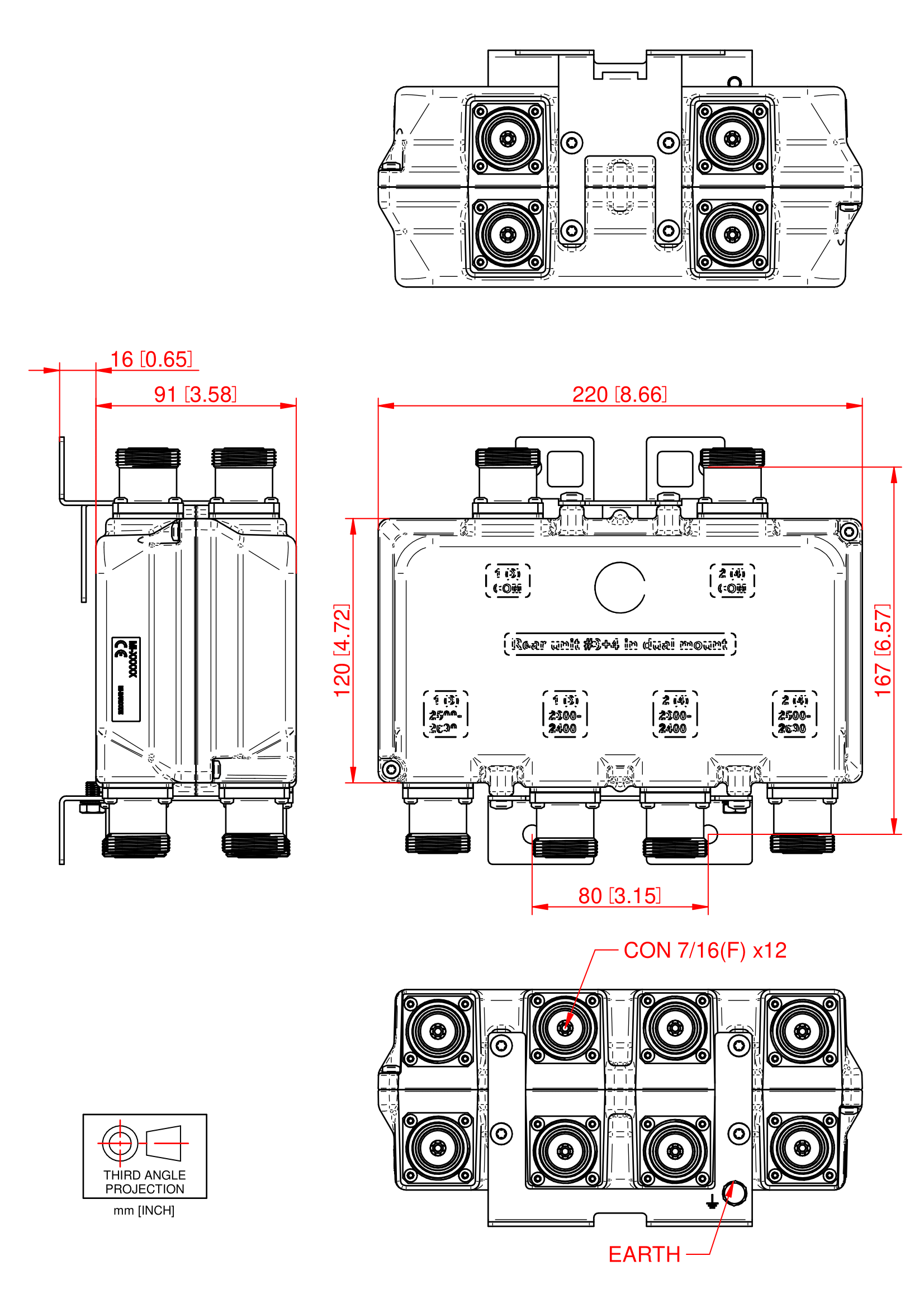

MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
