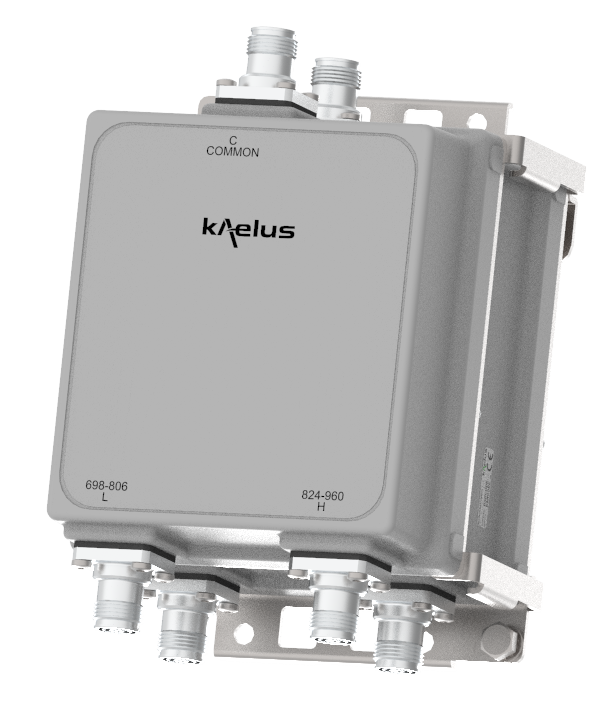

MI-514

MI-514

DIPLEXER 700/850-900

The Kaelus MI-514 is a bi-directional Diplexer, designed to combine or split 698 - 806 MHz and 824 - 960 MHz bands. The MI-514 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for 698 - 806 MHz and 824 - 960 MHz bands systems.
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • High passive IM performance
  • Single and dual models available
  • 7/16 (F) or 4.3-10 (F) connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Port Name 700 MHz 850/900 MHz
Passband 698 - 806 MHz 824 - 960 MHz
Insertion loss < 0.35 dB < 0.35 dB
Return loss >18 dB >18 dB
Maximum input power 250 W (average)
Intermodulation products -160 dBc with 2 x 43 dBm TX Carrier -160 dBc with 2 x 43 dBm TX Carrier
Rejection 50 dB minimum in 824 - 960 MHz 50 dB minimum in 698 - 806 MHz
electrical
Impedance 50 Ω
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
Insertion loss 1 dB max
Return loss 12 dB min
Input voltage range 8 - 30 V DC max 0.3 W
DC current rating 3 A continuous, Drop max 2.4 V
Compliance 3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40 ºC to +65 ºC | -40 ºF to +149 ºF
Ingress protection IP67
Lightning protection 5 kA maximum (8/20 us)
MTBF > 1,000,000 Hours
Compliance ETSI EN 300 019-1-4 class 4.1E, RoHS
mechanical
Feature Single Mount Dual Mount
Dimensions H x D x W 158 x 174 x 62 mm I 6.22 x 6.85 x 2.44 in 158 x 174 x 132 mm I 6.22 x 6.85 x 5.19 in
Volume 1.7 l 3.2 l
Weight 2.6 kg I 5.73 lb 4.3 kg I 9.47 lb
Finish Painted, NCS 1502-R
Mounting Hose clamps or wall mount
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
MI-5140n Single Mount BASE MODEL 7/16 (F) Refer to DC /AISG table
MI-5141n Dual Mount BASE MODEL 7/16 (F) Refer to DC /AISG table
MI-5143n Single Mount BASE MODEL 4.3-10 (F) Refer to DC /AISG table
MI-5144n Dual Mount BASE MODEL 4.3-10 (F) Refer to DC /AISG table
DC / ASIG CONFIGURATION
MI-514A Auto-sense
MI-514n1 DC Block
MI-514n2 DC TO ALL
MI-514n3 DC TO 850/900
MI-514n4 DC TO 700
Auto-sense Priority
MI-514nA.1 FPO to 700 and 850/900
MI-514nA.2 XOR to 700 and 850/900
MI-514nA.3 850/900 Priority 1 and 700 Priority 2
MI-514nA.4 700 Priority 1 and 850/900 Priority 2

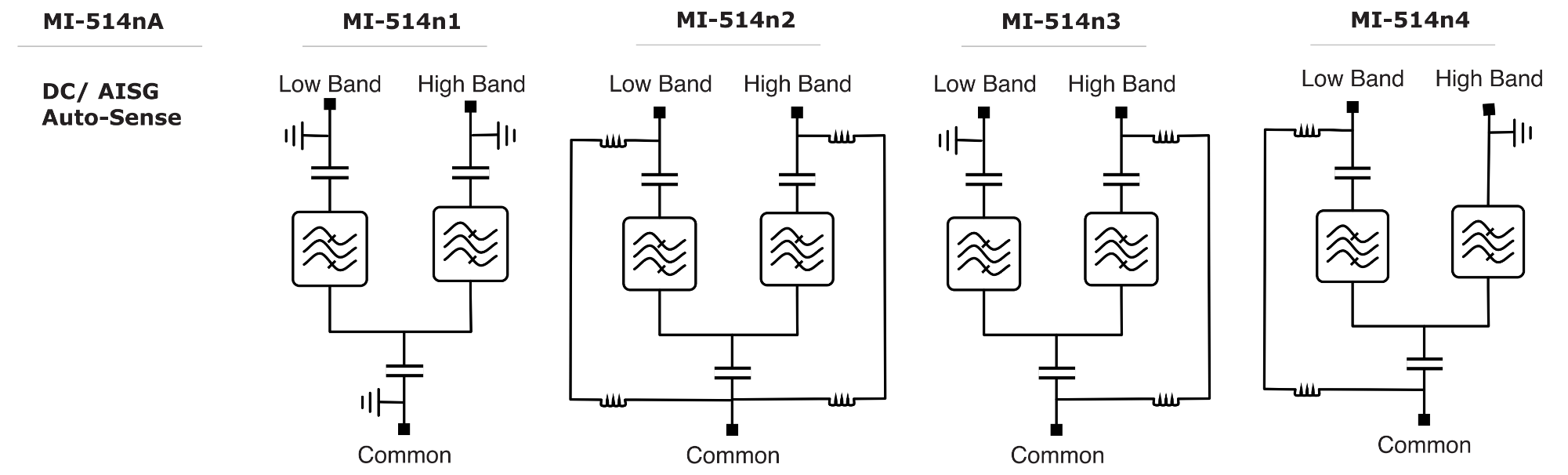

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

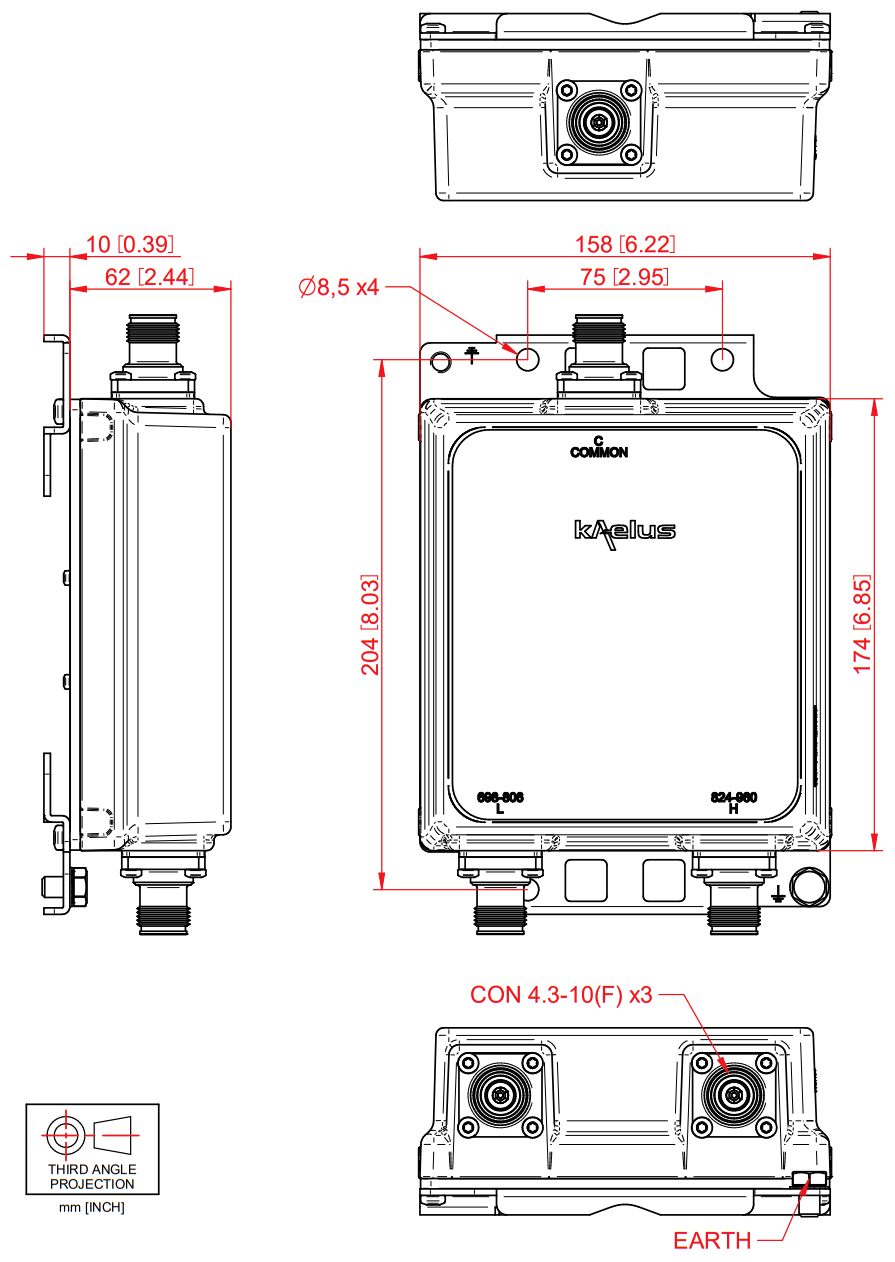

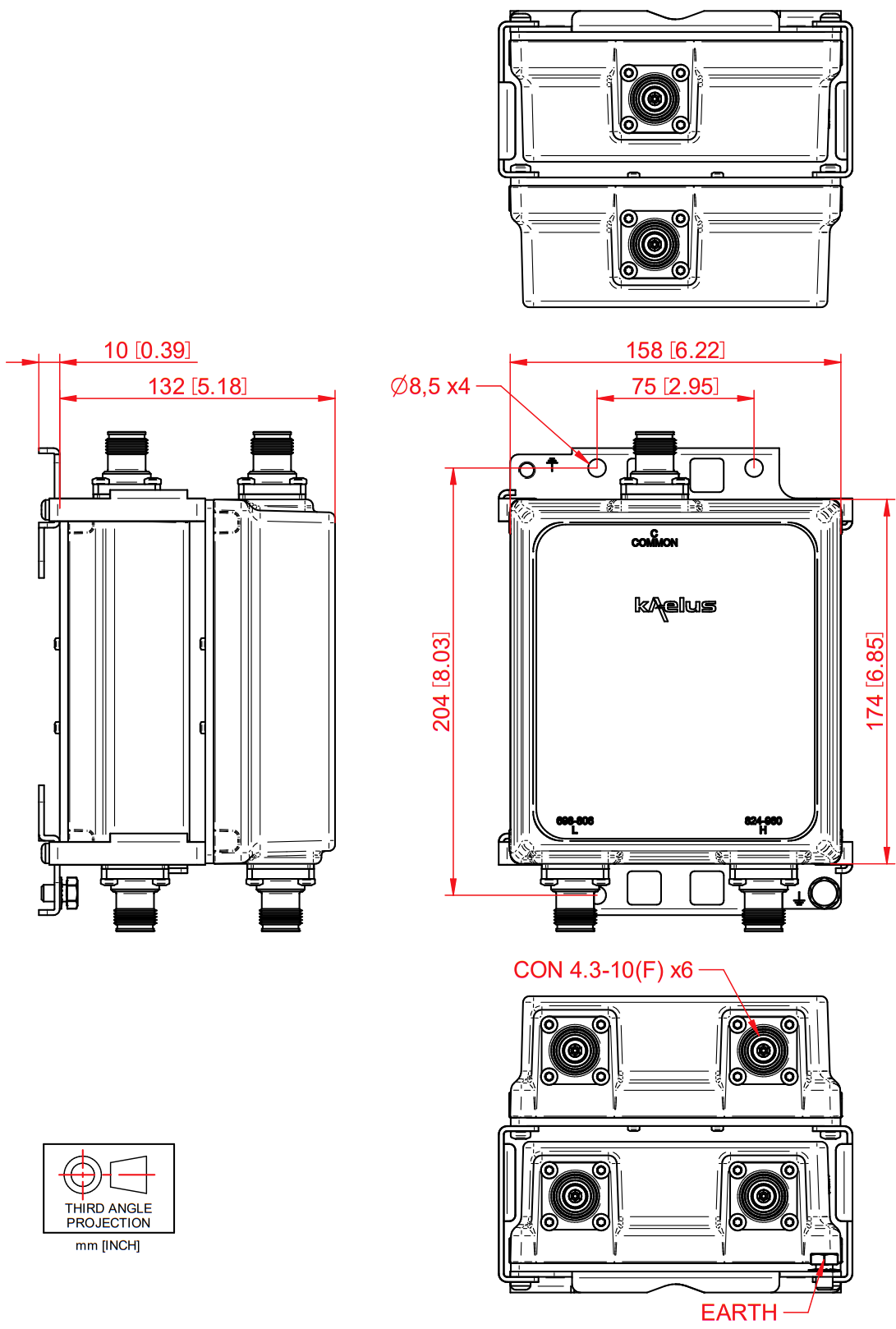

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
