DIPLEXER 700/800 MHz

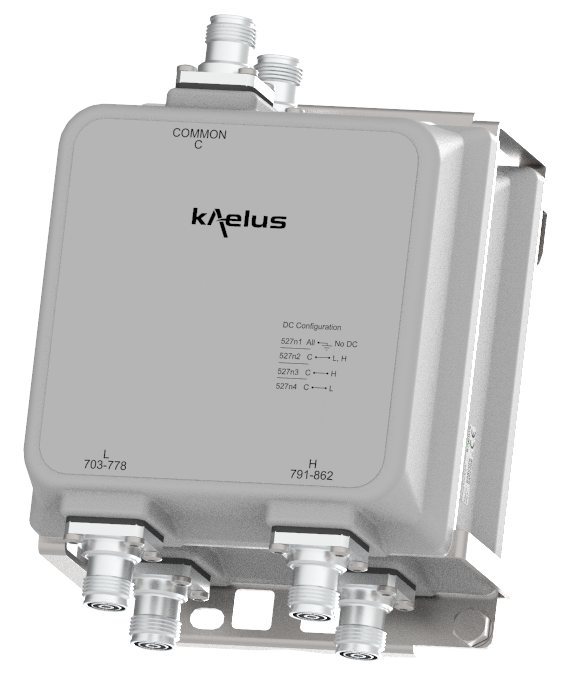

The Kaelus MI-527 is a bi-directional Diplexer, designed to combine or split 700 MHz and 800 MHz bands. The MI-527 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for 703 - 778 MHz and 791 - 862 MHz band system
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • High passive IM performance
  • Single and dual models available
  • 7/16 (F) or 4.3-10 (F) connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Port Name 700 MHz 800 MHz
Applicable for MI-570n, MI-5271n, MI-5273n and MI-5274n
Passband 703 - 778 MHz 791- 862 MHz
Insertion loss 0.2 dB typical, max dB 0.5 maximum 0.2 dB typical, 0.5 dB maximum
Return loss >18 dB >18 dB
Maximum input power 150 W (avarage)
Intermodulation products -160dBc with 2 x 43 DBm TX Carrier -160dBc with 2 x 43 DBm TX Carrier
Rejection 50 dB minimum in 791 - 862 MHz 50 dB minimum in 703 - 778MHz
Applicable for MI-5275n, MI-5276n, MI-5277n and MI-5278n
Passband 713 - 788 MHz 801 - 862 MHz
Insertion loss 0.2 dB typical, 0.5 dB maximum 0.2 dB typical, 0.5 dB maximum
Return loss >18 dB >18 dB
Maximum input power 150 W (average)
Intermodulation products -160 dBc with 2 x 43 dBm TX Carrier -160 dBc with 2 x 43 dBm TX Carrier
Rejection 50 dB minimum in 801 - 862 MHzMHz 50 dB minimum in 713 - 788 MHz
electrical
Impedance 50 Ω
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
Insertion loss 1 dB max
Return loss 12 dB min
Input voltage range 8 - 30 V DC max 0.3 W
DC current rating 3 A continuous, Drop max 2.4 V
Compliance 3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40 ºC to +65 ºC | -40 ºF to +149 ºF
Ingress protection IP67
Lightning protection 5 kA maximum (8/20 us)
MTBF > 1,000,000 Hours
Compliance ETSI EN 300 019-1-4 class 4.1E, RoHS
mechanical
Feature Single Mount Dual Mount
Dimensions H x D x W 170 x 170 x 54 mm I 6.69 x 6.69 x 2.12 in 170 x 170 x 120 mm I 6.69 x 6.69 x 4.72 in
Volume 1.6 l 3.0 l
Weight 4.9 kg/4.3 kg I 10.8/9.48 lb 4.9 kg/4.3 kg I 10.8/9.48 lb
Finish Painted, NCS 1502-R
Mounting Hose clamps or wall mount ( Supporter Pole Diameter: 40-140mm )
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
MI-5270n Single Mount BASE MODEL 7/16 (F) Refer to DC /AISG table
MI-5271n Dual Mount BASE MODEL 7/16 (F) Refer to DC /AISG table
MI-5273n Single Mount BASE MODEL 4.3-10 (F) Refer to DC /AISG table
MI-5274n Dual Mount BASE MODEL 4.3-10 (F) Refer to DC /AISG table
DC / ASIG CONFIGURATION
MI-527A Auto-sense
MI-527n1 DC Block
MI-527n2 DC TO ALL
MI-527n3 DC TO 800
MI-527n4 DC TO 700
Auto-sense Priority
MI-527nA.1 FPO to 700 and 800
MI-527nA.2 XOR to 700 and 800
MI-527nA.3 800 Priority 1 and 700 Priority 2
MI-527nA.4 700 Priority 1 and 800 Priority 2
electrical block diagram

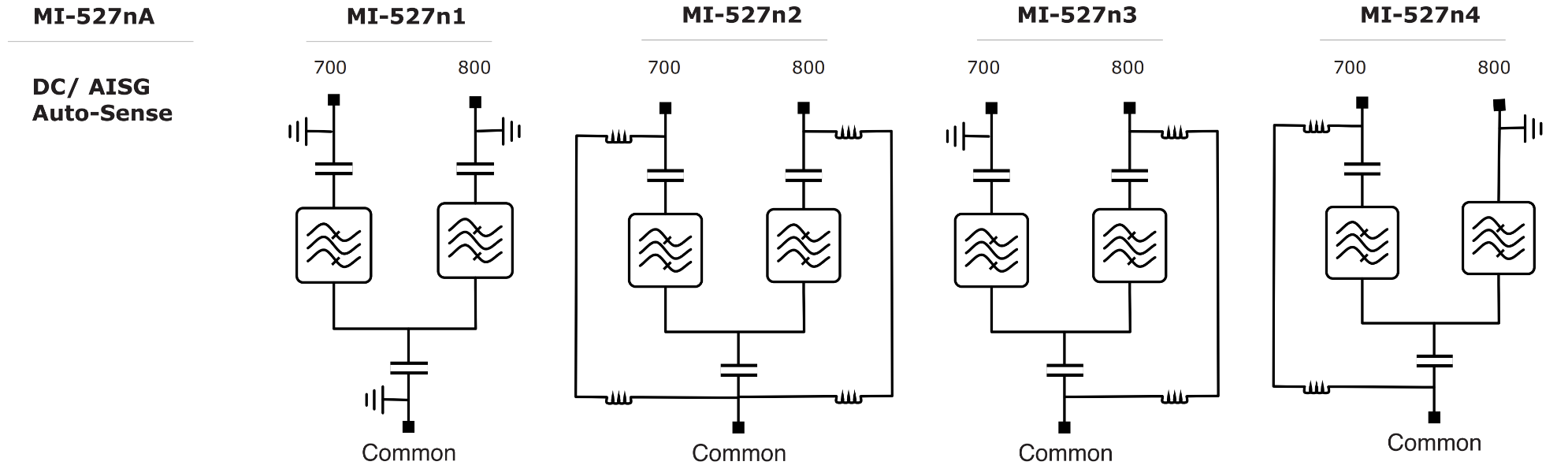

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

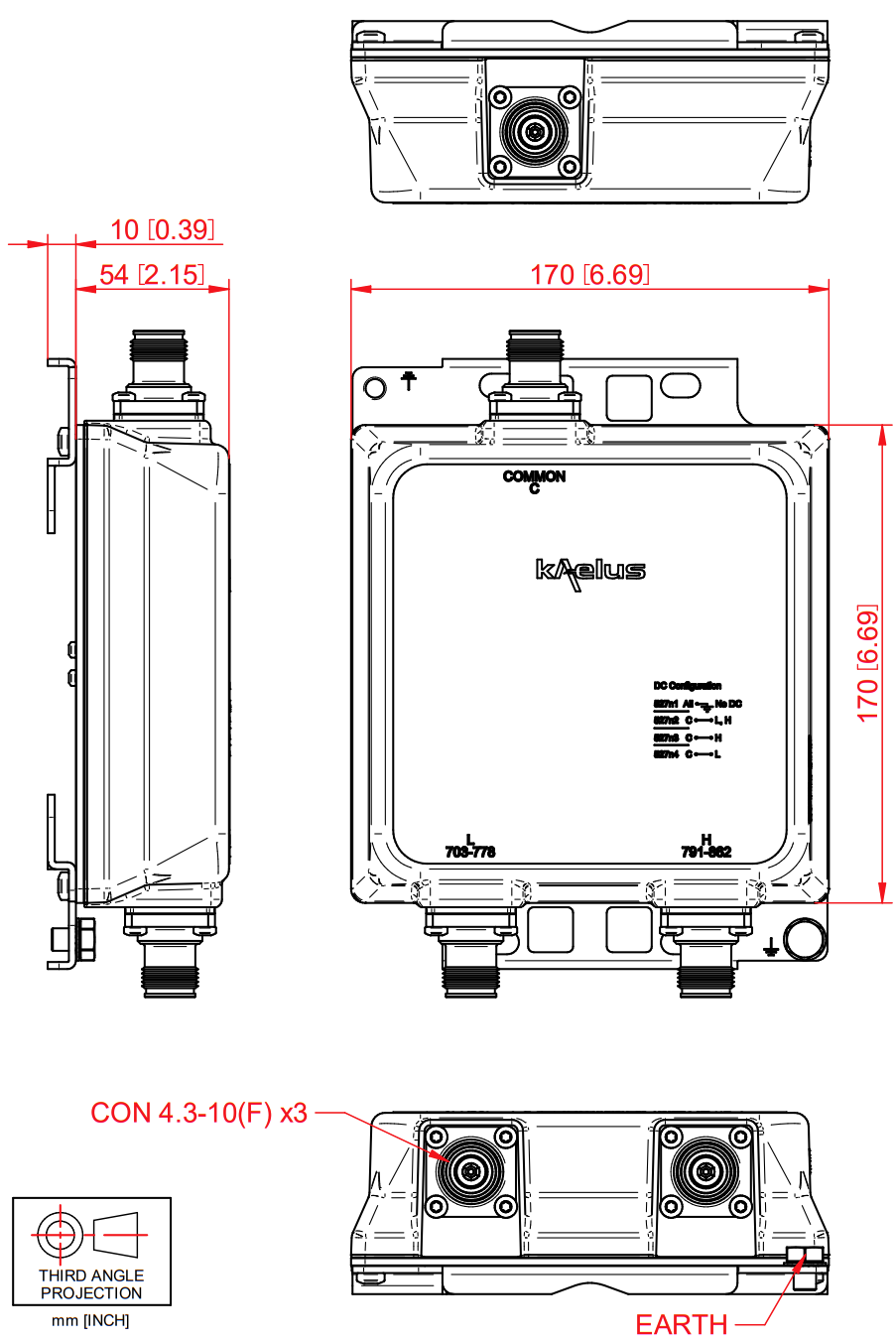

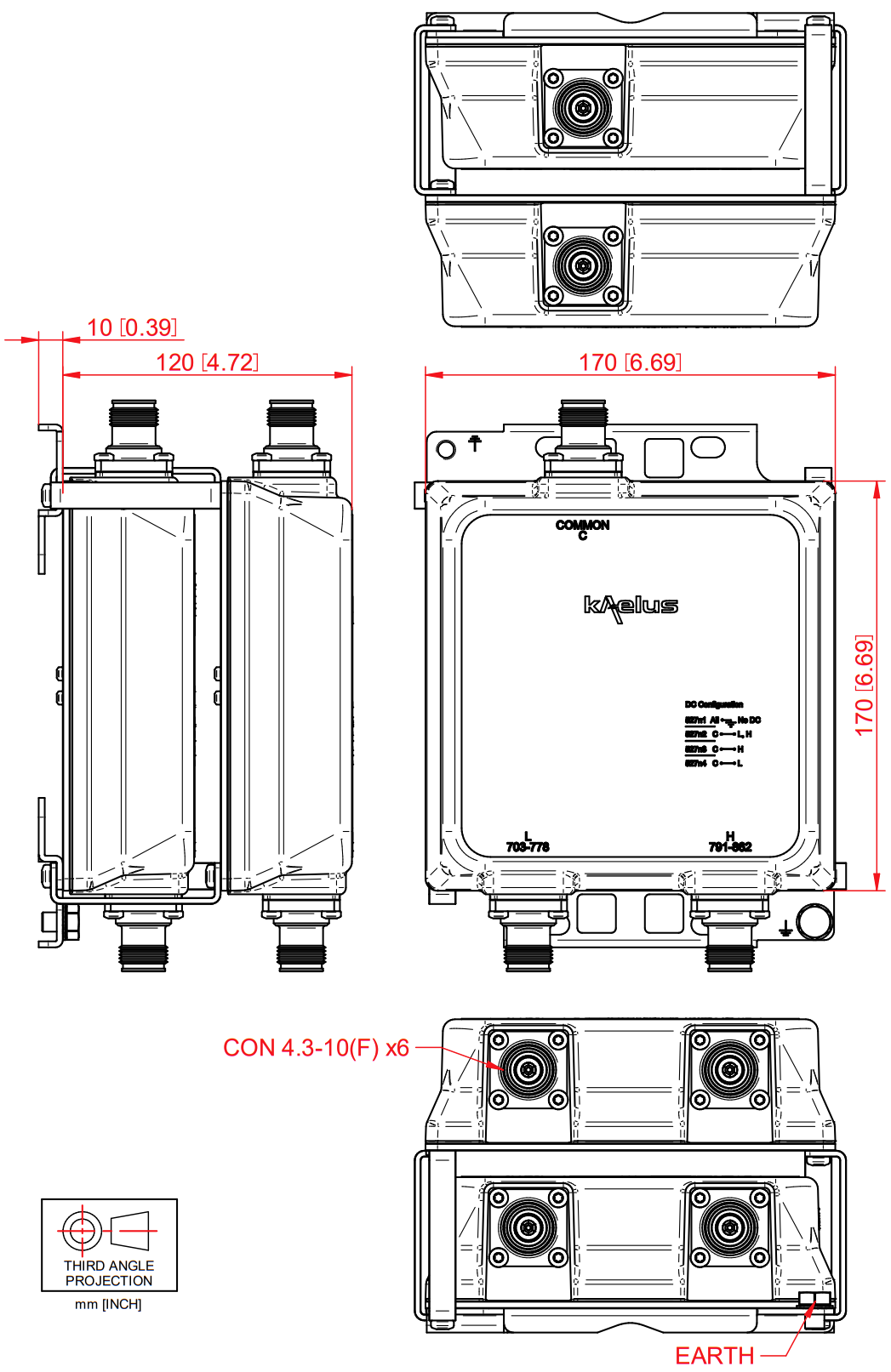

MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
