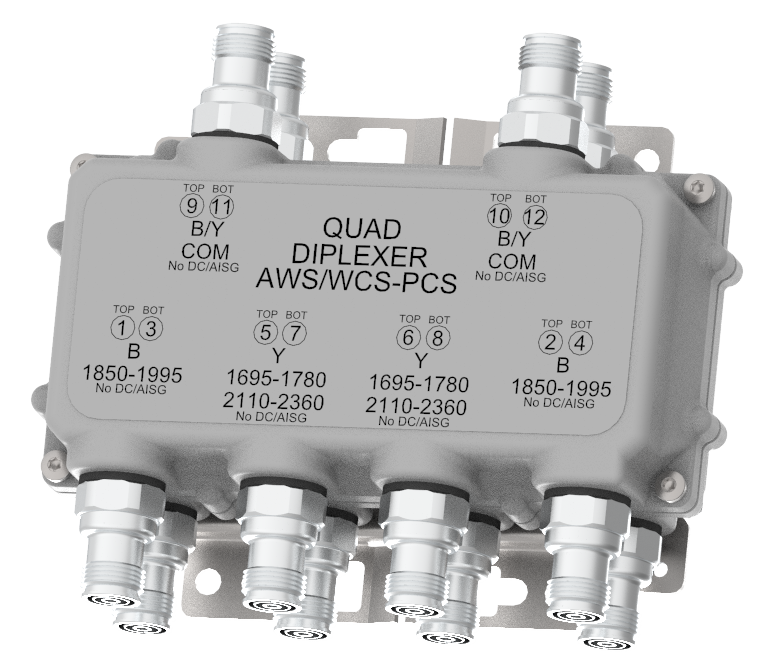

MI-541

MI-541

DIPLEXER 1695-1780, 2110-2360/1850-1995

The Kaelus MI-541 is a bi-directional Diplexer, designed to combine or split AWS, WCS and PCS bands. The MI-541 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for AWS, WCS and PCS bands systems.
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • High passive IM performance
  • Single twin and dual twin models available
  • 4.3-10 (F) connectors
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Port NameAWS/WCSPCS
Passband1695 - 1780 MHz and 2110 - 2360 MHz1850 - 1995 MHz
Insertion loss< 0.2 dB typical < 0.3 dB maximum< 0.2 dB typical < 0.3 dB maximum
Return loss>20 dB>20 dB
Maximum input power100 W (average)
Intermodulation products-160 dBc with 2 x 43 dBm TX Carrier-160 dBc with 2 x 43 dBm TX Carrier
Rejection50 dB minimum in 1850 - 1995 MHz50 dB minimum in 1695 - 1780 MHz, 2110 - 2360 MHz
electrical
Impedance50 Ω
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
Insertion loss1 dB max
Return loss12 dB min
Input voltage range8 - 30 V DC max 0.3 W
DC current rating3 A continuous, Drop max 2.4 V
Compliance3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40 ºC to +65 ºC | -40 ºF to +149 ºF
Ingress protectionIP67
Lightning protection5 kA maximum (8/20 us)
MTBF> 1,000,000 Hours
ComplianceETSI EN 300 019-1-4 class 4.1E, RoHS
mechanical
FeatureSingle MountDual Mount
Dimensions H x D x W210 x 107 x 42 mm I 8.26 x 4.21 x 1.65 in210 x 107 x 76 mm I 8.26 x 4.21 x 2.99 in
Volume0.9 I1.7 l
Weight2.6 kg I 5.73 lb4.3 kg I 9.47 lb
FinishPainted, NCS 1502-R
MountingHose clamps or wall mount, Supporter Pole Diameter: 40-140 mm
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
MI-54111Single MountBASE MODEL4.3-10 (F)DC BLOCK
MI-54131Dual MountBASE MODEL4.3-10 (F)DC BLOCK
electrical block diagram
ELECTRICAL BLOCK DIAGRAM

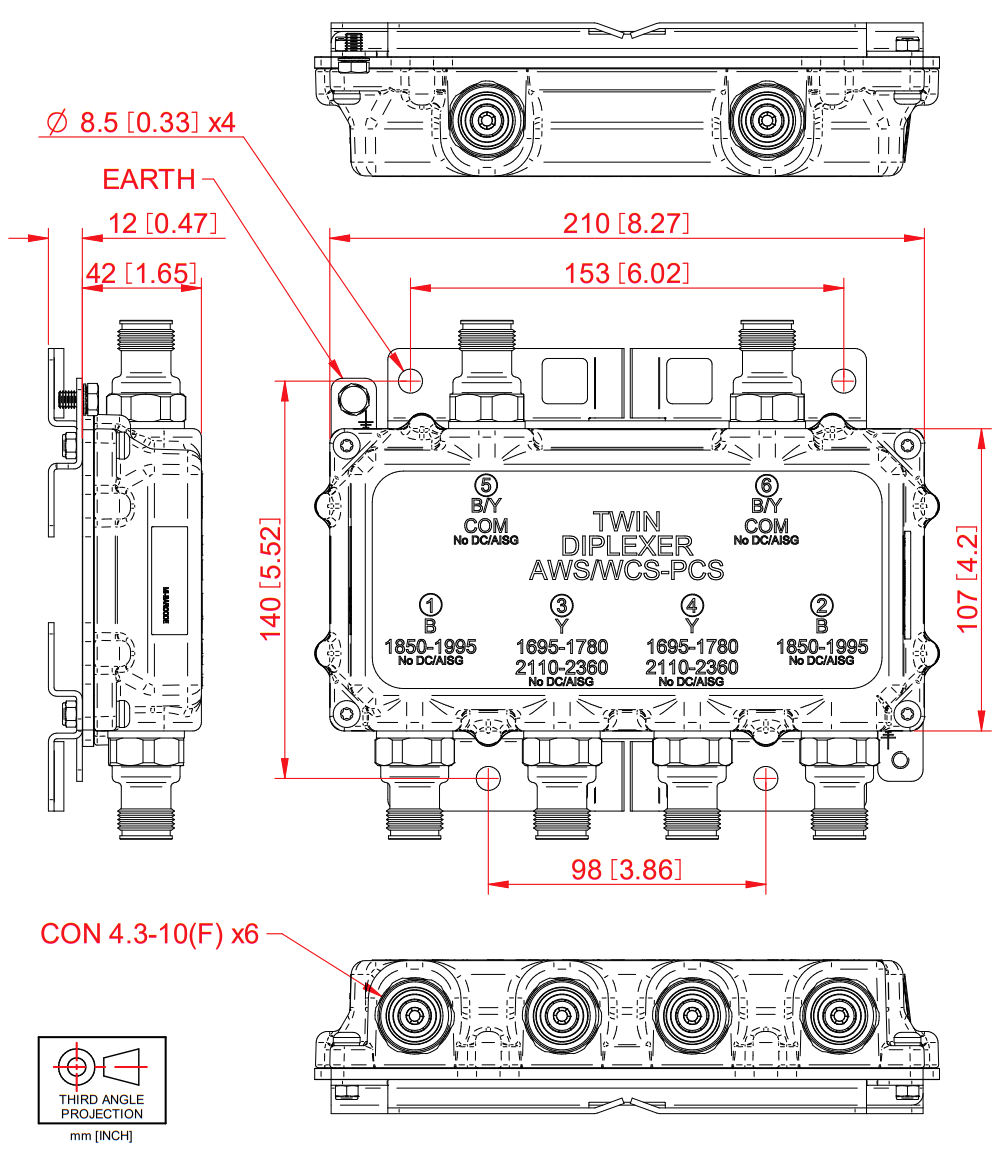

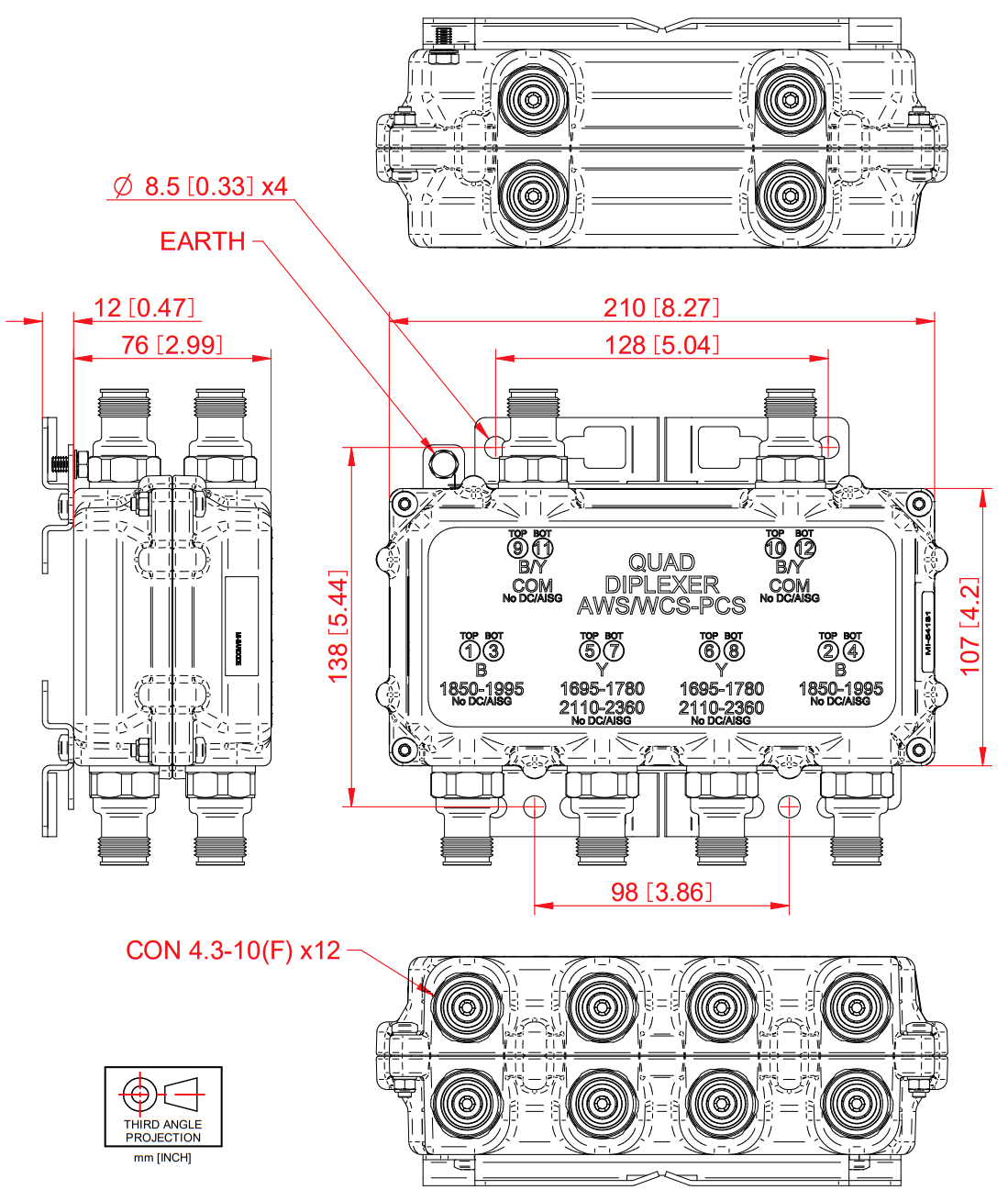

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
