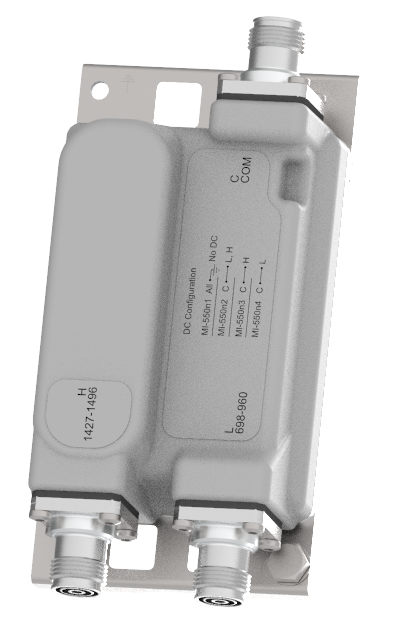

MI-550

MI-550

DIPLEXER 700-900/L-band

The Kaelus MI-550 is a bi-directional Diplexer, designed to combine or split 700-900 and L-band. The MI-550 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for 700-900 and L-band MHz bands systems
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • Low passive IM performance
  • Single twin and dual twin models available
  • 7/16 (F) or 4.3-10 (F) connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Port Name700 - 900L-band
Passband698 - 960 MHz1427 - 1517 MHz
Insertion loss< 0.2 dB typical< 0.25 dB typical
Return loss>18 dB>18 dB
Maximum input power250 W / 2000 W
Intermodulation products-160 dBc with 2 x 43 TX carriers
Rejection50 dB minimum in 1427 - 1517 MHz 50 dB minimum in 698 - 960 MHz
electrical
Impedance50 Ω
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
Insertion loss1 dB max
Return loss12 dB min
Input voltage range8 - 30 V DC max 0.3 W
DC current rating2 A continuous, Drop max 2.4 V
Compliance3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40 ºC to +65 ºC | -40 ºF to +149 ºF
Ingress protectionIP67
Lightning protection10 kA maximum (8/20 us)
MTBF> 1,000,000 Hours
ComplianceETSI EN 300 019-1-4 class 4.1E, RoHS
mechanical
FeatureSingle MountDual Mount
Dimensions H x D x W99 x 143 x 52 mm I 3.9 x 5.63 x 2.07 inTBD
Volume0.7 l
Weight1.4 kg I 3.09 lb
FinishPainted, NCS 1502-R
MountingHose clamps or wall mount ( Supporter Pole Diameter, 40 - 140 mm )
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
MI-5500nSingle MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-5501nDual MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-550nSingle MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
MI-550nDual MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
DC / ASIG CONFIGURATION
MI-550nAAuto-sense
MI-550n1DC Block
MI-550n2DC TO ALL
MI-550n3DC TO L-band
MI-550n4DC to 700 - 900
Auto-sense Priority
MI-550nA.1FPO to 698 - 960 and 1427 - 1517
MI-550nA.2XOR to 698 - 960 and 1427 - 1517
MI-550nA.31427 - 1517 Priority 1 and 698 - 960 Priority 2
MI-550nA.4698 - 960 Priority 1 and 1427 - 1517 Priority 2

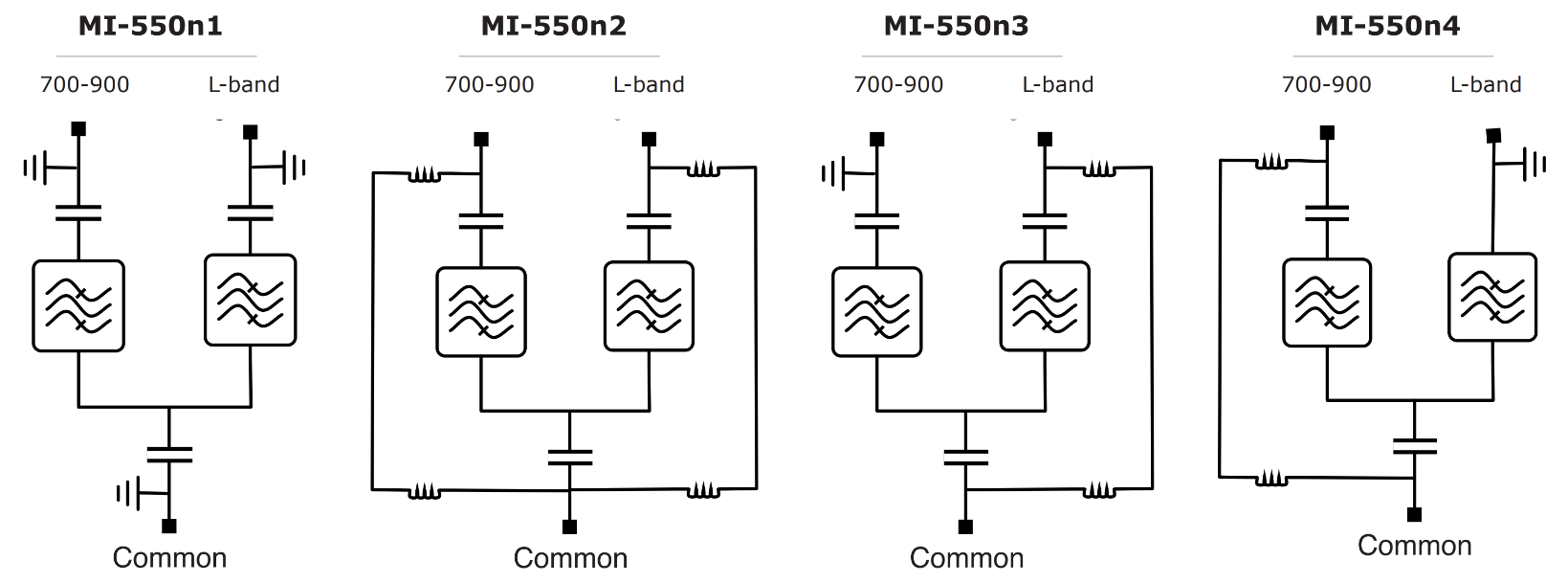

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

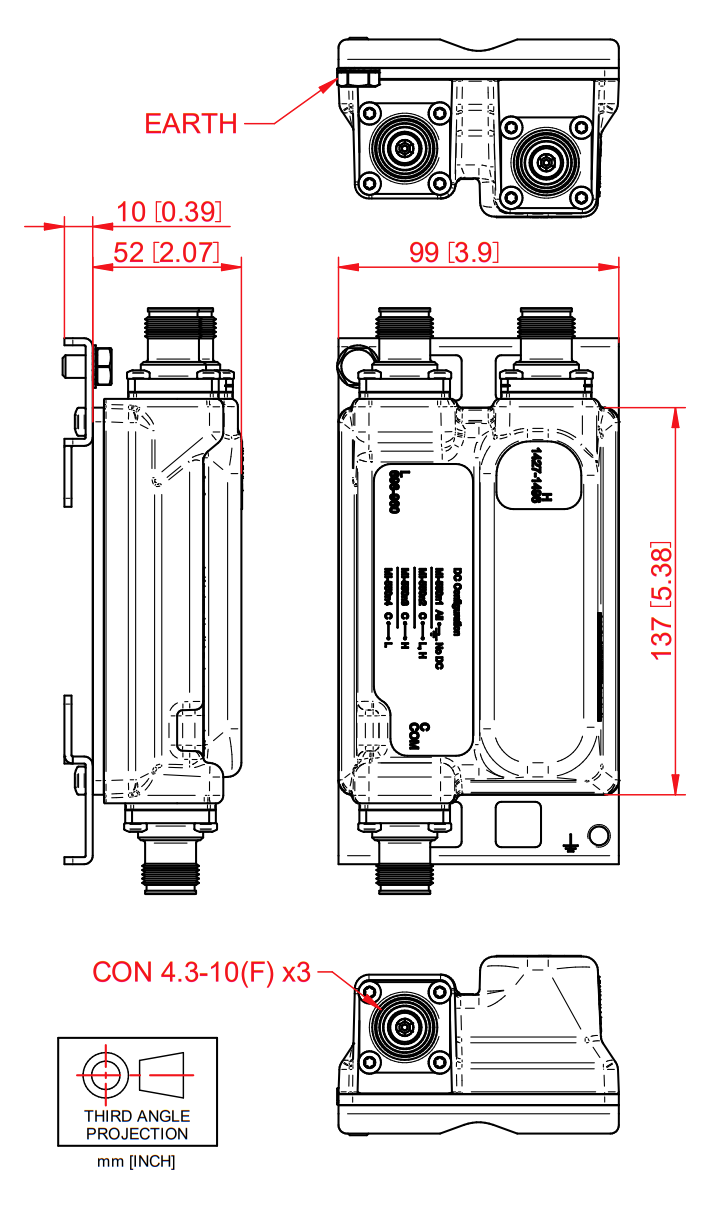

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
