MI-552

MI-552

DIPLEXER L-Band/1800-2100

The Kaelus MI-552 is a bi-directional Diplexer, designed to combine or split 1400 - 1500 MHz and 1800 - 2100 MHz bands. The MI-552 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for 1427 - 1517 MHz and 1710 - 2170 MHz bands systems.
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • High passive IM performance
  • Single and dual models available
  • 7/16 (F) or 4.3-10 (F) connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Port Name1400-1500 MHz1800-2100 MHz
Passband1427 - 1517 MHz 1710 - 2170 MHz
Insertion loss< 0.25 dB typical< 0.25 dB typical
Return loss> 18 dB> 18 dB
Maximum input power250 W (average)
Intermodulation products-145 dBc with 2 x 43 dBm TX Carrier-160 dBc with 2 x 43 dBm TX Carrier
Rejection50 dB minimum in 1710 - 2170 MHz50 dB minimum in 1427 - 1517 MHz
electrical
Impedance50 Ω
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
Insertion loss1 dB max
Return loss12 dB min
Input voltage range8 - 30 V DC max 0.3 W
DC current rating3 A continuous, Drop max 2.4 V
Compliance3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40 ºC to +65 ºC | -40 ºF to +149 ºF
Ingress protectionIP67
Lightning protection5 kA maximum (8/20 us)
MTBF> 1,000,000 Hours
ComplianceETSI EN 300 019-1-4 class 4.1E, RoHS
mechanical
FeatureSingle MountDual Mount
Dimensions H x D x W118 x 140 x 61 mm I 4.64 x 5.51 x 2.40 in118 x 140 x 127mm I 4.65 x 5.51 x 5 in
Volume1.0 l1.9 l
Weight1.8 kg I 3.97 lb3.2 kg I 7.05 lb
FinishPainted, NCS 1502-R
MountingHose clamps or wall mount ( Supporter Pole Diameter: 40-140 mm )
FeatureSingle Mount with Auto-SenseDual Mount with Auto-sense
Dimensions H x D x W118 x 140 x 72 mm I 4.64 x 5.51 x 2.83 in118 x 140 x 143 mm I 4.65 x 5.51 x 5.62 in
Volume1.2 l2.4 l
Weight1.9 I 4.19 lb3.4 kg I 7.49 lb
FinishPainted, NCS 1502-R
MountingHose clamps or wall mount ( Supporter Pole Diameter: 40-140 mm )
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
MI-5520nSingle MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-5521nDual MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-5523nSingle MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
MI-5524nDual MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
DC / ASIG CONFIGURATION
MI-552AAuto-sense
MI-552n1DC Block
MI-552n2DC TO ALL
MI-552n3DC TO 1800-2100
MI-552n4DC TO 1400-1500
Auto-sense Priority
MI-552nA.1FPO to 1400 - 1500 and 1800 - 2100
MI-552nA.2XOR to 1400 - 1500 and 1800 - 2100
MI-552nA.31800-2100 Priority 1 and 1400 - 1500 Priority 2
MI-552nA.41400 - 1500 Priority 1 and 1800 - 2100 Priority 2

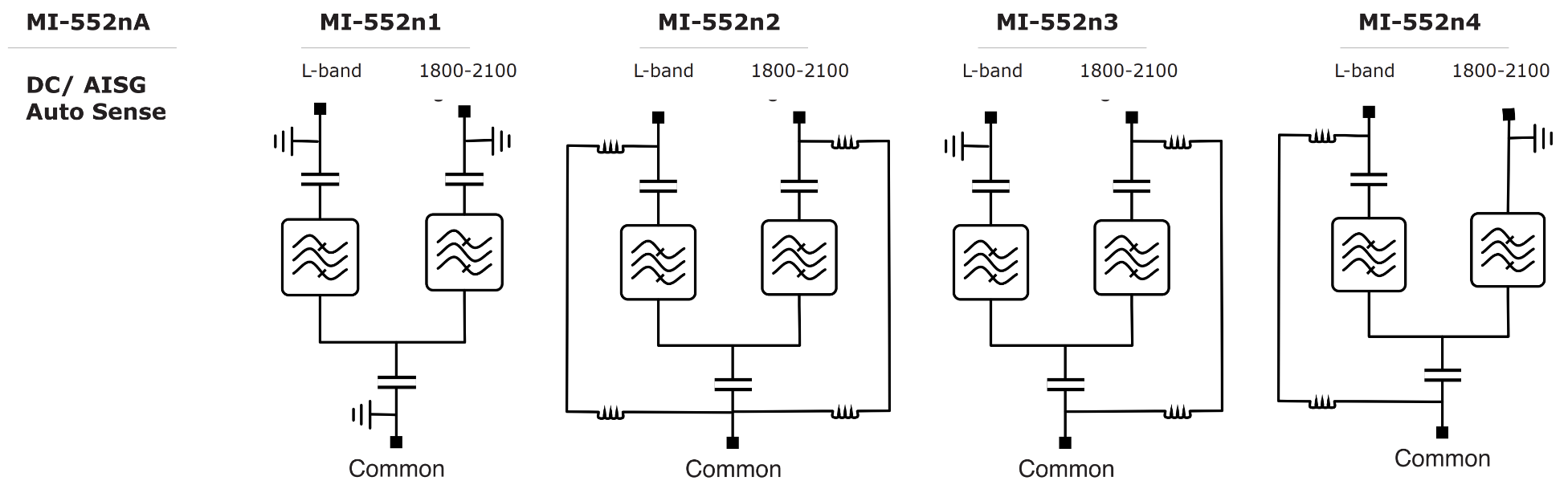

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

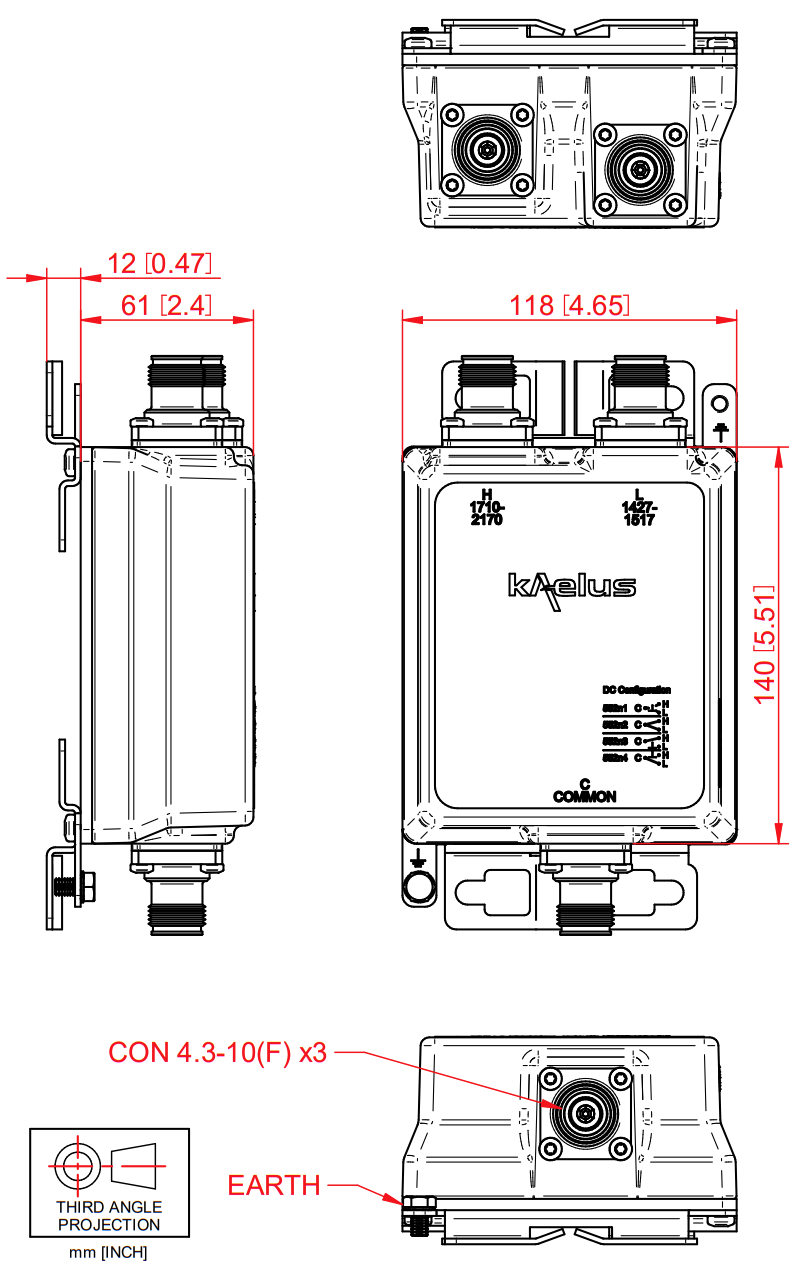

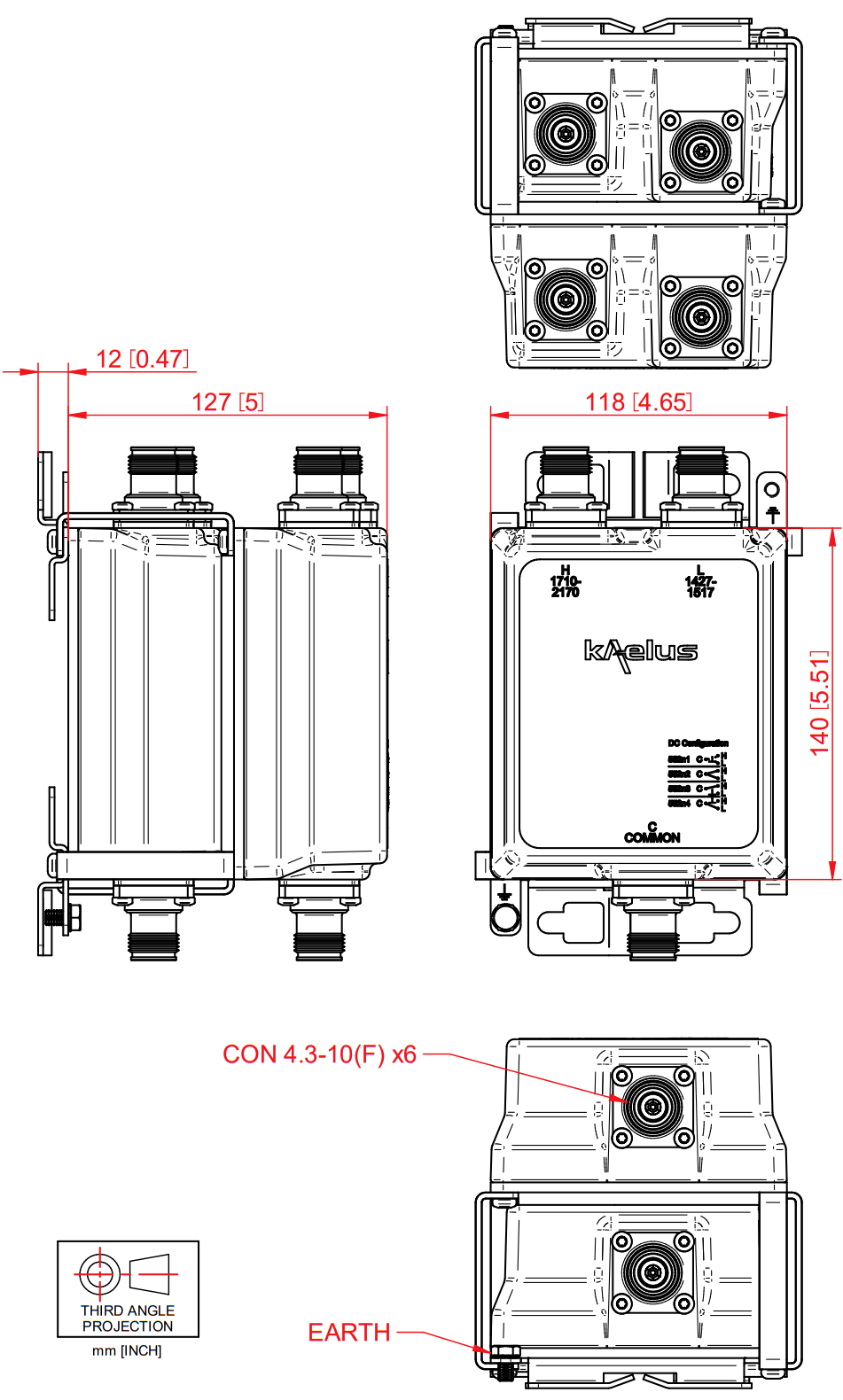

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
