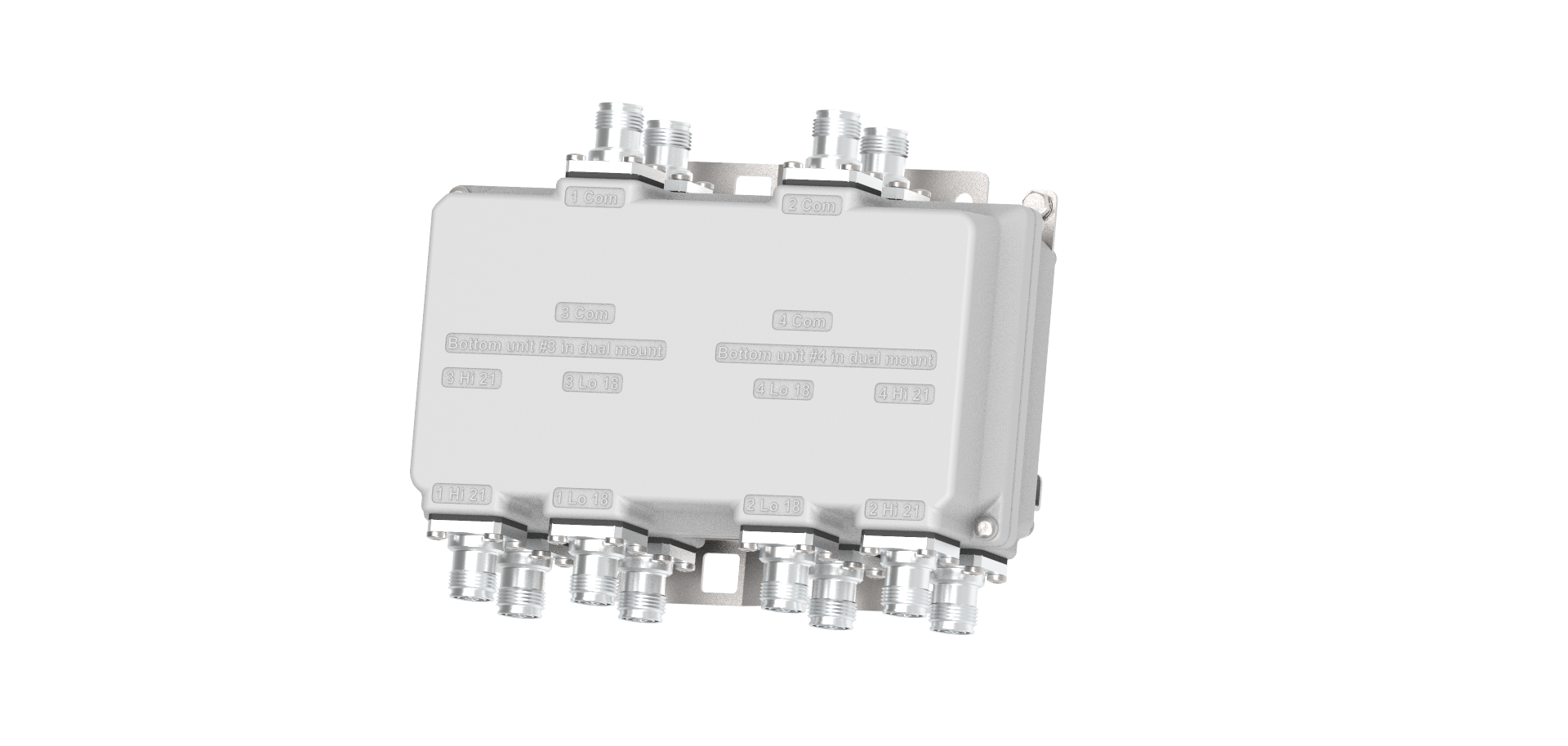

Diplexer 1800/2100

The Kaelus MI-553 is a bi-directional Diplexer, designed to combine or split 1800 MHz and 2100 MHz bands. The MI-553 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for 1710 - 1880 MHz and 1920 - 2170 MHz bands systems.
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • High passive IM performance
  • Single and dual models available
  • 7/16 (F) or 4.3-10 (F) connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Port Name18002100
Passband1710 - 1880 MHz1920 - 2170 MHz
Insertion loss< 0.2 dB typical< 0.2 dB typical
Return loss>18 dB>18 dB
Maximum input power250 W (average)
Intermodulation products-160 dBc with 2 x 43 dBm TX Carrier-160 dBc with 2 x 43 dBm TX Carrier
Rejection50 dB minimum in 1920 - 2170 MHz50 dB minimum in 1710 - 1880 MHz
electrical
Impedance50 Ω
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
Insertion loss1 dB max
Return loss12 dB min
Input voltage range8 - 30 V DC max 0.3 W
DC current rating3 A continuous, Drop max 2.4 V
Compliance3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40 ºC to +60 ºC | -40 ºF to +140 ºF
Ingress protectionIP67
Lightning protection5 kA maximum (8/20 us)
MTBF> 1,000,000 Hours
ComplianceETSI EN 300 019-1-4 class 4.1E, RoHS
mechanical
FeatureSingle MountDual Mount
Dimensions H x D x W252 x 138 x 48.5 mm I 9.92 x 5.43 x 1.91 in252 x 138 x 89 mm I 9.92 x 5.43 x 3.50 in
Volume1.7 l3.1 l
Weight3 kg I 6.61 lb5.3 kg I 11.68 lb
FinishPainted, NCS 1502-R
MountingHose clamps or wall mount
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
MI-5530nSingle MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-5531nDual MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-5533nSingle MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
MI-5534nDual MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
DC / ASIG CONFIGURATION
MI-553nAAuto-sense
MI-553n1DC Block
MI-553n2DC TO ALL
MI-553n3DC TO 2100
MI-553n4DC TO 1800
Auto-sense Priority
MI-553nA.1FPO to 1800 and 2100
MI-553nA.2XOR to 1800 and 2100
MI-553nA.32100 Priority 1 and 1800 Priority 2
MI-553nA.41800 Priority 1 and 2100 Priority 2
electrical block diagram

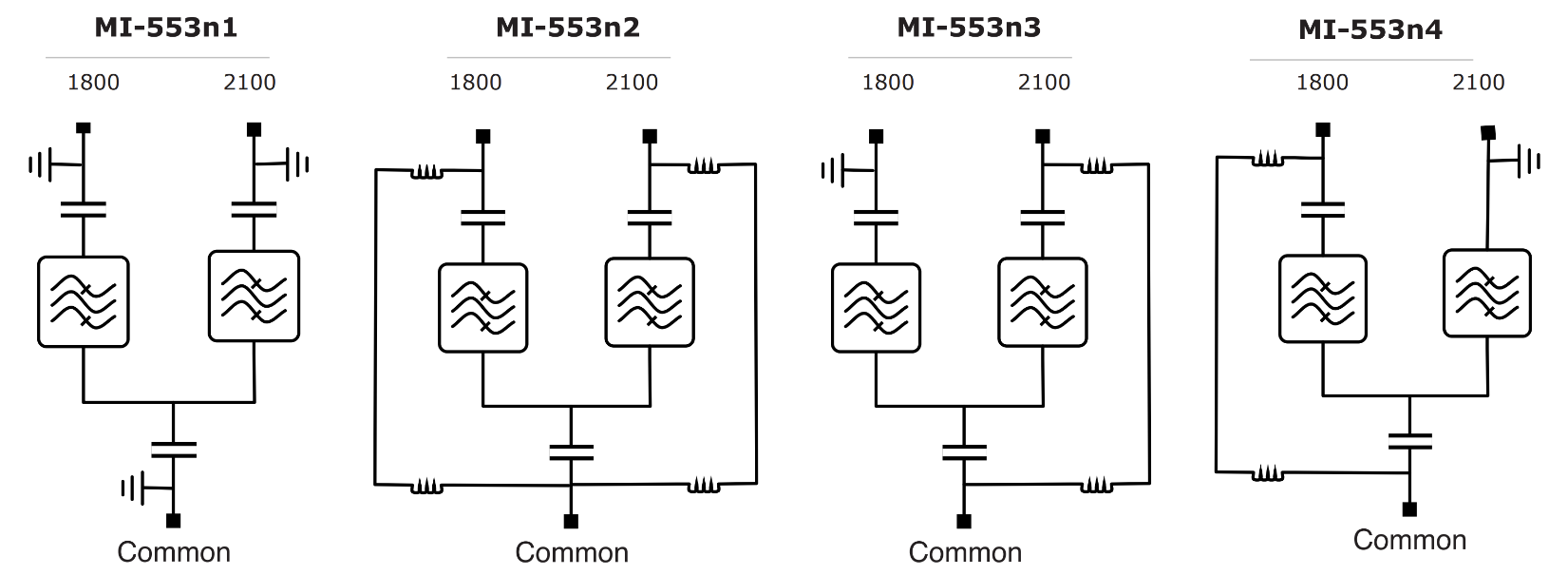

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

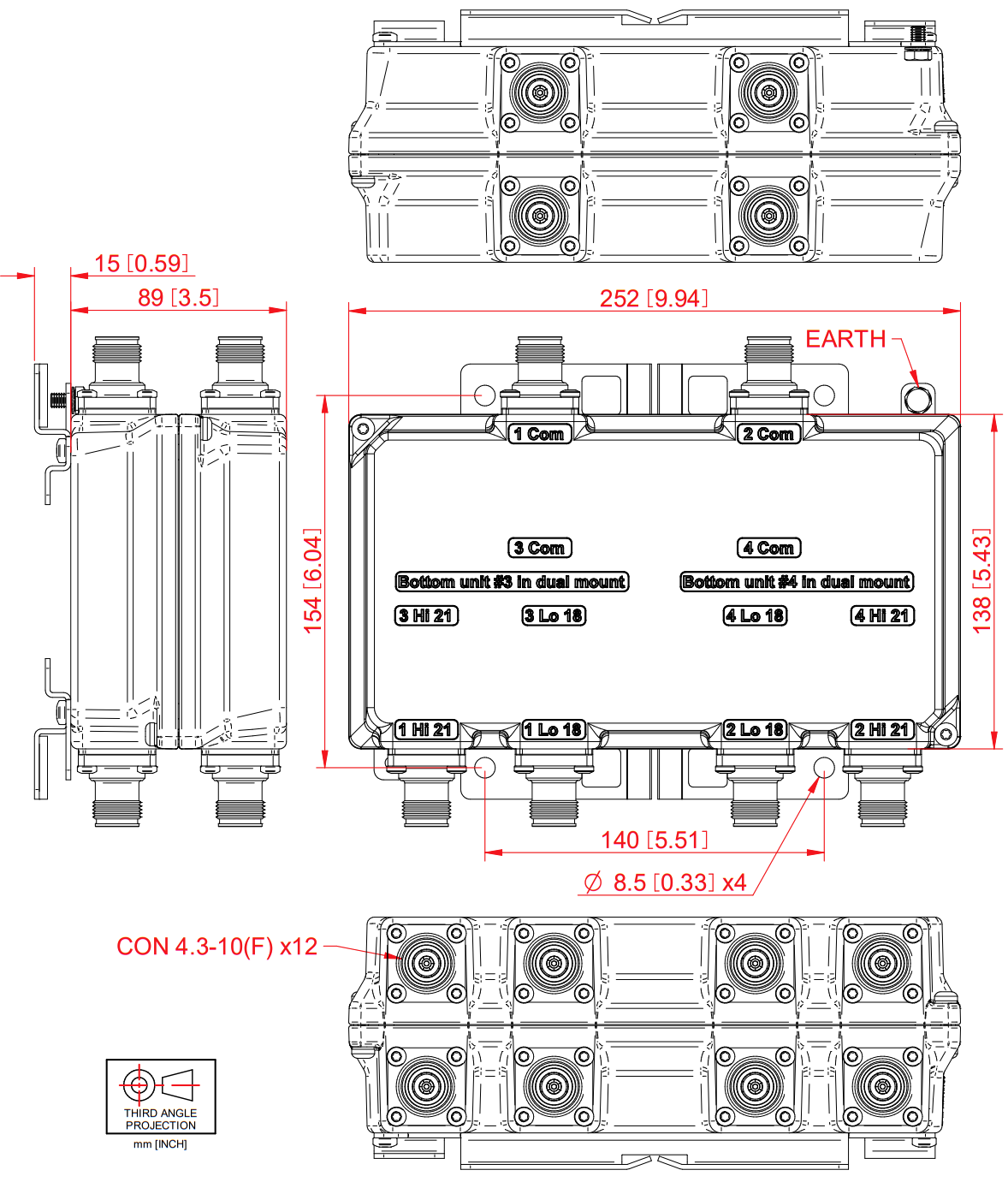

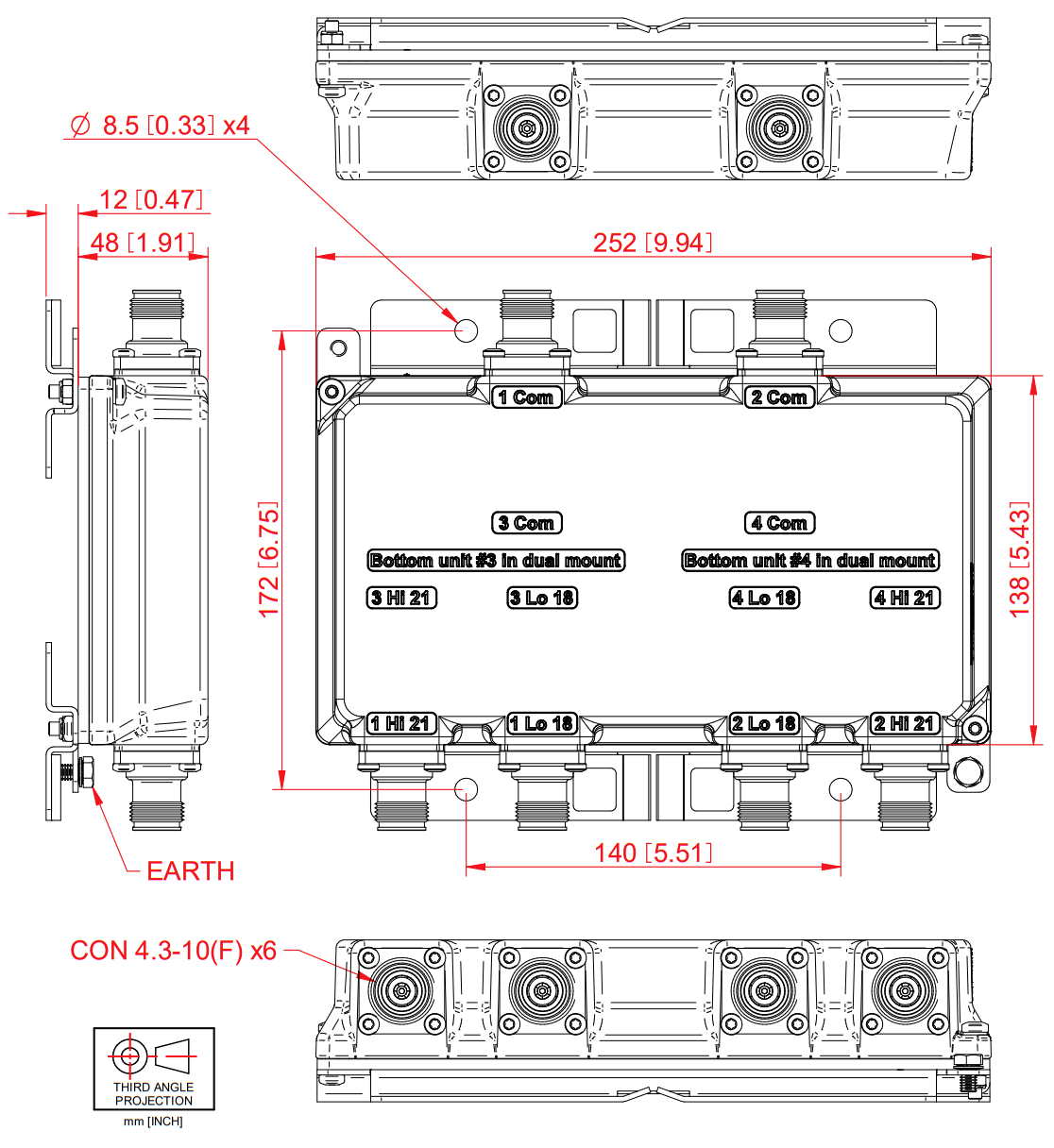

MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
