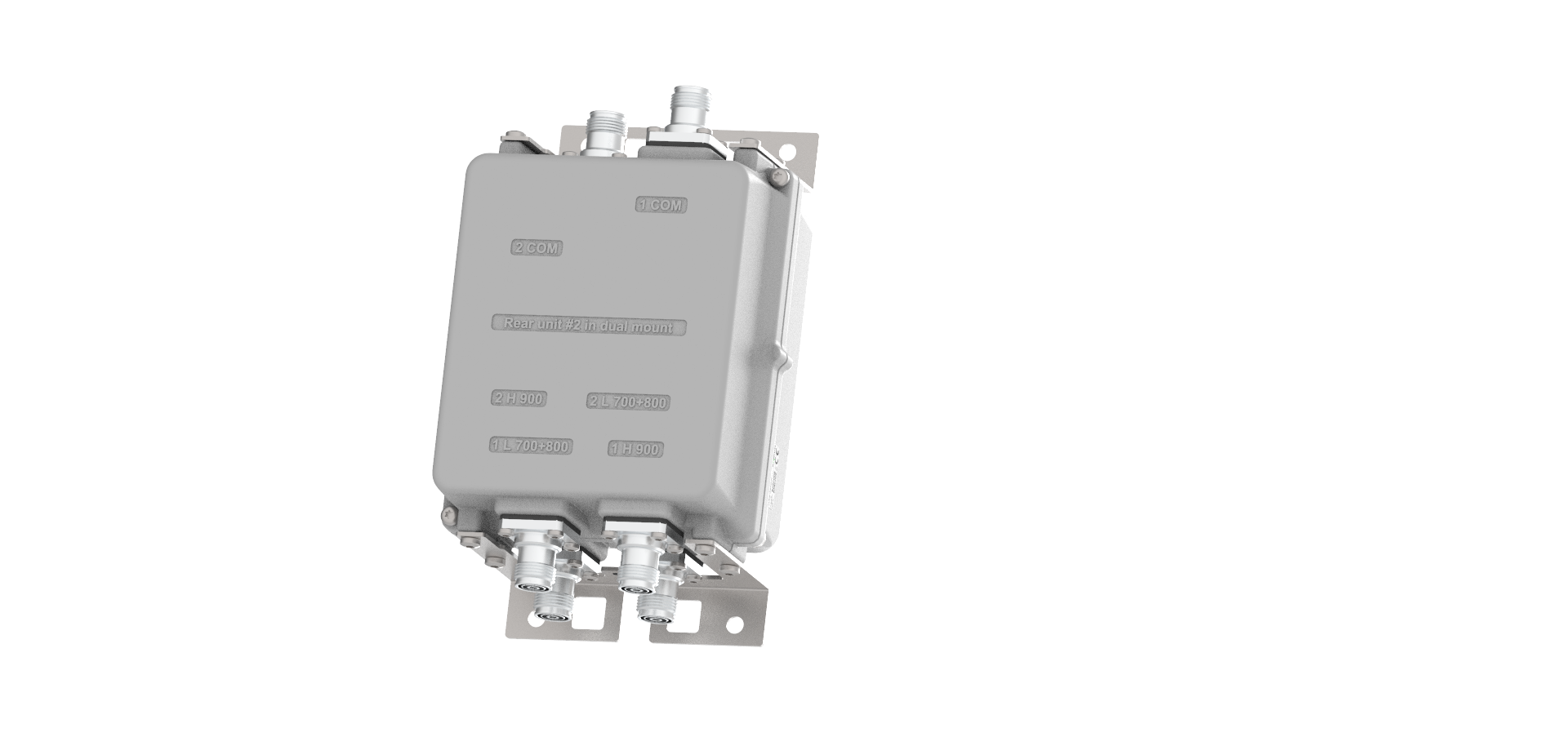

DIPLEXER 700/800-900

The Kaelus MI-581 is a bi-directional Diplexer, designed to combine or split 699 - 862 MHz and 876 - 960 MHz bands. The MI-581 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for 699 - 862 MHz and 876 - 960 MHz bands systems.
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • High passive IM performance
  • Single and dual models available
  • 7/16 (F) or 4.3-10 (F) connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Port Name700 MHz800/900 MHz
Passband699 - 862 MHz876 - 960 MHz
Insertion loss0.2 dB typical, 0.4 dB maximum0.2 dB typical, 0.4 dB maximum
Return loss>18 dB>18 dB
Maximum input power400 W (average)
Intermodulation products-160 dBc with 2 x 43 dBm TX Carrier-160 dBc with 2 x 43 dBm TX Carrier
Rejection50 dB minimum in 876 - 960 MHz50 dB minimum in 699 - 862 MHz
electrical
Impedance50 Ω
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
Insertion loss1 dB max
Return loss12 dB min
Input voltage range8 - 30 V DC max 0.3 W
DC current rating3 A continuous, Drop max 2.4 V
Compliance3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40 ºC to +65 ºC | -40 ºF to +149 ºF
Ingress protectionIP67
Lightning protection5 kA maximum (8/20 us)
MTBF> 1,000,000 Hours
ComplianceETSI EN 300 019-1-4 class 4.1E, RoHS
mechanical
FeatureSingle MountDual Mount
Dimensions H x D x W158 x 183 x 58 mm I 6.22 x 7.20 x 2.28 in158 x 183 x 108 mm I 6.22 x 7.20 x 4.25 in
Volume1.4 l3.1 l
Weight2.3 kg I 5.0 lb3.9 kg I 8.6 lb
FinishPainted, NCS 1502-R
MountingHose clamps or wall mount
FeatureSingle Mount With Auto SenseDual Mount With Auto Sense
Dimensions H x D x W158 x 183 x 69 mm I 6.22 x 7.20 x 2.71 in158 x 183 x 137 mm I 6.22 x 7.20 x 5.39 in
Volume2.0 l4.0 l
Weight2.8 kg I 6.2 lb4.9 kg I 10.8 lb
FinishPainted, NCS 1502-R
MountingHose clamps or wall mount. Pole Diameter 40 - 140 mm
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
MI-5810nSingle MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-5811nDual MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-5813nSingle MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
MI-5814nDual MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
DC / ASIG CONFIGURATION
MI-581nAAuto-sense
MI-581n1DC Block
MI-581n2DC TO ALL
MI-581n3DC TO 800/900
MI-581n4DC TO 700
Auto-sense Priority
MI-581nA.1FPO to 700 and 800/900
MI-581nA.2XOR to 700 and 800/900
MI-581nA.3800/900 Priority 1 and 700 Priority 2
MI-581nA.4700 Priority 1 and 800/900 Priority 2

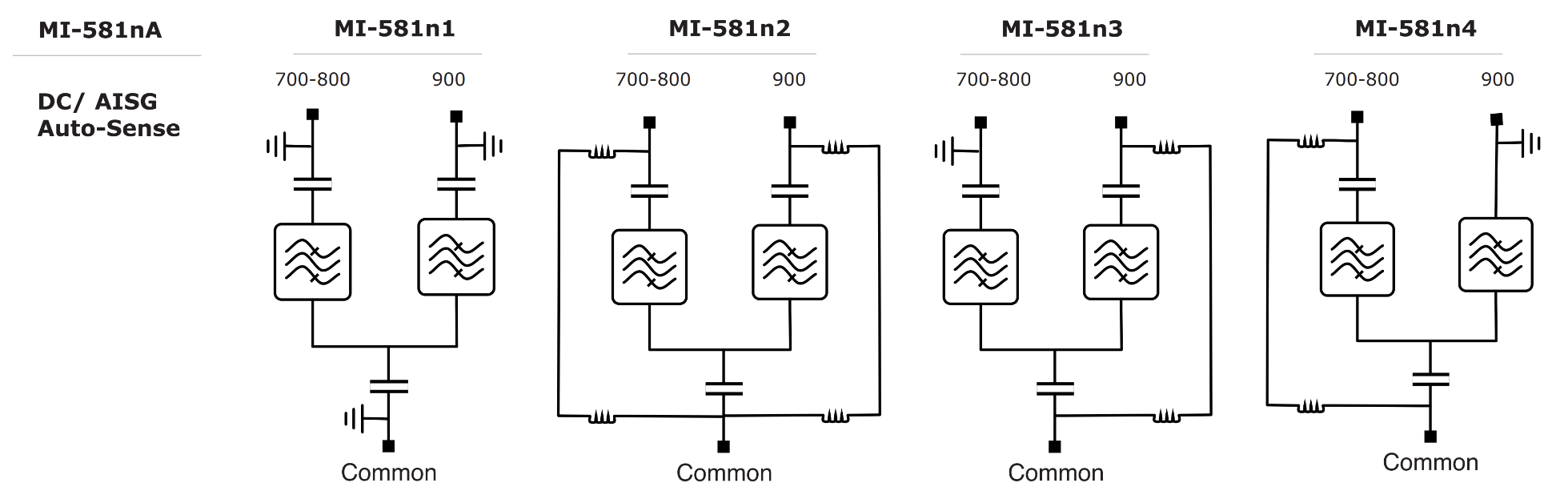

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

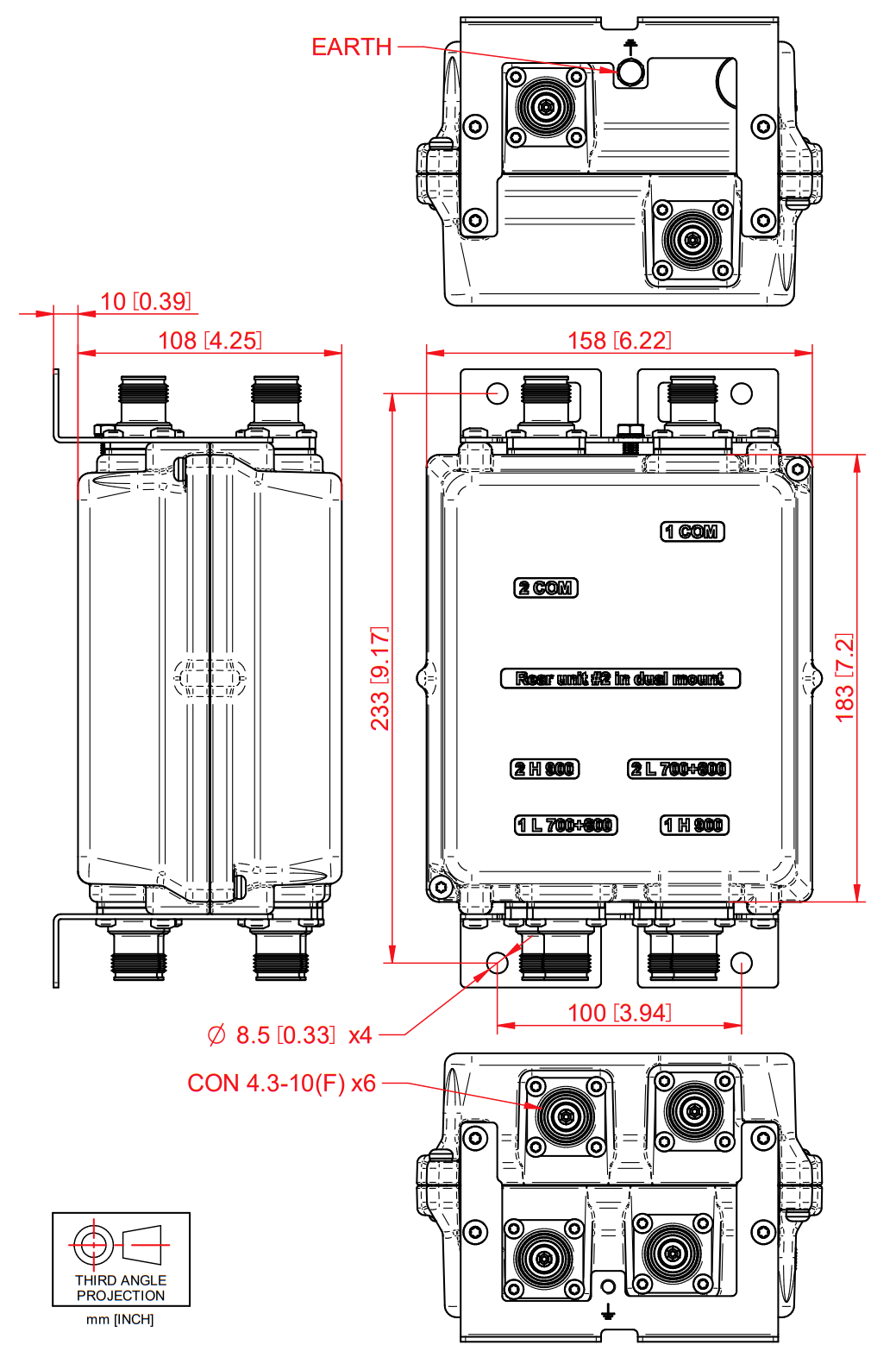

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
