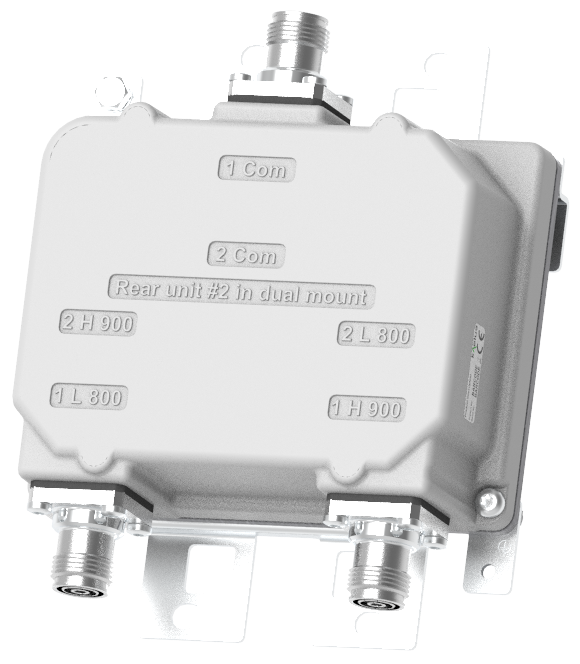

MI-703

MI-703

DIPLEXER 800/900

The Kaelus MI-703 is a bi-directional Diplexer, designed to combine or split 800 and 900 MHz bands. The MI-703 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for 800 and 900 MHz bands systems
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • Low passive IM performance
  • Single twin and dual twin models available
  • 7/16 (F) or 4.3-10 (F) connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Port Name 800 900
Passband 791 - 862 MHz 880 - 960 MHz
Insertion loss 0.2 dB typical, 0.4 dB maximum 0.2 dB typical, 0.4 dB maximum
Return loss 20 dB typical, 18 dB minimum
Maximum input power 300 W (average)
Intermodulation products -160 dBc with 2 x 20 W carriers
Rejection 50 dB minimum in 900 band 50 dB minimum in 800 band
electrical
Impedance 50 Ω
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
Insertion loss 1 dB max
Return loss 12 dB min
Input voltage range 8 - 30 V DC max 0.3 W
DC current rating 2 A continuous, Drop max 2.4 V
Compliance 3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40 ºC to +65 ºC | -40 ºF to +149 ºF
Ingress protection IP67
Lightning protection 10 kA maximum (8/20 us)
MTBF > 1,000,000 Hours
Compliance ETS 300 019 1-4E (OPERATIONAL)
ETS 300 019 1-1 (STORAGE)
mechanical
Feature Single Mount Dual Mount
Dimensions H x D x W 161 x 125 x 57 mm | 6.33 x 4.92 x 2.24 in
With Auto-Sense 161 x 125 x 68 mm | 6.33 x 4.92 x 2.68 in		 161 x 125 x 106 mm | 6.33 x 4.92 x 4.17 in
With Auto-Sense 161 x 125 x 134 mm | 6.33 x 4.92 x 5.28 in
Volume 1.1 l
1.4 l with auto-sense		 2.1 l
2.7 l with auto-sense
Weight 2.3 kg | 5.07 lb
2.4 kg | 5.23 lb		 3.0 kg | 6.61 lb
3.4 kg | 7.49 lb
Finish Painted, NCS 1502-R
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
MI-7030n Single Mount BASE MODEL 7/16 (F) Refer to DC /AISG table
MI-7031n Dual Mount BASE MODEL 7/16 (F) Refer to DC /AISG table
MI-7033n Single Mount BASE MODEL 4.3-10 (F) Refer to DC /AISG table
MI-7034n Dual Mount BASE MODEL 4.3-10 (F) Refer to DC /AISG table
DC / ASIG CONFIGURATION
MI-703nA Auto-sense
MI-703n1 NO DC Path
MI-703n2 DC to 1800 and 2100
MI-703n3 DC to 2100
MI-703n4 DC to 1800
Auto-sense Priority
MI-703nA.1 FPO to 800 and 900
MI-703nA.2 XOR to 800 and 900
MI-703nA.3 900 Priority 1 and 800 Priority 2
MI-703nA.4 800 Priority 1 and 900 Priority 2
electrical block diagram
ELECTRICAL BLOCK DIAGRAM

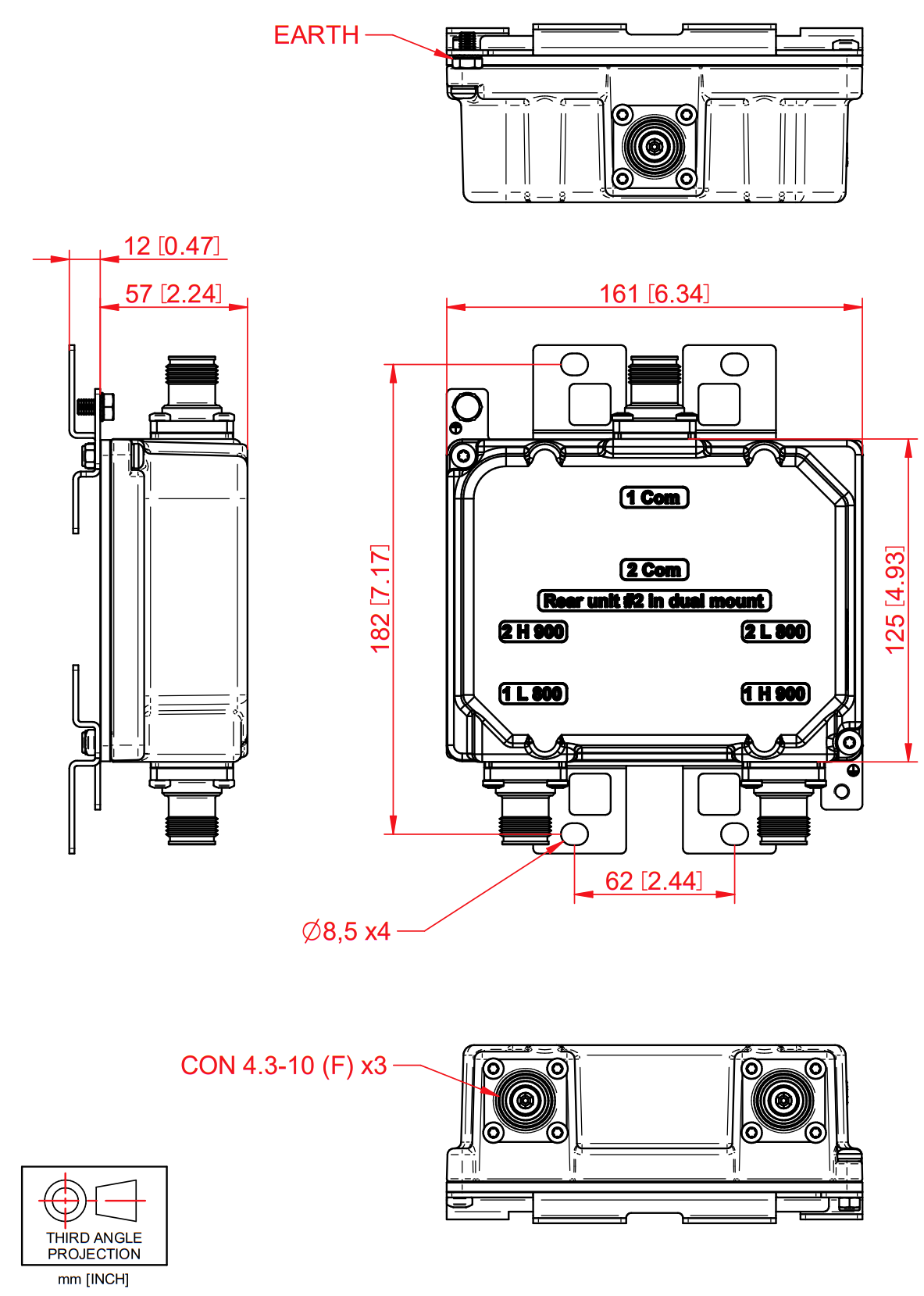

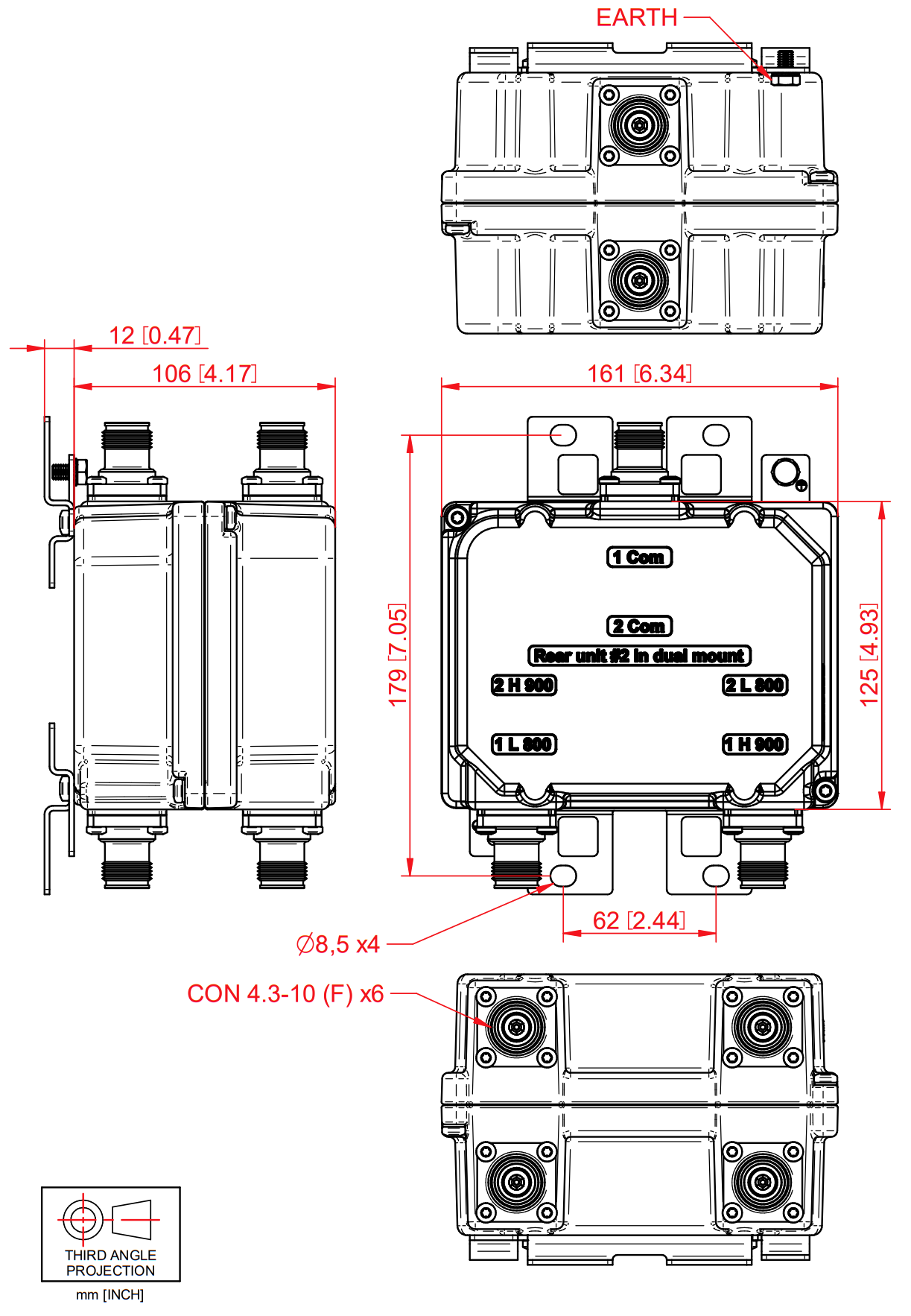

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
