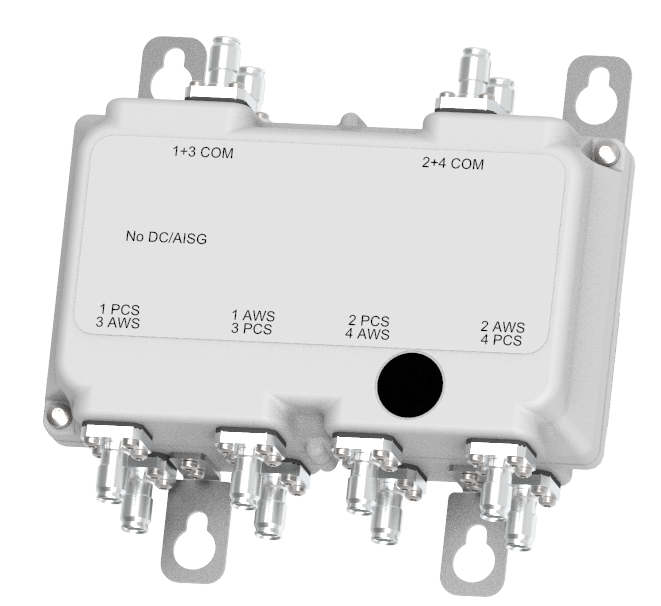

MI-727

MI-727

DIPLEXER AWS+PCS

The Kaelus MI-727 is a bi-directional Diplexer, designed to combine or split AWS and PCS bands.The MI-727 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for AWS and PCS bands systems.
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • High passive IM performance
  • Single and dual models available
  • NEX10 connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Port NameAWSPCS
Passband1695 - 1780, 2120 - 2200 MHz1850 - 1995 MHz
Insertion loss0.3 dB typical, 0.4 dB maximum over temp0.3 dB typical, 0,4 dB maximum over temp
Return loss22 dB typical, 20 dB over temp22 dB typical, 20 dB over temp
Maximum input power50 W (average)
Intermodulation products-157 dBc with 2 x 40 dBm TX Carrier-157 dBc with 2 x 40 dBm TX Carrier
Rejection50 dB minimum in 1850 - 1995 MHz50 dB minimum in 1695 - 1780, 2120 - 2200 MHz
electrical
Impedance50 Ω
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
Insertion loss1 dB max
Return loss12 dB min
Input voltage range8 - 30 V DC max 0.3 W
DC current rating3 A continuous, Drop max 2.4 V
Compliance3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40 ºC to +85 ºC | -40 ºF to +185ºF
Ingress protectionIP67
Lightning protection5 kA maximum (8/20 us)
MTBF> 1,000,000 Hours
ComplianceETSI EN 300 019-1-4 class 4.1E, RoHS
mechanical
FeatureSingle MountDual Mount
Dimensions H x D x W182 x 107 x 35 mm I 7.17 x 4.21 x 1.38 in182 x 107 x 64mm I 7.17 x 4.21 x 2.51 in
Volume0.7 l1.3 l
Weight1.7 kg I 3.75 lb2.6 kg I 5.73 lb
FinishPainted, NCS 1502-R
MountingHose clamps or wall mount
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
MI-72711Single MountBASE MODELNEX10DC BLOCK
MI-72731Single MountBASE MODELNEX10DC BLOCK
DC / ASIG CONFIGURATION
Auto-sense Priority
electrical block diagram

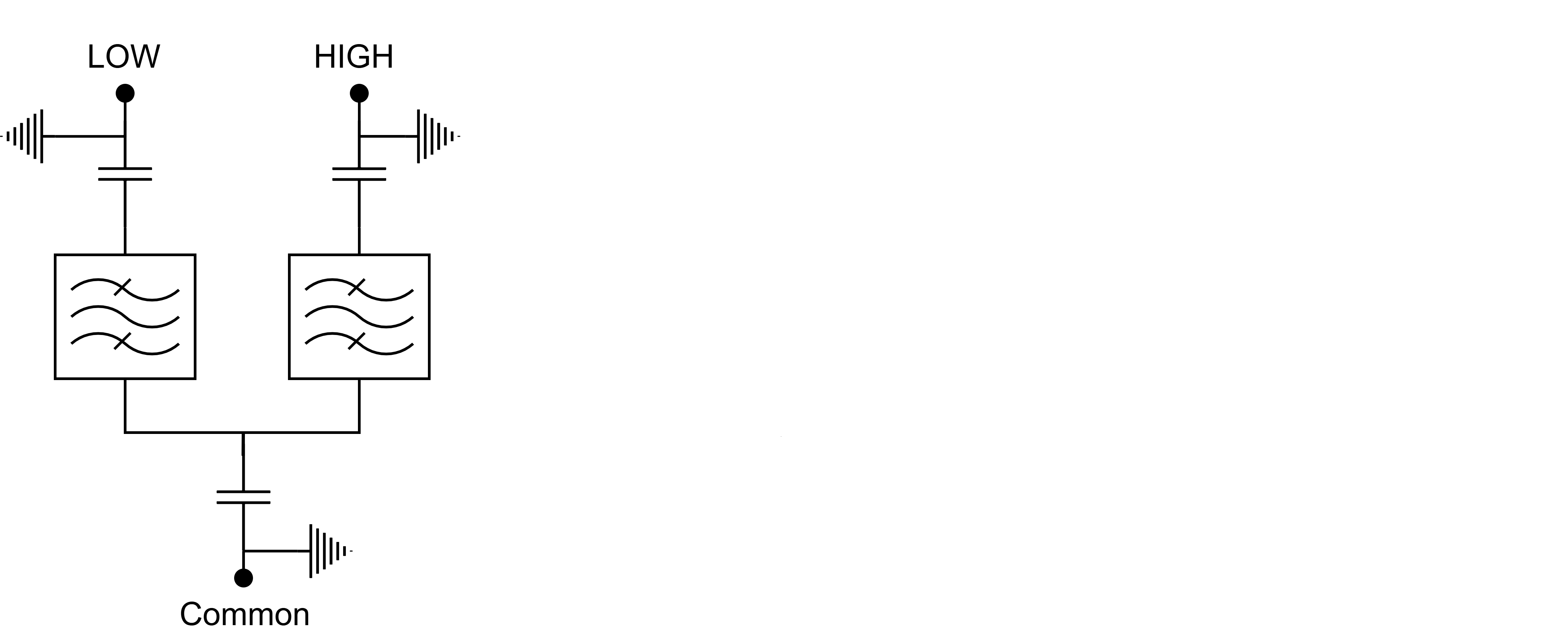

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

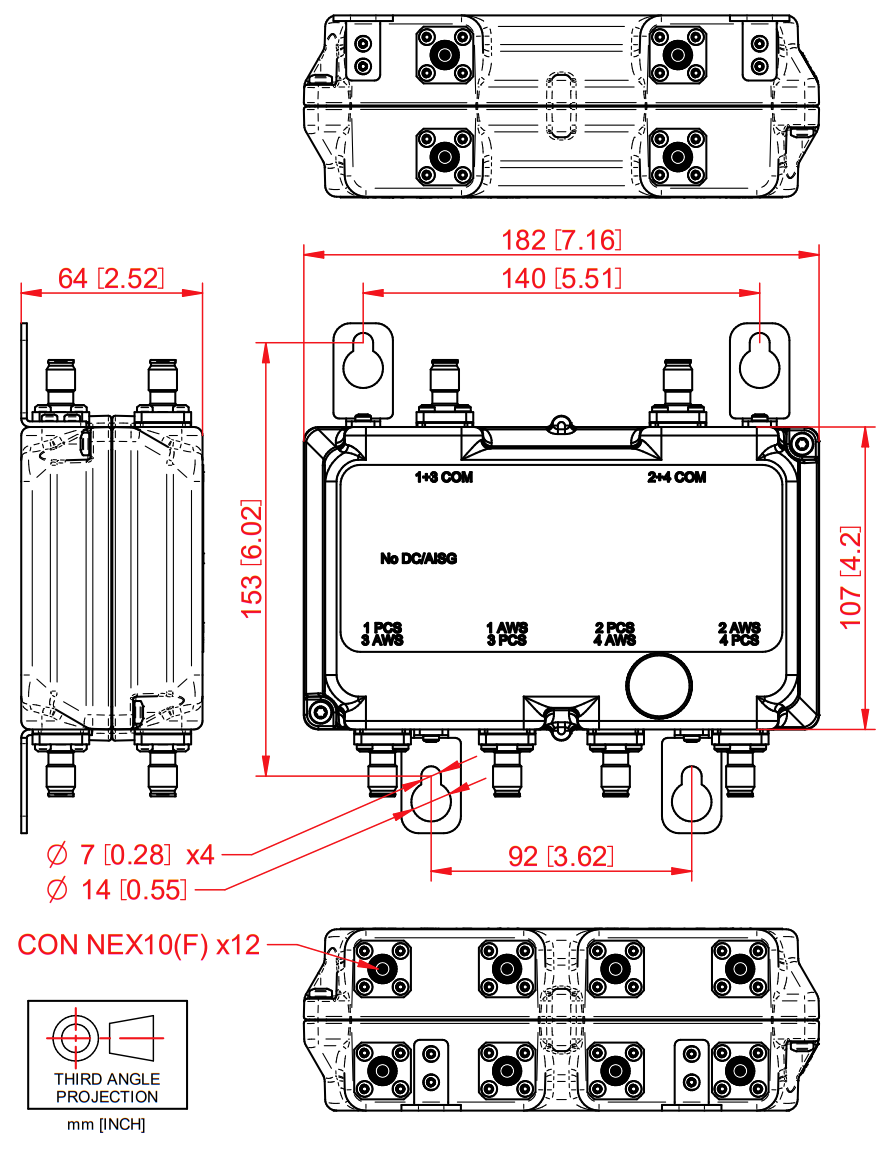

MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
