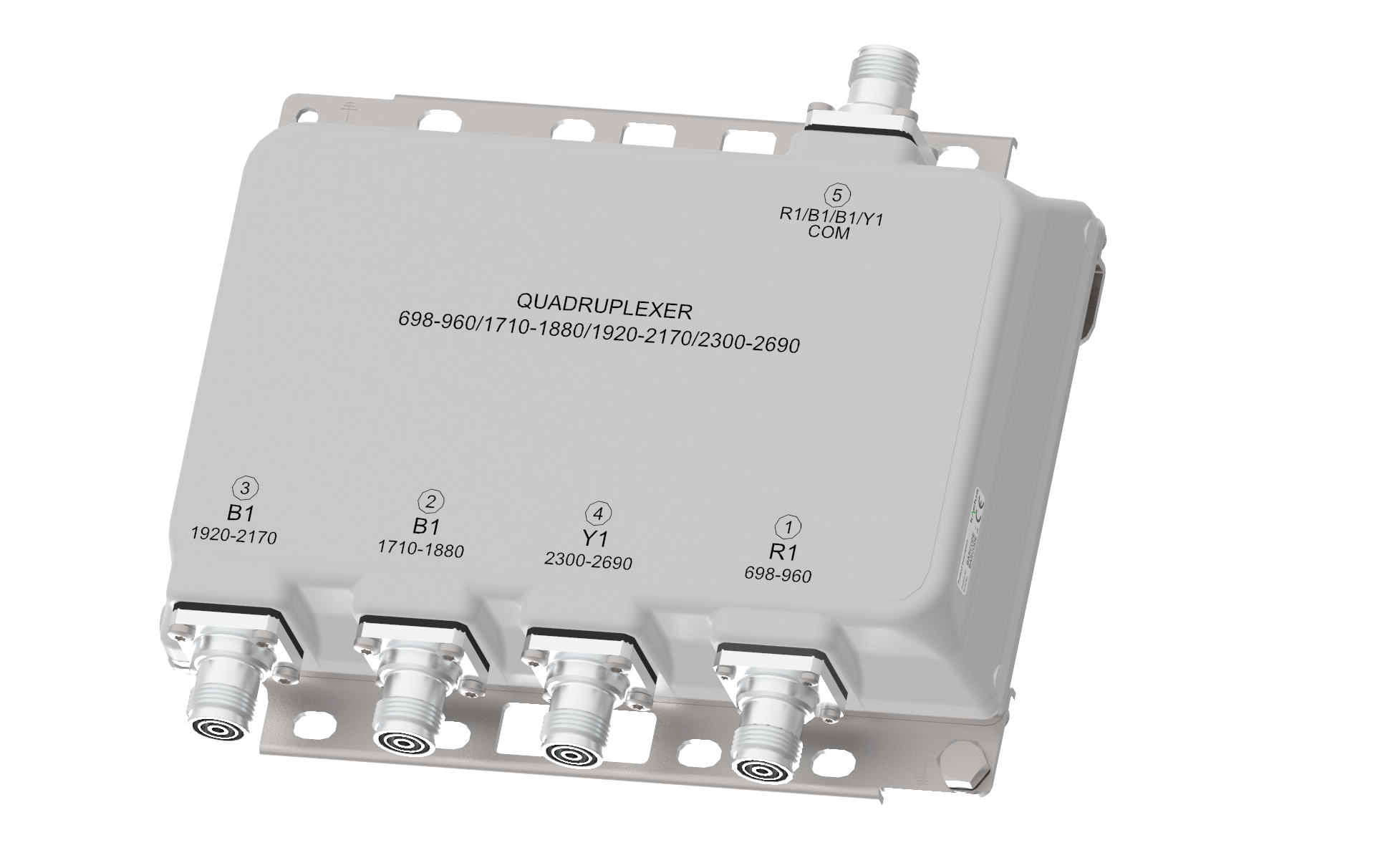

QUADRUPLEXER 700-900/1800/2100/2300-2600

Designed to combine 700/850/900/1800/2100/2300/2600 bands, the Kaelus KA-4005 saves significant capital and operational expenses by limiting feeder runs, and components needed on the tower. Available in an outdoor package the KA-4005 has the following features:

FEATURES

  • Combines 700/850/900/1800/2100/2300 and 2600 bands
  • Very low insertion loss
  • Very low passive intermodulation
  • DC/AISG bypass field settable
  • Wall or pole mounting
  • High power handling
  • Single and twin configurations available
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name700-900180021002300-2600
Passband698 - 960MHz1710 - 1880MHz1920 - 2170MHz2300 - 2690MHz
Insertion loss0.1dB typical, 0.2dB maximum0.3dB typical, 0.5dB maximum0.3dB typical, 0.5dB maximum0.2dB typical, 0.3dB maximum
Return loss20dB typical, 18dB minimum
Maximum input power250W (average) *250W (average) *250W (average) *250W (average) *
Intermodulation products< -153dBc at 2 x 43dBm TX Carrier< -153dBc at 2 x 43dBm TX Carrier< -160dBc at 2 x 43dBm TX Carrier (IM7)< -153dBc at 2 x 43dBm TX Carrier
Rejection1710-2690MHz: 50dB698-960MHz: 50dB
1920-2690MHz: 50dB		698-1880MHz: 50dB
2300-2690MHz: 50dB		698-2170MHz: 50dB
(*) Limited to 500W (average) combined power at the common port.
electrical
Impedance50Ohms
dc / aisg
DC/AISG path is factory configurable, see ordering information
Passband0 – 3MHz
Insertion loss1dB maximun
Return loss12dB minimun
Input voltage range± 30V
DC current rating3A continuous
Compliance3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40ºF to +149ºF
Ingress protectionIP67
Lightning protection±5kA maximum (8/20us)
MTBF>1,000,000 hours
Compliance Operation: ETSI EN 300 019 class 4.1E
Storage: ETS 300 019-1-1 class 1.3E
Transport: ETS 300 019-1-2 class 2.3
RoHS
mechanical
Dimensions H x D x W (single unit)250 x 160 x 49mm | 9.84 x 6.30 x 1.93"
Dimensions H x D x W (twin unit)250 x 160 x 104mm | 9.84 x 6.30 x 4.09"
Weight4.5kg | 9.8lbs (Single)
8.2kg | 18.0lbs (Dual)
FinishPowder Coated, light grey, NCS 1502-R
Connectors4.3-10 (F) or 7/16 (F)
MountingPole/wall bracket supplied with two metal clamps for 40-140 mm diameter poles
shipping information
Carton size330 x 305 x 160mm | 13.0x12.0x6.3" (Single) 330 x 310 x 190mm | 13.0 x 12.2 x 7.5" (Twin)
Gross weight (including packaging)5.5kg | 12.1lbs (Single)9.2kg | 20.2lbs (Twin)
Carton Qty / Pallet5648
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
KA-4005-10314 in / 1 outFIXED DC4.3-10 (F)NO DC
KA-4005-10324 in / 1 outFIXED DC4.3-10 (F)DC TO ALL
KA-4005-10334 in / 1 outFIXED DC4.3-10 (F)DC to 700 - 900
KA-4005-10344 in / 1 outFIXED DC4.3-10 (F)DC to 1800
KA-4005-10354 in / 1 outFIXED DC4.3-10 (F)DC to 2100
KA-4005-10364 in / 1 outFIXED DC4.3-10 (F)DC TO 2300 - 2600
KA-4005-20318 in / 2 outFIXED DC4.3-10 (F)NO DC
KA-4005-20328 in / 2 outFIXED DC4.3-10 (F)DC TO ALL
KA-4005-20338 in / 2 outFIXED DC4.3-10 (F)DC to 700 - 900
KA-4005-20348 in / 2 outFIXED DC4.3-10 (F)DC to 1800
KA-4005-20358 in / 2 outFIXED DC4.3-10 (F)DC to 2100
KA-4005-20368 in / 2 outFIXED DC4.3-10 (F)DC TO 2300 - 2600
KA-4005-10014 in / 1 outFIXED DC7/16 (F)NO DC
KA-4005-10024 in / 1 outFIXED DC7/16 (F)DC TO ALL
KA-4005-10034 in / 1 outFIXED DC7/16 (F)DC to 700 - 900
KA-4005-10044 in / 1 outFIXED DC7/16 (F)DC to 1800
KA-4005-10054 in / 1 outFIXED DC7/16 (F)DC to 2100
KA-4005-10064 in / 1 outFIXED DC7/16 (F)DC TO 2300 - 2600
KA-4005-20018 in / 2 outFIXED DC7/16 (F)NO DC
KA-4005-20028 in / 2 outFIXED DC7/16 (F)DC TO ALL
KA-4005-20038 in / 2 outFIXED DC7/16 (F)DC to 700 - 900
KA-4005-20048 in / 2 outFIXED DC7/16 (F)DC to 1800
KA-4005-20058 in / 2 outFIXED DC7/16 (F)DC to 2100
KA-4005-20068 in / 2 outFIXED DC7/16 (F)DC TO 2300 - 2600
Other DC path options are available.
DC autosensing available.
Contact Kaelus for details
electrical block diagram
KA-4005-WXYZ where
  • X denotes the configuration: W=1, single 1:4 and W=2, twin 2:8
  • Z denotes the DC/AISG configuration (see ordering information)
    		•
  • BAND1 port is 700 - 900 band
  • BAND2 port is 1800 band
  • BAND3 port is 2100 band
  • BAND4 port is 2300 - 2600 band
    		•

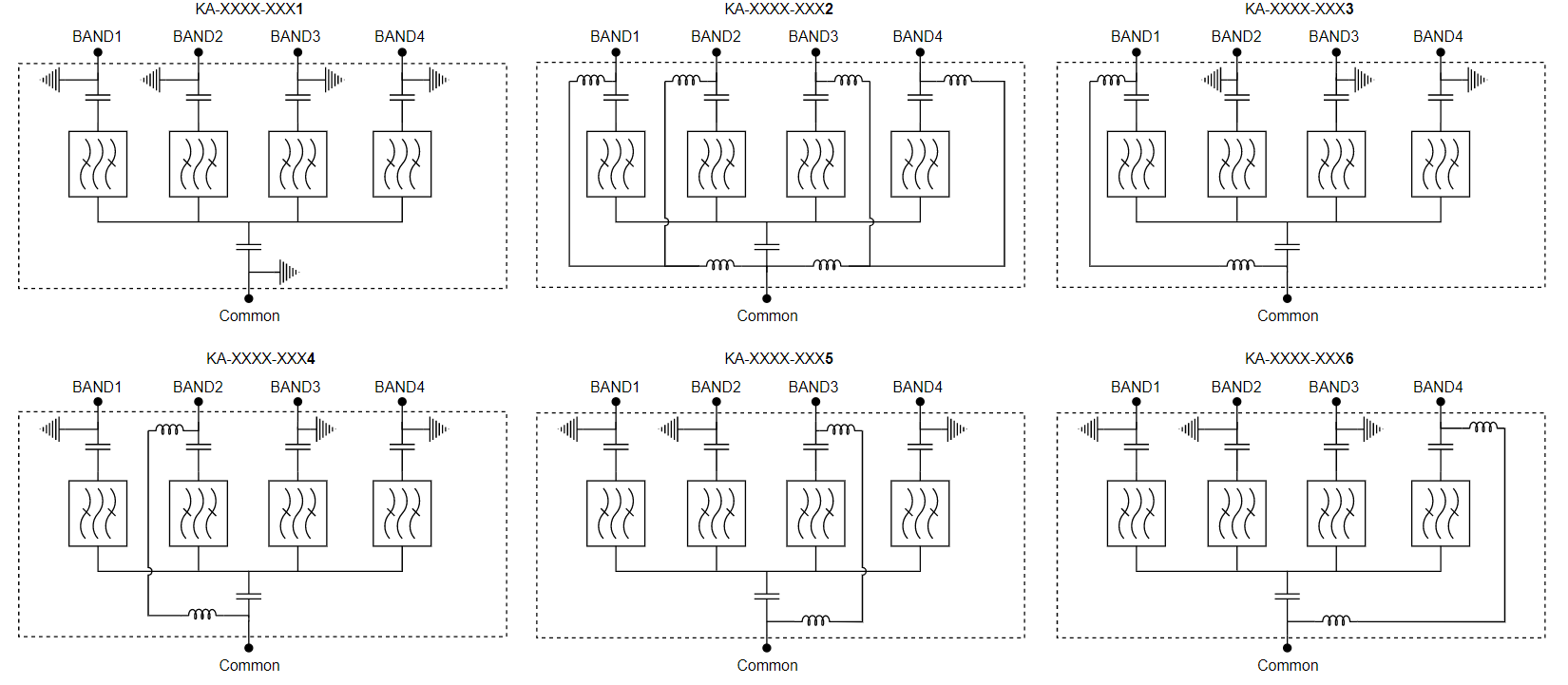

    ELECTRICAL BLOCK DIAGRAM
    mechanical block diagram

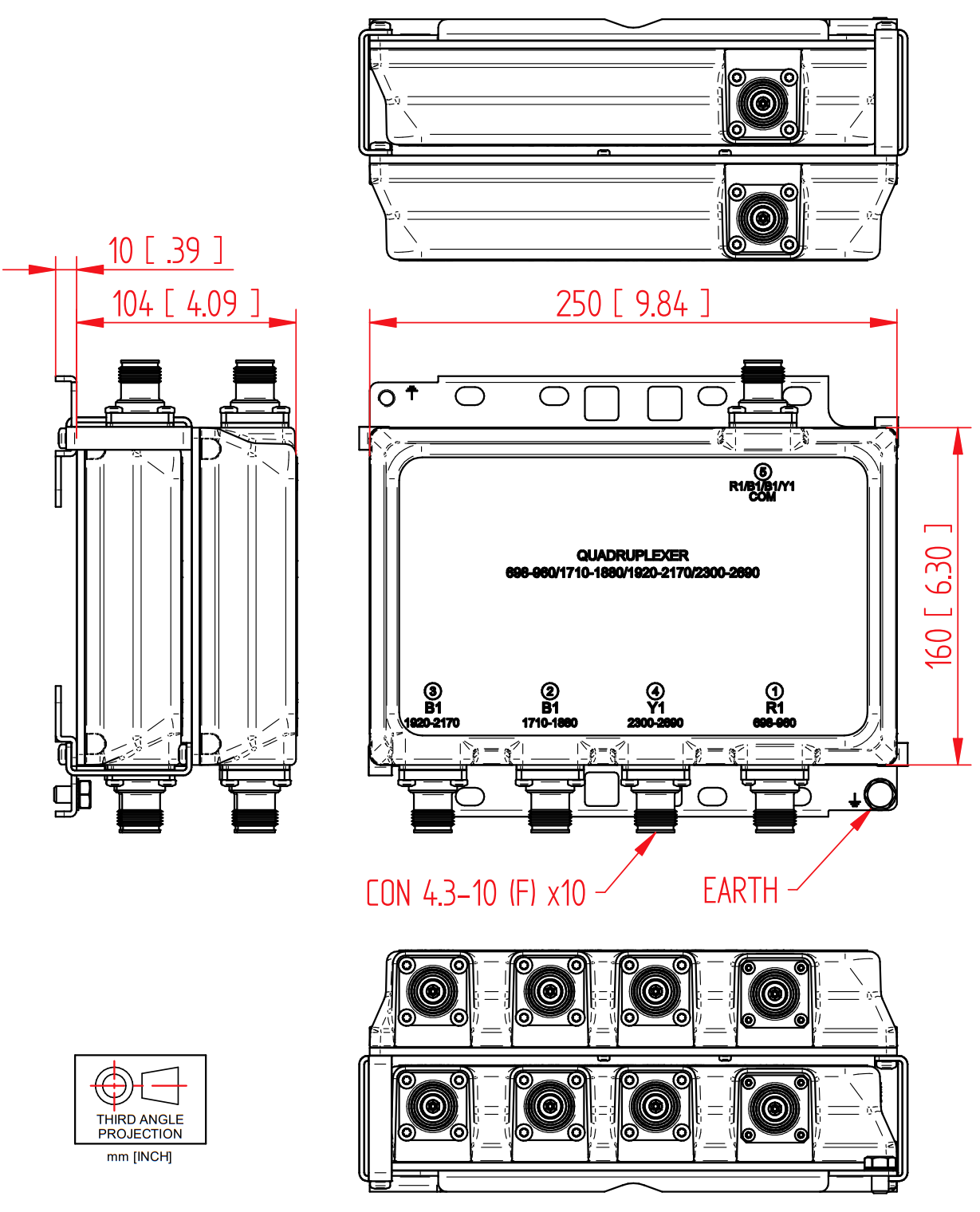

    MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
