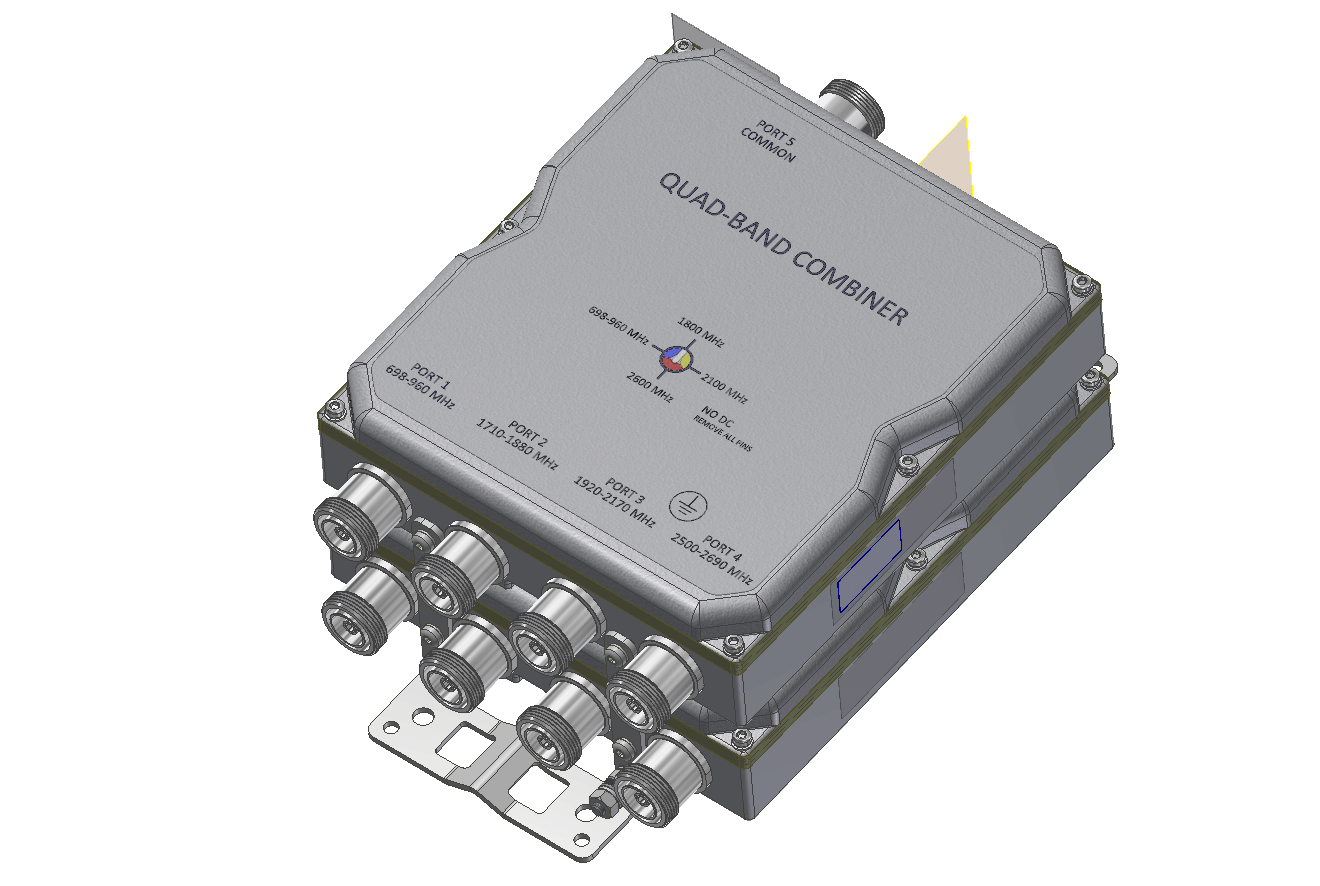

QBC0003F1V51-2

QUADRUPLEXER 700-900/1800/2100/2600

Designed to combine 700-850-900, 1800, 2100 and 2600 technologies, the Kaelus QBC0003 saves significant capital and operational expenses by limiting feeder runs and components needed on the tower.

FEATURES

  • Combines 700-1900, 1800, 2100 and 2600 Bands
  • DC/AISG bypass field settable
  • Very low insertion loss
  • Wall or pole mounting
  • Designed for low Passive intermodulation
  • High power handling

technical specifications
Band Name 700 - 900 1800 2100 2600
rf performance
Passband 698 - 960MHz 1710 - 1880MHz 1920 - 2170MHz 2500 - 2690MHz
Insertion loss 0.2dB typical 0.3dB typical 0.3dB typical 0.3dB typical
Return loss 18dB minimum
Group delay variation <15 / 10MHz maximum
Absolute group delay 2.5ns typical, 5ns maximum 8ns typical, 12ns maximum 9ns typical, 20ns maximum 6ns typical, 10ns maximum
Maximum input power 300W (average) / 2.5kW (PEP) 300W (average) / 2.5kW (PEP) 300W (average) / 2.5kW (PEP) 300W (average) / 2.5kW (PEP)
Isolation at 700 - 900 N/A 50dB minimum 50dB minimum 50dB minimum
Isolation at 1800 50dB minimum N/A 50dB minimum 50dB minimum
Isolation at 2100 50dB minimum 50dB minimum N/A 50dB minimum
Isolation at 2600 50dB minimum 50dB minimum 50dB minimum N/A
electrical
Intermodulation products -153dBc maximum all ports with 2 x 43dBm carriers
dc / aisg
A field selectable DC/AISG path is achieved via mechanical links on a IEC60130-9, 8-pin female connector (see mechanical diagram). It is Kaelus’s recommendation that due to AISG link budget reasons that a maximum of 2 DC/AISG paths are activated simultaneously without active repeating of the AISG signal.
Passband 0 - 3MHz
Insertion loss, single DC/AISG pass 1dB maximum
Return loss, single DC/AISG pass 12dB maximum
Insertion loss, two DC/AISG pass 4.5dB typical
Return loss, two DC/AISG pass 9dB typical
Input voltage range 31V DC maximum
DC current rating 2.5A continuous, 4A peak
Port 1 DC to COM plug color Blue
Port 2 DC to COM plug color White
Port 3 DC to COM plug color Yellow
Port 4 DC to COM plug color Red
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -20ºC to +65ºC | -4ºF to +149ºF
Ingress protection IP67
Altitude 2,000m | 6,560ft maximum
Lightning protection ±5kA maximum (8/20us)
MTBF >1,000,000 hours
Compliance EMC:EN301 489, ETSI EN 300 019 class 4.1, RoHS
mechanical
Dimensions H x D x W (single unit) 239 x 58.5 x 217mm | 9.4 x 2.3 x 8.5in
Dimensions H x D x W (twin unit) 239 x 117 x 217mm | 9.4 x 4.6 x 8.5in
Weight 5.3kg | 11.7lb (single unit)
10.6kg | 23.4lb (twin unit)
Connectors DIN 7-16 (F) x 5 long neck (single unit)
DIN 7-16 (F) x 10 long neck (twin unit)
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
QBC0003F1V51-1 SINGLE 1 in / 4 out DC SWITCH 7/16 (F) FIELD CONFIGURABLE
QBC0003F1V51-2 TWIN 2 in / 8 out DC SWITCH 7/16 (F) FIELD CONFIGURABLE
electrical block diagram
ELECTRICAL BLOCK DIAGRAM
mechanical block diagram
MECHANICAL BLOCK DIAGRAM
