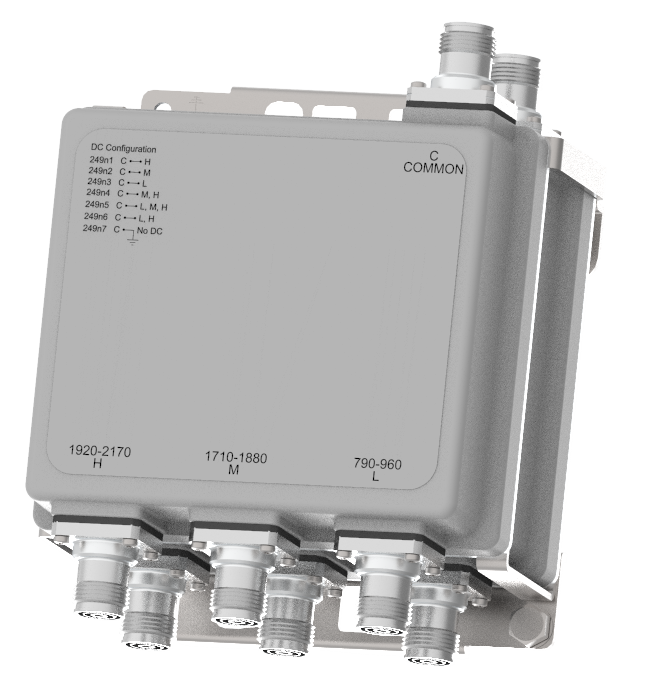

MI-249

MI-249

TRIPLEXER 800-900/1800/2100

The Kaelus MI-249 is a bi-directional triplexer, designed to combine or split 700-900/1800/2100 MHz. The MI-249 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for 800-900/1800/2100 MHz bands systems.
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • High passive IM performance
  • Single and dual models available
  • 7/16 (F) or 4.3-10 (F) connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name800-90018002100
Passband790 - 960 MHz1710 - 1880 MHz1920 - 2170 MHz
Insertion loss0.1 dB typical, 0.2 dB maximum0.2 dB typical, 0.4 dB maximum0.2 dB typical, 0.5 dB maximum
Return loss> 18 dB maximum> 18 dB maximum> 18 dB maximum
Maximum input power250W
Intermodulation products-160 dBc at 2 x 43dBm TX Carrier
Rejection50 dB minimum in 1710 - 1880 MHz and 1920 - 2170 MHz 50 dB minimum in 790 - 960 MHz and 1920 - 2170 MHz50 dB minimum in 790 - 1880 MHz
electrical
Impedance50 Ω
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
Insertion loss1 dB max
Return loss12 dB min
Input voltage range8 - 30 V DC max 0.3 W
DC current rating3 A continuous, Drop max 2.4 V
Compliance3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40 ºC to +65 ºC | -40 ºF to +149 ºF
Ingress protectionIP67
Lightning protection5 kA maximum (8/20 us)
MTBF> 1,000,000 Hours
ComplianceETSI EN 300 019-1-4 class 4.1E, RoHS
mechanical
FeatureSingle MountDual Mount
Dimensions H x D x W170 x 150 x 50 mm I 6.69 x 5.91 x 1.97 in170 x 150 x 109 mm I 6.69 x 5.91 x 4.29 in
Volume1.3 l2.8 l
Weight3 kg I 6.61 lb5.5 kg I 12.13 lb
FinishPainted, NCS 1502-R ( Light Grey )
MountingHose clamps or wall mount ( Supporter pole Diameter: 40 - 140 mm )
FeatureSingle Mount With Auto-senseDual Mount With Auto-sense
Dimensions H x D x W170 x 150 x 62 mm I 6.69 x 5.91 x 1.97 in
Volume1.6 l
Weight3,2 kg I 6.61 lb
FinishPainted, NCS 1502-R ( Light Grey )
MountingHose clamps or wall mount ( Supporter pole Diameter: 40 - 140 mm )
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
DC / ASIG CONFIGURATION
MI-2490nSingle MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-2491nDual MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-2493nSingle MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
MI-2494nDual MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
MI-249nAAuto-sense
MI-249n1DC TO 2100
MI-249n2DC TO 1800
MI-249n3DC TO 800 - 900
MI-249n4DC To 1800 and 2100
MI-249n5DC TO ALL
MI-249n6DC TO 800 - 900 and 2100
MI-249n7DC Block
Auto-sense Priority
MI-249nA.1FPO 800 - 900, 1800 and 2100
MI-249nA.2XOR to 800 - 900, 1800 and 2100
MI-249nA.3800 - 900 Priority 1, 1800 Priority 2 and 2100 Priority 3
MI-249nA.4 2100 Priority 1, 1800 Priority 2 and 800 - 900 Priority 3
MI-249nA.51800 Priority 1, 2100 Priority 2 and 800 - 900 Priority 3
MI-249nA.61800 Priority 1, 800 - 900 Priority 2 and 2100 Priosrity 3
MI-249nA.7800 - 900 Priority 1, 2100 Priority 2 and 1800 Priority 3
MI-249nA.82100 Priority 1, 800 - 900 Priority 2 and 1800 Priority 3

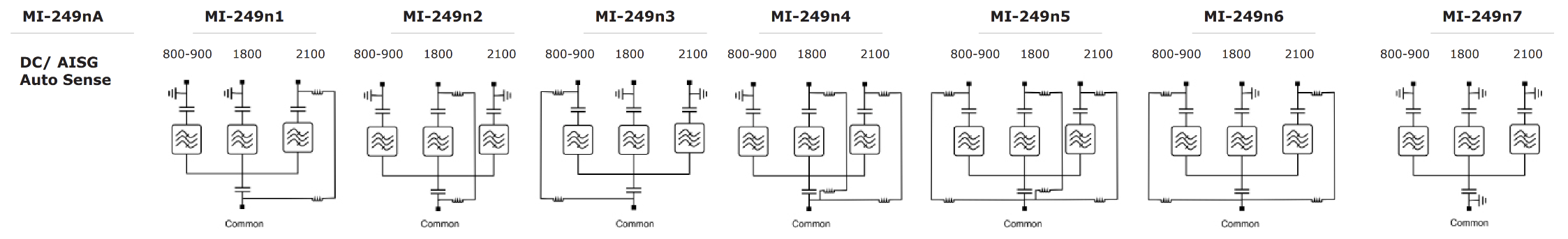

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

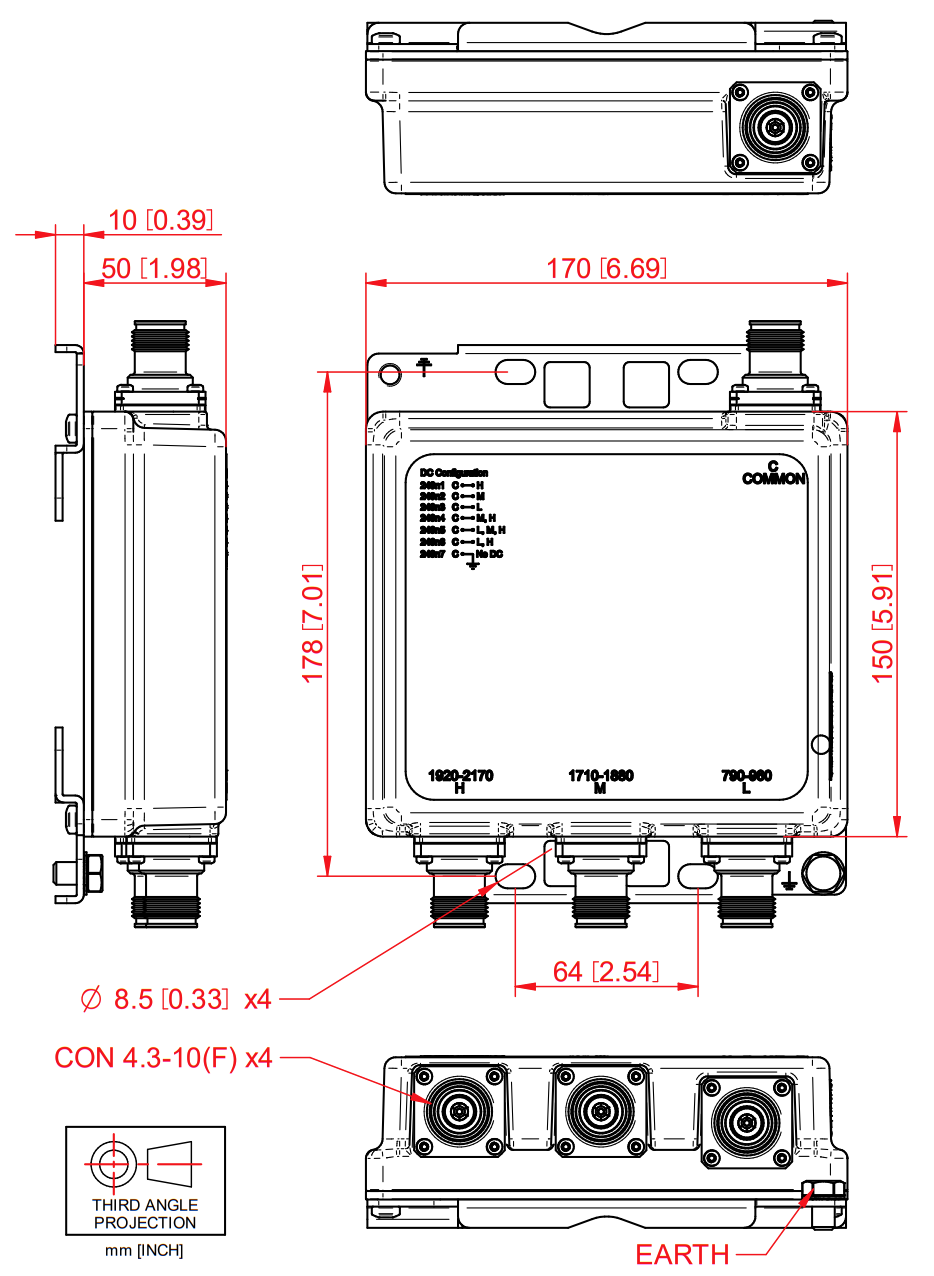

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
