TRIPLEXER AWS/PCS/2300 - 2690

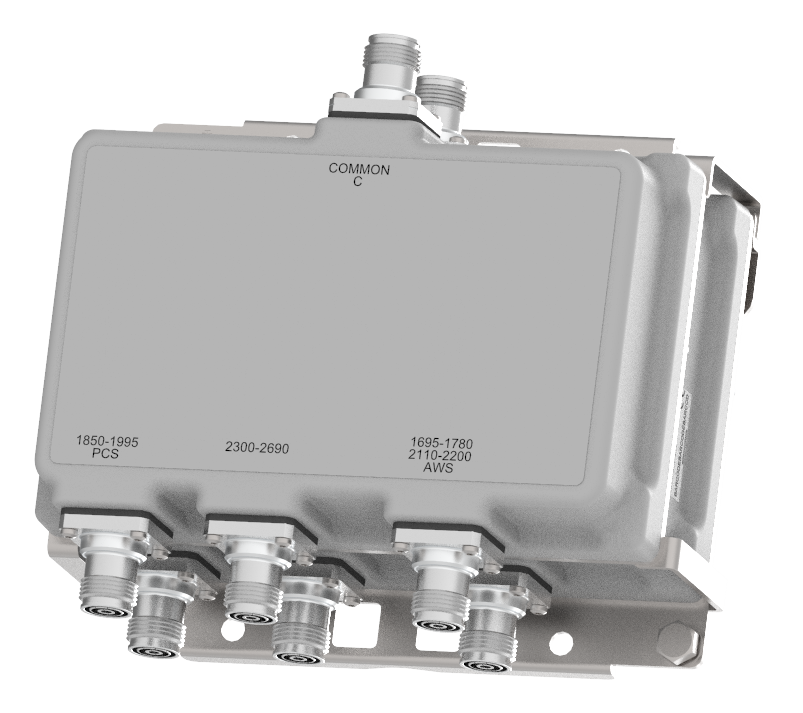

The Kaelus MI-539 is a bi-directional Triplexer designed to combine or split AWS/PCS/2300-2690 MHz. The MI-539 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for AWS, PCS and 2300-2690 MHz bands systems.
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • High passive IM performance
  • Single and dual models available
  • 7/16 (F) or 4.3-10 (F) connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name AWS PCS 2300 - 2690
Passband 1695 -1780, 2110-2200 MHz 1850 - 1995 MHz 2300 - 2690 MHz
Insertion loss > 0.3 dB typical > 0.3 dB typical > 0.3 dB typical
Return loss 20 dB typical, 18 dB maximum 20 dB typical, 18 dB maximum 20 dB typical, 18 dB maximum
Maximum input power 250W / 2000W
Intermodulation products -160 dBc at 2 x 43dBm TX Carrier
Rejection 50 dB minimum in 1850 - 1995 MHz and 2300 - 2690 MHz 50 dB minimum in 1695-1780, 2110-2200 and 2300 - 2690 MHz 50 dB minimum in 1695-1780, 2110-2200 and 1850 - 1995 MHz
electrical
Impedance 50 Ω
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
Insertion loss 1 dB max
Return loss 12 dB min
Input voltage range 8 - 30 V DC max 0.3 W
DC current rating 3 A continuous, Drop max 2.4 V
Compliance 3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40 ºC to +65 ºC | -40 ºF to +149 ºF
Ingress protection IP67
Lightning protection 5 kA maximum (8/20 us)
MTBF > 1,000,000 Hours
Compliance ETSI EN 300 019-1-4 class 4.1E, RoHS
mechanical
Feature Single Mount Dual Mount
Dimensions H x D x W 220 x 140 x 50 mm I 9.45 x 5.51 x 2.0 in 220 x140 x106 mm I 9.45 x 5.51 x 4.2 in
Volume 1.5 l 3.3 l
Weight 2.7 kg I 5.95 lb 4.9 kg l 10.8 lb
Finish Painted, NCS 1502-R ( Light Grey )
Mounting Hose clamps or wall mount ( Supporter pole Diameter: 40 - 140 mm )
Feature Single Mount with Auto-Sense Dual Mount with Auto-Sense
Dimensions H x D x W 220 mm x 140 mm x 62 mm I 9.45 x 5.51 x 2.4 in 220 mm x 140 mm x 118 mm I 9.45 x 5.51 x 4.6 in
Volume 1.9 l 3.6 l
Weight 2.8 kg I 6.17 lb 5.0 kg I 11.0 lb
Finish Painted, NCS 1502-R ( Light Grey )
Mounting Hose clamps or wall mount ( Supporter pole Diameter: 40 - 140 mm )
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
MI-5390n Single Mount BASE MODEL 7/16 (F) Refer to DC /AISG table
MI-5391n Dual Mount BASE MODEL 7/16 (F) Refer to DC /AISG table
MI-5393n Single Mount BASE MODEL 4.3-10 (F) Refer to DC /AISG table
MI-5394n Dual Mount BASE MODEL 4.3-10 (F) Refer to DC /AISG table
DC / ASIG CONFIGURATION
MI-539nA Auto-sense
MI-539n1 DC TO 2300 - 2690
MI-539n2 DC TO 1850 - 1995
MI-539n3 DC TO 1695 - 1780, 2110 - 2200
MI-539n4 DC TO 1850 - 1995 and 2300 - 2600
MI-539n5 DC TO ALL
MI-539n6 DC TO 1695 - 1780, 2110 - 2200 and 2300 - 2690
MI-539n7 DC Block
Auto-sense Priority
MI-539nA.1 FPO to 1695 - 1780, 2110 - 2200 , 1850 - 1995 and 2300 - 2600
MI-539nA.2 XOR to 1695 - 1780, 2110 - 2200 , 1850 - 1995 and 2300 - 2600
MI-539nA.3 2300 - 2690 Priority 1, 1850 - 1995 and 1695 - 1780, 2110 - 2200 Priority 2
MI-539nA.4 1695 - 1780, 2110 - 2200 Priority 1 and 1850 - 1995 and 2300 - 2600 Priority 2
electrical block diagram

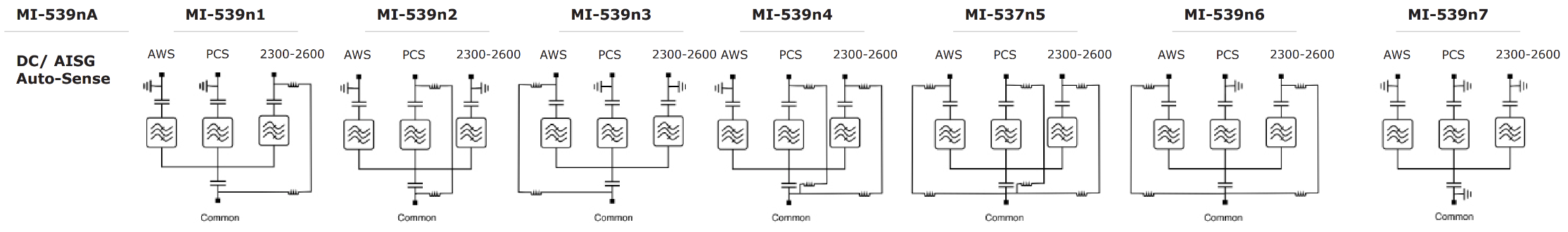

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

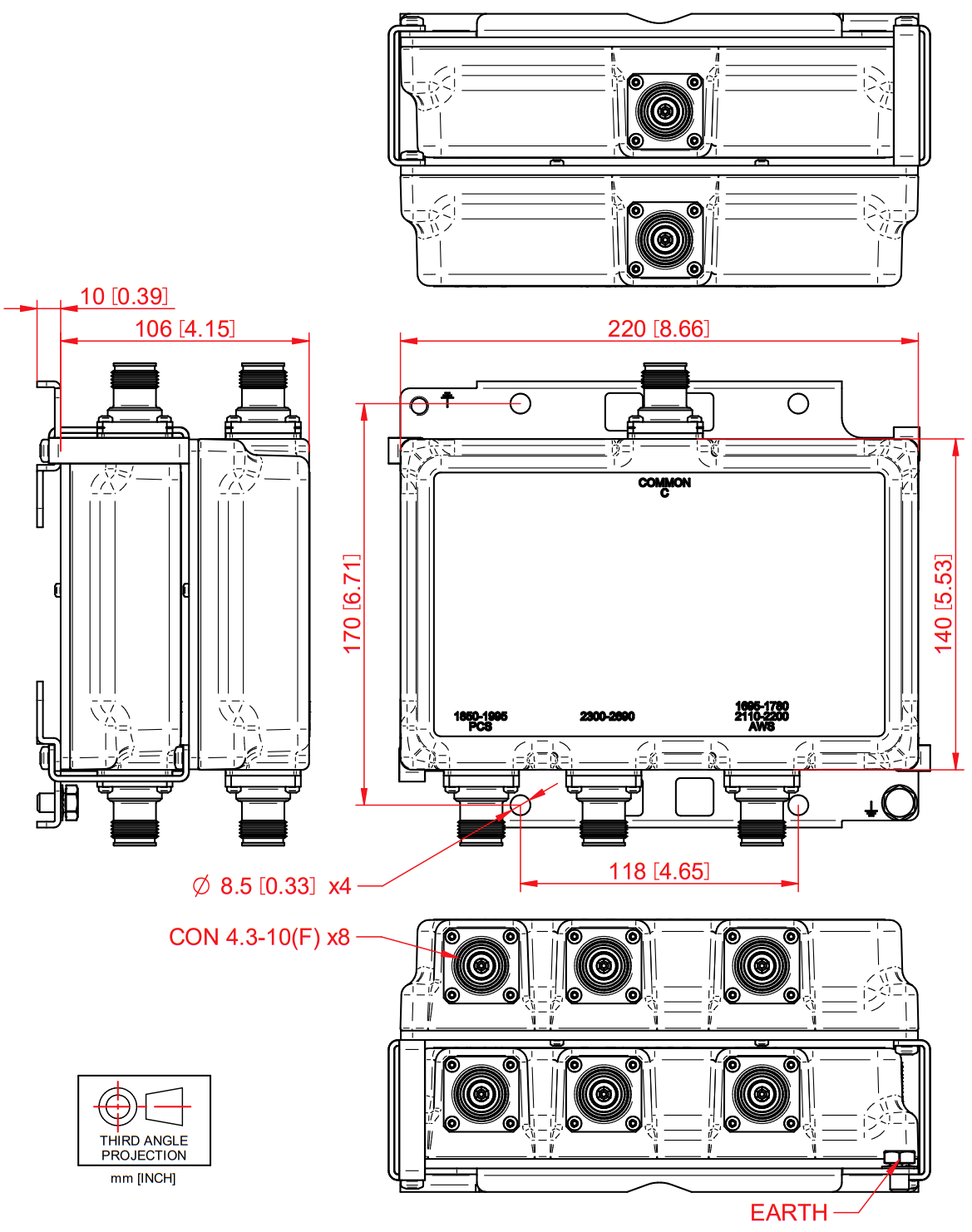

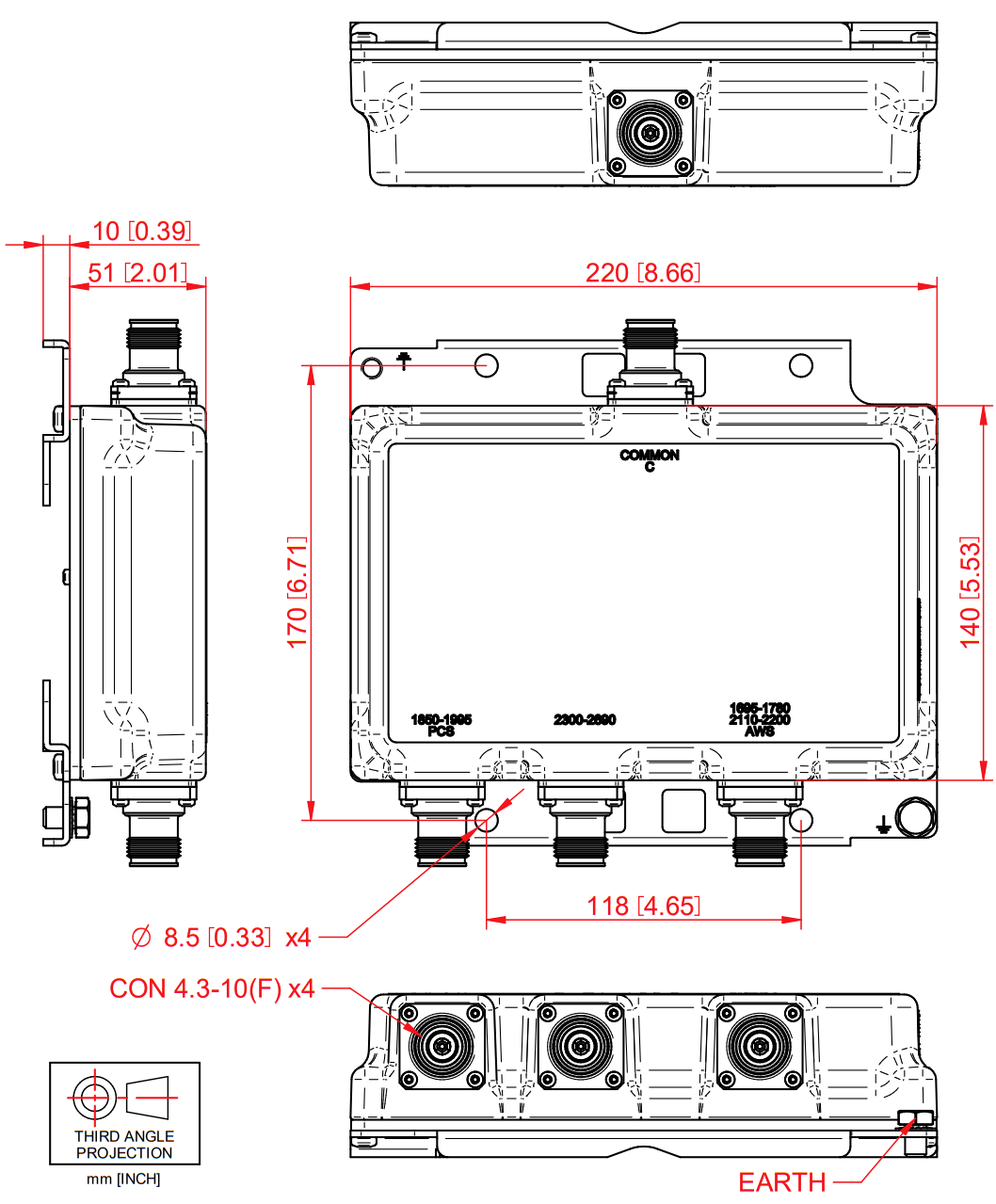

MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
