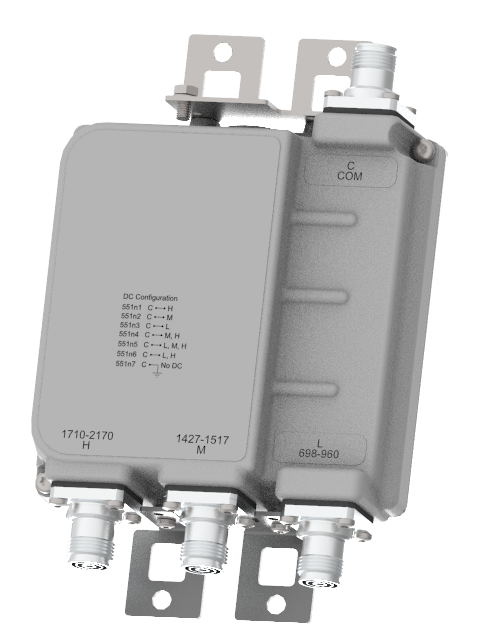

MI-551

MI-551

TRIPLEXER 700 - 900/L-band/1800 - 2100

The Kaelus MI-551 is a bi-directional Diplexer, designed to combine or split 700 - 900/L-band/1800 - 2100. The MI-551 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for 700 - 900/L-band/1800 - 2100 bands systems.
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • High passive IM performance
  • Single and dual models available
  • 7/16 (F) or 4.3-10 (F) connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name700 - 900L-band1800 - 2100
Passband698 - 960 MHz1427 - 1517 MHz1710 - 2170 MHz
Insertion loss0.1 dB typical, 0.2 dB maximum0.25 dB typical0.2 dB typical
Return loss>18 dB>18 dB>18 dB
Maximum input power250W
Intermodulation products-160 dBc at 2 x 43dBm TX Carrier-145 dBc at 2 x 43dBm TX Carrier-160 dBc at 2 x 43dBm TX Carrier
Rejection50 dB minimum in 1427 - 2170 MHz 50 dB minimum in 698 - 960 and 1710 - 2170 MHz50 dB minimum in 698 - 1517 MHz
electrical
Impedance50 Ω
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
Insertion loss1 dB max
Return loss12 dB min
Input voltage range8 - 30 V DC max 0.3 W
DC current rating3 A continuous, Drop max 2.4 V
Compliance3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40 ºC to +65 ºC | -40 ºF to +149 ºF
Ingress protectionIP67
Lightning protection5 kA maximum (8/20 us)
MTBF> 1,000,000 Hours
ComplianceETSI EN 300 019-1-4 class 4.1E, RoHS
mechanical
FeatureSingle MountDual Mount
Dimensions H x D x W160 mm x 160 mm x 50 mm I 6.3 x 6.54 x 1.97 in160 mm x 160 mm x 94 mm I 6.3 x 6.54 x 3.7 in
Volume1.3 l2.5 l
Weight2.6 kg I 5.73 lb5 kg I 11.02 lb
FinishPainted, NCS 1502-R ( Light grey )
MountingHose clamps or wall mount ( Supporter pole Diameter: 40 - 140 mm )
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
MI-5510nSingle MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-5511nDual MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-5513nSingle MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
MI-5514nDual MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
DC / ASIG CONFIGURATION
MI-551nAAuto-sense
MI-551n1DC TO 1800 - 2100
MI-551n2DC TO L-band
MI-551n3DC TO 700 - 900
MI-551n4DC TO L-band and 1800 - 2100
MI-551n5DC TO ALL
MI-551n6DC TO 700 - 900 and 1800 - 2100
MI-551n7DC Block
Auto-sense Priority
MI-551nA.1FPO to 698 - 960, 1427 - 1517 and 1710 - 2170
MI-551nA.2XOR to FPO to 698 - 960, 1427 - 1517 and 1710 - 2170
MI-551nA.31710 - 2170 Priority 1, 1427 - 1517 Priority 2 and 698 - 960 Priority 3
MI-551nA.4698 - 960 Priority 1, 1427 - 1517 Priority 2 and 1710 - 2170 Priority 3
electrical block diagram

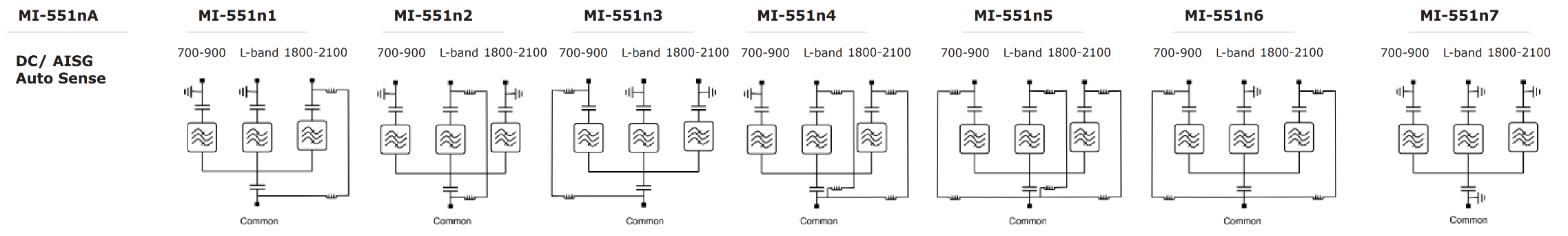

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

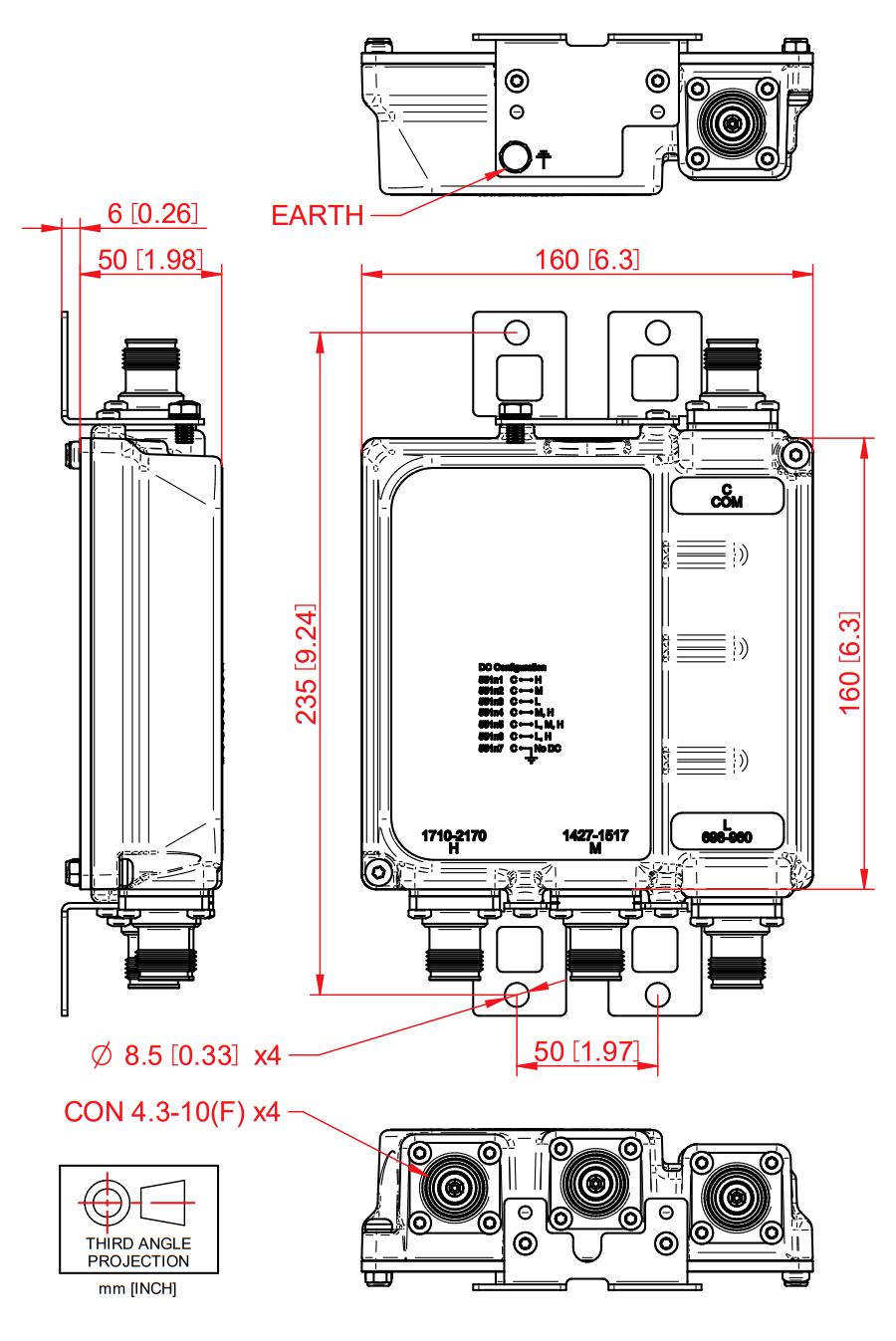

MECHANICAL BLOCK DIAGRAM
