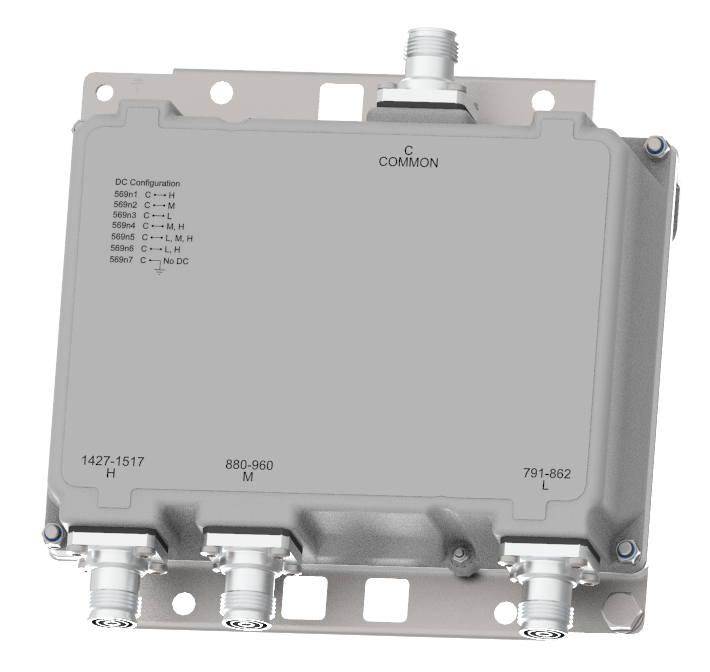

TRIPLEXER 800/900/L-band

The Kaelus MI-569 is a bi-directional Diplexer, designed to combine or split 800/900/L-bands. The MI-569 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for 800, 900 and L- band systems.
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • High passive IM performance
  • Single and dual models available
  • 7/16 (F) or 4.3-10 (F) connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name800900L-band
Passband791 - 862 MHz880 - 960 MHz1427 - 1517 MHz
Insertion loss0.2 dB typical, 0.4 dB maximum0.2 dB typical, 0.4 dB maximum0.2 dB typical, 0.4 dB maximum
Return loss>18 dB>18 dB>18 dB
Maximum input power250W
Intermodulation products-160 dBc at 2 x 43dBm TX Carrier
Rejection50 dB minimum in 925 - 960 and 1452 - 1517 MHz 50 dB minimum in 791 - 821 MHz and 1427 - 1517 MHz50 dB minimum in 791 - 862 MHz and 880 - 960 MHz
electrical
Impedance50 Ω
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
Insertion loss1 dB max
Return loss12 dB min
Input voltage range8 - 30 V DC max 0.3 W
DC current rating3 A continuous, Drop max 2.4 V
Compliance3GPP TS 37.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40 ºC to +65 ºC | -40 ºF to +149 ºF
Ingress protectionIP67
Lightning protection5 kA maximum (8/20 us)
MTBF> 1,000,000 Hours
ComplianceETSI EN 300 019-1-4 class 4.1E, RoHS
mechanical
FeatureSingle MountDual Mount
Dimensions H x D x W220 mm x 160 mm x 58 mm I 8.66 x 6.30 x 2.28 inTo be added
Volume2.0 l
Weight3.5 kg I 7.72 lb
FinishPainted, NCS 1502-R
MountingHose clamps or wall mount ( Supporter pole Diameter: 40 - 140 mm )
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
MI-5690nSingle MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-5691nDual MountBASE MODEL7/16 (F)Refer to DC /AISG table
MI-5693nSingle MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
MI-5694nDual MountBASE MODEL4.3-10 (F)Refer to DC /AISG table
DC / ASIG CONFIGURATION
MI-569nAAuto-sense
MI-569n1DC TO L-band
MI-569n2DC TO 900
MI-569n3DC TO 800 and L-band
MI-569n4DC TO 900 and L-band
MI-569n5DC TO ALL
MI-569n6DC TO 800
MI-569n7DC Block
Auto-sense Priority
MI-569nA.1FPO to 800, 900 and L - band
MI-569nA.2XOR to 800, 900 and L - band
MI-569nA.3L-band Priority 1, 900 and 800 prority 2
MI-569nA.4800 Priority 1, 900 and L- band priority 2
electrical block diagram

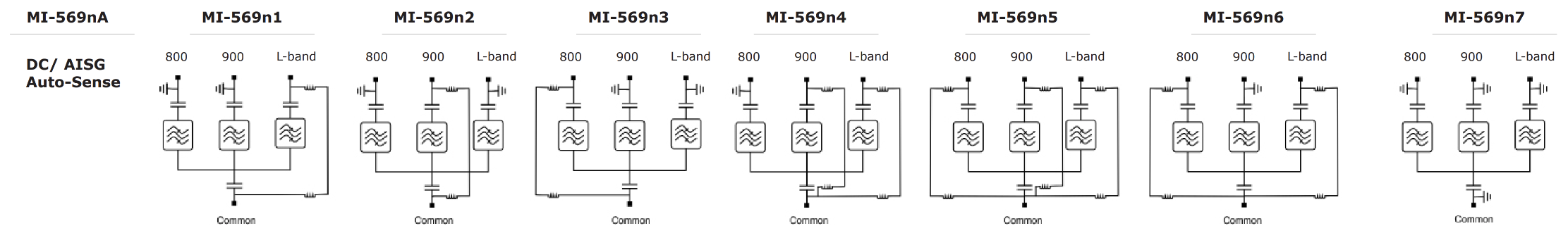

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

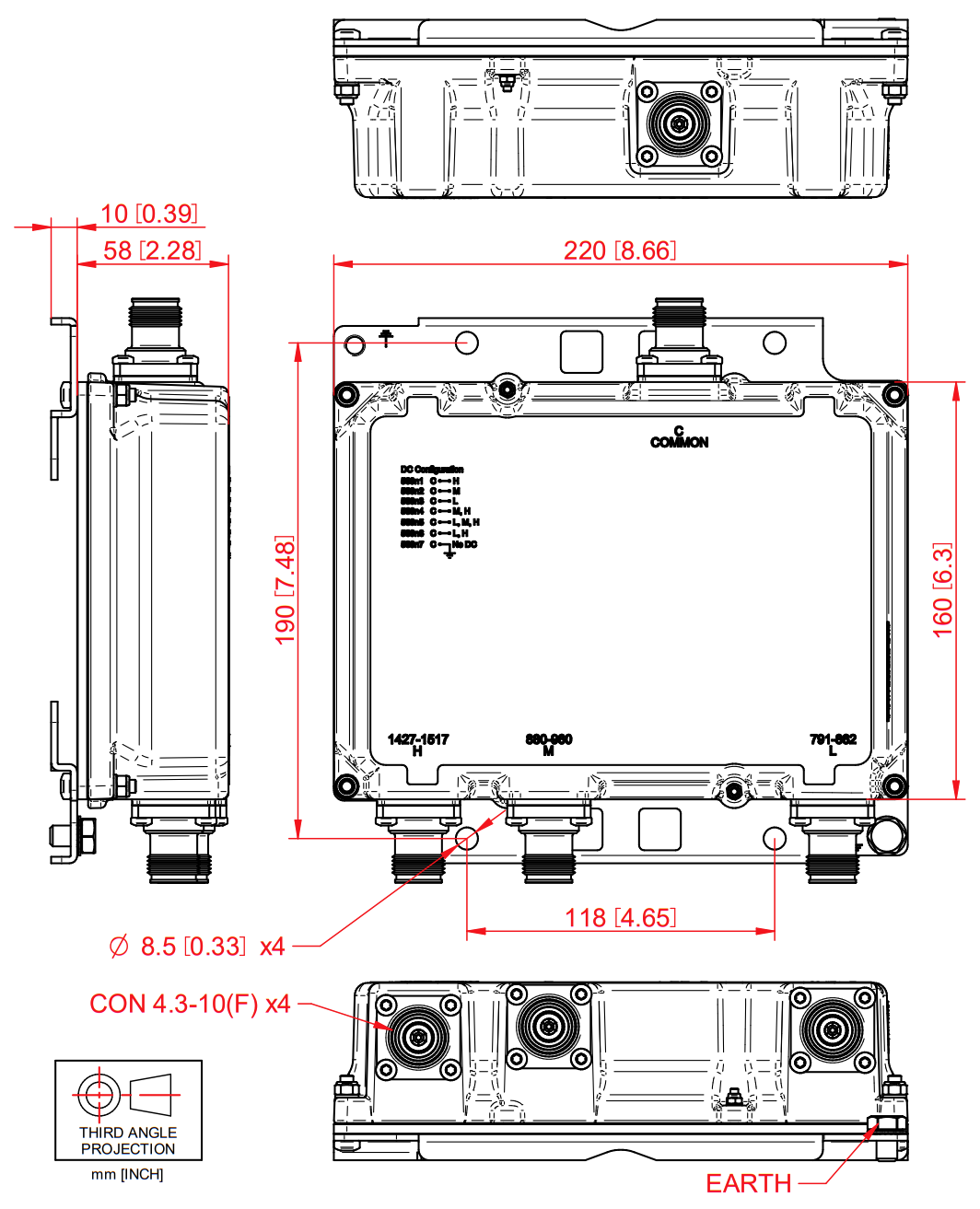

MECHANICAL BLOCK DIAGRAM
