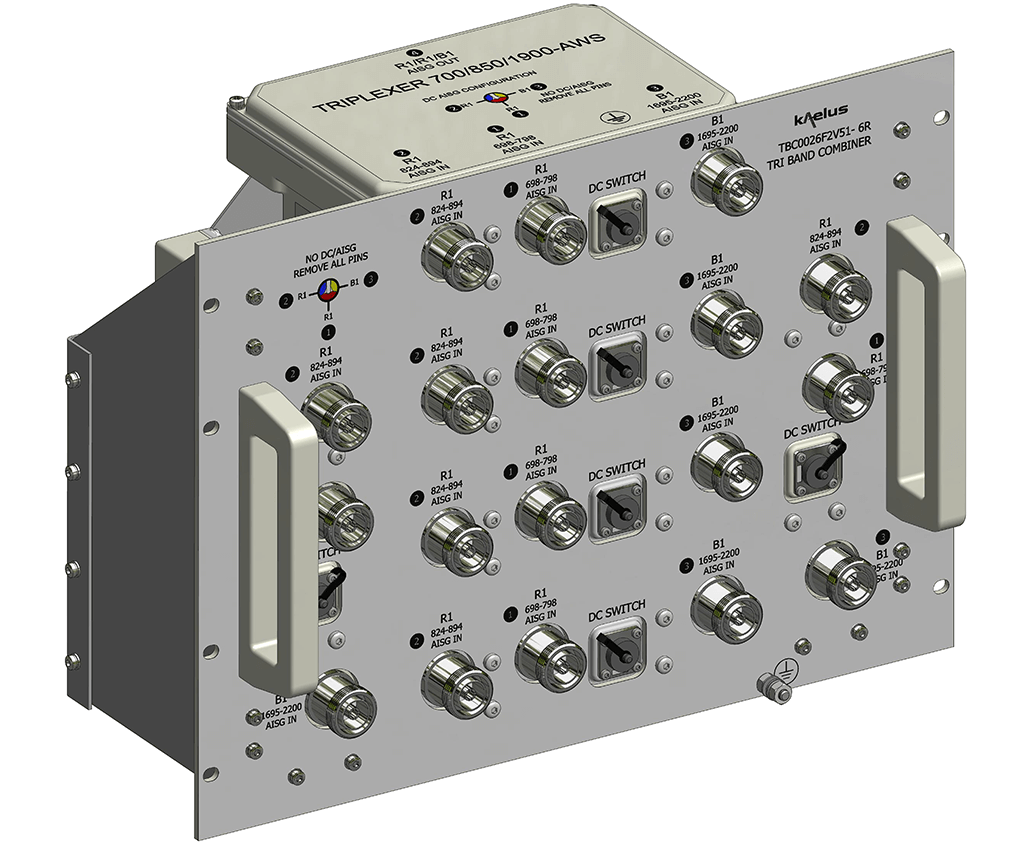

TRIPLEXER 700/850/1900-AWS

Designed to combine 700, 850 and 1900/AWS technologies the Kaelus TBC0026 provides a low loss combiner with excellent insertion loss and passive inter-modulation performance. The TBC0026 is AWS 3 / AWS 3U and AWS 4 ready.

FEATURES

  • AWS 3 / AWS 3U and AWS4 ready, combines 700, 850 and high band BTS onto a single feeder
  • Designed for low passive inter-modulation
  • DC/AISG bypass field settable
  • Very low insertion loss
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name 700 850 1900/AWS
Passband 698-798MHz 824-894MHz 1695-2200MHz
Insertion loss 0.25dB maximum @ 698-793MHz / 0.35dB maximum @ 793-798MHz 0.25dB maximum 0.2dB maximum
electrical
Impedance 50Ohms
Return loss 21dB minimum, 24dB typical
Intermodulation products -161dBc typical / -153dBc maximum all ports with 2 x 20W carriers
Maximum input power 300W (average) / 3kW (PEP)
Isolation from port to port 50dB minimum, 698-793MHz & 824-894MHz & 1695-2200MHz
Isolation from port to port 35dB minimum, 793-798MHz
Phase linearity variation over any 10MHz 10º maximum
Group delay variation over any 10MHz 15ns maximum
dc / aisg
A field selectable DC/AISG path is achieved via mechanical links on a IEC60130-9, 8-pin female connector (see electrical block diagram). It is Kaelus’s recommendation that due to AISG link budget reasons that a maximum of 2 DC/AISG paths are activated simultaneously without active repeating of the AISG signal
Passband 0 – 3MHz
Insertion loss, single DC/AISG pass 1dB maximum
Return loss, single DC/AISG pass 12dB minimum
Insertion loss, two DC/AISG pass 4.5dB typical
Return loss, two DC/AISG pass 9dB typical
Input voltage range ± 31V
DC current rating 2A continuous, 4A peak
Compliance AISG 1.1/2.0
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40ºF to +149ºF
Ingress protection IP67
Lightning protection IEC61000-4-5, RF: ±5kA maximum (8/20us)
MTBF >1,000,000 hours
Compliance ETSI EN 300 019 class 4.1, RoHS
mechanical
Dimensions H x D x W 481x 355 x 200mm | 18.9 x 14 x 7.9in
Weight 37kg | 81.6lbs
Finish Painted, light grey (RAL7035)
Connectors DIN 7-16 (F) x 24 long neck
Mounting Rack mounting 19", 23" optional
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
TBC0026F2V51-1 SINGLE 1 in / 3 out DC SWITCH 7/16 (F) FIELD CONFIGURABLE
TBC0026F2V51-2 TWIN 2 in / 6 out DC SWITCH 7/16 (F) FIELD CONFIGURABLE
TBC0026F2V51-6R RACK 6 in / 18 out DC SWITCH 7/16 (F) FIELD CONFIGURABLE
electrical block diagram

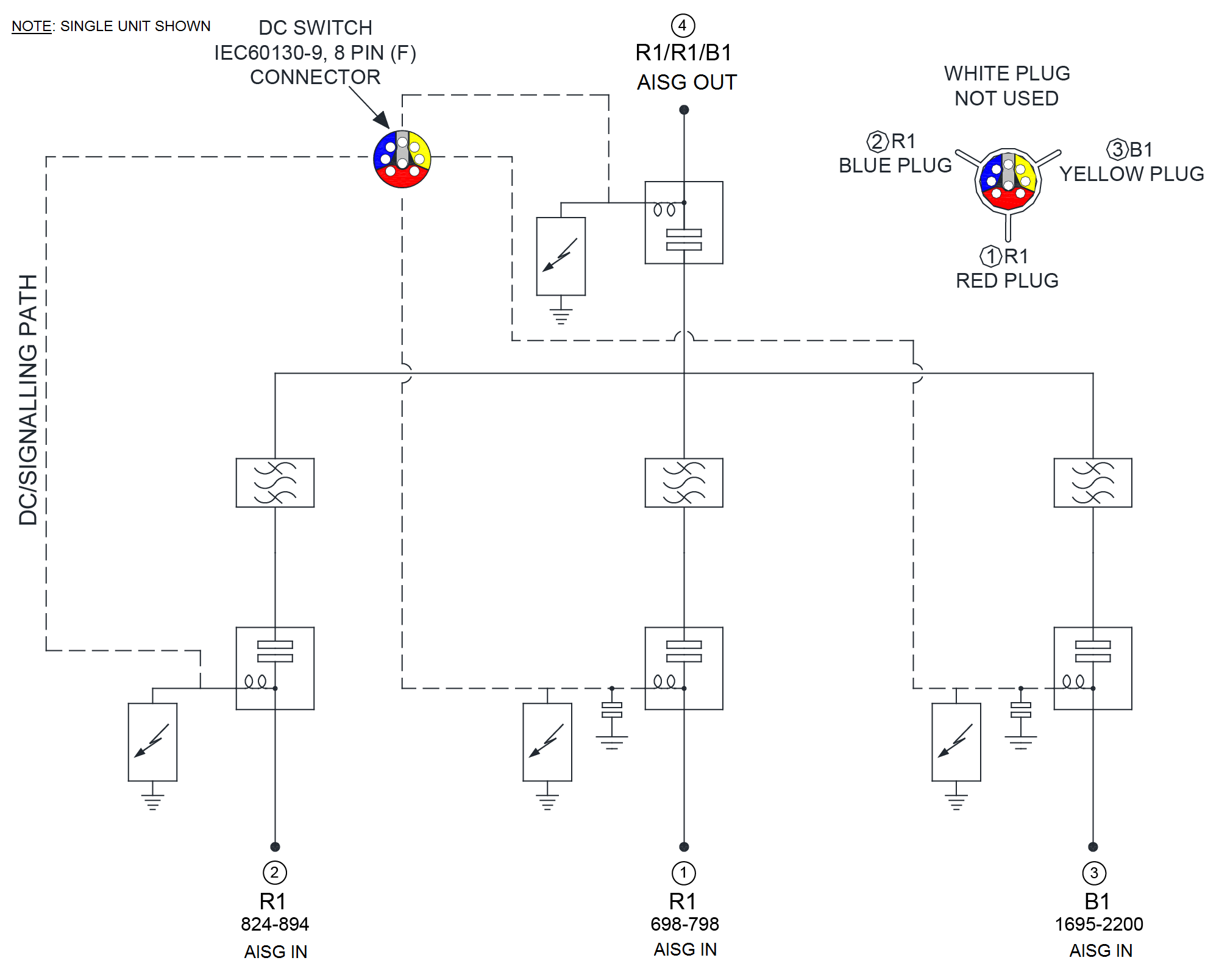

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

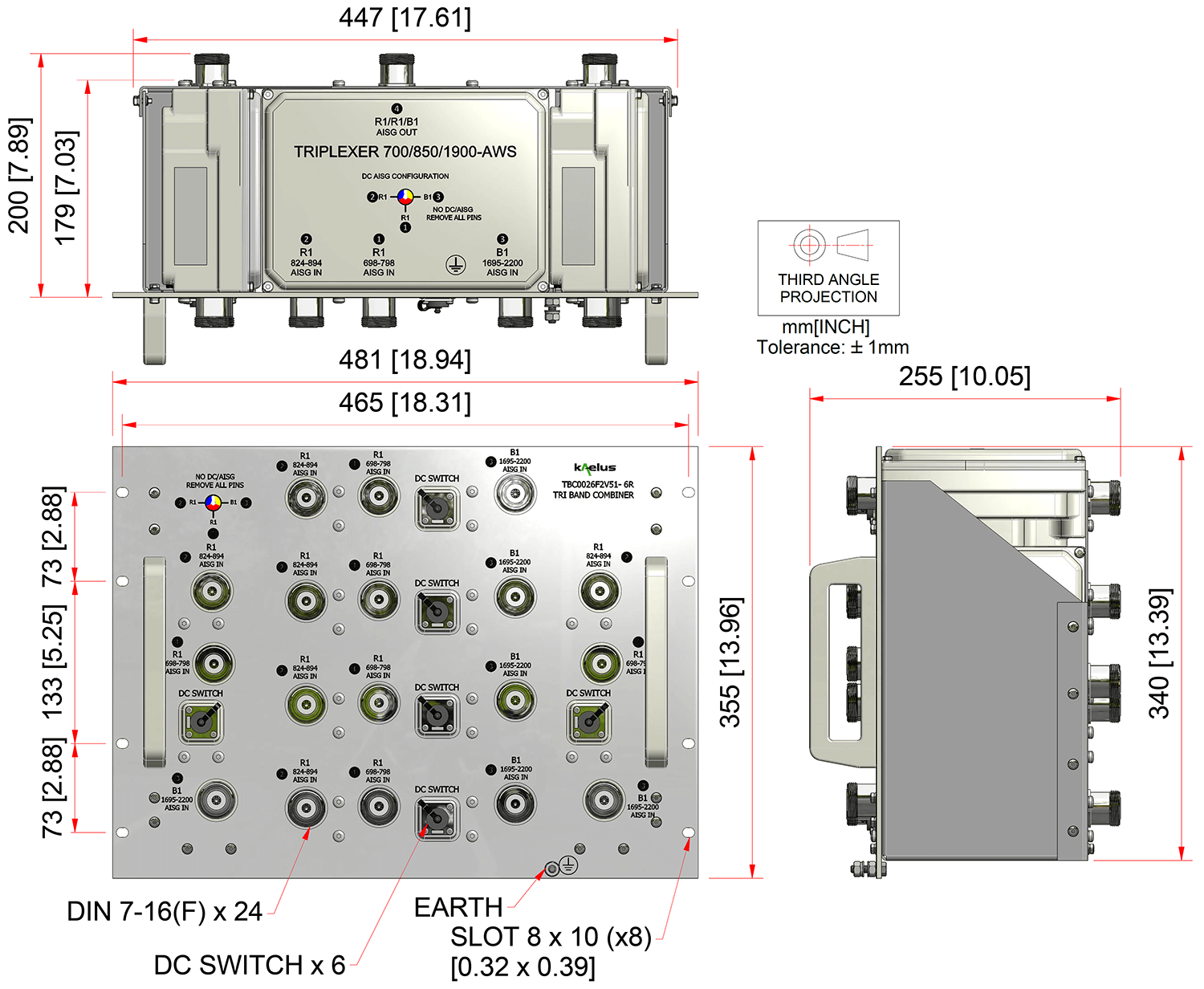

MECHANICAL BLOCK DIAGRAM
