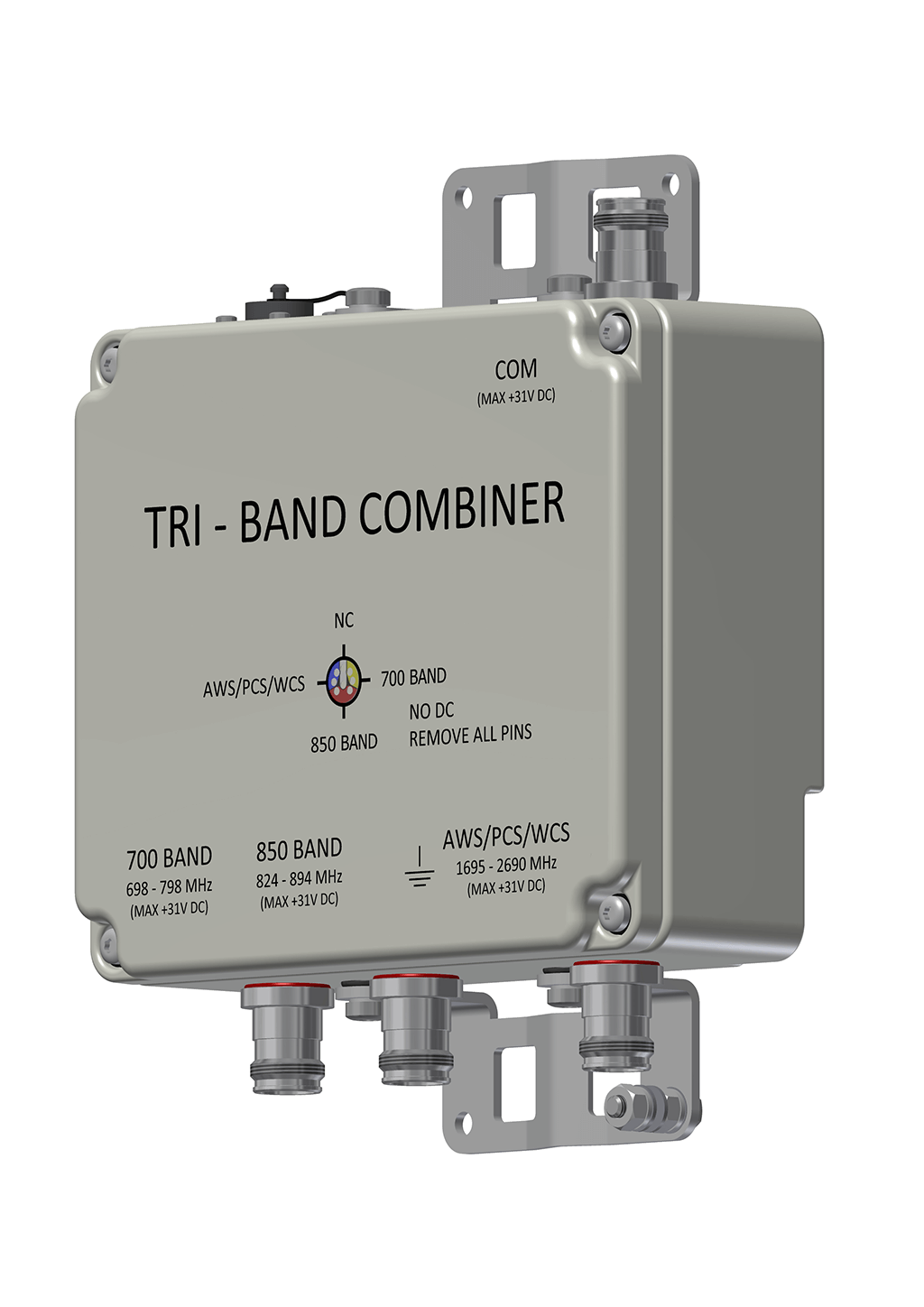

TBC0042F1V51-1

TRIPLEXER 700/850/1900-AWS-WCS

Designed to combine 700, 850, and 1900 / AWS / WCS technologies, the Kaelus TBC0042 saves significant capital and operational expenses by limiting feeder runs, and components needed on the tower. Available in an outdoor package the TBC0042 has the following features:

FEATURES

  • Combines 700, 850 and 1900 / AWS / WCS bands
  • Very low insertion loss
  • Designed for low passive intermodulation
  • DC/AISG bypass field settable
  • Wall or pole mounting
  • AWS 3 & 4 ready.

technical specifications
Port Name 700 BAND 850 BAND AWS/1900/WCS BAND
Passband 698 - 798MHz 824 - 894MHz 1695 - 2690MHz
Insertion loss 0.25dB typical 0.25dB typical 0.25dB typical
Maximum input power 300W (average) / 3kW (PEP) 500W (average) / 5kW (PEP) 150W (average) / 1.5kW (PEP)
Rejection in 700 N/A 35dB typical @793-798MHz, 40dB typical @698-793MHz 50dB typical
Rejection in 850 35dB typical @824-849MHz, 45dB typical @849-894MHz N/A 50dB typical
Rejection in 1900/AWS/WCS 50dB typical 50dB typical N/A
electrical
Impedance 50Ohms
Return loss 21dB minimum, 24dB typical
Intermodulation products -153dBc typical all ports with 2 x 20W carriers
Phase linearity variation over any 10MHz < 10º
Group delay variation over any 10MHz < 20ns
dc / aisg
A field selectable DC/AISG path is achieved via mechanical links on a IEC60130-9, 8-pin female connector (see mechanical diagram). It is Kaelus’s recommendation that due to AISG link budget reasons that a maximum of 2 DC/AISG paths are activated simultaneously without active repeating of the AISG signal
Passband 0 - 3MHz
Insertion loss, single DC/AISG pass 1dB maximum
Return loss, single DC/AISG pass 12dB minimum
Insertion loss, two DC/AISG pass 4.5dB typical
Return loss, two DC/AISG pass 9dB typical
Input voltage range ± 31V
DC current rating 2A continuous, 4A peak
Compliance AISG 1.1/2.0
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40ºF to +149ºF
Ingress protection IP67
Altitude 3,000m | 10,000ft maximum
Lightning protection IEC61312-1, RF: ±5kA maximum (8/20us)
MTBF >1,000,000 hours
Compliance ETSI EN 300 019 class 4.1, RoHS
mechanical
Dimensions H x D x W (single unit) 208 x 175 x 79mm | 8.19 x 6.89 x 3.11in
Excluding brackets & connectors
Dimensions H x D x W (twin unit) 208 x 175 x 169mm | 8.19 x 6.89 x 6.65in
Excluding brackets & connectors
Weight 5kg | 11.02lbs (single unit)
10.5kg | 23.15lbs (twin unit)
Finish Painted, light grey (RAL7035)
Connectors DIN 4.3-10 (F) x 4 long neck (single unit)
DIN 4.3-10 (F) x 8 long neck (twin unit)
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
TBC0042F1V51-1 SINGLE 1 in / 3 out DC SWITCH 4.3-10 (F) FIELD CONFIGURABLE
TBC0042F1V51-2 TWIN 2 in / 6 out DC SWITCH 4.3-10 (F) FIELD CONFIGURABLE

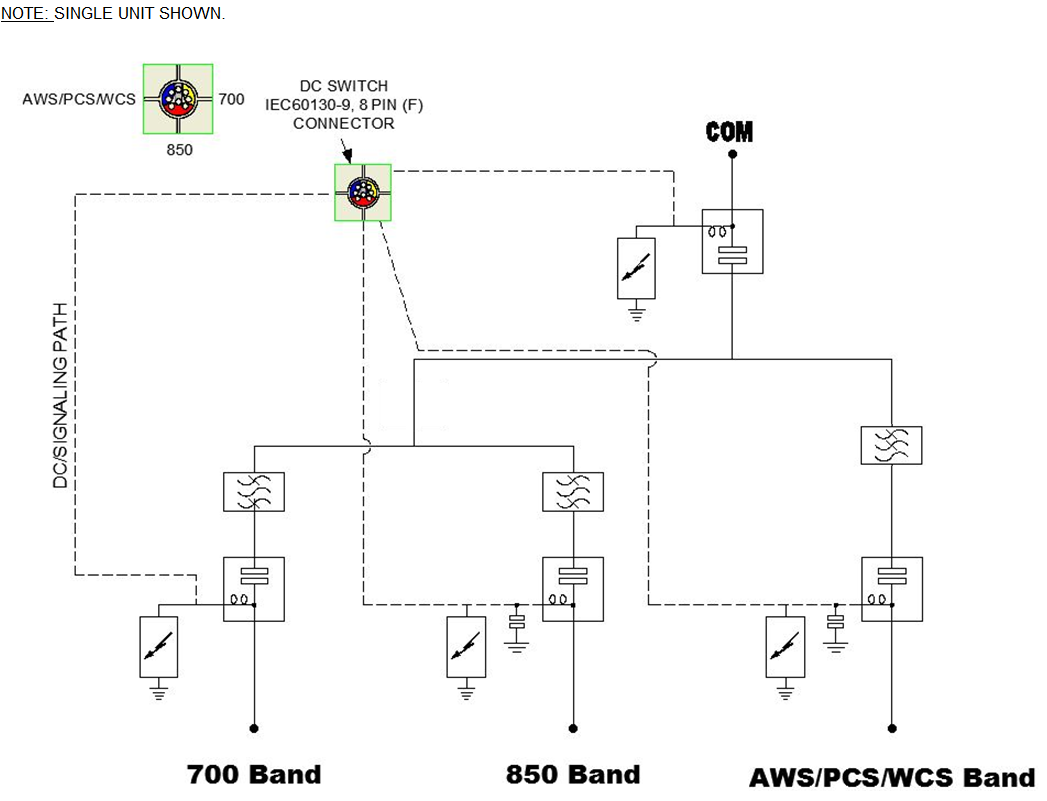

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

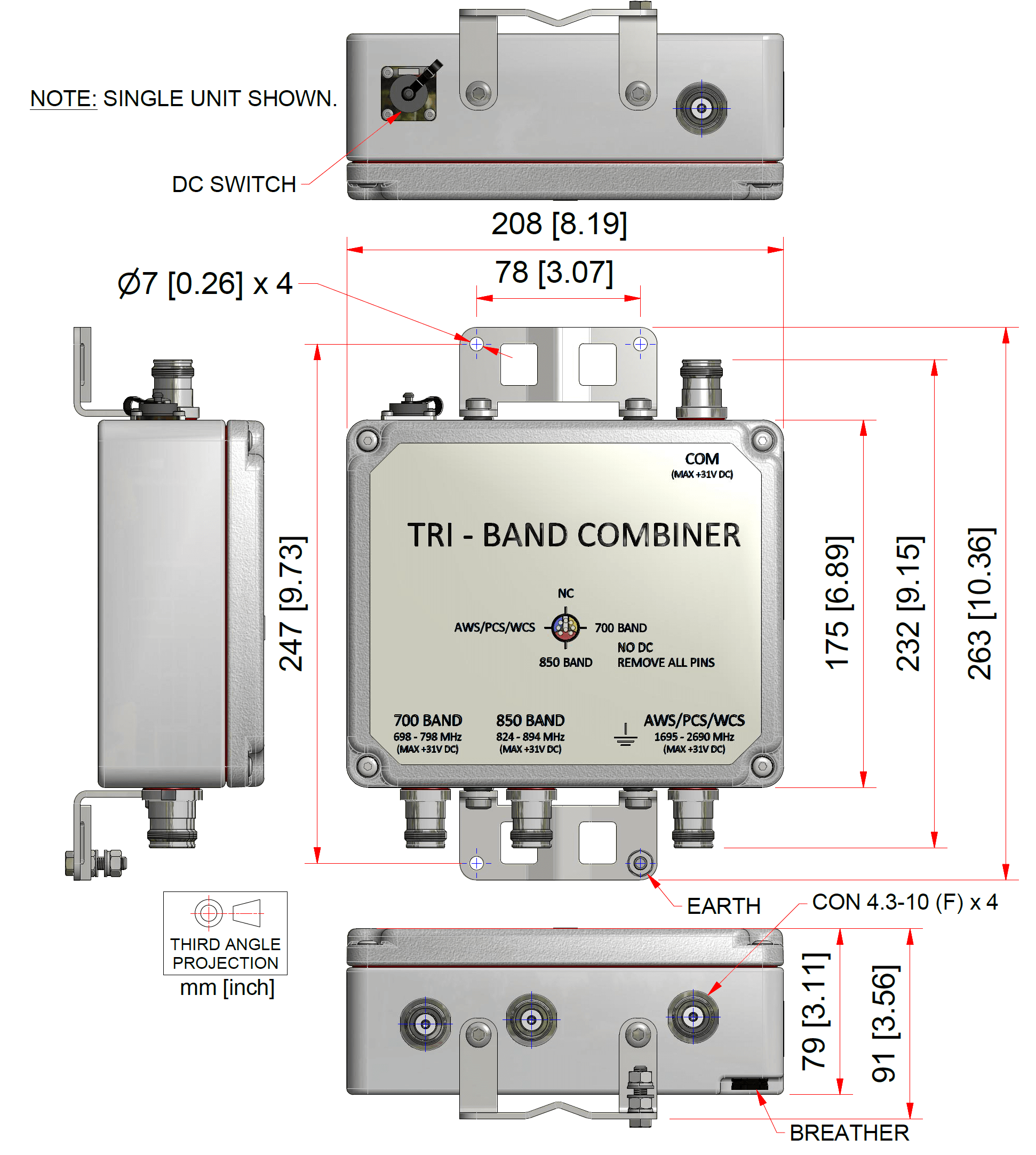

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
