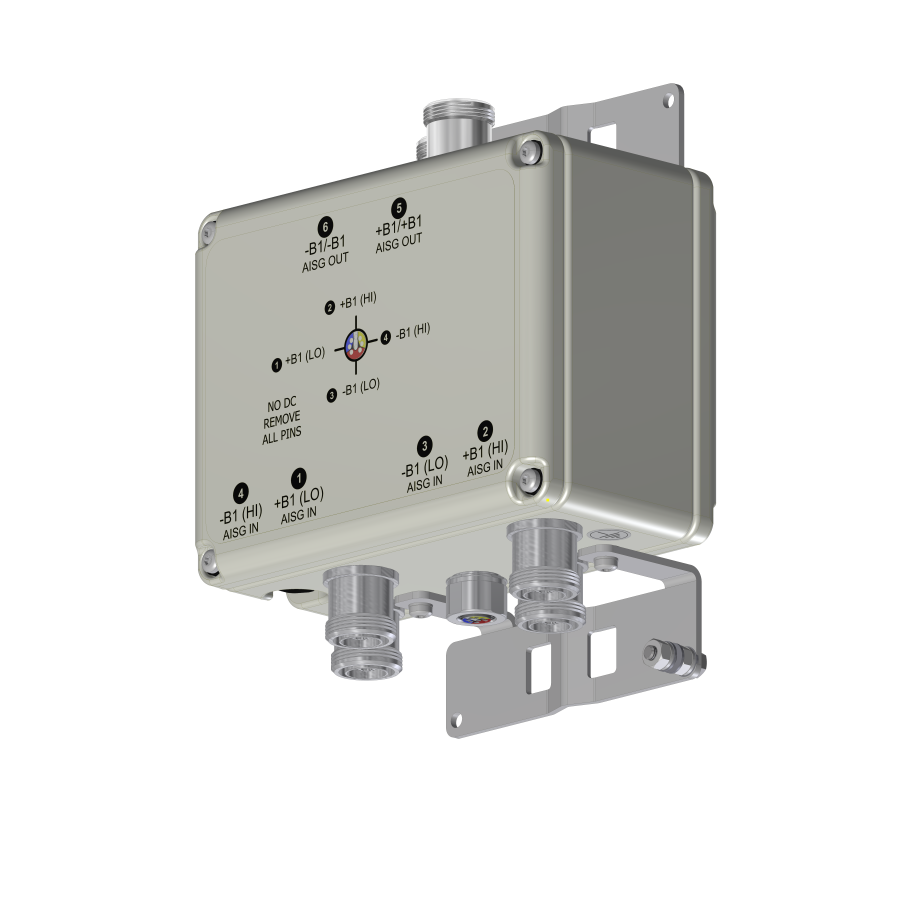

TWIN SAME BAND COMBINER, 1900

Designed to combine two sub-bands within the1900 band, the Kaelus DBC0081 provides a compact twin combining solution with low insertion, The DBC0081 solution minimizes feeders, TMA’s and antennas thereby saving both capital and operational expenditure when combining two base stations.

FEATURES

  • Allows two 1900 base stations to share feeders, TMAs and antennae
  • Field selectable DC/AISG bypass with built-in lightening protection
  • Low downlink and uplink insertion losses
  • Suitable for indoor and outdoor use
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name B1 (LO) B1 (HI)
downlink
Bandwidth 15MHz 25MHz
Insertion loss 0.5dB typical
uplink
Bandwidth 15MHz 25MHz
Insertion loss 0.65dB typical 0.8dB typical
isolation com port must be terminated in 50ohms
B1 (LO) TX frequency range 35dB typical, 30dB minimum
B1 (HI) TX frequency range 35dB typical, 30dB minimum
B1 (LO) RX frequency range 35dB typical, 30dB minimum
B1 (HI) RX frequency range 35dB typical, 30dB minimum
electrical
Impedance 50Ohms
Return loss 18dB minimum
Intermodulation products -161dBc typical / -155dBc maximum all ports with 2 x 20W carriers in RX band
Maximum input power 100W (average) / 1kW (PEP)
Guardband (frequency separation between B1 LO and B 1 HI) 20MHz minimum
dc / aisg
A field selectable DC/AISG path is achieved via mechanical links on a IEC60130-9, 8-pin female connector (see mechanical diagram).
Passband 0 - 3MHz
Insertion loss, single DC/AISG pass 1dB maximum
Return loss, single DC/AISG pass 12dB minimum
Insertion loss, two DC/AISG pass 4.5dB typical
Return loss, two DC/AISG pass 9dB typical
Input voltage range ± 31V
DC current rating 2A continuous, 4A peak
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -20ºC to +55ºC | +4°F to +131°F
Ingress protection IP67
Altitude 2,000m | 6,500ft
Lightning protection RF: ±5kA maximum (8/20us)
MTBF >1,000,000 hours
Compliance ETSI EN 300 019 class 4.1, RoHS
mechanical
Dimensions H x D x W 203 x 158 x 109mm | 8 x 6.2 x 4.3in
Weight 6.30kg | 13.9lbs
Finish Powder coated, light grey (RAL7035)
Connectors DIN 7-16 (F) x 6 long neck
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number B1 (LO) Band B1 (HI) Band Description
DBC0081F1V51-1 A E, F &C Twin Same Band Combiner 1900 - DC/AISG field selectable through external DC switch
DBC0081F3V51-1 A4,A5, D F&C&G Twin Same Band Combiner 1900 - DC/AISG field selectable through external DC switch
DBC0081F4V51-1 A5, D&B3 C&G Twin Same Band Combiner 1900 - DC/AISG field selectable through external DC switch

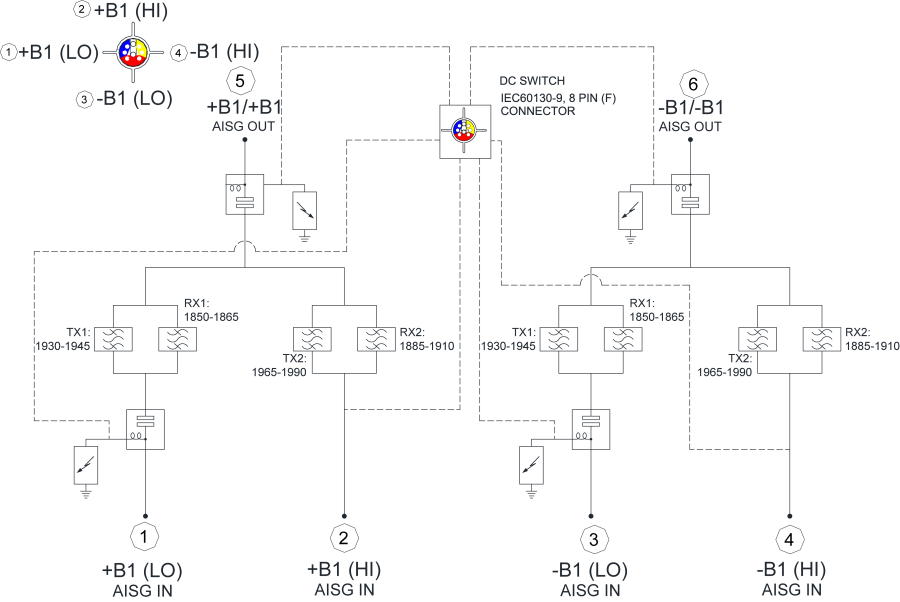

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

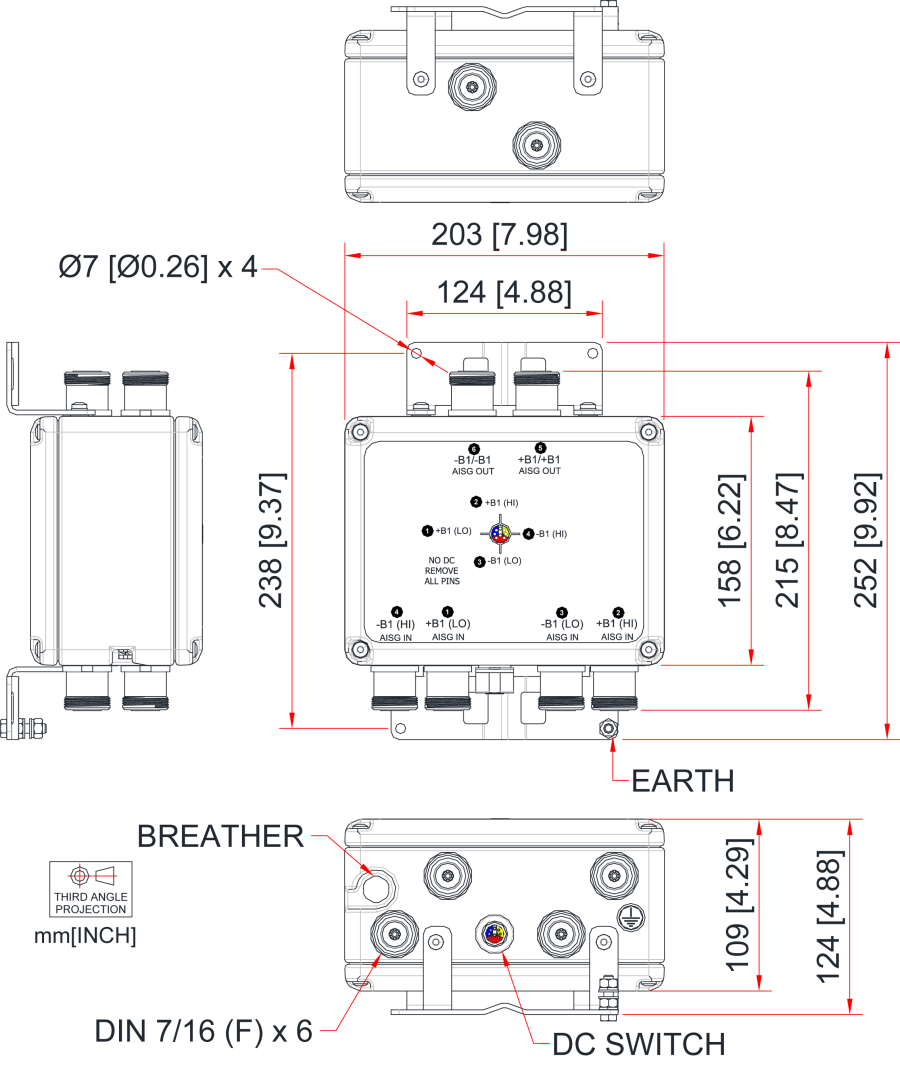

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
