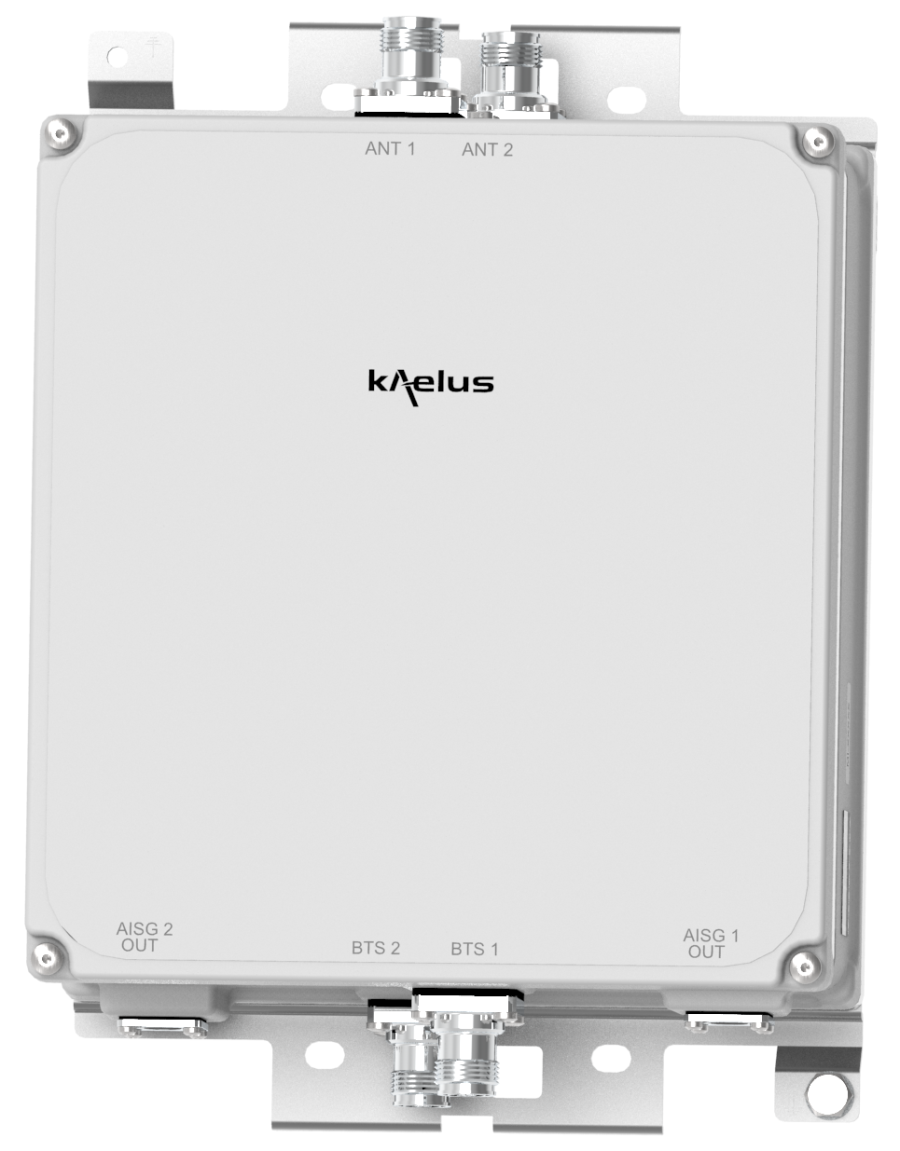

TWIN TMA 700/900

Designed to be deployed in collocated 700, 900 systems, the Kaelus MI-175 enhances cell uplink coverage in 700, 900 through improved system noise figure, thereby saving operational and capital expenditure.

Microdata Telecom rebranding to Kaelus!
Microdata Telecom and Kaelus have had combined operations since Oct 2019 when Microdata acquired Kaelus. We strongly believe that by operating under one global brand we will clarify our strengthened position in the telecom market and from January 18th 2021, we are unifying the brands to Kaelus.

FEATURES

  • Improved base station sensitivity through gain in the 700, 900 uplink
  • Internal diplexing on the high band port of 700,900 bands: 2 Antenna ports
  • Excellent noise figure performance
  • Full AISG operation and RET antenna support, AISG2.0 compatible
  • Small and light for minimum visual impact
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name700900
downlink
PassbandSee ordering information925 - 960 MHz
Insertion loss0.4dB typical
Return loss18dB
Maximum input power200W (average)*200W (average)*
Intermodulation products-160dBc in RX band at ANT
uplink
PassbandSee ordering information880 - 915 MHz
Gain12dB
Return loss16dB
Bypass return loss12dB
Bypass loss1.7dB typical
Noise figure1.1dB typical
Output IP325dBm typical
Maximum input power with no damage+10dB
electrical
Impedance50Ohms
aisg mode of operation (auto selected on valid aisg 2.0 frames)
AISG signals can be applied to the BTS ports. The TMA unit switches to AISG mode when valid frames are detected on either port. Each LNA is controlled uniquely by its sub-unit number.
DC supply voltage24 V DC nominal (+9.0V to +31V DC)
AISG version2.0
Power consumption, AISG mode< 4W
AISG connector, current ratingIEC60130-9, 8-pin female, 1.6A
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40°F to +149°F
Ingress protectionIP67
Lightning protectionIEC61312-1, RF: ±5kA (8/20us), AISG: ±3kA (8/20us)
MTBF>1,000,000 hours
ComplianceEMC: EN 301 489-50
Safety: EN 62368-1
Operation: ETSI EN 300 019-1-4 class 4.1E
Storage: ETS 300 019-1-1 class 1.2
mechanical
Dimensions H x D x W265 x 147 x 245 mm | 10.43 x 5.79 x 9.65in (excluding brackets and connectors)
Weight11.80kg | 26.01lbs
FinishPowder coated, NCS 1502-R
ConnectorsSee ordering information
MountingPole/wall bracket using two metal clamps, suits 40-140mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectorsAISG Mode
MI-17501TWIN, 2 in / 2 outD/L: 743-788MHz
U/L: 703-733MHz		7/16 (F)
1xAISG		COMMON MODE
ONETWO (*)
MI-17502TWIN, 2 in / 2 outD/L: 753-798MHz
U/L: 713-743MHz		7/16 (F)
1xAISG		COMMON MODE
ONETWO (*)
MI-17503TWIN, 2 in / 2 outD/L: 758-803MHz
U/L: 718-748MHz		7/16 (F)
2xAISG		COMMON MODE
ONETWO (*)
MI-17504TWIN, 2 in / 2 outD/L: 743-788MHz
U/L: 703-733MHz		7/16 (F)
1xAISG		COMMON MODE
TWOTWO (*)
MI-17505TWIN, 2 in / 2 outD/L: 753-798MHz
U/L: 713-743MHz		7/16 (F)
1xAISG		COMMON MODE
TWOTWO (*)
MI-17509TWIN, 2 in / 2 outD/L: 758-803MHz
U/L: 718-748MHz		7/16 (F)
2xAISG		COMMON MODE
TWOTWO (*)
MI-17506TWIN, 2 in / 2 outD/L: 743-788MHz
U/L: 703-733MHz		7/16 (F)
2xAISG		INDEPENDENT
MI-17507TWIN, 2 in / 2 outD/L: 753-798MHz
U/L: 713-743MHz		7/16 (F)
2xAISG		INDEPENDENT
MI-17508TWIN, 2 in / 2 outD/L: 758-803MHz
U/L: 718-748MHz		7/16 (F)
2xAISG		INDEPENDENT
MI-17531TWIN, 2 in / 2 outD/L: 743-788MHz
U/L: 703-733MHz		4.3-10 (F)
1xAISG		COMMON MODE
ONETWO (*)
MI-17532TWIN, 2 in / 2 outD/L: 753-798MHz
U/L: 713-743MHz		4.3-10 (F)
1xAISG		COMMON MODE
ONETWO (*)
MI-17533TWIN, 2 in / 2 outD/L: 758-803MHz
U/L: 718-748MHz		4.3-10 (F)
1xAISG		COMMON MODE
ONETWO (*)
MI-17534TWIN, 2 in / 2 outD/L: 743-788MHz
U/L: 703-733MHz		4.3-10 (F)
1xAISG		COMMON MODE
TWOTWO (*)
MI-17535TWIN, 2 in / 2 outD/L: 753-798MHz
U/L: 713-743MHz		4.3-10 (F)
1xAISG		COMMON MODE
TWOTWO (*)
MI-17539TWIN, 2 in / 2 outD/L: 758-803MHz
U/L: 718-748MHz		4.3-10 (F)
1xAISG		COMMON MODE
TWOTWO (*)
MI-17536TWIN, 2 in / 2 outD/L: 743-788MHz
U/L: 703-733MHz		4.3-10 (F)
2xAISG		INDEPENDENT
MI-17537TWIN, 2 in / 2 outD/L: 753-798MHz
U/L: 713-743MHz		4.3-10 (F)
2xAISG		INDEPENDENT
MI-17538TWIN, 2 in / 2 outD/L: 758-803MHz
U/L: 718-748MHz		4.3-10 (F)
2xAISG		INDEPENDENT
(*) ONETWO: the TMA is identified as 1 logic unit with 2 subunits
(**) TWOTWO: the TMA is identified as 2 logic units with 2 subunits each
electrical block diagram

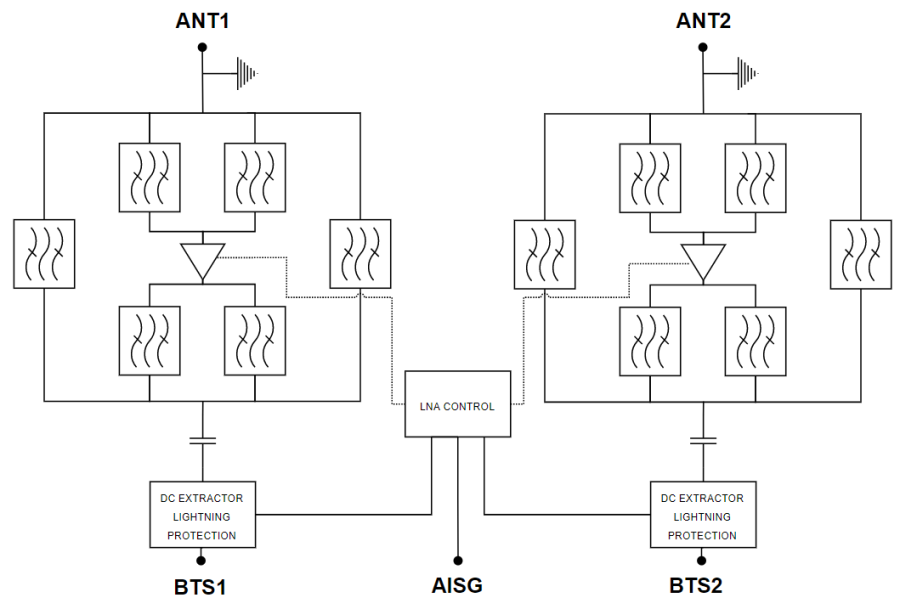

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

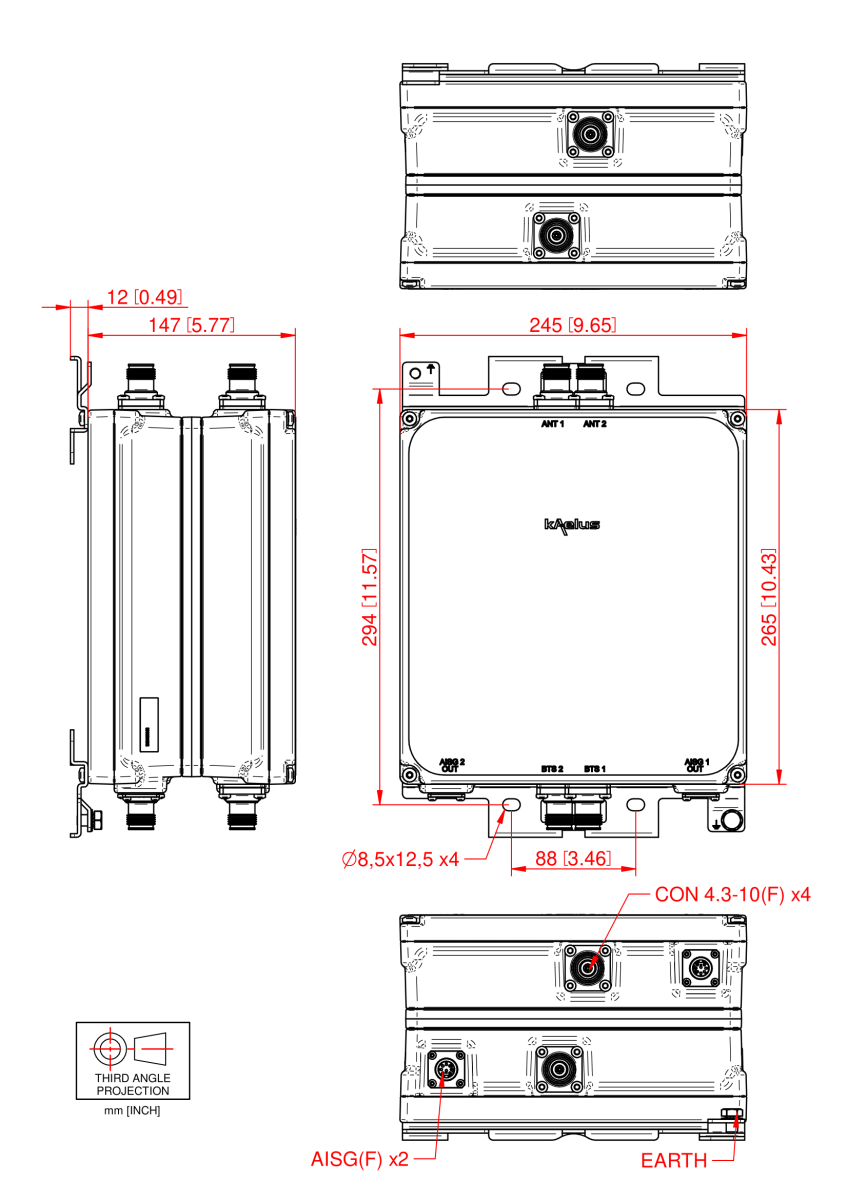

MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
