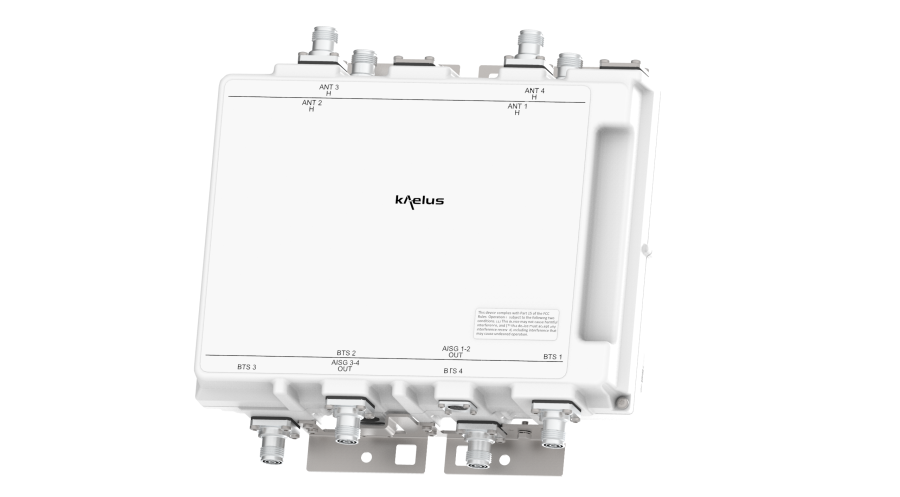

MI-190

TMA TWIN PCS/AWS

Designed to be deployed in collocated PCS and AWS systems, the Kaelus MI-190 enhances cell uplink coverage in PCS and AWS through improved system noise figure, thereby saving operational and capital expenditure.

Microdata Telecom rebranding to Kaelus!
Microdata Telecom and Kaelus have had combined operations since Oct 2019 when Microdata acquired Kaelus. We strongly believe that by operating under one global brand we will clarify our strengthened position in the telecom market and from January 18th 2021, we are unifying the brands to Kaelus.

FEATURES

  • Improved base station sensitivity through gain in the PCS and AWS uplink
  • Internal diplexing on the antenna port of PCS and AWS bands: 2 or 4 Antenna ports(See ordering info)
  • Excellent noise figure performance
  • Full AISG operation and RET antenna support, AISG2.0 compatible
  • Small and light for minimum visual impact
  • Available as a twin or quad configuration

technical specifications
Band NamePCSAWS
downlink
Passband1930 - 1990MHz2110 - 2200MHz
Insertion loss0.5dB typical0.3dB typical
Return loss20dB typical, 18dB minimum
Maximum input power200W (average)
Intermodulation products-165dBc typical in RX band at ANT
uplink
Passband1850 - 1910MHz1695 - 1780MHz
Gain12dB +/- 1dB typical
Return loss16dB
Bypass loss2.2dB typical1.5dB typical
Noise figure1.3dB typical1.1dB typical
Output IP325dBm typical
electrical
Impedance50Ohms
aisg mode of operation (auto selected on valid aisg 2.0 frames)
AISG signals can be applied to the BTS ports. The TMA unit switches to AISG mode when valid frames are detected on either port.
DC supply voltage24 V DC Nominal
+9.0V to +30V DC
AISG version2.0
Power consumption, AISG mode< 4W
AISG connector, current ratingIEC60130-9, 8-pin female
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40°F to +149°F
Ingress protectionIP67
MTBF>1,200,000 hours
ComplianceEMC:FCC part 15
Safety: IEC/EN 62368-1
Operation: ETSI EN 300 019-1-4 class 4.1E
Storage: ETS 300 019-1-1 class 1.2
mechanical
FeatureTWINQUAD
Dimensions H x D x W258 x 58 x 344mm | 10.1 x 2.3 x 13.5in258 x 109 x 344mm | 10.1 x 4.3 x 13.5in
Weight6.5kg | 14.33lbs11kg | 24.25lbs
FinishPowder coated, NCS 1502-R
MountingPole/wall bracket using two metal clamps, suits 40-140mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectorsAISG Mode
MI-19031TWIN, 2 in / 4 outBASE MODEL4.3-10 (F)
1xAISG
ONETWO (*)
MI-19032TWIN, 2 in / 4 outBASE MODEL4.3-10 (F)
1xAISG
TWOTWO (*)
MI-19041TWIN, 4 in /8 outBASE MODEL4.3-10 (F)
2xAISG
ONETWO (*)
MI-19042TWIN, 4 in /8 outBASE MODEL4.3-10 (F)
2xAISG
TWOTWO (*)
(*) ONETWO: the TMA is identified as 1 logic unit with 2 subunits
(**) TWOTWO: the TMA is identified as 2 logic units with 2 subunits each

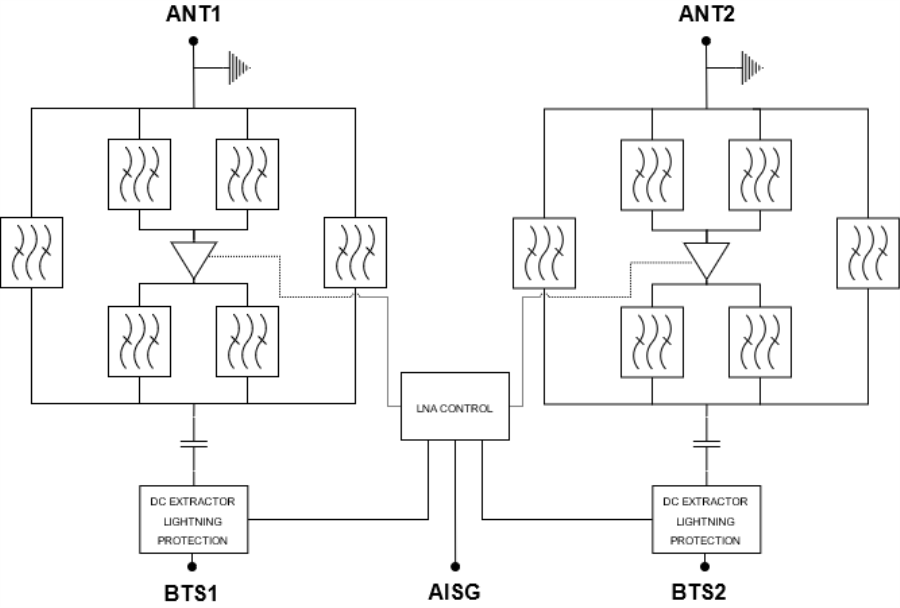

electrical block diagram
ELECTRICAL BLOCK DIAGRAM
Twin unit shown

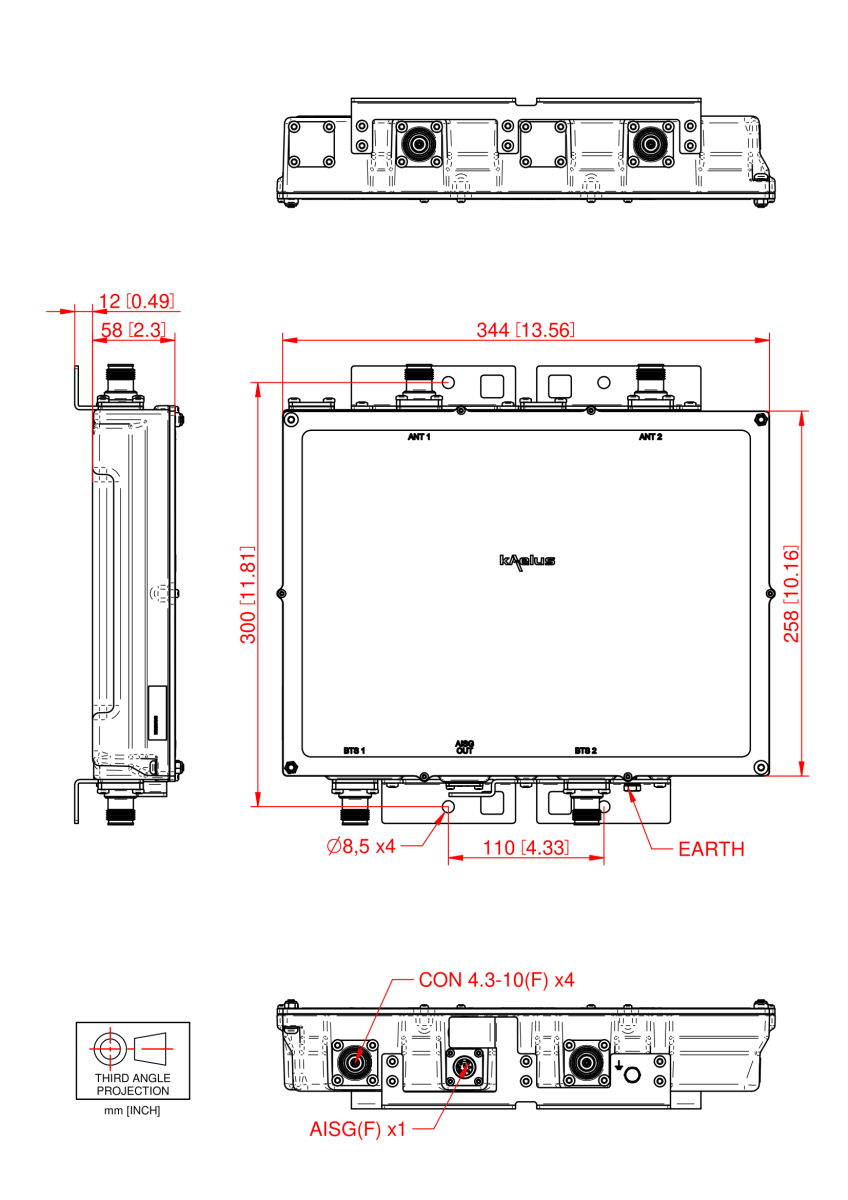

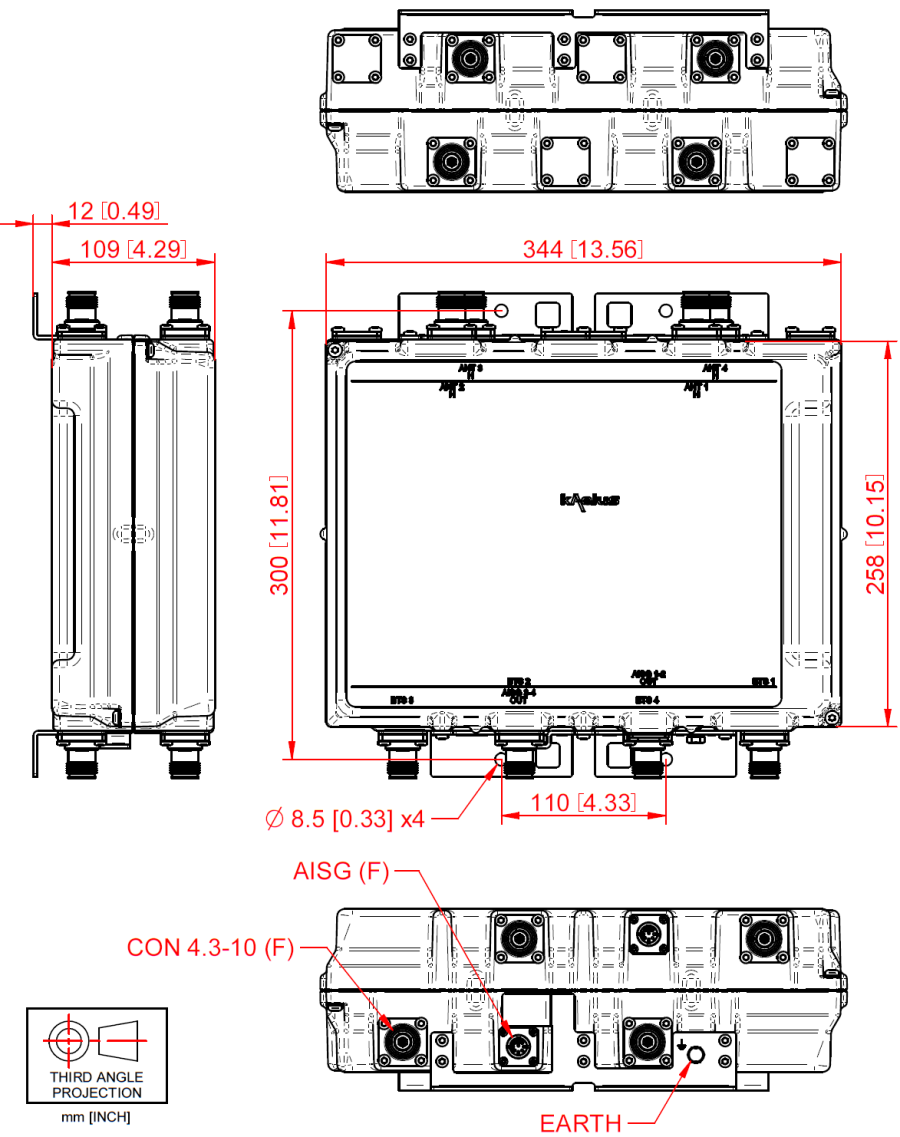

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
