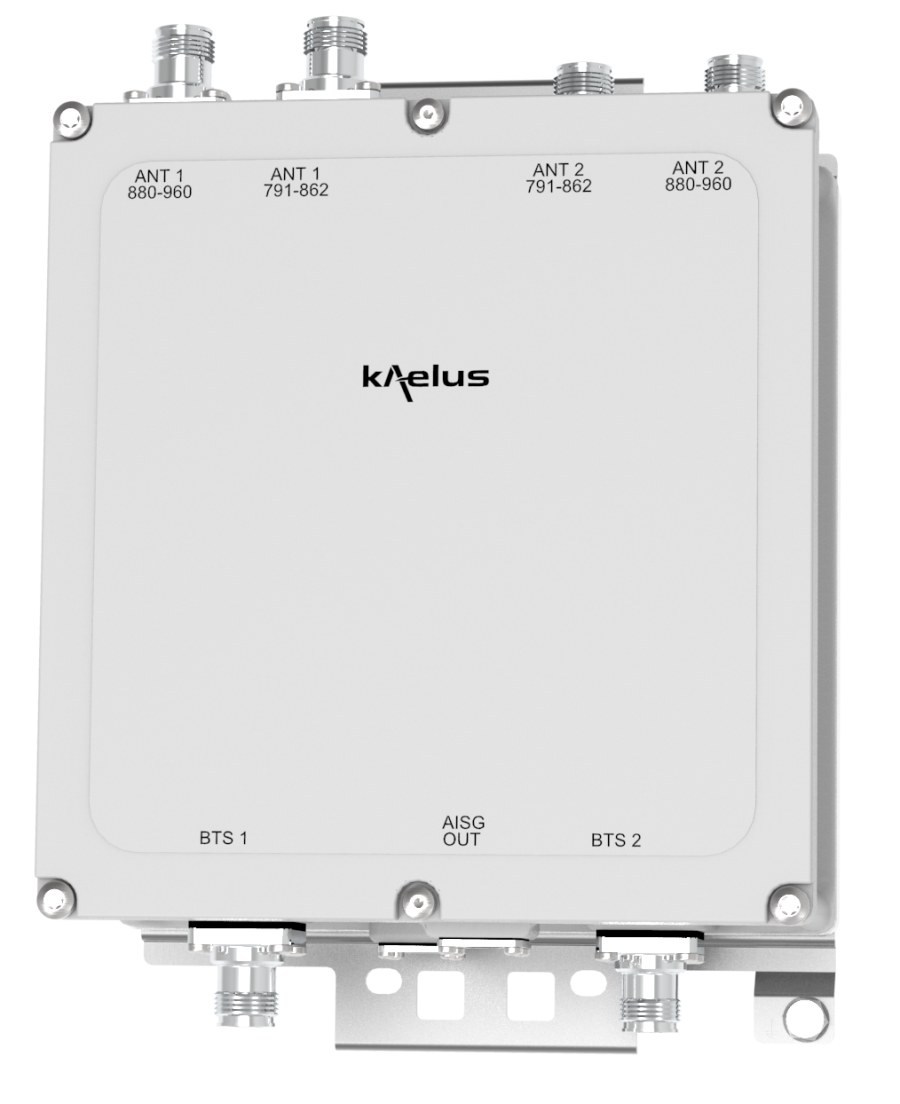

MI-165

MI-165

TMA TWIN 800/900

Designed to be deployed in collocated 800 and 900 systems, the Kaelus MI-165 enhances cell uplink coverage in 800 and 900 through improved system noise figure, thereby saving operational and capital expenditure.

FEATURES

  • Improved base station sensitivity through gain in the 800 and 900 uplink
  • 4 Antenna ports
  • Excellent noise figure performance
  • Full AISG operation and RET antenna support, AISG2.0 compatible
  • Small and light for minimum visual impact
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name 800 900
downlink
Passband 791 - 821MHz 925 - 960MHz
Insertion loss 0.4dB typical 0.4dB typical
Return loss 18dB minimum
Maximum input power 200W (average) 200W (average)
Intermodulation products -159dBc in RX band at ANT
uplink
Passband 832 - 862MHz 880 - 915MHz
Gain 12dB nominal
Return loss 16dB minimum
Bypass return loss 12dB minimum
Bypass loss 1.7dB maximum
Noise figure 1.1dB typical
Output IP3 25dBm typical
electrical
Impedance 50Ohms
power supply and alarm (current window alarm mode, default)
Current window alarm mode (CWA) is the default operating mode and can be configured to specific customer requirements. Please contact Kaelus for more information.
DC supply voltage +9 to +15V DC
DC supply current, normal mode 165mA @ 12V
DC supply current, alarm mode 320mA max
aisg mode of operation (auto selected on valid aisg 2.0 frames)
AISG signals can be applied to the BTS ports. The TMA unit switches to AISG mode when valid frames are detected on either port. Each LNA is controlled uniquely by its sub-unit number.
DC supply voltage 24 V DC nominal (+9.0V to +31V DC)
AISG version 1.1 or 2.0
Power consumption, AISG mode < 4W
AISG connector, current rating IEC60130-9, 8-pin female, 1.6A
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40°F to +149°F
Ingress protection IP67
Lightning protection IEC61312-1, RF: ±10kA (8/20us), AISG: ±5kA (8/20us)
MTBF >1,000,000 hours
Compliance EMC: EN 301 489-8
Safety: EN 62368-1
Operation: ETSI EN 300 019-1-4 class 4.1E
Storage: ETS 300 019-1-1 class 1.2
mechanical
Dimensions H x D x W 249 x 152 x 234 mm | 9.8 x 6 x 9.2in (excluding brackets and connectors)
Weight 9.5kg | 20.94lbs
Finish Powder coated, NCS 1502-R
Connectors See ordering information
Mounting Pole/wall bracket using two metal clamps, suits 40-140mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors AISG Mode
MI-16501 TWIN, 2 in / 4 out BASE MODEL 7/16 (F)
1xAISG		 COMMON MODE
ONETWO (*)
MI-16502 TWIN, 2 in / 4 out BASE MODEL 7/16 (F)
1xAISG		 COMMON MODE
TWOTWO (**)
MI-16506 TWIN, 2 in / 4 out BASE MODEL 7/16 (F)
2xAISG		 INDEPENDENT
MI-16531 TWIN, 2 in / 4 out BASE MODEL 4.3-10 (F)
1xAISG		 COMMON MODE
ONETWO (*)
MI-16532 TWIN, 2 in / 4 out BASE MODEL 4.3-10 (F)
1xAISG		 COMMON MODE
TWOTWO (**)
MI-16536 TWIN, 2 in / 4 out BASE MODEL 4.3-10 (F)
2xAISG		 INDEPENDENT
(*) ONETWO: the TMA is identified as 1 logic unit with 2 subunits
(**) TWOTWO: the TMA is identified as 2 logic units with 2 subunits each
electrical block diagram
ELECTRICAL BLOCK DIAGRAM
mechanical block diagram
MECHANICAL BLOCK DIAGRAM
