TMA2053F00V1-1

TWIN TMA 1800/2100

Designed to be deployed in co-located 1800 & 2100MHz systems with wideband antennas, the Kaelus TMA2053 provides internal diplexing and gain in both bands, thereby saving hardware costs.

FEATURES

  • Improved base station sensitivity through gain in the 1800 and 2100 uplink bands
  • Hardware & software configuration using AISG “personality” upload
  • Excellent noise figure performance
  • Internal diplexing of 1800 and 2100MHz bands
  • AISG2.0 compatible
  • Compact, low weight

technical specifications
Band Name1800 BAND2100 BAND
downlink
Passband1805 - 1880MHz2110 - 2170MHz
Insertion loss0.6dB typical0.4dB typical
Return loss18dB minimum (VSWR <1.3:1)
Maximum input power200W (average) / 2kW (PEP)120W (average) / 2kW (PEP)
Intermodulation products-161dBc typical /-153dBc maximum with 2 x 20W carriers (in RX band) @ antenna port-163dBc maximum with 2 x 20W carriers (in RX band) @ antenna port
uplink
Passband1710 - 1785MHz1920 - 1980MHz
Gain12dB
Gain variation±1dB maximum
Return loss18dB minimum
Bypass return loss12dB
Bypass loss2.5dB typical2.9dB typical
Noise figure1.25dB typical1.35dB typical
Output IP3+30dBm typical
Maximum input power with no damage+12dBm
electrical
Impedance50Ohms
power supply and alarm (current window alarm mode, default)
Current window alarm mode (CWA) is the default TMA operating mode and can be configured to specific customer requirements. The generic personality (F00) is configured so that both channels are independently powered and monitored via the respective BTS port. The BTS port sinks additional current to indicate an alarm state in its uplink path. Normal operating and alarm current values are configured independently and are alterable via a field-loadable personality file, contact Kaelus for more information.
DC supply voltage7.5V to 30V DC, case is DC ground, via BTS-RF cable
DC supply voltage via BTS-RF cableF00 Version: each BTS port powered individually (programmable)
DC supply current, normal mode150 ± 15mA per port (assumes both ports are powered)
DC supply current, alarm mode220 ± 20mA per port (assumes both ports are powered)
aisg mode of operation (auto selected on valid aisg 2.0 frames)
AISG signals can be applied to either BTS1 or BTS2 port. The TMA unit switches to AISG mode when valid frames are detected on one of the BTS ports. Both LNAs take DC power from the port with AISG frames or, if DC is present on both ports, both channels supply equal power to the TMA.
DC supply voltage7.5V to 30V DC
AISG version2.0 (1.1 optional)
Supply current, AISG mode265mA @ 7.5V, 75mA @ 30V typical
Voltage drop, BTS to AISG port 1.5V maximum at 2A
AISG connector, current ratingIEC60130-9, 8-pin female ,< 4A peak, 2A continuous, pin 6
Field firmware upgradableYes
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40°F to +155°F
Ingress protectionIP67
Altitude2,600m | 8,530ft
Lightning protectionIEC61312-1, RF: ±5kA maximum (8/20us), AISG: ±2kA maximum (8/20us)
MTBF>1,000,000 hours
ComplianceEMC:EN301 489, Environment: ETSI EN 300 019 class 4.1, RoHS
mechanical
Dimensions H x D x W168 x 300 x 93mm | 6.6 x 11.8 x 3.7in (excluding brackets and connectors)
Weight7.9kg | 17.4lbs
FinishPowder coated, light grey (RAL7035)
ConnectorsRF: DIN 7-16 (F) (V3) or 4.3-10 (V4) x 4 long neck
AISG: IEC60130-9, 8-pin female
MountingPole/wall bracket supplied with two metal clamps 45-178mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectors
Kaelus TMAs can be uploaded with customer specific CWA configuration, customer specific firmware (FW) and a custom bracket (BKT). Please contact Kaelus for more information.
TMA2053F00V1-1 TWIN 2 in / 2 outConfigured with generic personalityDIN 7-16 (F)
TMA2053F03V2-4 TWIN 2 in / 2 outCUSTOM CWA, BKTDIN 7-16 (F)
TMA2053F03V3-4C TWIN 2 in / 2 outCUSTOM CWA, BKT, FWDIN 7-16 (F)
electrical block diagram
ELECTRICAL BLOCK DIAGRAM

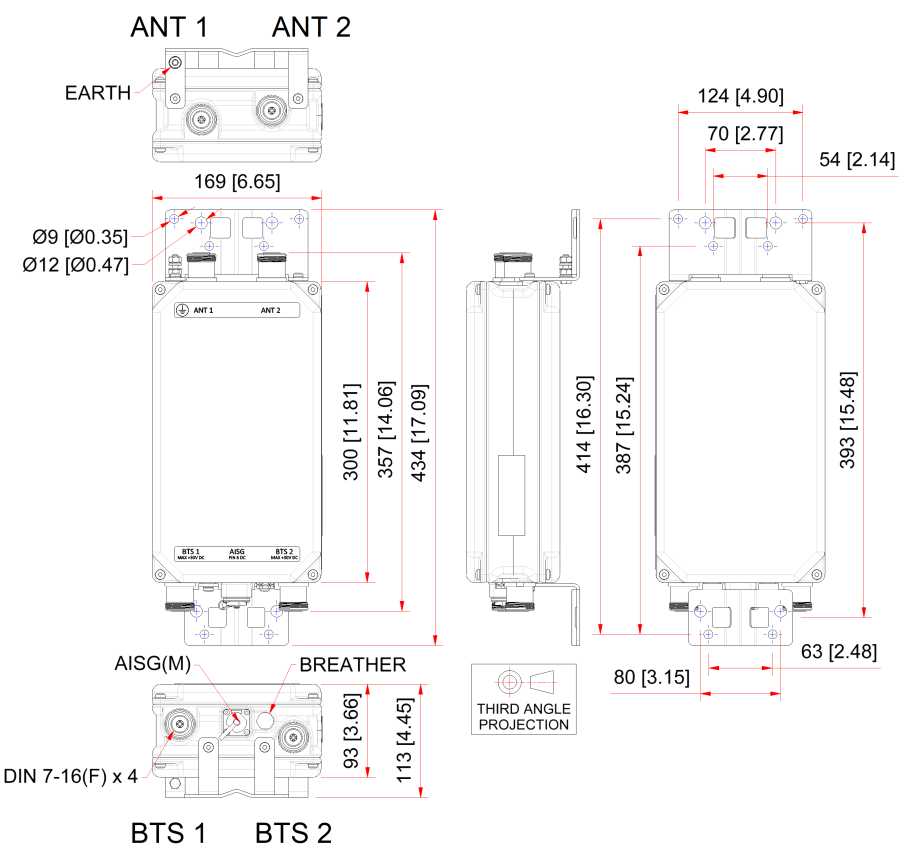

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
