TMA2093F02V1-1D

TWIN TMA AWS/1900 DUAL BAND WITH LOW BAND BYPASS

Designed to be deployed in co-located AWS, 1900 and low band (698-960) systems with wideband antennas, the Kaelus TMA2093 provides internal duplexing in all three bands with uplink gain in the high bands. A passive Tx/Rx path is provided to a low-band antenna port, thereby saving capital expenditure and tower leasing fees.

FEATURES

  • Improved base station sensitivity through gain in the AWS and 1900 uplink bands
  • Excellent noise figure performance
  • Internal duplexing of 698-960MHz signals to be passed to additional ANT ports
  • AISG2.0 compatible, hardware & software configuration using AISG “personality” upload
  • Internal duplexing of AWS and 1900 bands
  • DC/AISG bypass onto low band main (optional)

technical specifications
Band Name 1900 AWS
downlink
Passband 1930 - 1990MHz 2110 - 2180MHz
Insertion loss 0.8dB typical 0.4dB typical
Return loss 18dB minimum
Maximum input power 160W (average) / 2kW (PEP) 160W (average) / 2kW (PEP)
Intermodulation products -153dBc maximum, (3rd order) in RX band with 2 x 20W carriers -153dBc maximum, (7th order) in RX band with 2 x 20W carriers
uplink
Passband 1850 - 1910MHz 1710 - 1780MHz
Gain 12dB
Gain variation ±1dB maximum
Return loss 18dB minimum operating, 12dB in bypass mode
Bypass loss 2.9dB typical 2.6dB typical
Noise figure 1.4dB typical
Output IP3 29dBm typical
Maximum input power with no damage 12dBm
low band bypass path
Passband 698 - 960MHz
Return loss 18dB minimum
Insertion loss 0.1dB typical
Maximum input power with no damage 120W (average) / 2kW (PEP)
Intermodulation @ antenna ports -153dBc, (3rd order) with 2 x 20W carriers
electrical
Impedance 50Ohms
power supply and alarm (current window alarm mode, default)
Current window alarm mode (CWA) is the default TMA operating mode and can be configured to specific customer requirements. The generic personality (F02V1) is configured so that both channels are independently powered and monitored via the respective BTS port. The BTS port sinks additional current to indicate an alarm state in its uplink path. Normal operating and alarm current values are configured independently and can be altered via a field-loadable personality file, contact Kaelus for more information.
DC supply voltage 7.5 to 30V DC, case is DC ground
DC supply voltage via BTS-RF cable DC power can be applied to either port
DC power to be drawn from one BTS port only
DC applied to both BTS ports power will only be drawn from BTS1
DC supply current, normal mode 150 ± 15mA per port (for F02V1)
DC supply current, alarm mode programmable range 150 - 250mA, 220 ± 20mA per port (for F02V1)
aisg mode of operation (auto selected on valid aisg 2.0 frames)
AISG signals can be applied to either BTS1 or BTS2 port. The TMA unit switches to AISG mode when valid frames are detected on one of the BTS ports. Both LNAs take DC power from the port with AISG frames or, if DC is present on both ports, both channels supply equal power to the TMA.
DC supply voltage 7.5V to 30V DC
AISG version 2.0 (1.1 optional)
Supply current, AISG mode 300mA @ 7.5V, 85mA @ 30V typical
AISG connector, current rating IEC60130-9, 8-pin female ,< 4A peak, 2A continuous, pin 6
Field firmware upgradable Yes
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40°F to +149°F
Ingress protection IP67
Lightning protection IEC61312-1, RF: ±5kA maximum (8/20us), AISG: ±2kA maximum (8/20us)
MTBF >1,000,000 hours
Compliance FCC part 15, ETSI EN 300 019 class 4.1, RoHS
mechanical
Dimensions H x D x W 300 x 250 x 95mm | 11.8 x 9.8 x 3.7in (excluding brackets and connectors)
Weight 10.5kg | 23.1lbs
Finish Painted, light grey (RAL7035)
Connectors DIN 7-16 (F) x 6 long neck, AISG (F) x 1
Mounting Pole/wall bracket supplied with two metal clamps 45-178mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors
TMA2093F02V1-1D TWIN 2 in / 4 out Configured with AT&T personality DIN 7-16 (F)
electrical block diagram

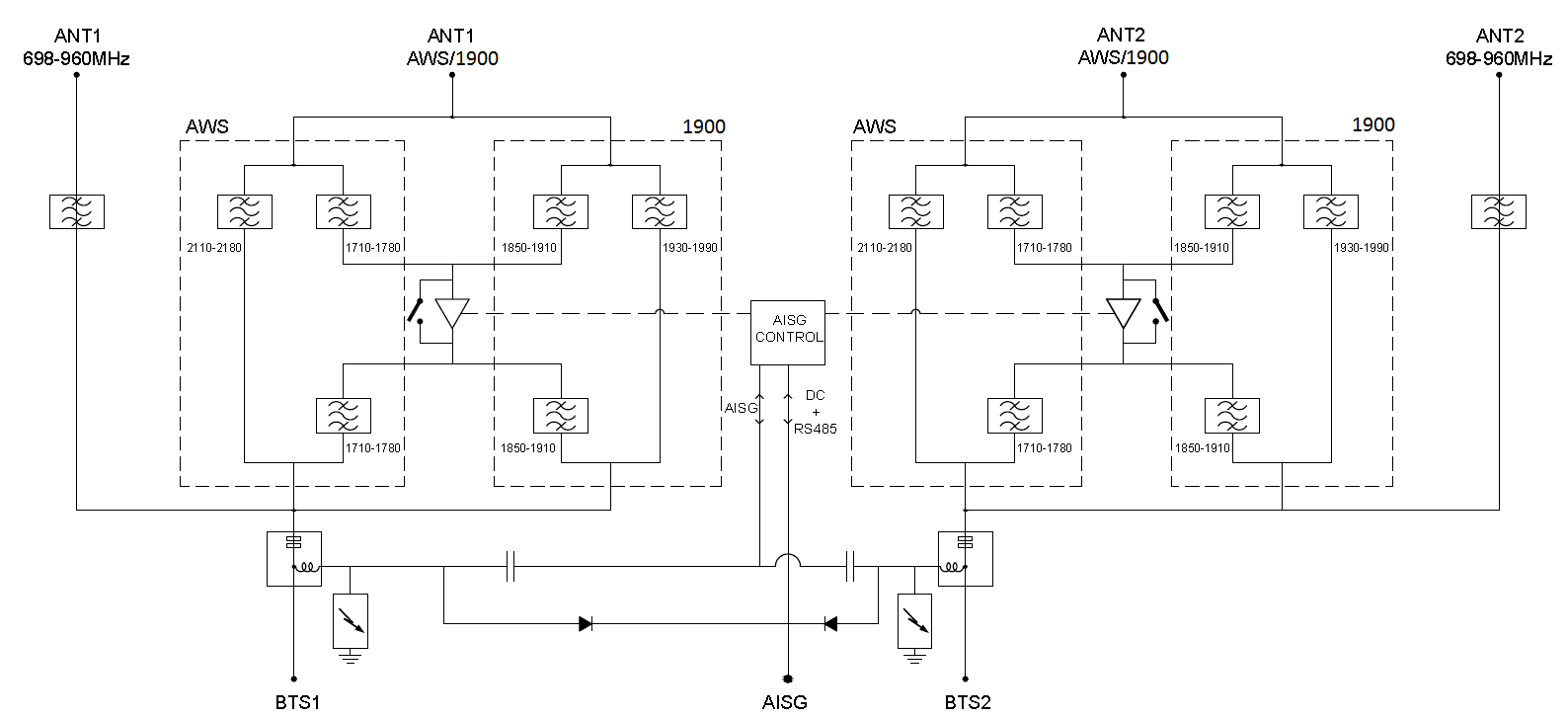

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

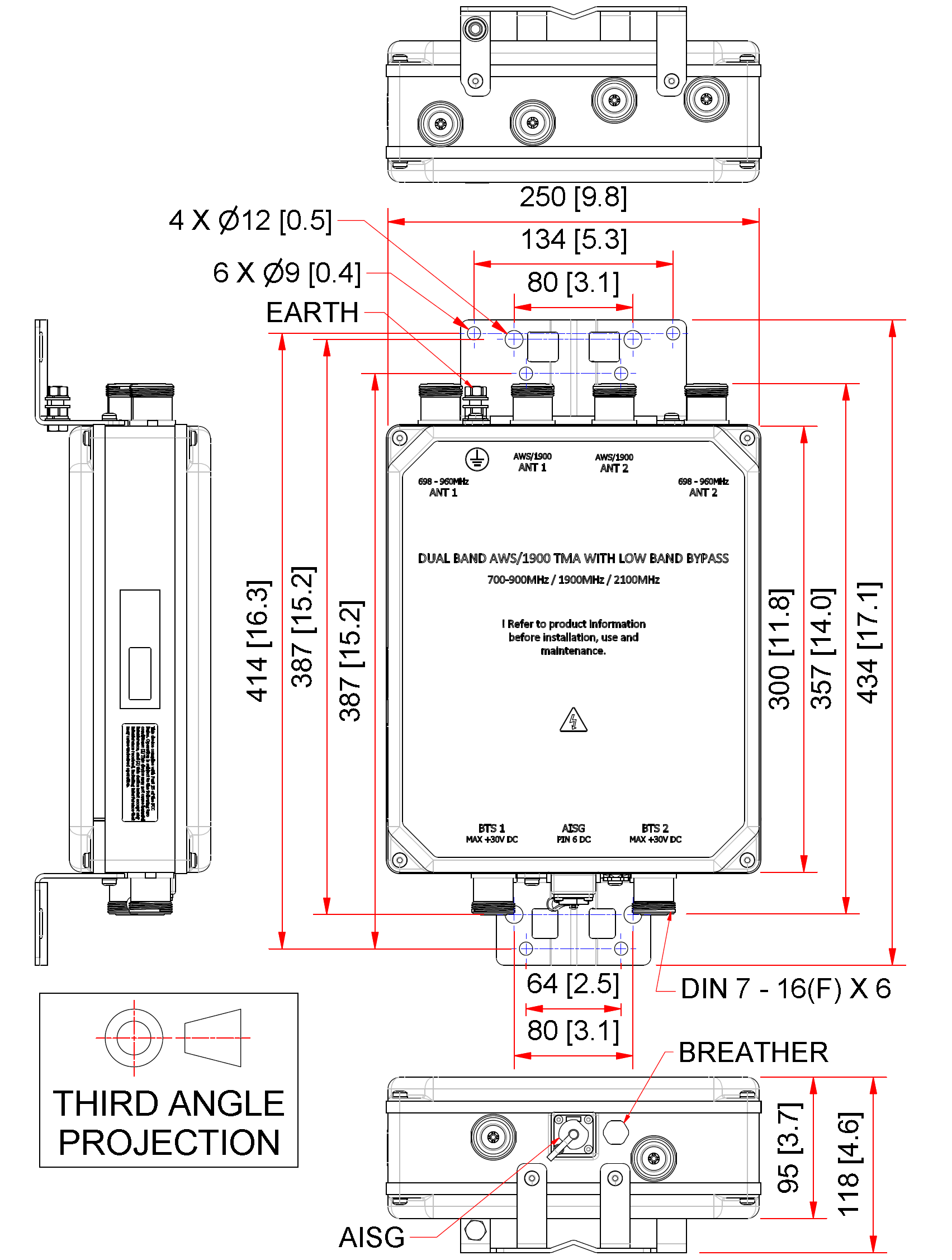

MECHANICAL BLOCK DIAGRAM
